Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

102 part groups · 23 illustrations

Illustrations

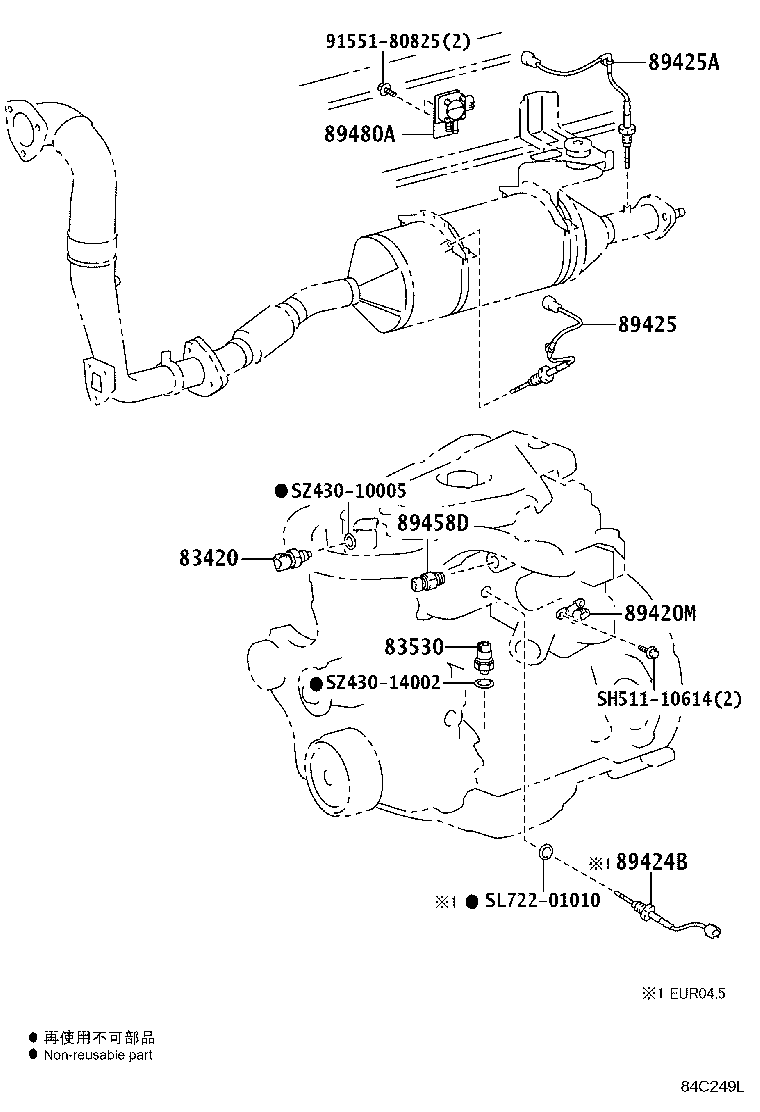

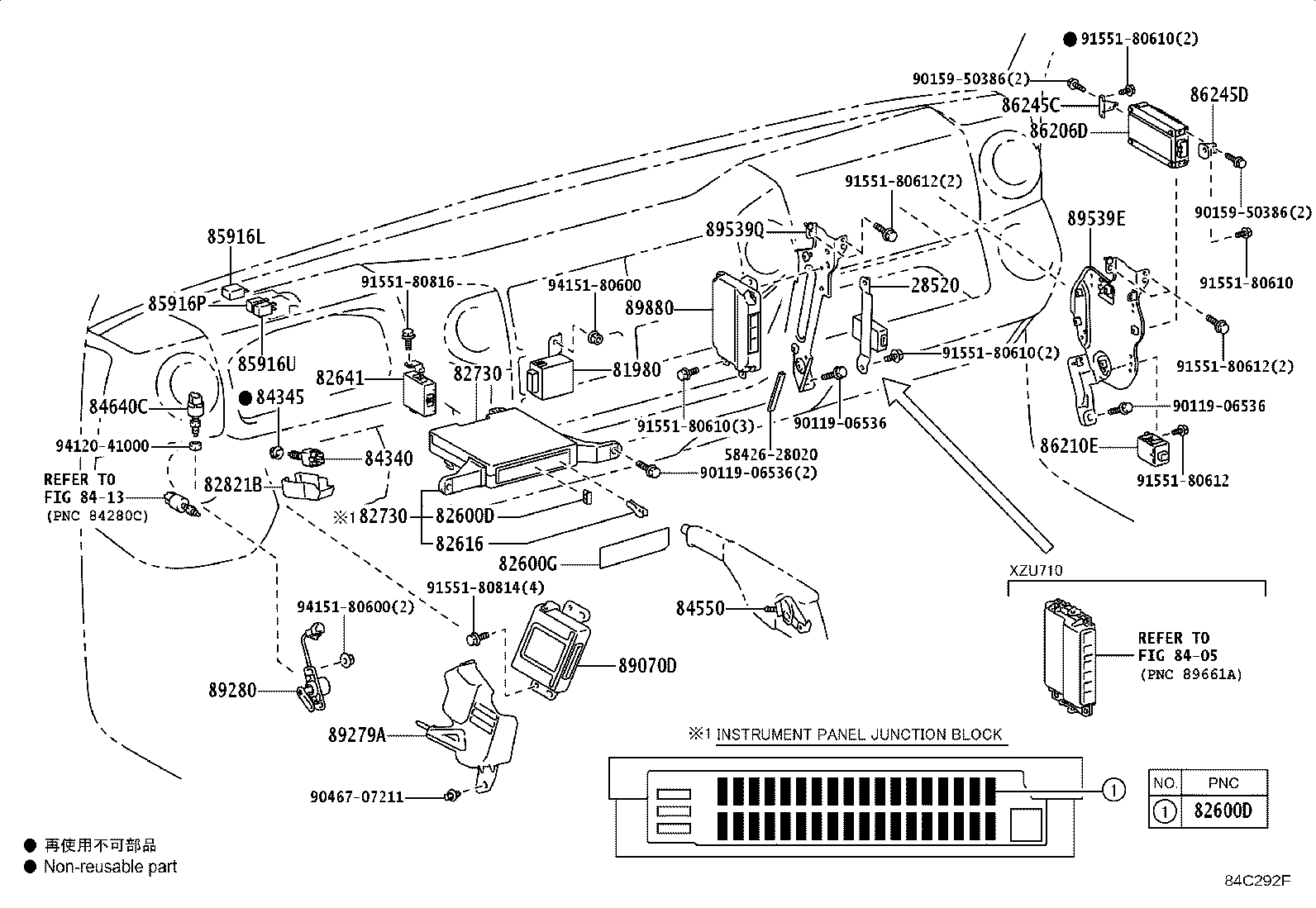

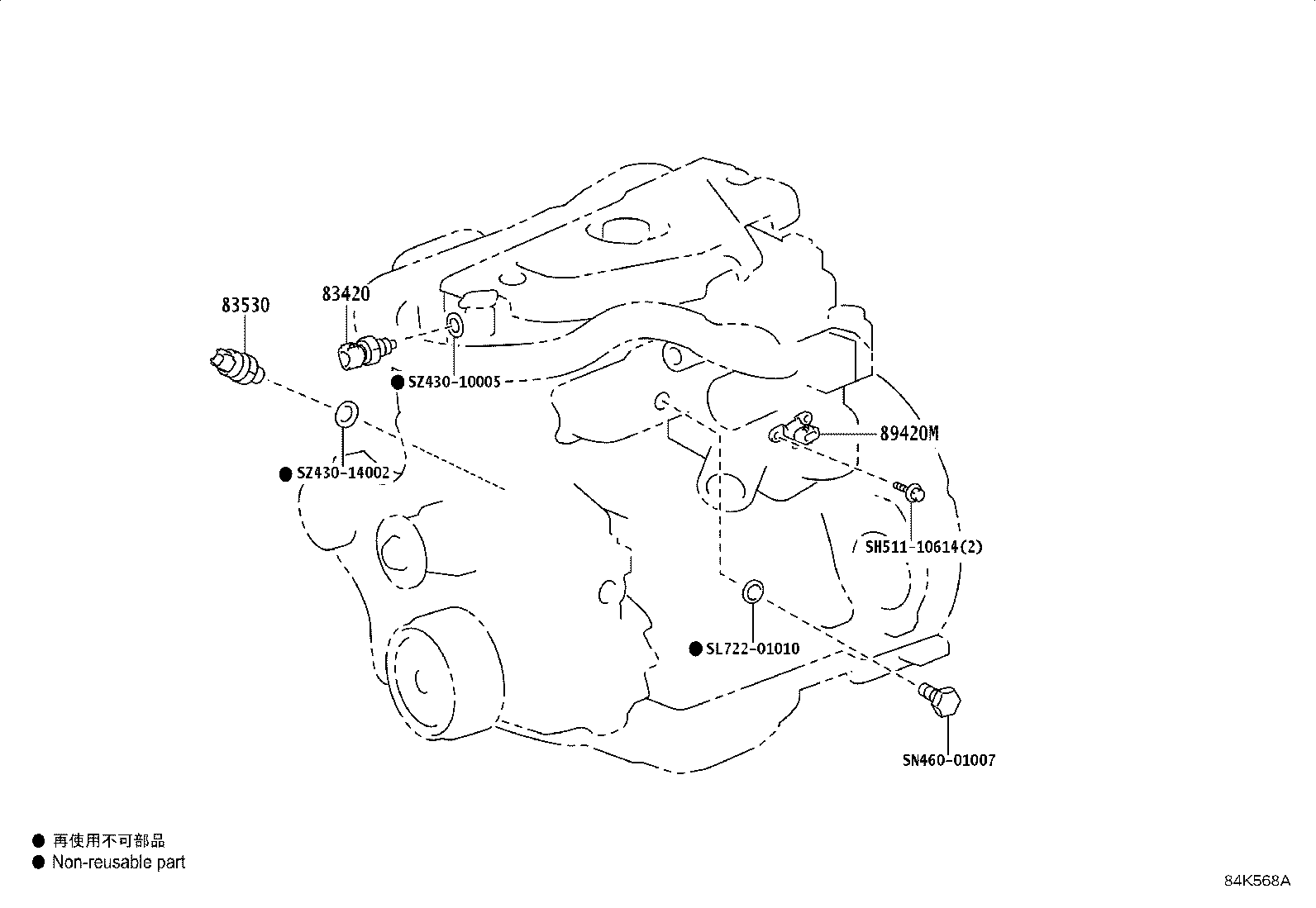

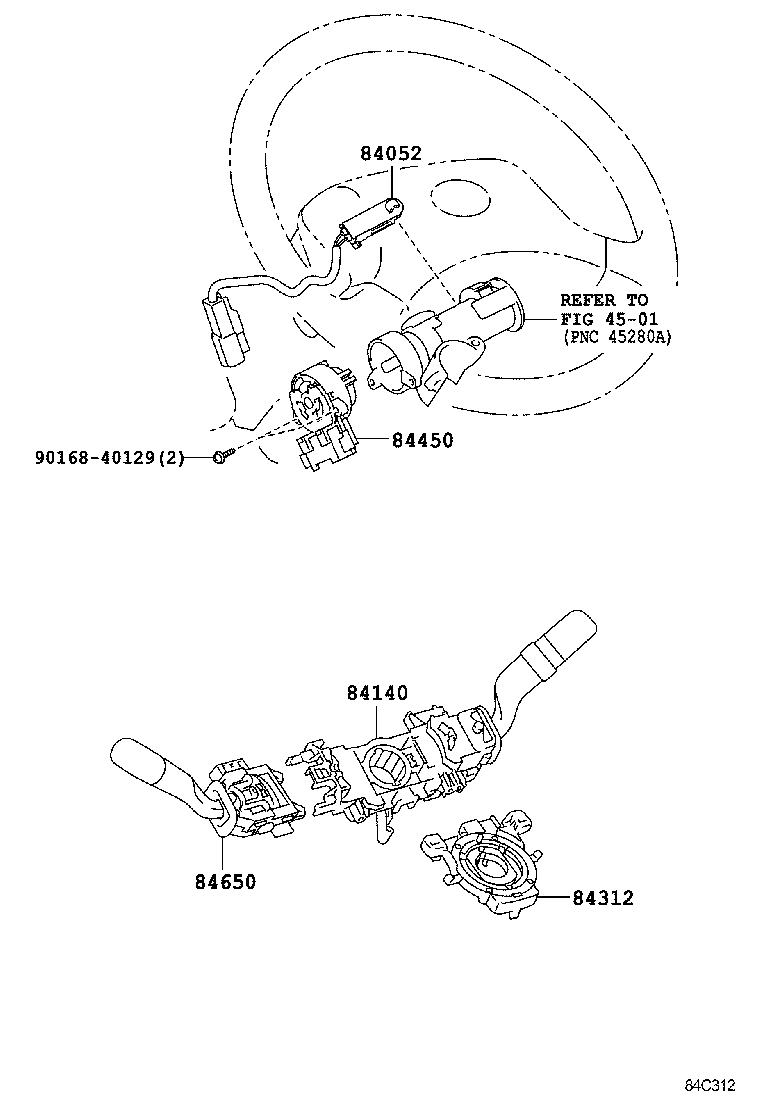

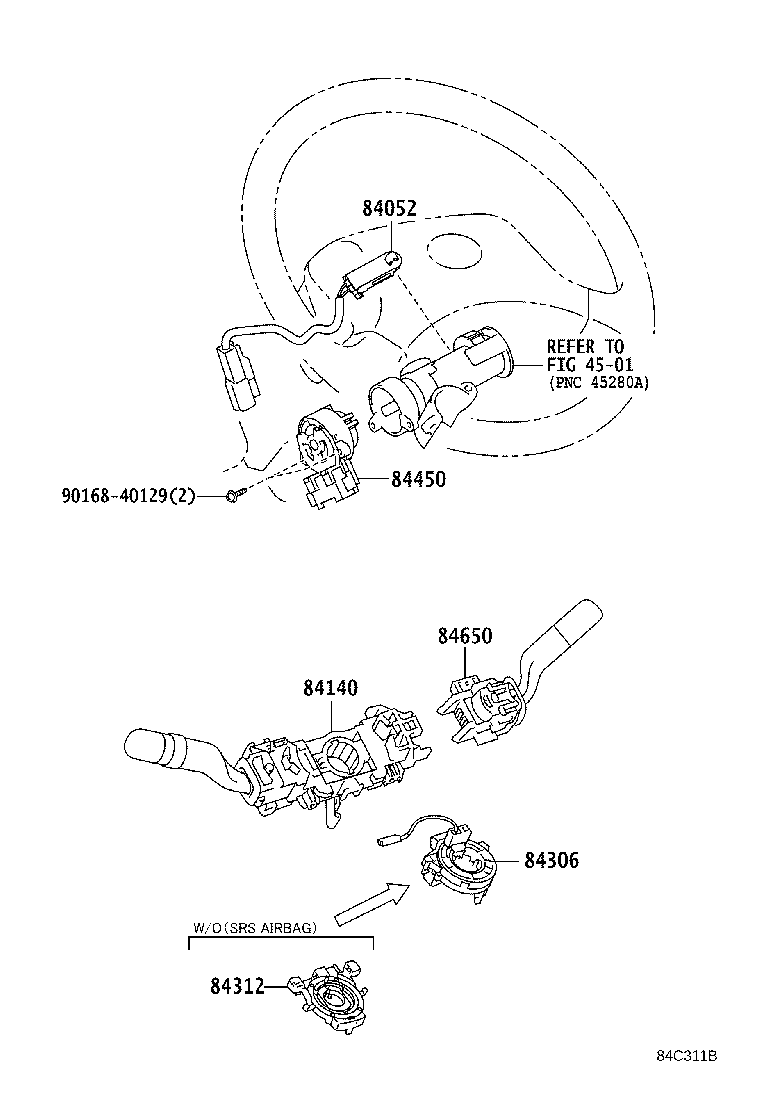

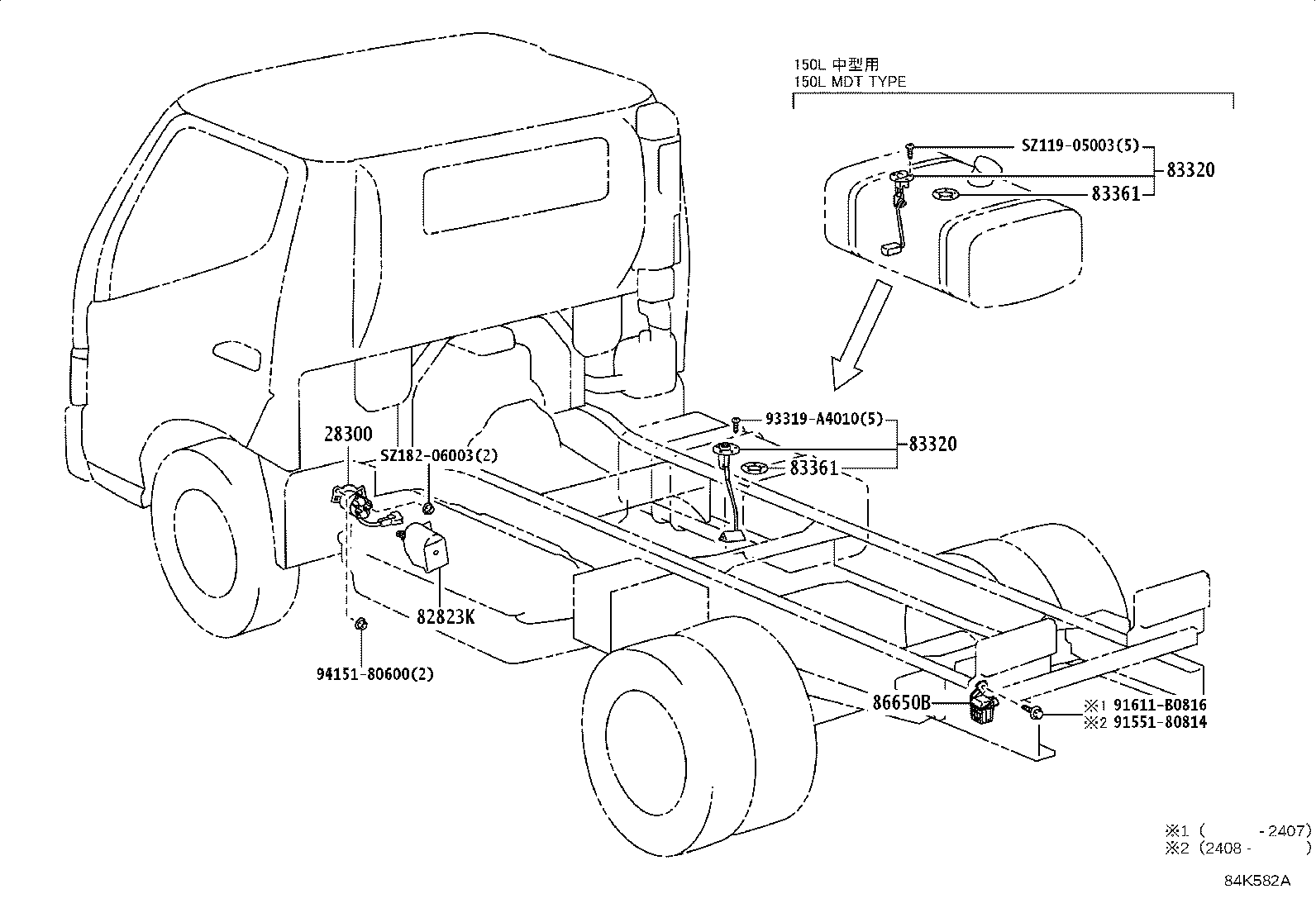

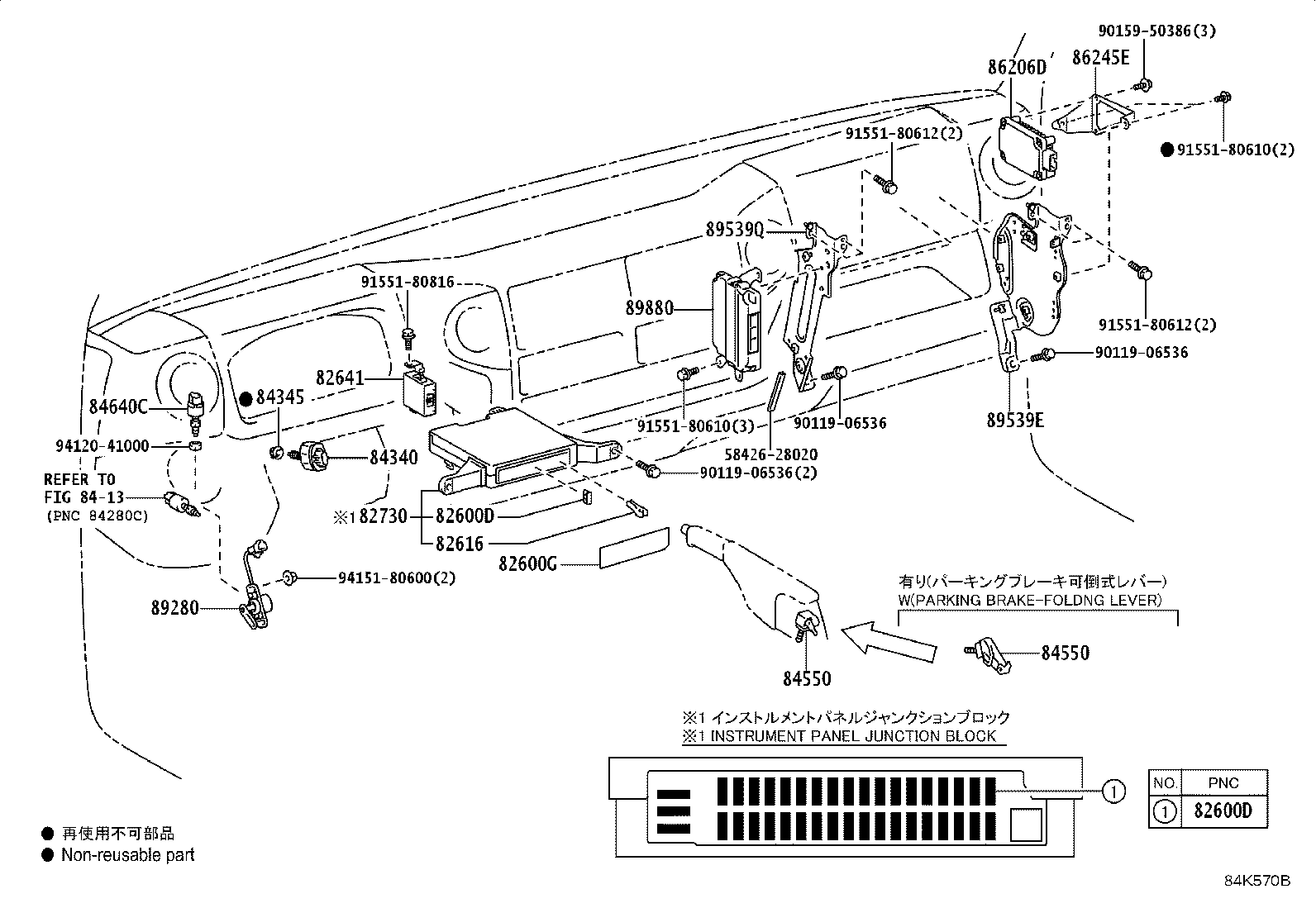

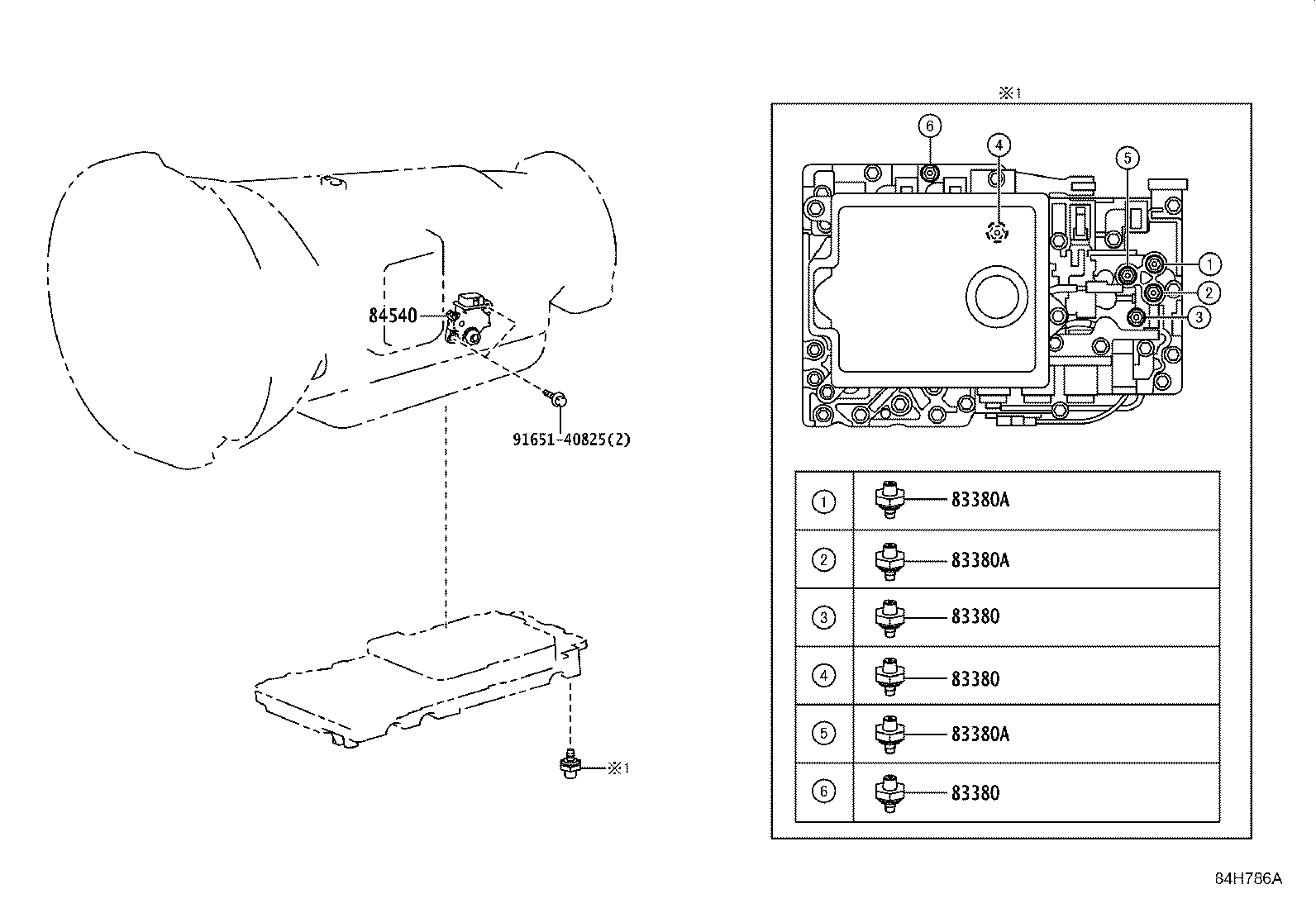

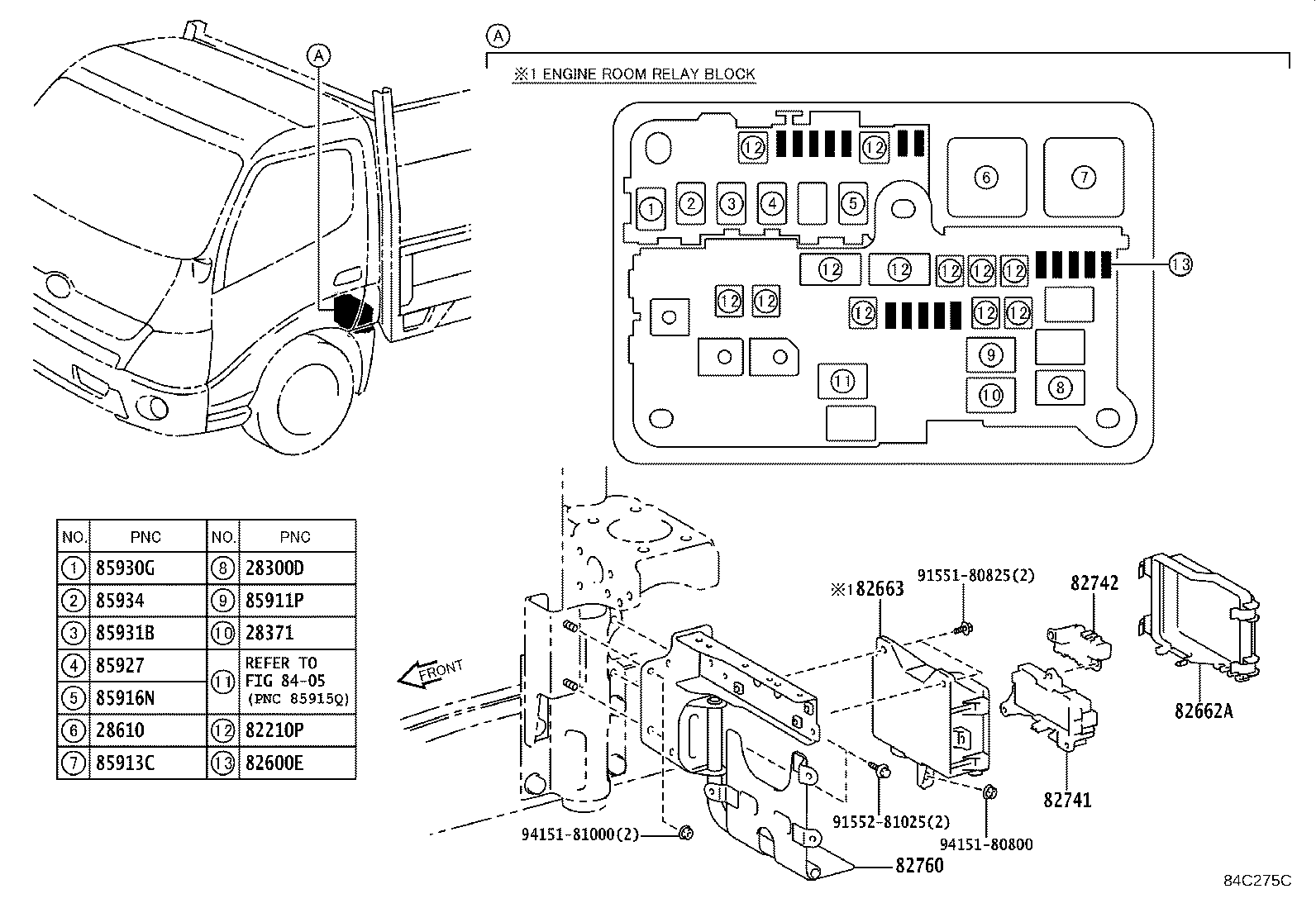

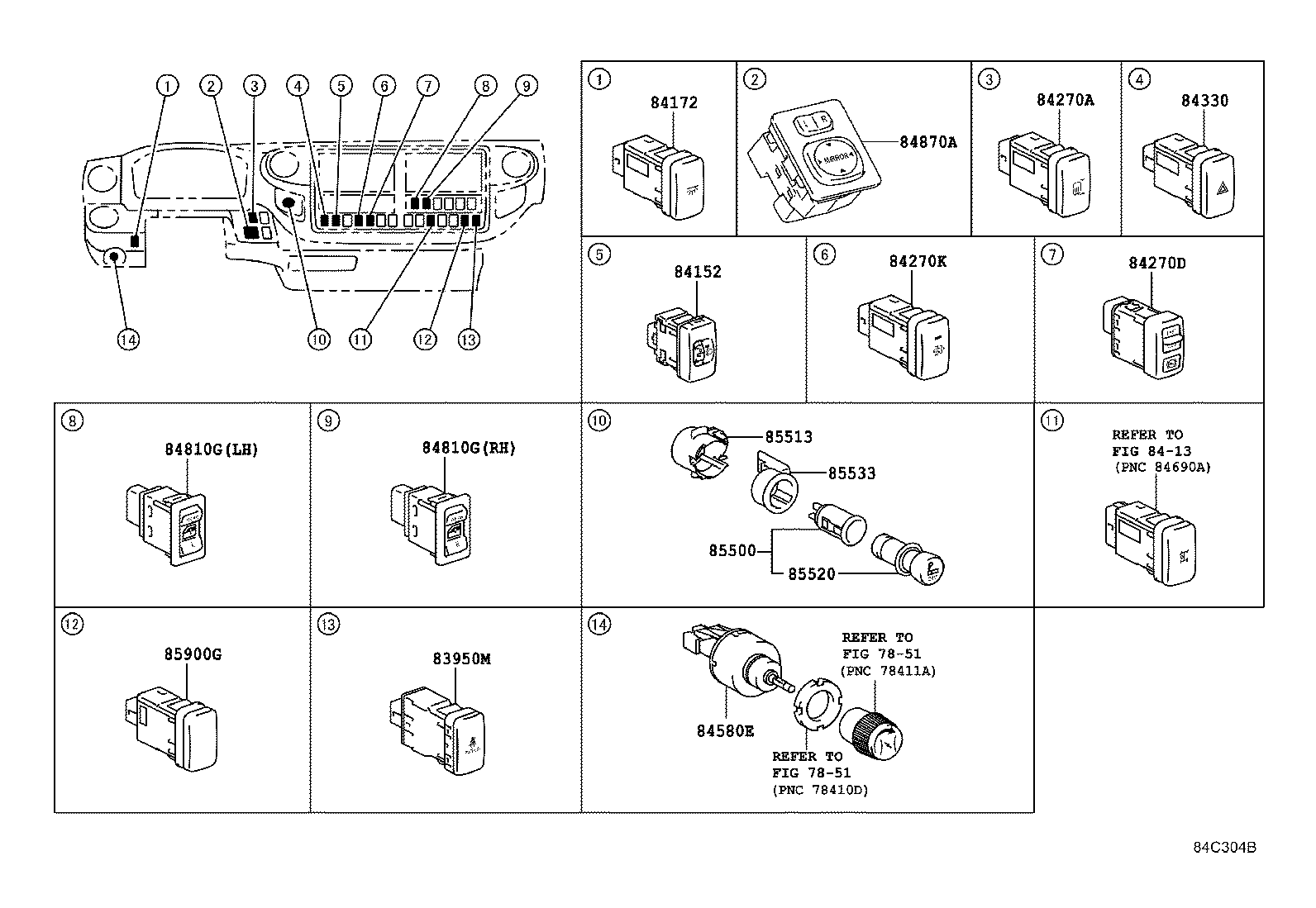

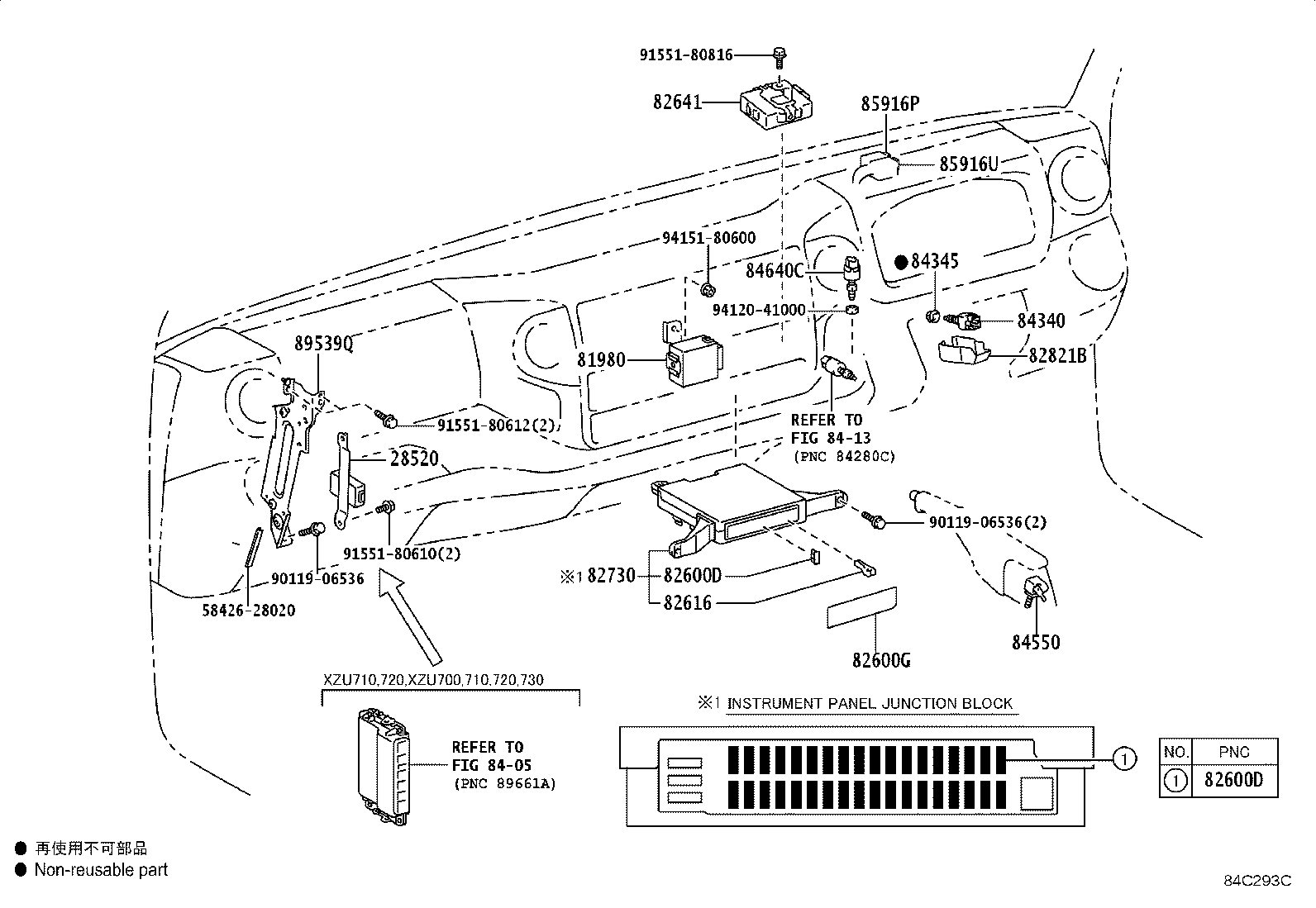

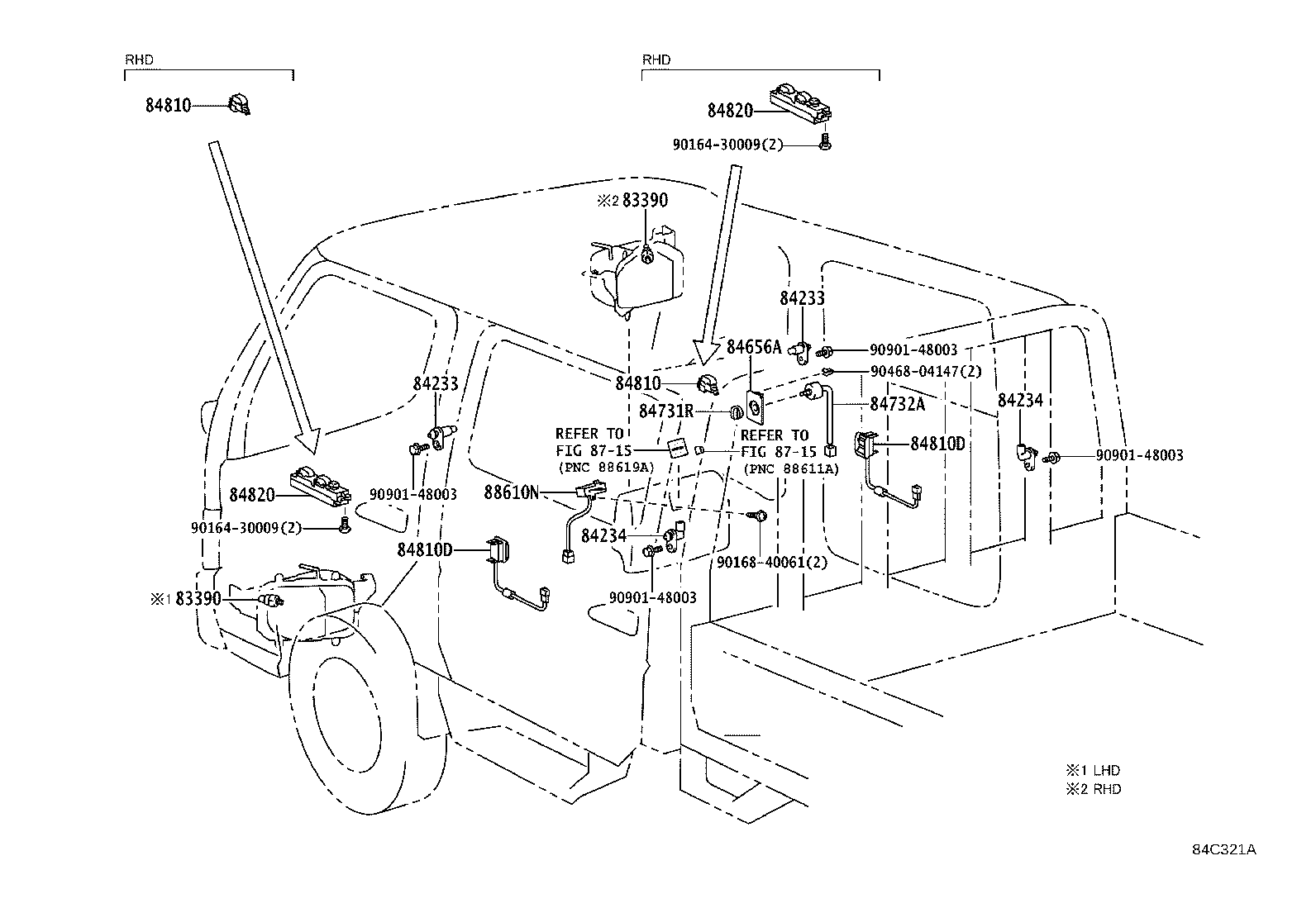

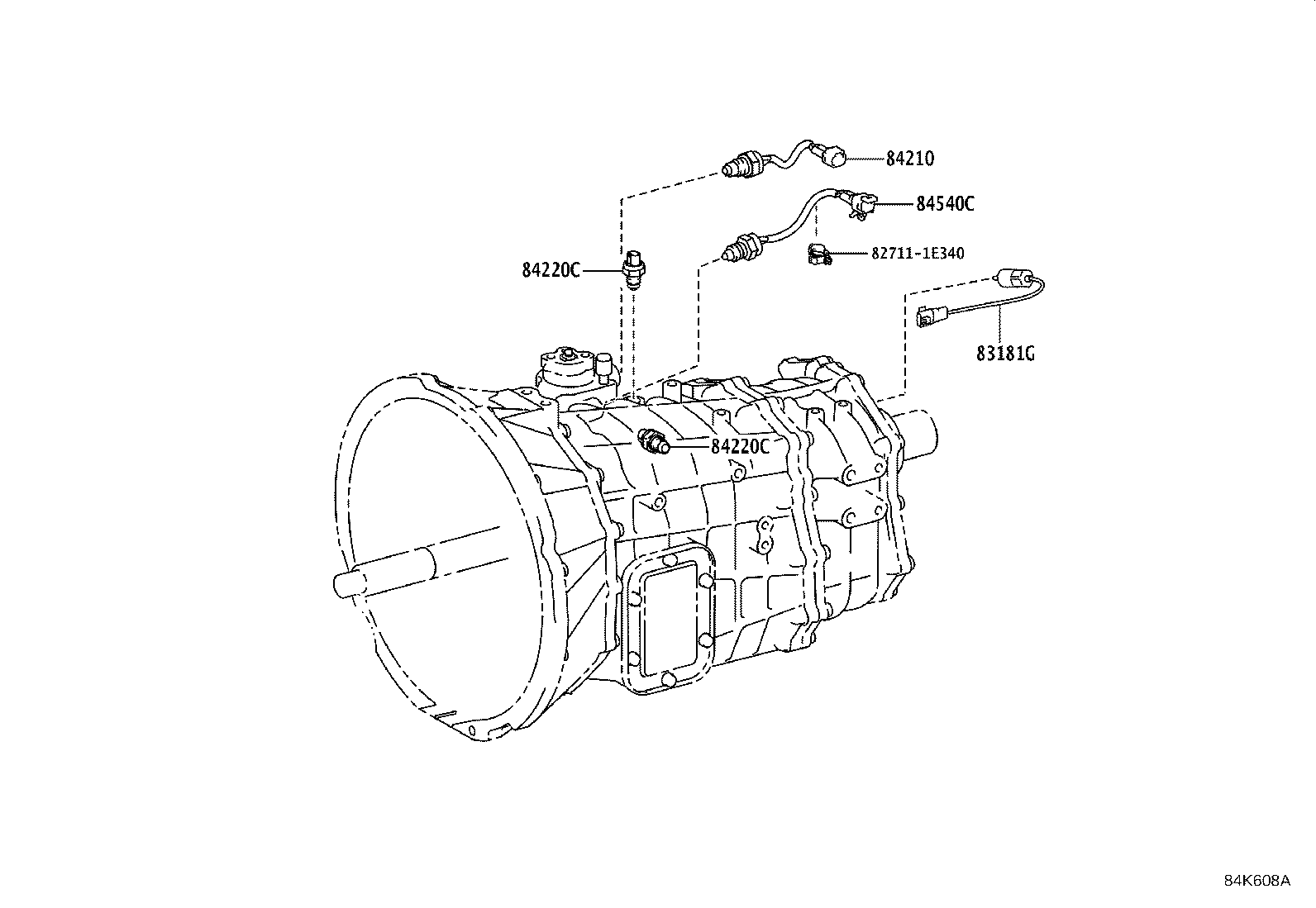

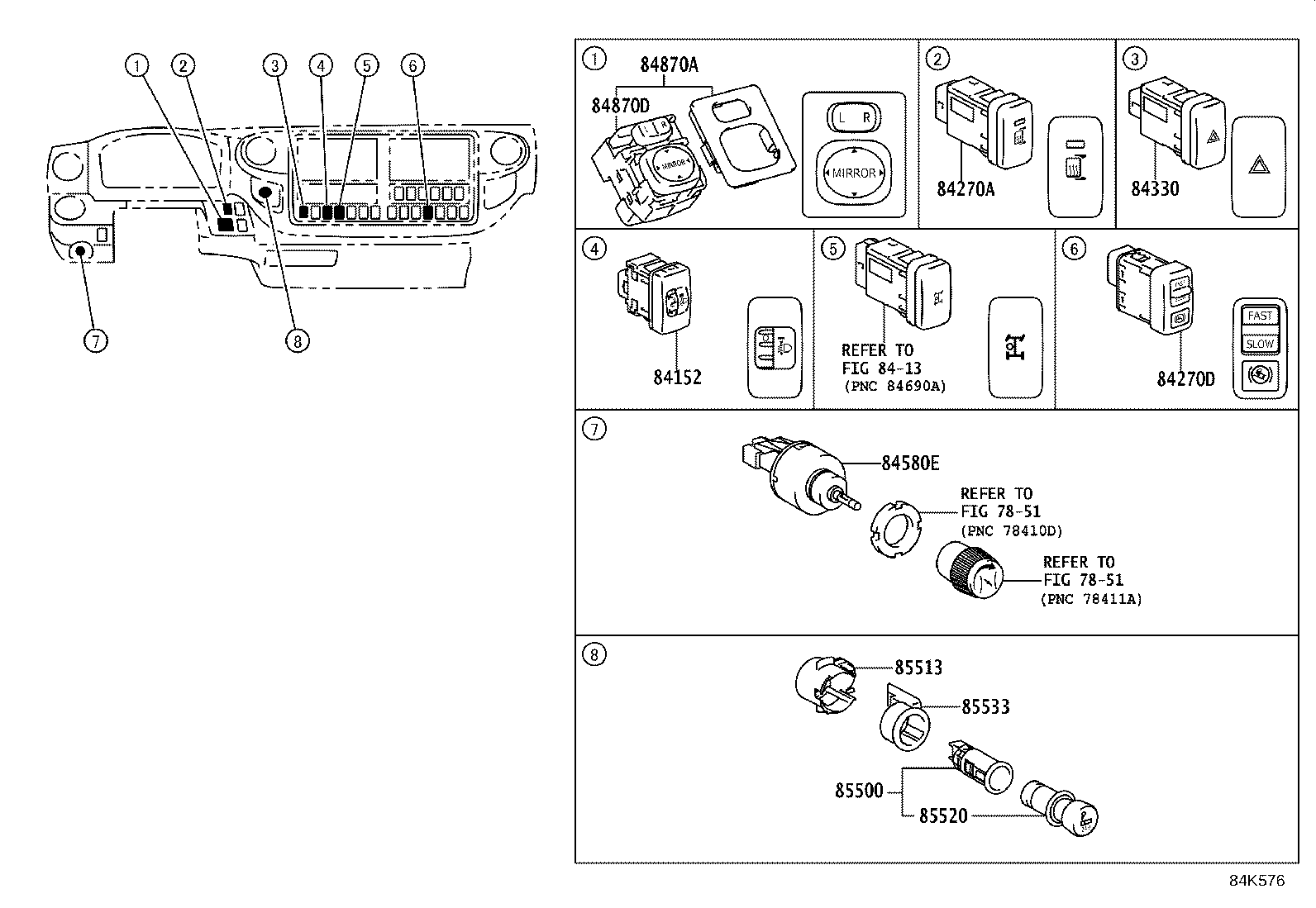

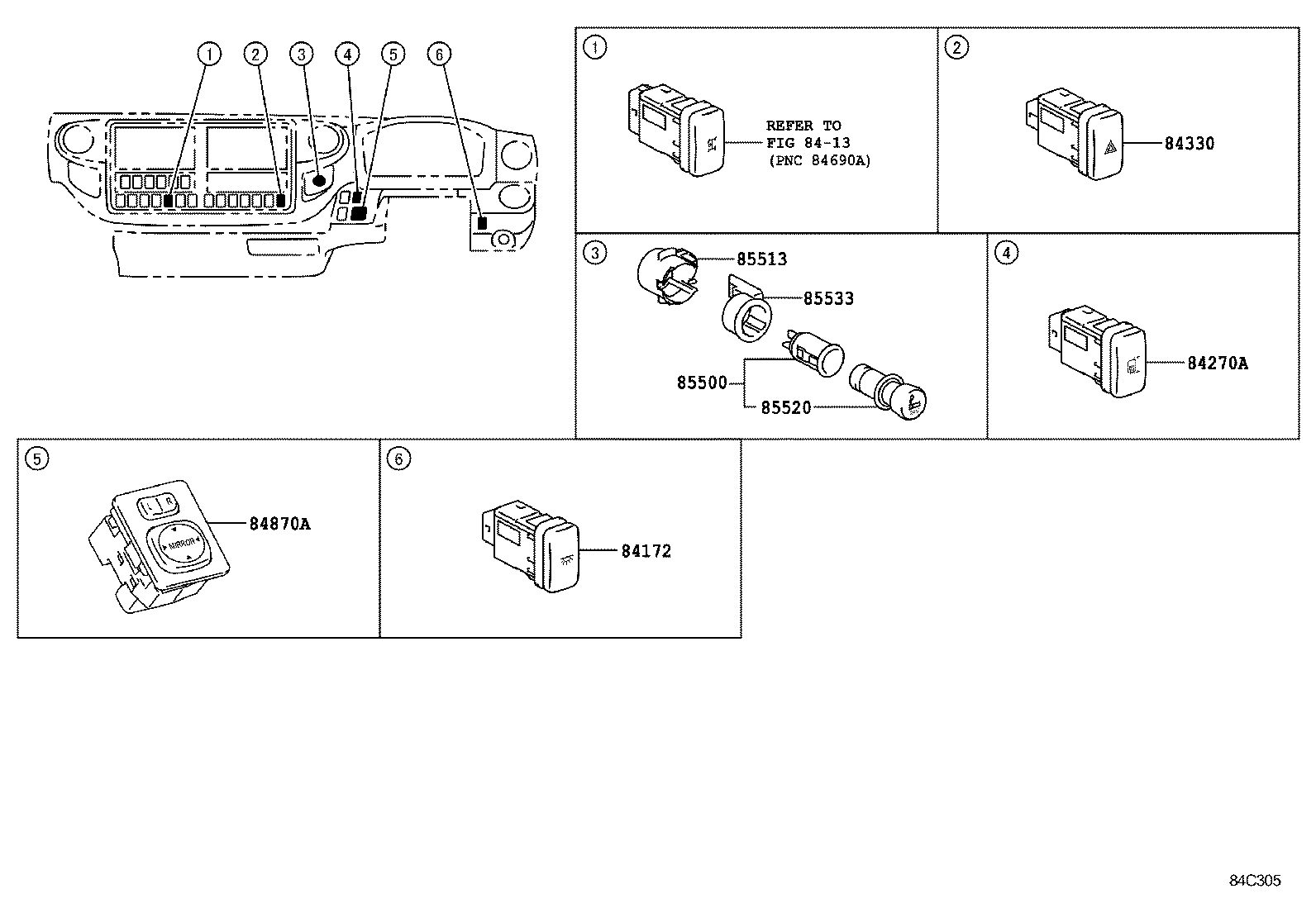

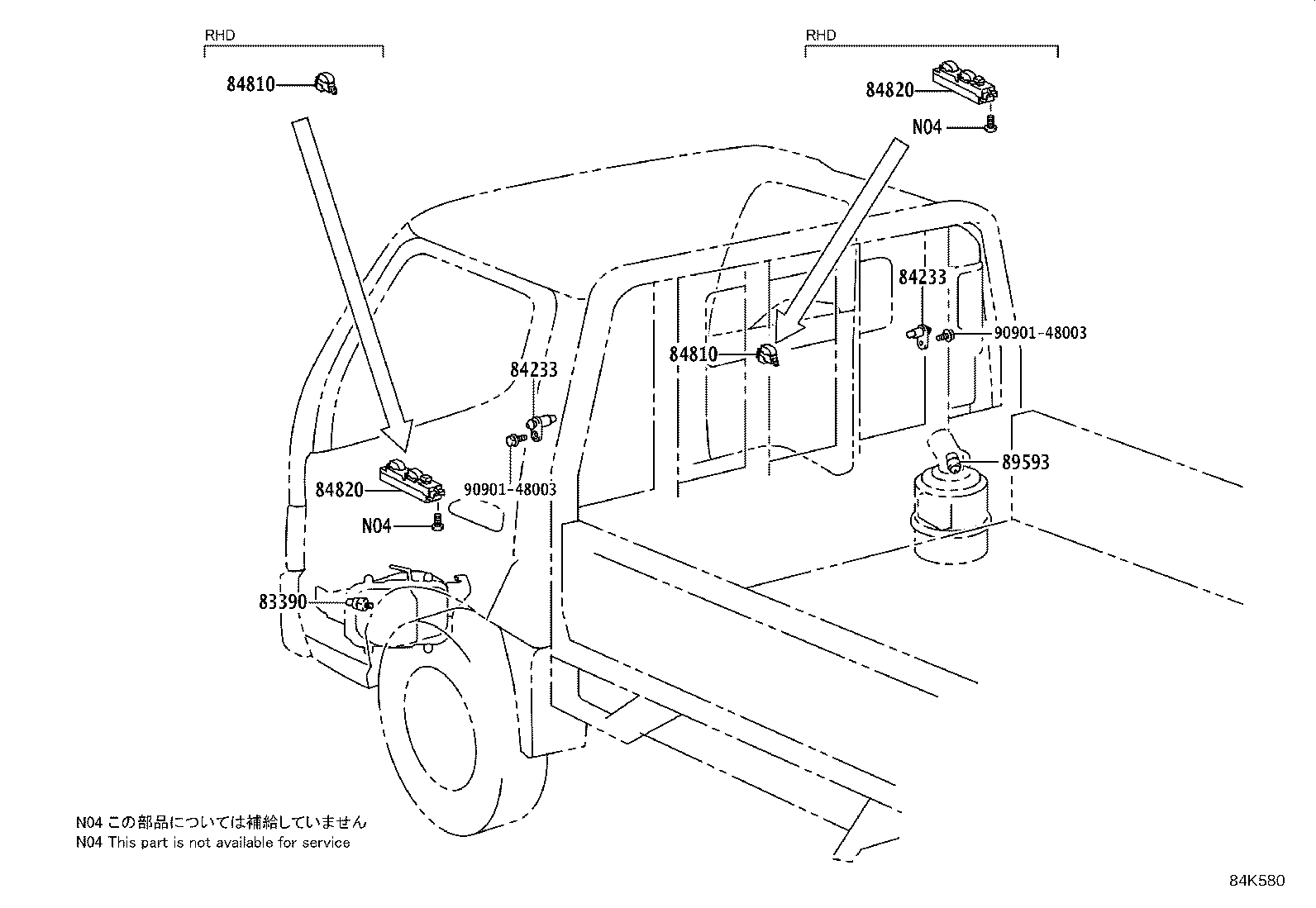

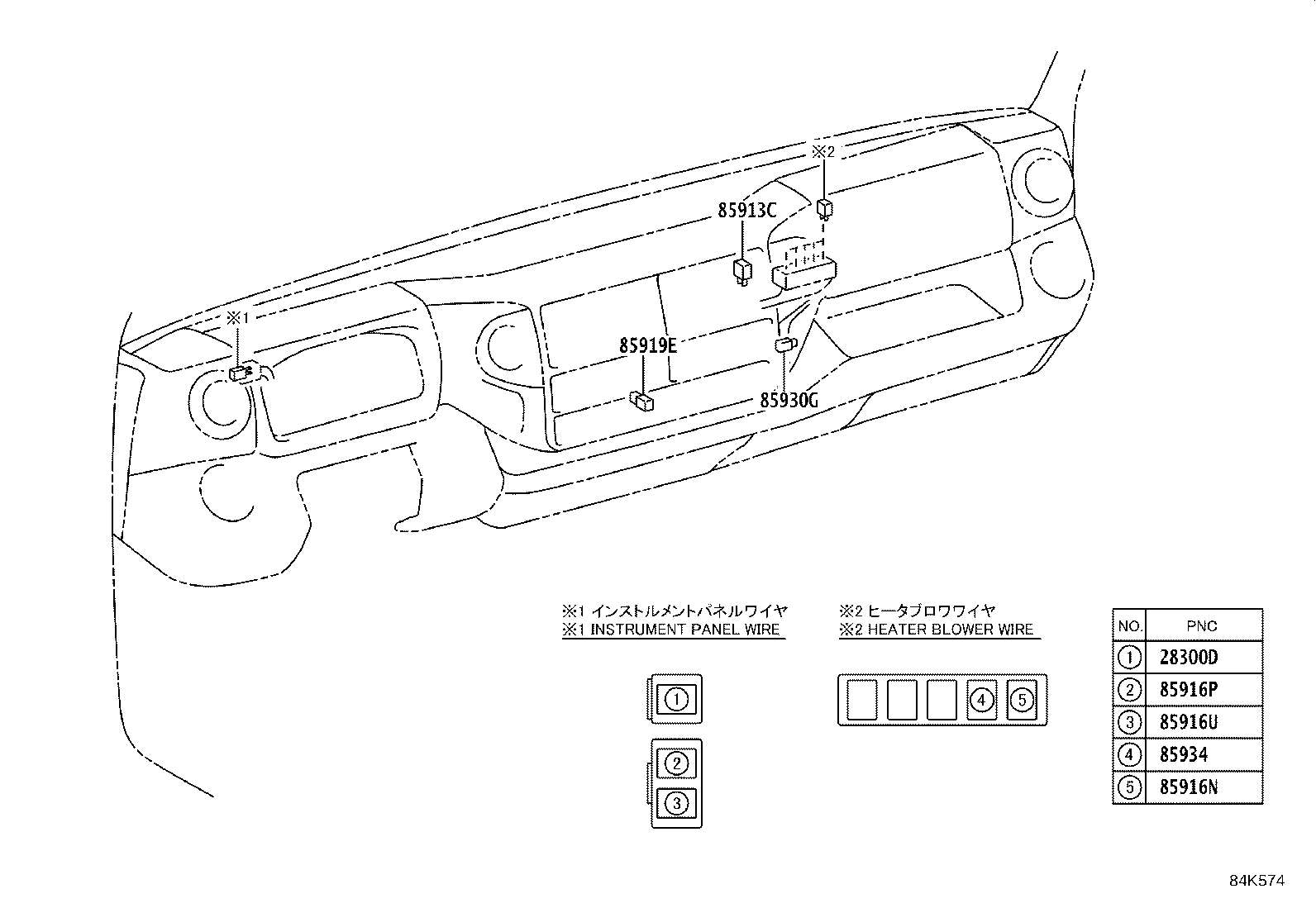

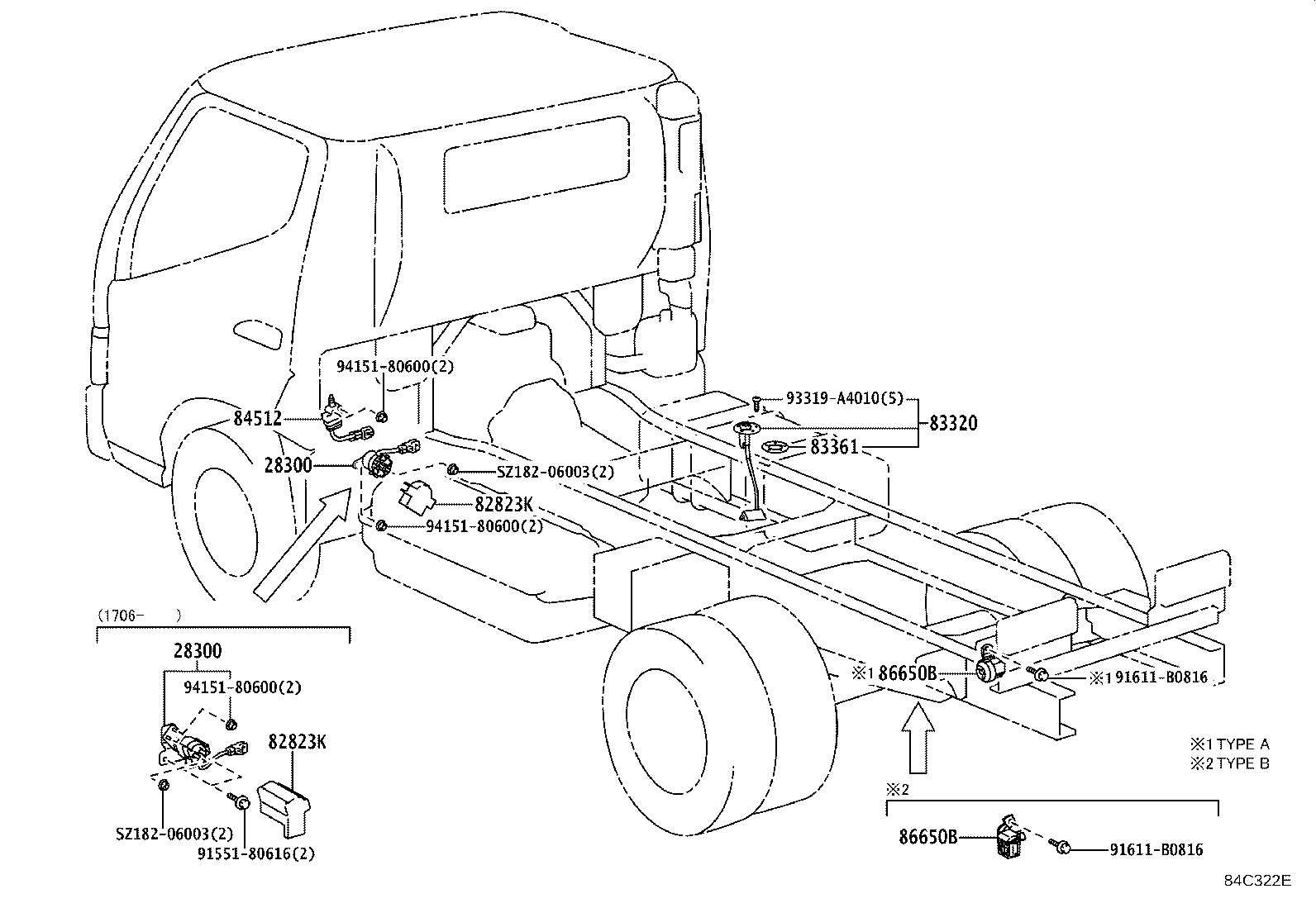

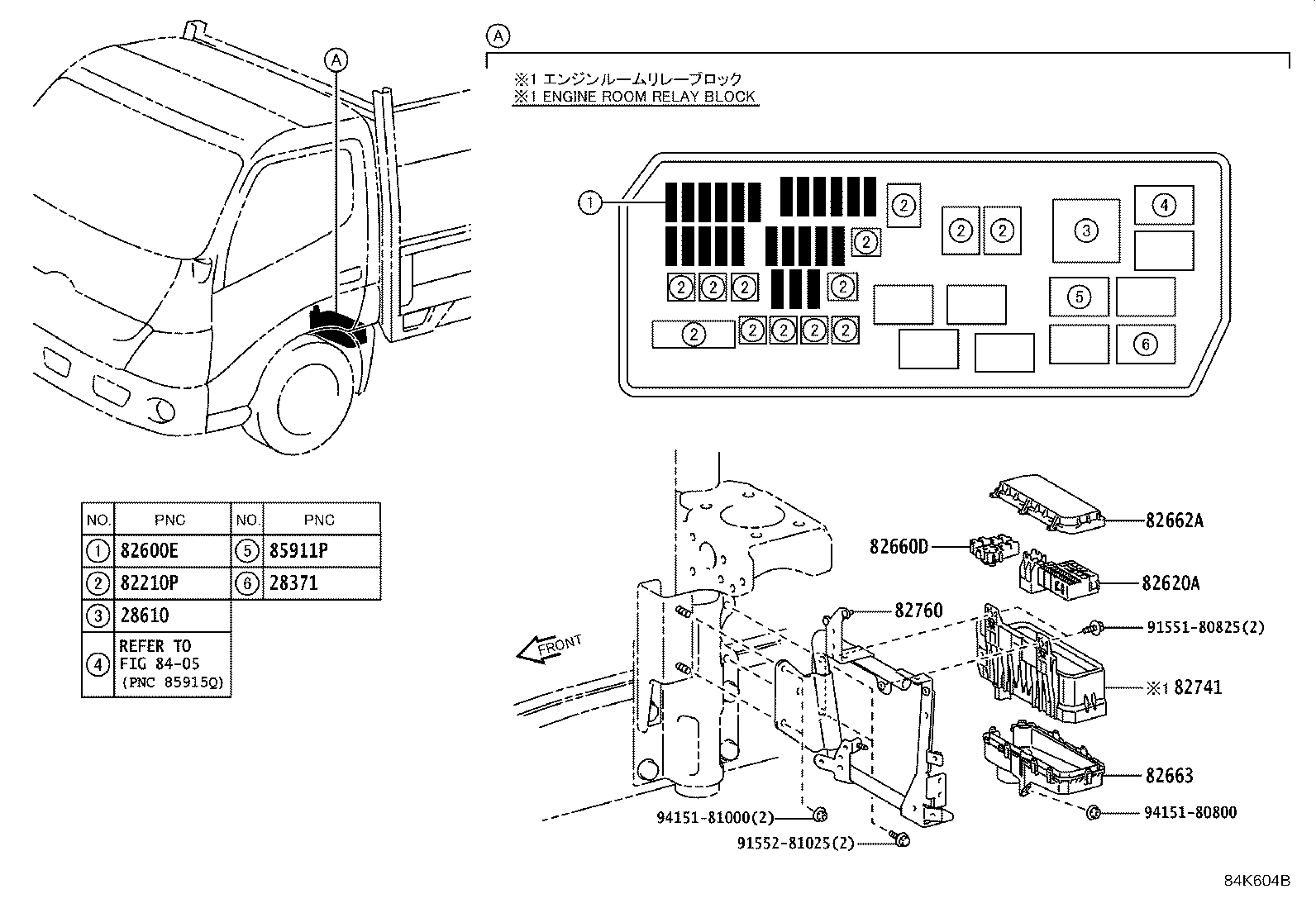

Figure 84R452 84R452 2011-07 → — Figure 84C249L 84C249L 2011-07 → — Figure 84K568A 84K568A 2019-11 → — Figure 84C260 84C260 2011-07 → — Figure 84C257B 84C257B 2011-07 → — Figure 84H785 84H785 2011-07 → — Figure 84H786A 84H786A 2011-07 → — Figure 84K608A 84K608A 2019-11 → — Figure 84C275C 84C275C 2011-07 → — Figure 84K604B 84K604B 2019-11 → — Figure 84C292F 84C292F 2011-07 → — Figure 84C293C 84C293C 2011-07 → — Figure 84K570B 84K570B 2019-11 → — Figure 84K574 84K574 2019-11 → — Figure 84C304B 84C304B 2011-07 → — Figure 84C305 84C305 2011-07 → — Figure 84K576 84K576 2019-11 → — Figure 84C311B 84C311B 2011-07 → — Figure 84C312 84C312 2011-07 → — Figure 84C321A 84C321A 2011-07 → — Figure 84K580 84K580 2019-11 → — Figure 84C322E 84C322E 2011-07 → — Figure 84K582A 84K582A 2019-11 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28300D Relay, Starter Cut
28371 Relay, Ignition, NO.1
28520 Timer Assy, Preheating
28610 Relay Assy, Intake Heater OR Glow Plug
81980 Flasher Assy, Turn Signal
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600G Plate, Caution(FOR FUSE)
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82641 Relay, Integration NO.1
82660D Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82760 Bracket Assy, Relay Block
82821B Cover, Connector
82823K Cap, Terminal
83180B Detector Assy, Revolution
83181G Sensor, Speedometer
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83380 Switch Assy, Presure
83380A Switch Assy, Pressure
83390 Switch Assy, Vacuum Warning
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83950M Lamp Assy, Telltale
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84172 Switch, Room Lamp
84210 Switch Assy, Back-up Lamp
84220C Switch Assy, Transmission Position Indicator
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84270A Switch Assy, Mirror Heater
84270D Switch Assy, ES Start Timing
84270K Switch Assy, Dpr
84306 Cable Sub-assy, Spiral
84312 Plate, Horn Contact
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84512 Switch, Tilt Cab Control
84540 Switch Assy, Neutral Start
84540C Switch Assy, Neutral (FOR EXHAUST BRAKE)
84550 Switch Assy, Parking Brake
84580E Switch Assy, Throttle Position
84640C Switch Assy, Exhaust Retarder
84650 Switch Assy, Windshield Wiper
84656A Bezel, Switch
84731R Knob, Rear Heater Blower Switch
84732A Switch, Rear Heater Blower
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84810G Switch Assy, Power Window Regulator, Rear NO.2
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84870D Switch Assy, Outer Mirror, NO.2
85500 Lighter Assy, Cigarette
85513 Cover, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85533 Lens, Cigarette Lighter Indicator
85900G Relay Assy, Control Unit(FOR REAR FOG LAMP)
85911P Relay, Actuator Power
85913C Relay, Heater, NO.1
85916L Relay, Rear Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85916U Relay, Headlamp, NO.2
85919E Relay, Stop Lamp
85927 Relay, Cooling Fan
85930G Relay, Acc
85931B Relay, Fuel Heater
85934 Relay, Magnet-clutch
86206D Converter Sub-assy, Voltage
86210E Converter Assy, Voltage
86245C Bracket, Voltage Converter
86245D Bracket, Voltage Converter, NO.2
86245E Bracket, Voltage Converter, NO.3
86650B Buzzer Assy, Reverse Warning
88610N Switch Assy, Cooler Control
89070D Computer Assy, Transmission Control
89279A Cover, Computer
89280 Sensor Assy, Clutch Pedal Stroke
89420M Sensor Assy, Air Pressure
89422A Sensor, Water Temperature
89424B Switch, Inlet Air Temperature
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89458D Sensor, Fuel Pressure
89480A Sensor Assy, Differential Pressure
89539E Bracket, Computer
89539Q Bracket, Computer
89593 Sensor, Air Cleaner Warning
89880 Computer Assy, Electric Vehicle Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
