Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

7 part groups · 6 illustrations

Illustrations

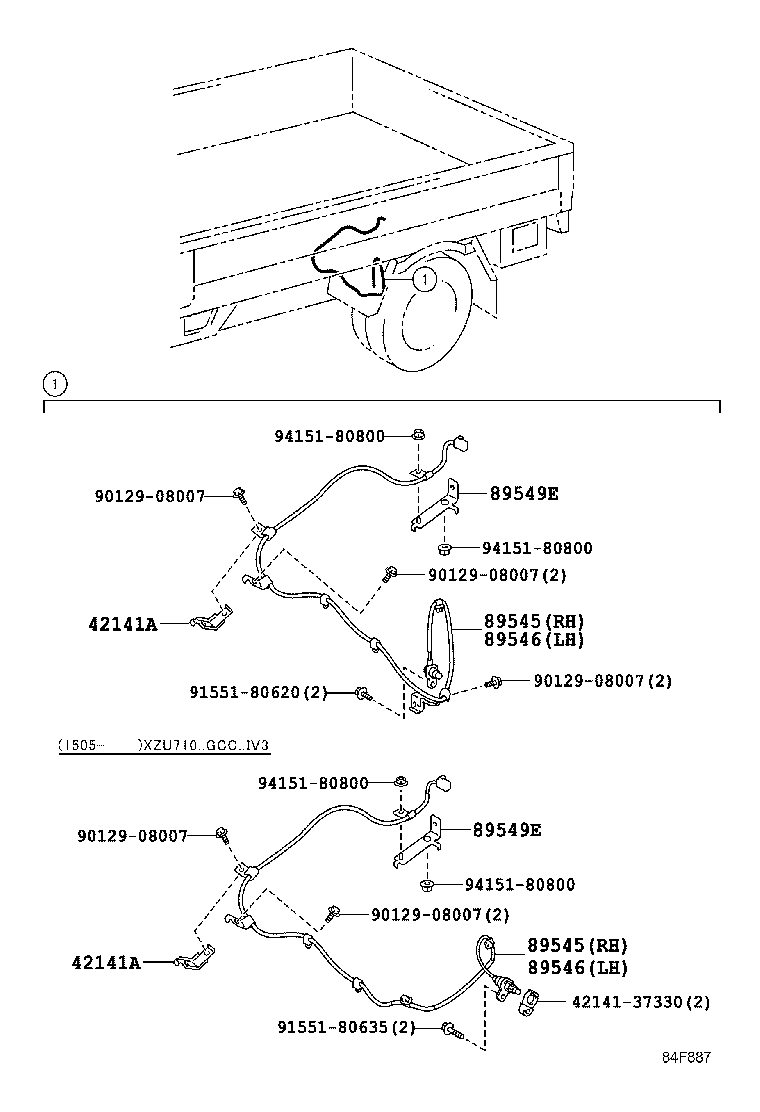

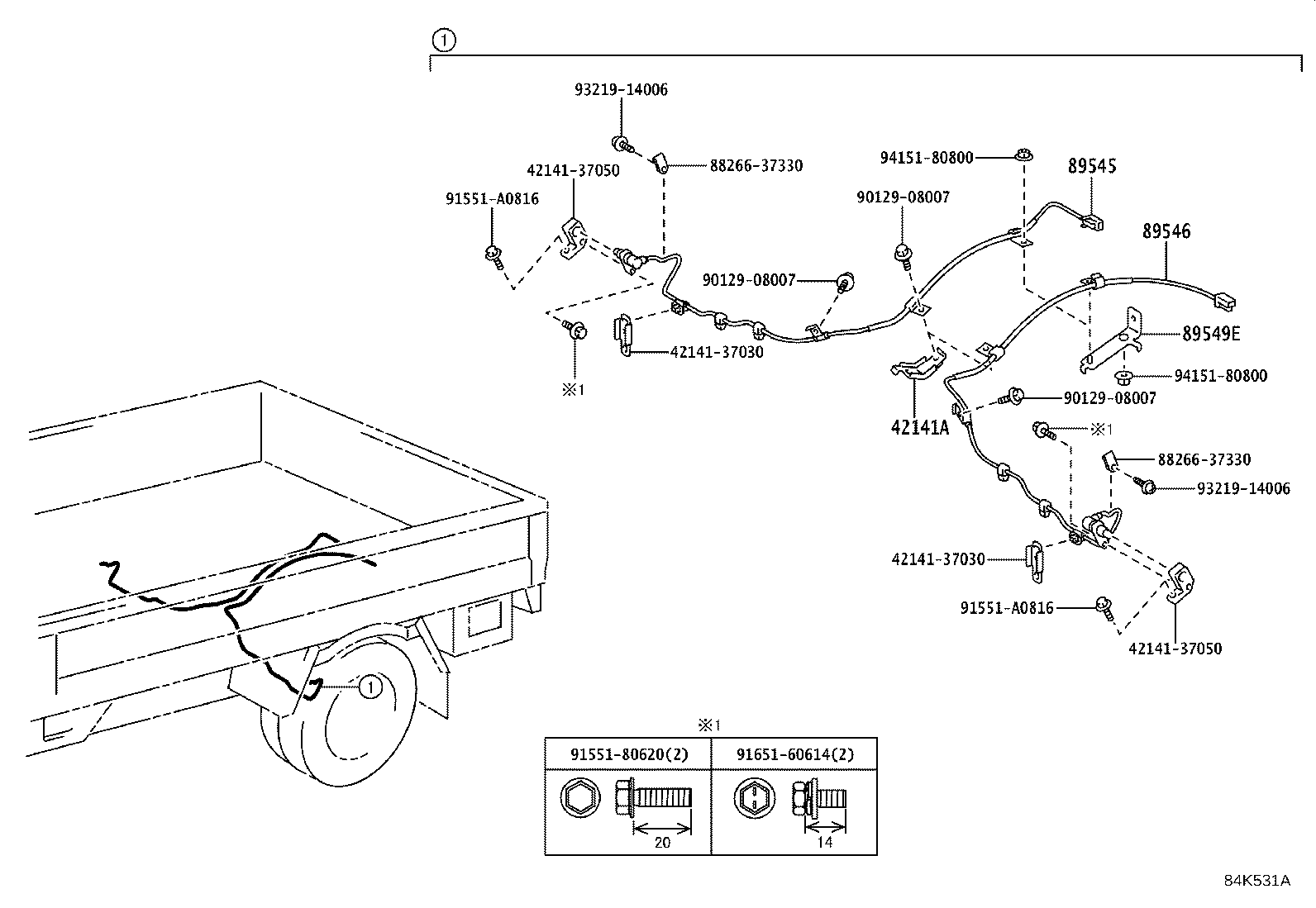

Figure 84C423A 84C423A 2011-07 → — Figure 84K528 84K528 2015-05 → — Figure 84C353 84C353 2011-06 → — Figure 84K530 84K530 2019-11 → — Figure 84F887 84F887 2011-06 → — Figure 84K531A 84K531A 2019-11 → —

Part groups

PNCDescription
42141A Attachment, Skid Control Wire, NO.1
89421F Sensor, Vacuum (FOR SKID CONTROL)
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89549E Bracket, Speed Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
