Toyota Dyna
2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe
Supported model
Data version 2019-11

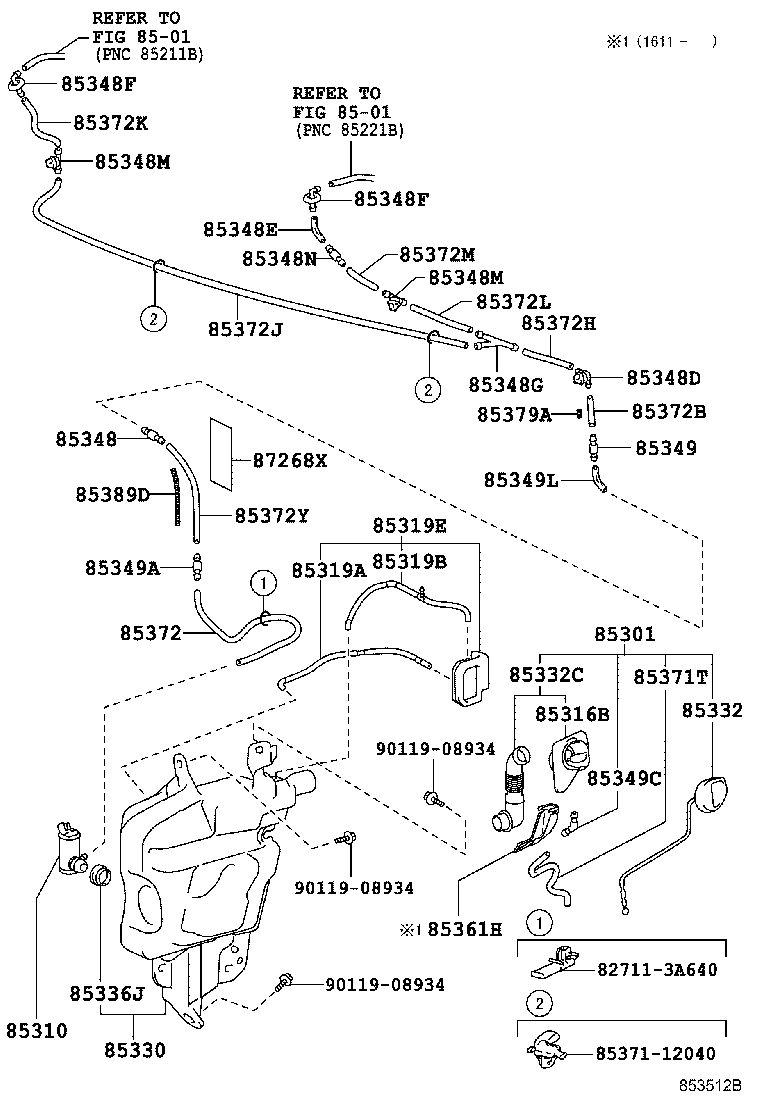

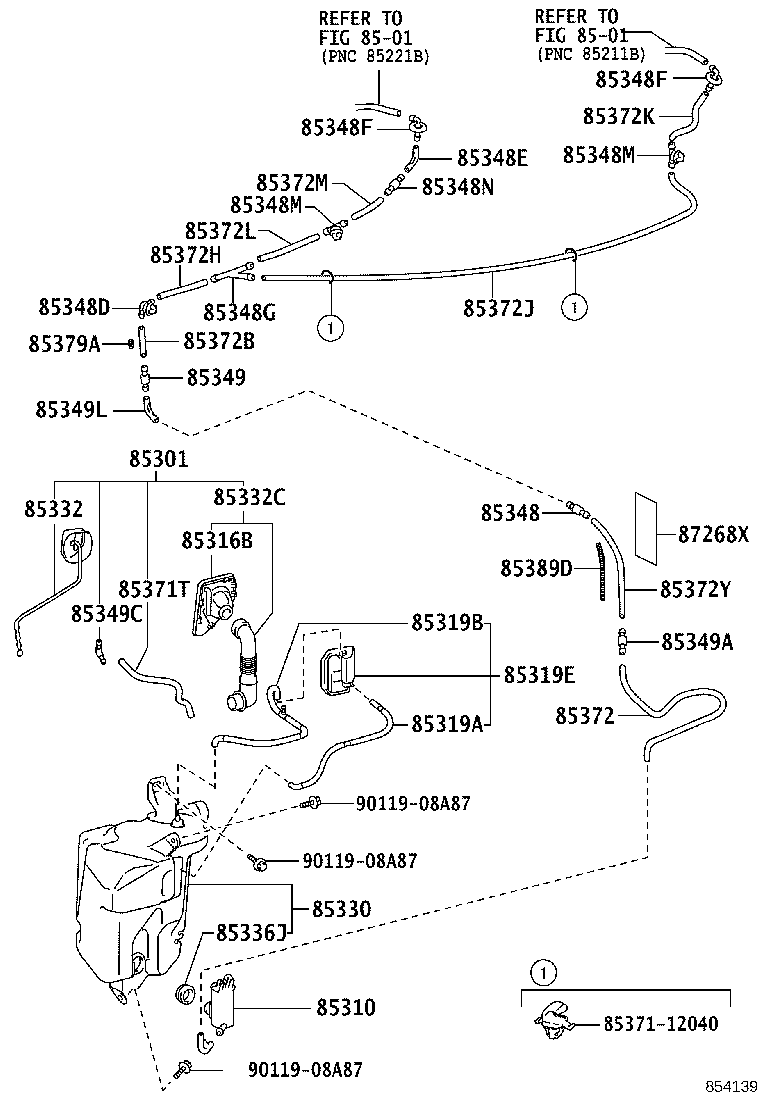

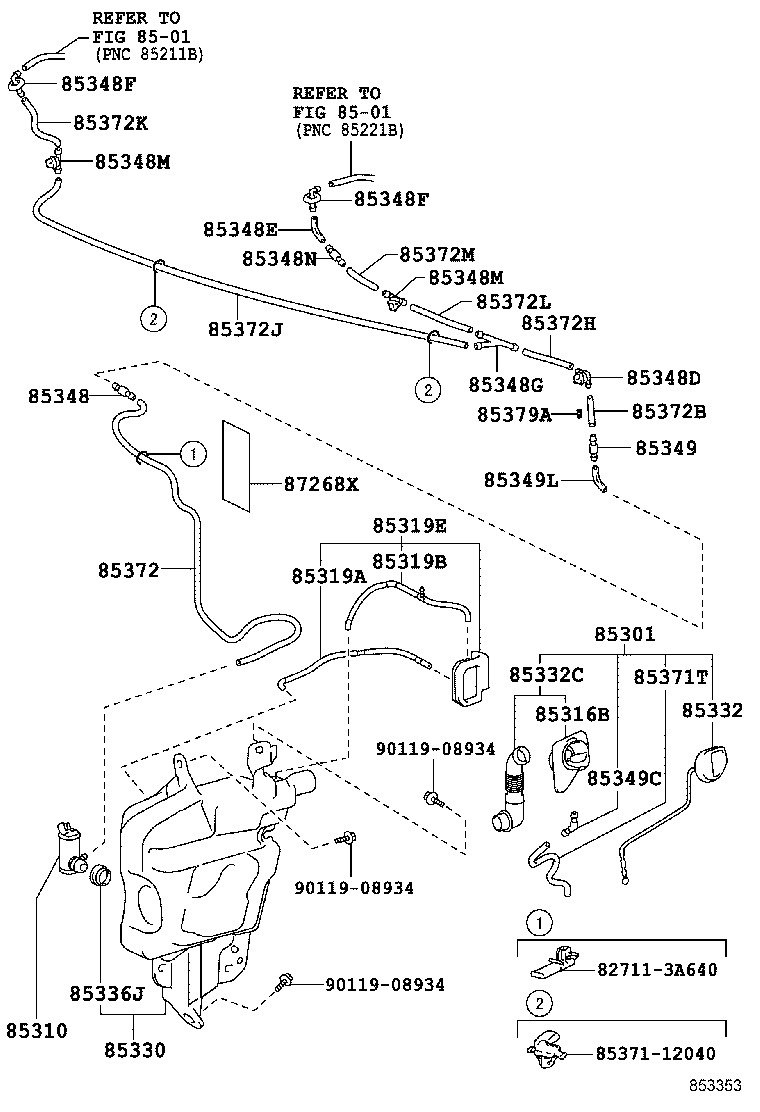

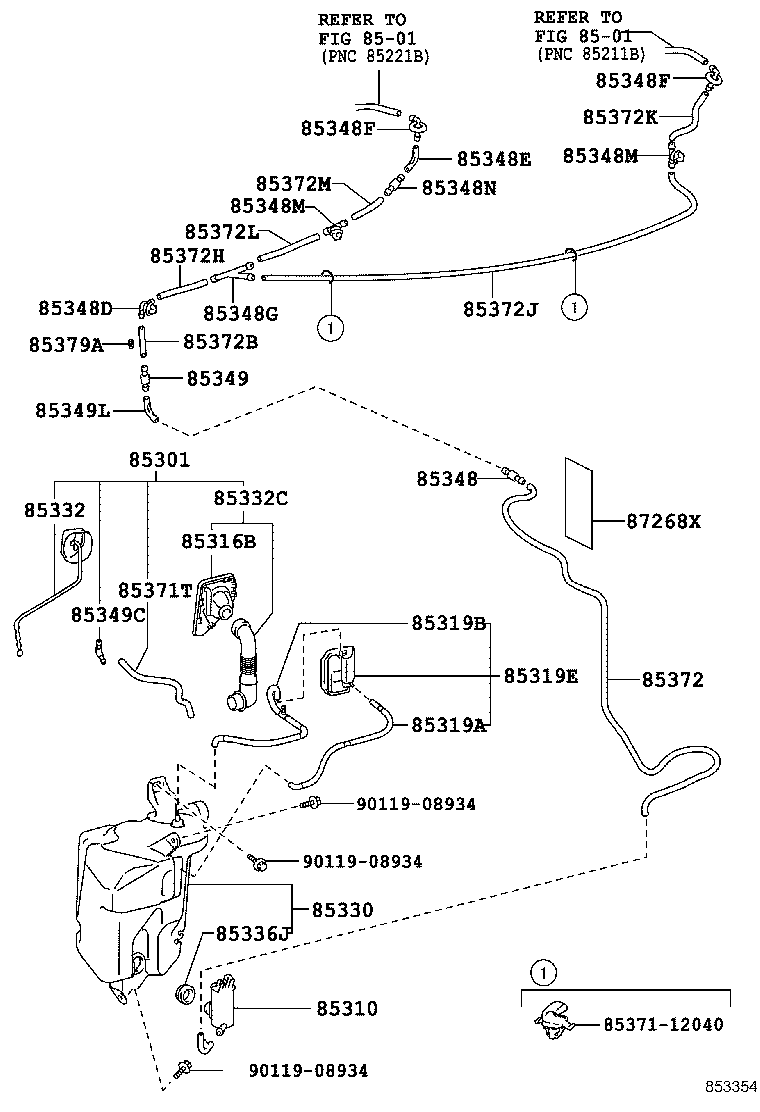

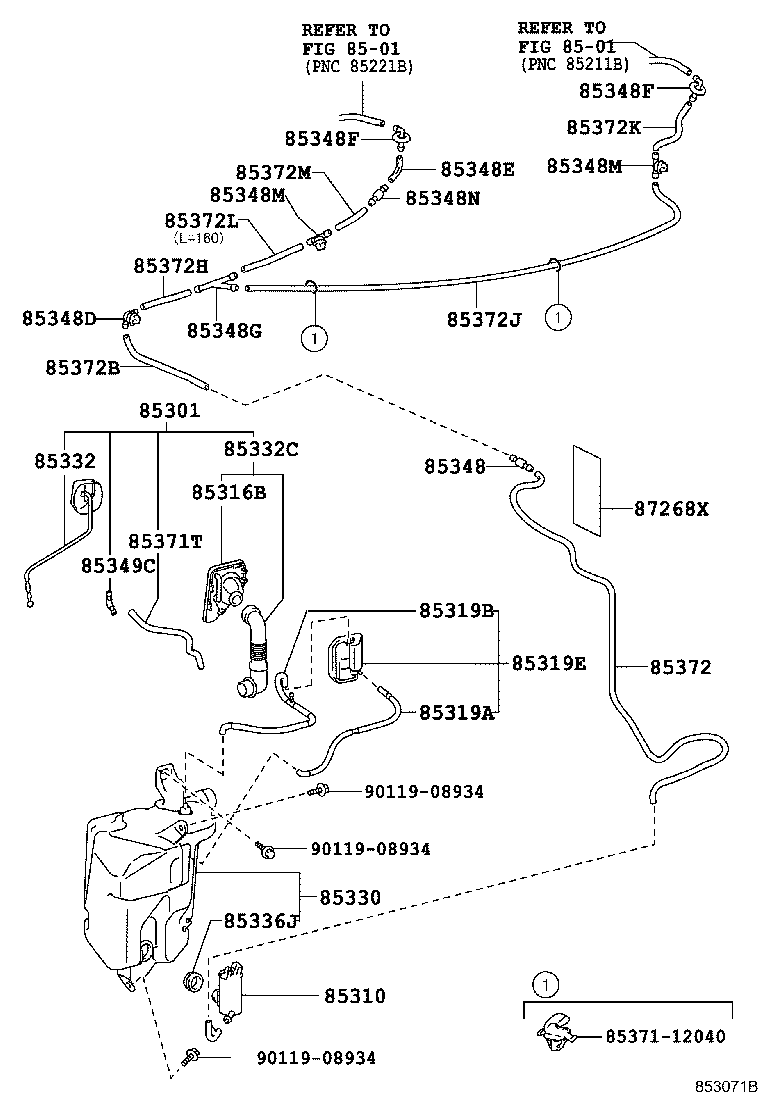

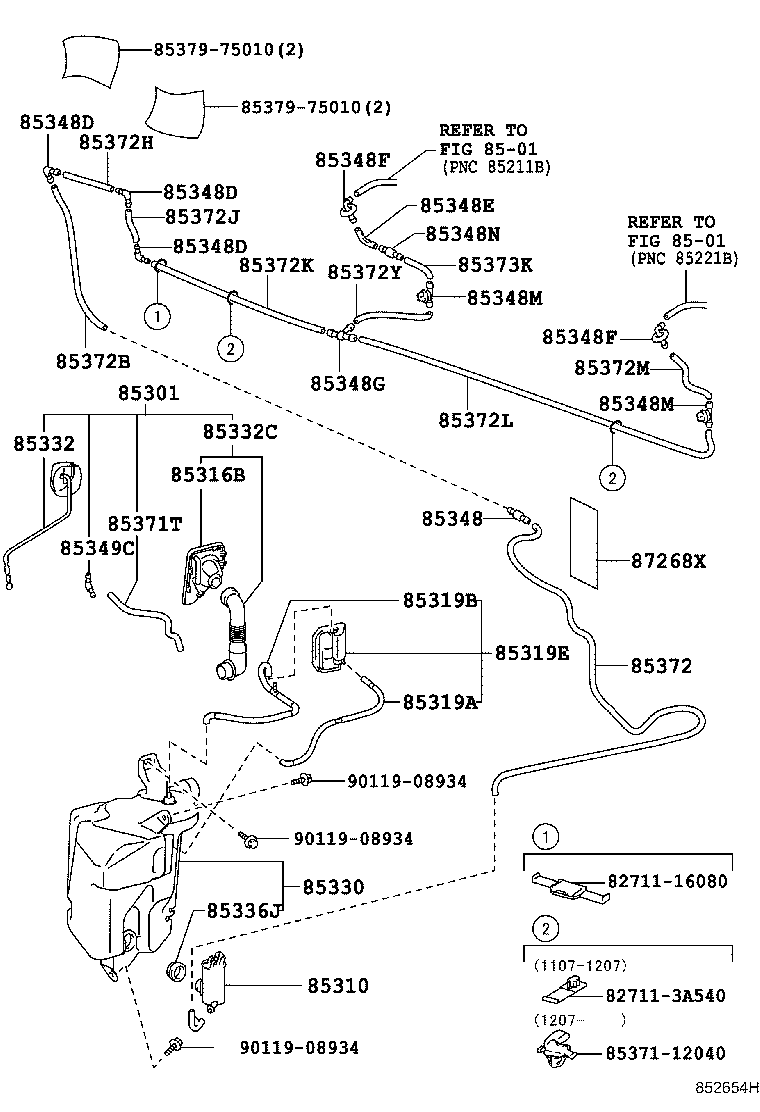

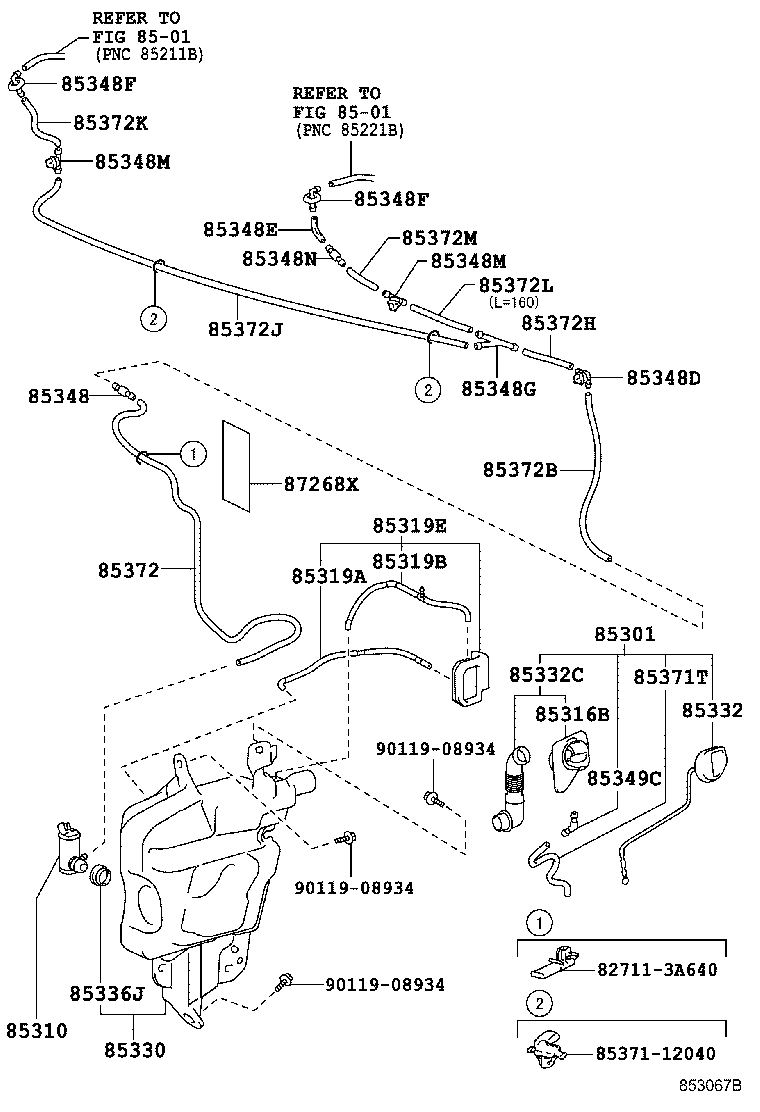

Windshield Washer
35 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 85301 | Inlet Sub-assy, Washer |
| 85310 | Motor And Pump Assy, Windshield Washer |
| 85316B | Cap, Washer, Inlet |
| 85319A | Hose, Inlet |
| 85319B | Hose, Window Washer |
| 85319E | Inlet Washer |
| 85330 | Jar Assy, Windshield Washer |
| 85332 | Cap, Windshield Washer Jar |
| 85332C | Cap, Front Washer Tank |
| 85336J | Protector, Washer Jar |
| 85348 | Joint, Windshield Washer Hose, NO.1 |
| 85348D | Joint, Windshield Washer Elbow, NO.1 |
| 85348E | Joint, Windshield Washer Elbow, NO.2 |
| 85348F | Joint, Windshield Washer Elbow, NO.3 |
| 85348G | Joint, Windshield Washer Hose, NO.2 |
| 85348M | Joint, Windshield Washer Hose, NO.3 |
| 85348N | Joint, Windshield Washer Hose, NO.4 |
| 85349 | Joint, Windshield Washer Hose, NO.1 |
| 85349A | Joint, Windshield Washer Hose, NO.2 |
| 85349C | Joint, Windshield Washer Elbow, NO.4 |
| 85349L | Joint, Windshield Washer Elbow, NO.1 |
| 85361H | Bracket, Washer |
| 85371T | Hose, Windshield Washer (FROM JOINT TO JOINT) |
| 85372 | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1 |
| 85372B | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2 |
| 85372H | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3 |
| 85372J | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4 |
| 85372K | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5 |
| 85372L | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.6 |
| 85372M | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.7 |
| 85372Y | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.8 |
| 85373K | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.9 |
| 85379A | Spring, Windshield Washer Hose |
| 85389D | Spring(WASHER HOSE) |
| 87268X | Protector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
