Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

33 part groups · 12 illustrations

Illustrations

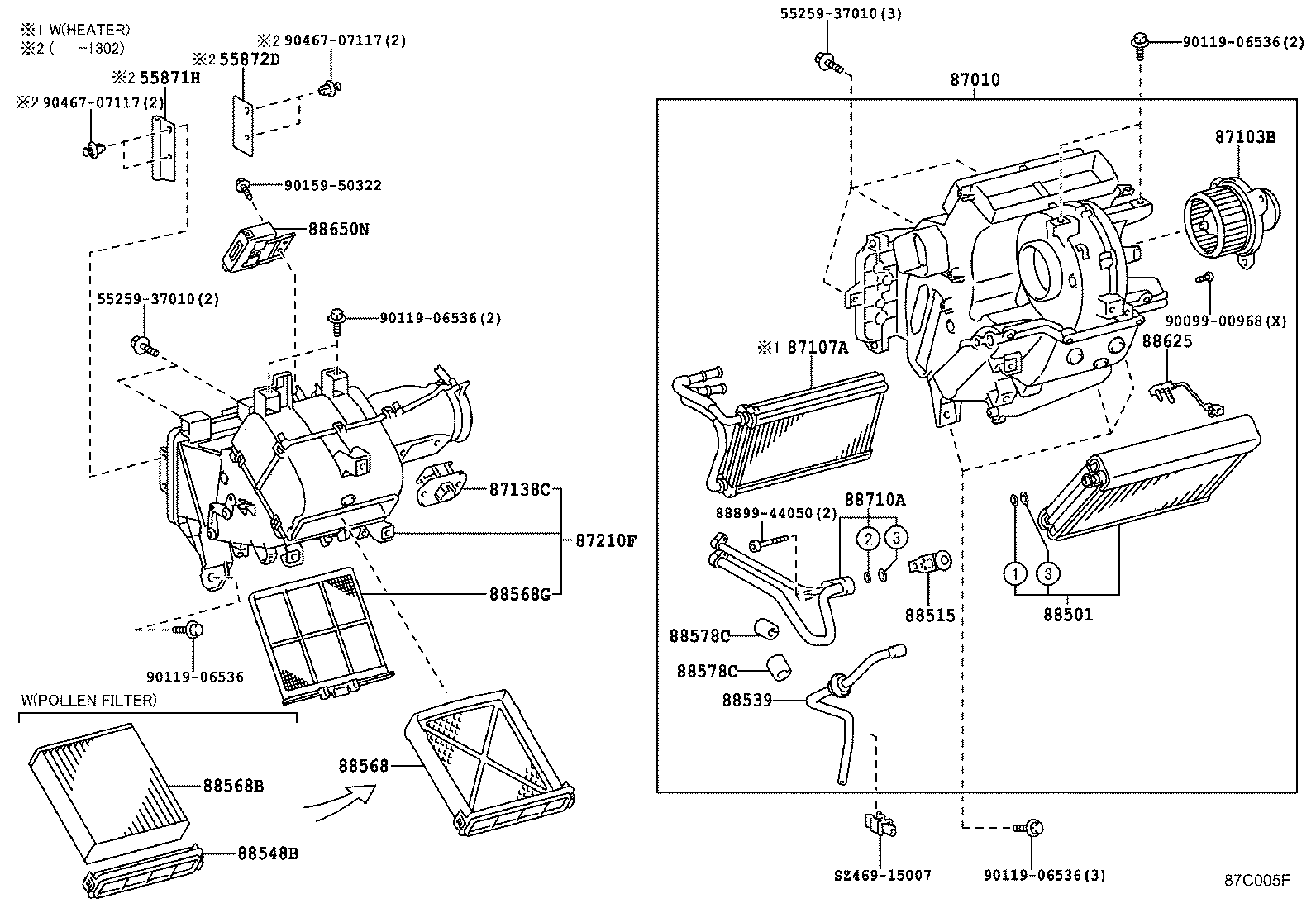

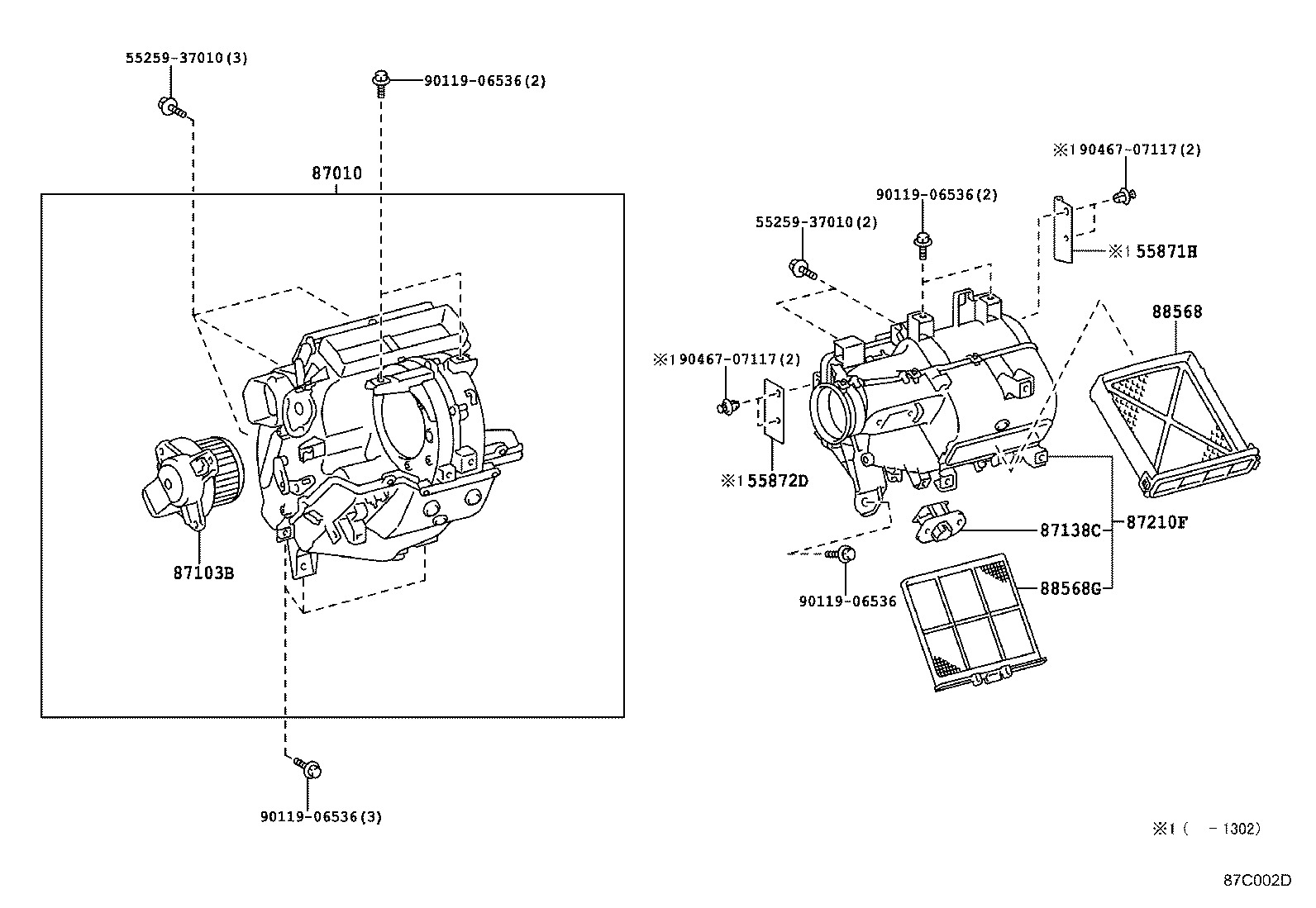

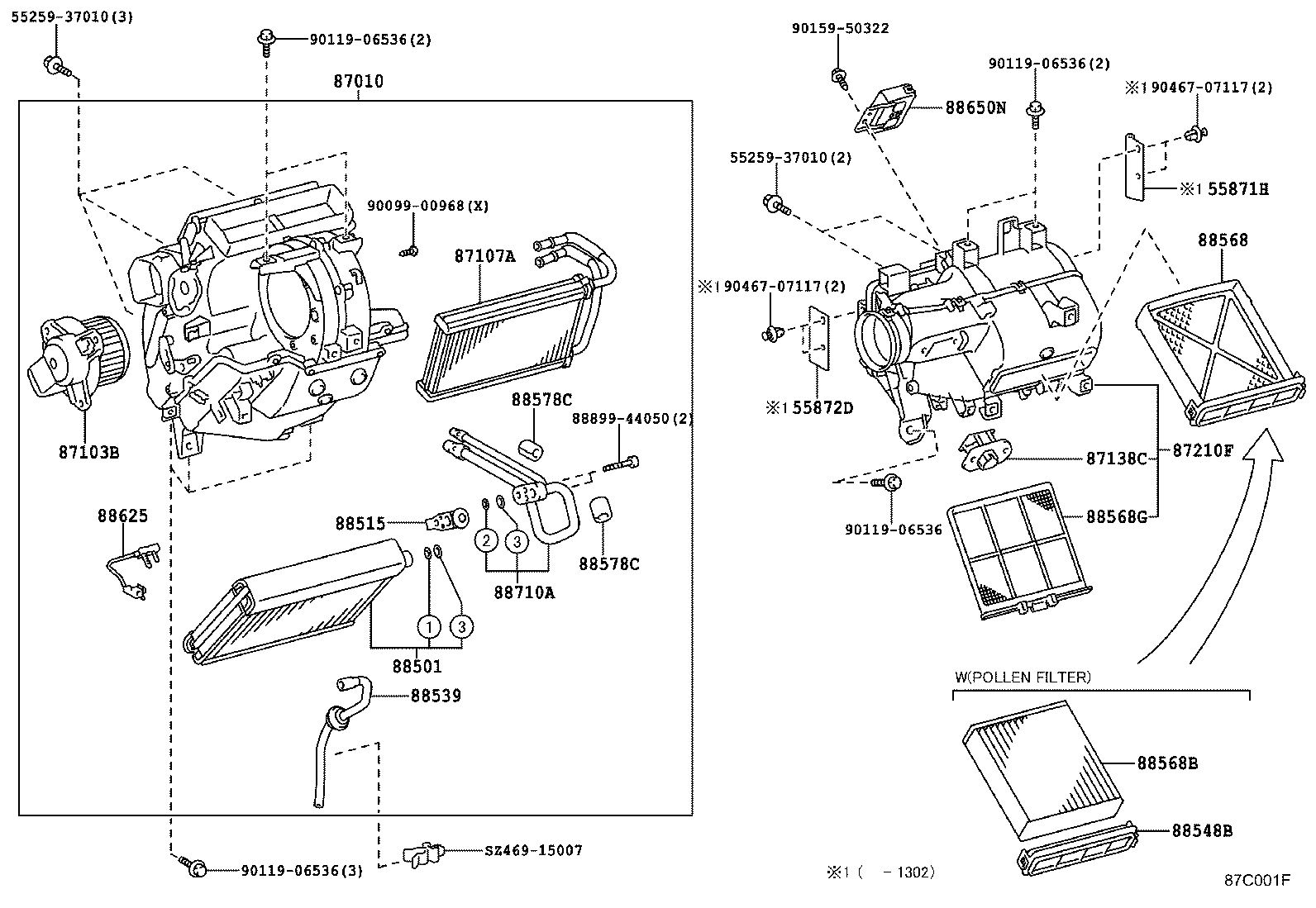

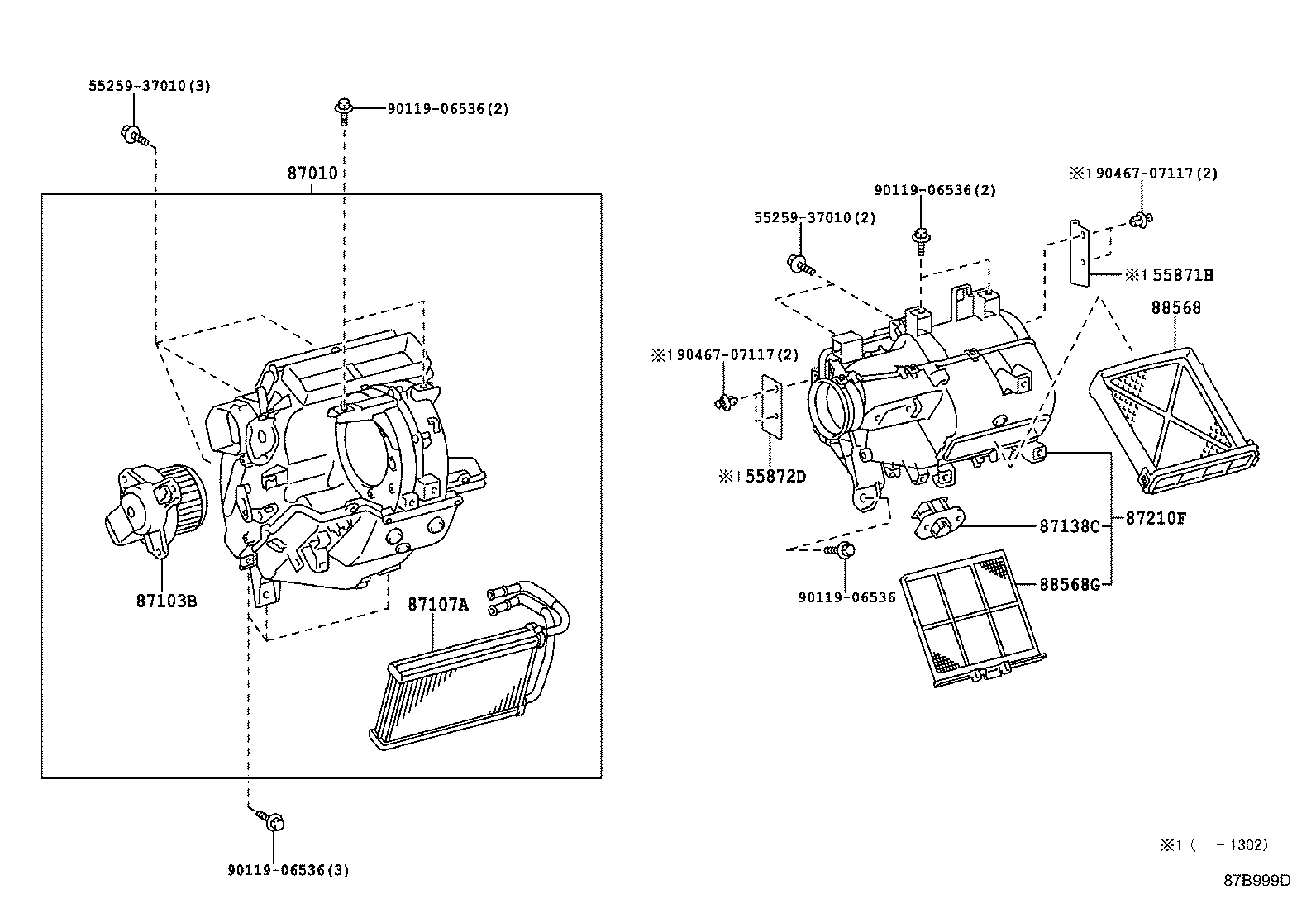

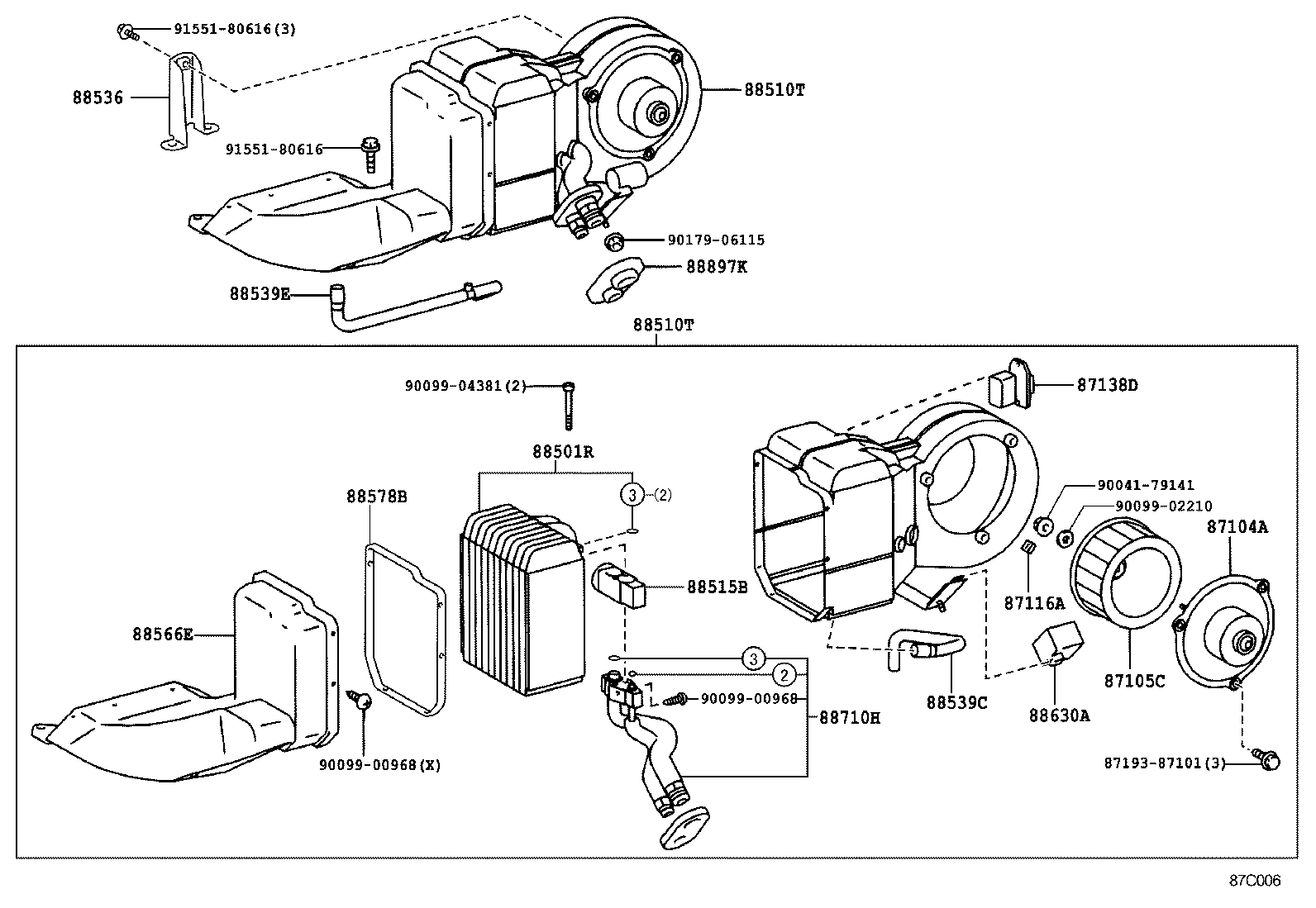

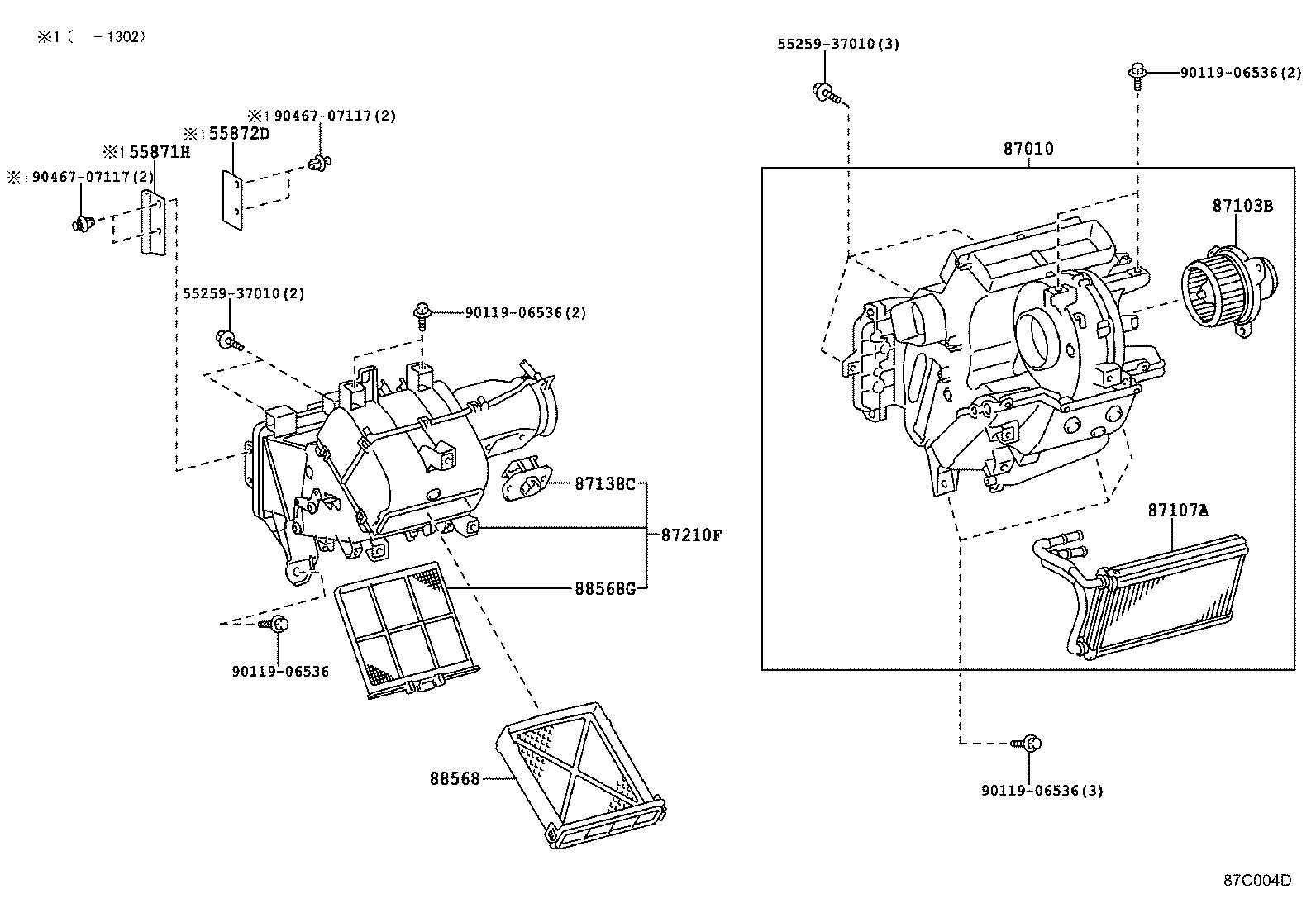

Figure 87C003D 87C003D 2011-07 → — Figure 87C004D 87C004D 2011-07 → — Figure 87C005F 87C005F 2011-07 → — Figure 87C002D 87C002D 2011-07 → — Figure 87C002D 87C002D 2019-11 → — Figure 87B999D 87B999D 2011-07 → — Figure 87B999D 87B999D 2019-11 → — Figure 87C001F 87C001F 2011-07 → — Figure 87C001F 87C001F 2019-11 → — Figure 87C006 87C006 2011-08 → — Figure 879932D 879932D 2011-07 → — Figure 879932D 879932D 2019-11 → —

Part groups

PNCDescription
55871H Seal, Air Duct, NO.1
55872D Seal, Air Duct, NO.2
87010 Unit Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87104A Motor Sub-assy, Blower
87105C Fan Sub-assy, Blower, Rear
87107A Unit Sub-assy, Heater Radiator
87116A Spring, Holding (FOR COOLER UNIT CASE)
87138C Resistor, Blower
87138D Resistor, Blower (REAR)
87210F Case Assy, Air Damper
88501 Evaporator Sub-assy, Cooler, NO.1
88501R Evaporator Sub-assy (REAR)
88510T Unit Assy, Cooling (REAR)
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88536 Bracket, Cooling Unit, NO.1
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88539E Hose, Cooler Unit Drain, NO.3
88548B Case, Air Filter
88566E Duct, Cooler Air, NO.2
88568 Filter, Cooler Unit Cover
88568B Filter, Air
88568G Filter, Air
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88625 Thermistor, Cooler, NO.1
88630A Relay Assy, Cooler
88650N Amplifier Assy, Air Conditioner
88710A Tube Assy, Air Conditioner
88710H Tube & Accessory Assy, Air Conditioner
88897K Grommet, (FOR COOLER PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
