Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

29 part groups · 19 illustrations

Illustrations

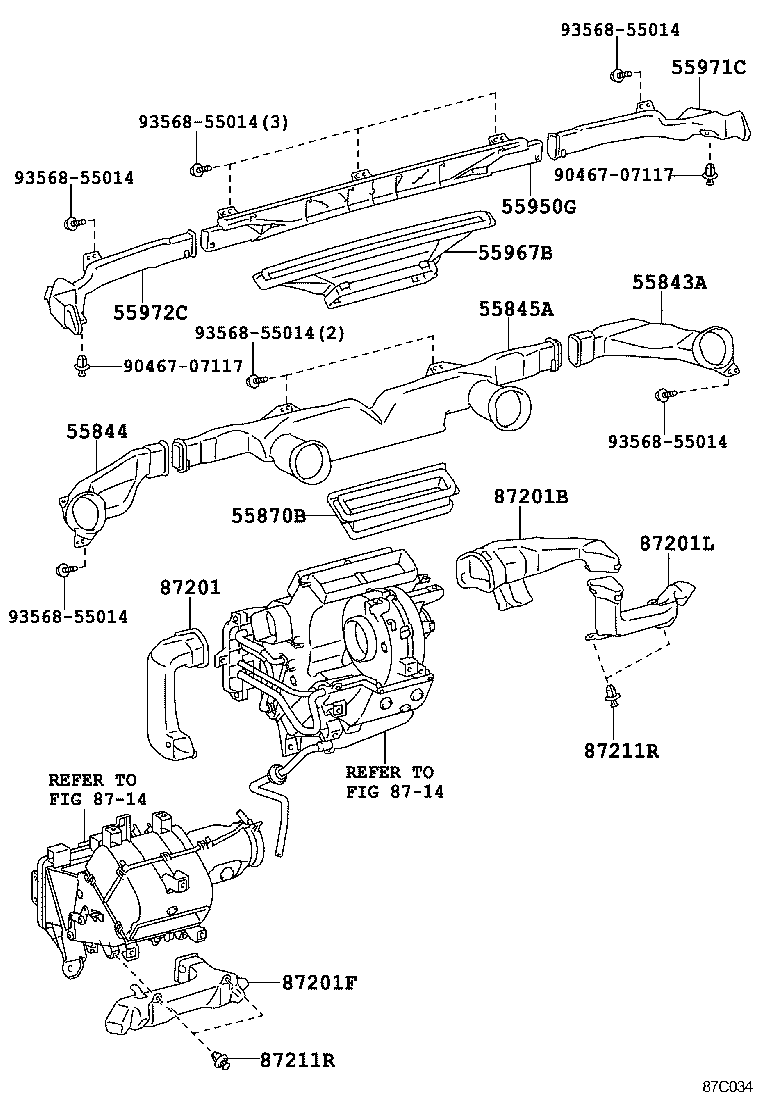

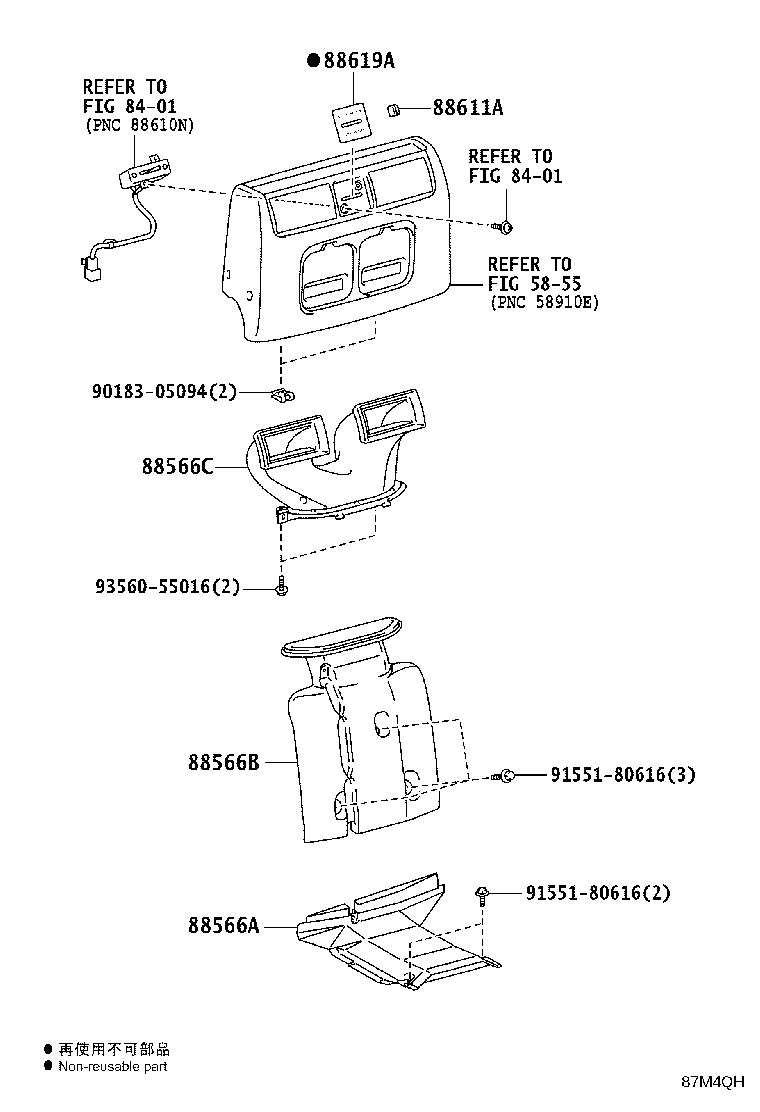

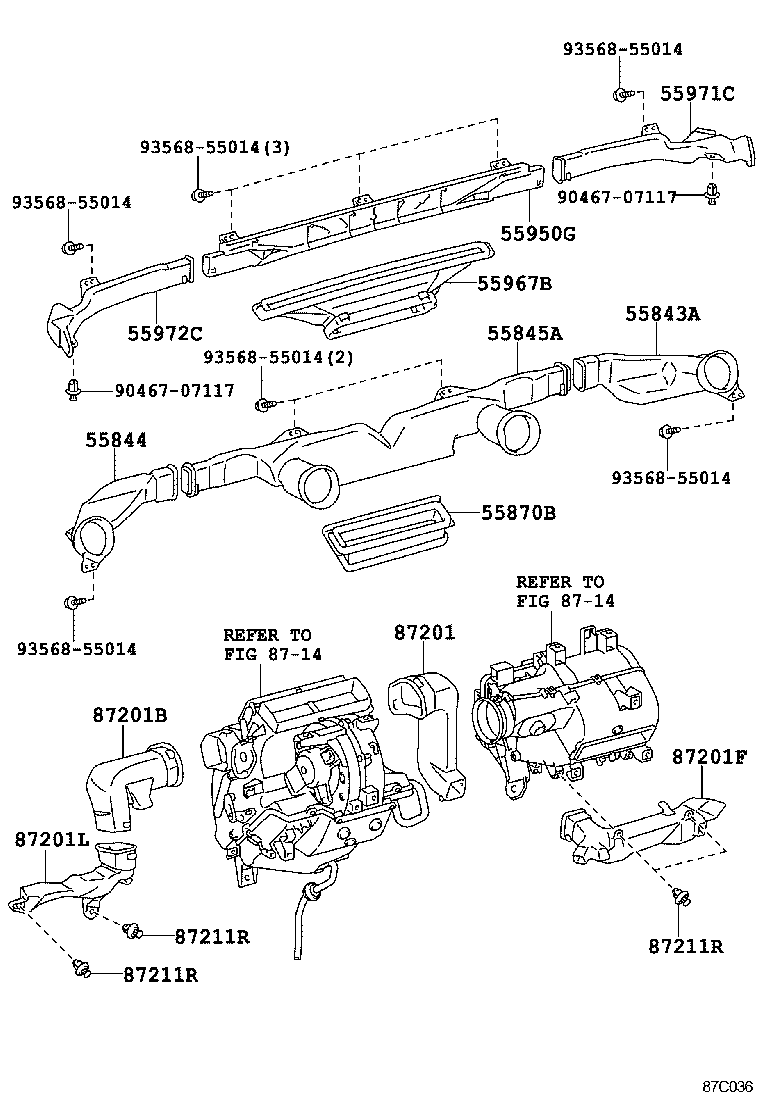

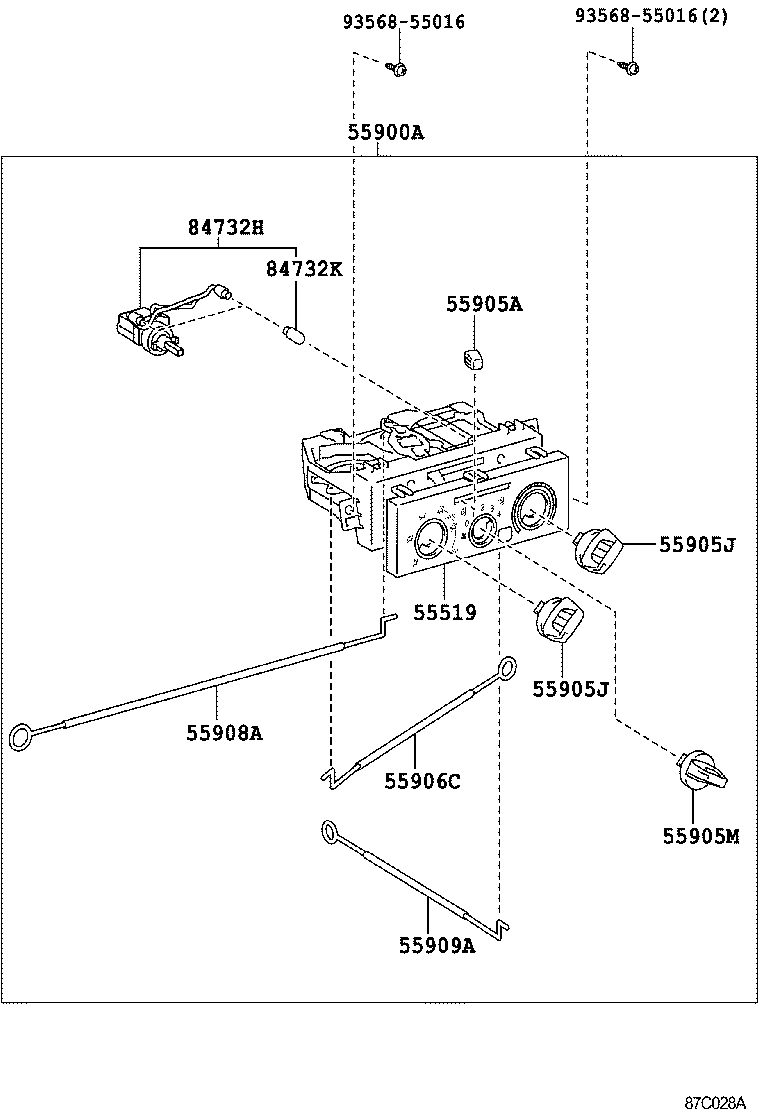

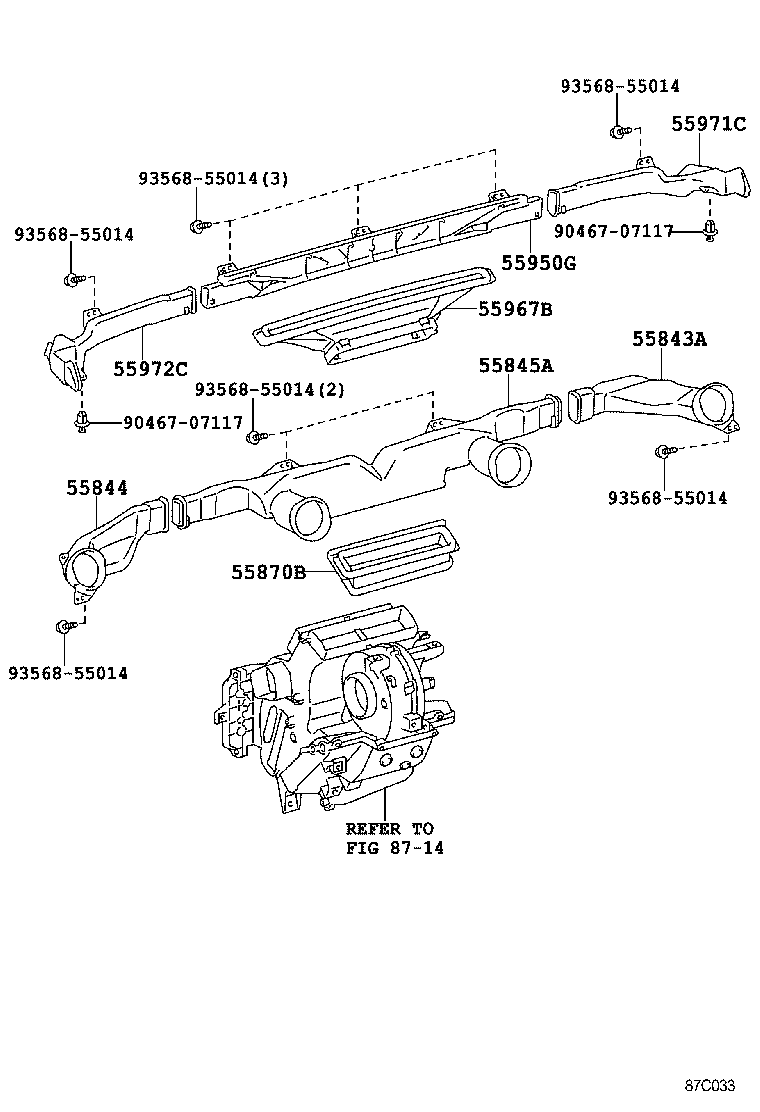

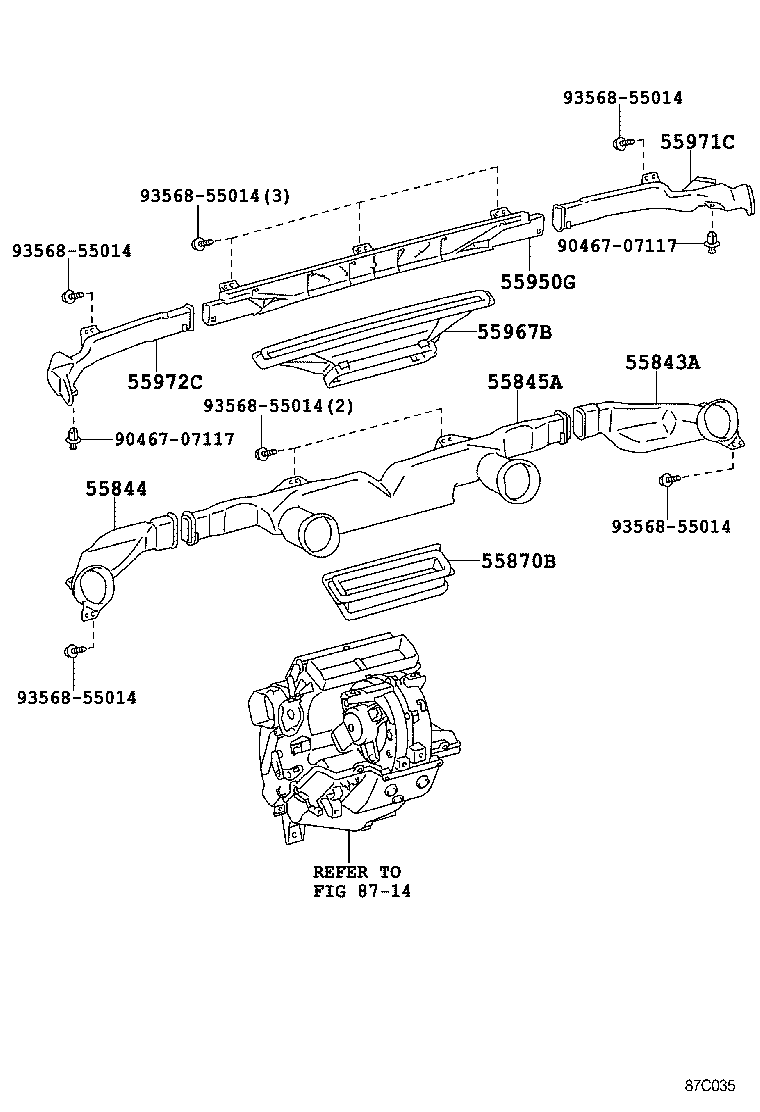

Figure 87C027A 87C027A 2011-07 → — Figure 87C028A 87C028A 2011-07 → — Figure 87C029B 87C029B 2011-07 → — Figure 87C030A 87C030A 2011-07 → — Figure 87C030A 87C030A 2019-11 → — Figure 87C031A 87C031A 2011-07 → — Figure 87C031A 87C031A 2019-11 → — Figure 87C032B 87C032B 2011-07 → — Figure 87C032B 87C032B 2019-11 → — Figure 87C033 87C033 2011-07 → — Figure 87C234 87C234 2011-07 → — Figure 87C034 87C034 2011-07 → — Figure 87C035 87C035 2011-07 → — Figure 87C035 87C035 2019-11 → — Figure 87C235 87C235 2011-07 → — Figure 87C235 87C235 2019-11 → — Figure 87C036 87C036 2011-07 → — Figure 87C036 87C036 2019-11 → — Figure 87M4QH 87M4QH 2011-07 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55870B Duct Assy, Heater TO Register
55900A Control & Accessory Assy, Heater
55905A Knob, Heater Control
55905J Knob Sub-assy, Control
55905M Knob Sub-assy, Control
55906C Cable Sub-assy, Heater Control, NO.1
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
55967B Nozzle, Defroster, Lower
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
84661A Knob, Cooler Control Switch
84732H Switch, Heater Blower
84732K Bulb, Heater Blower Switch
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87201L Duct Sub-assy, Air, NO.4
87211R Clip, Air Duct
88566A Duct, Cooler Air, NO.1
88566B Duct, Cooler Air, NO.2
88566C Duct, Cooler Air, NO.3
88611A Knob, Cooler Control Switch
88619A Panel, Control
