Heating & Air Conditioning - Compressor

18 part groups · 7 illustrations

Illustrations

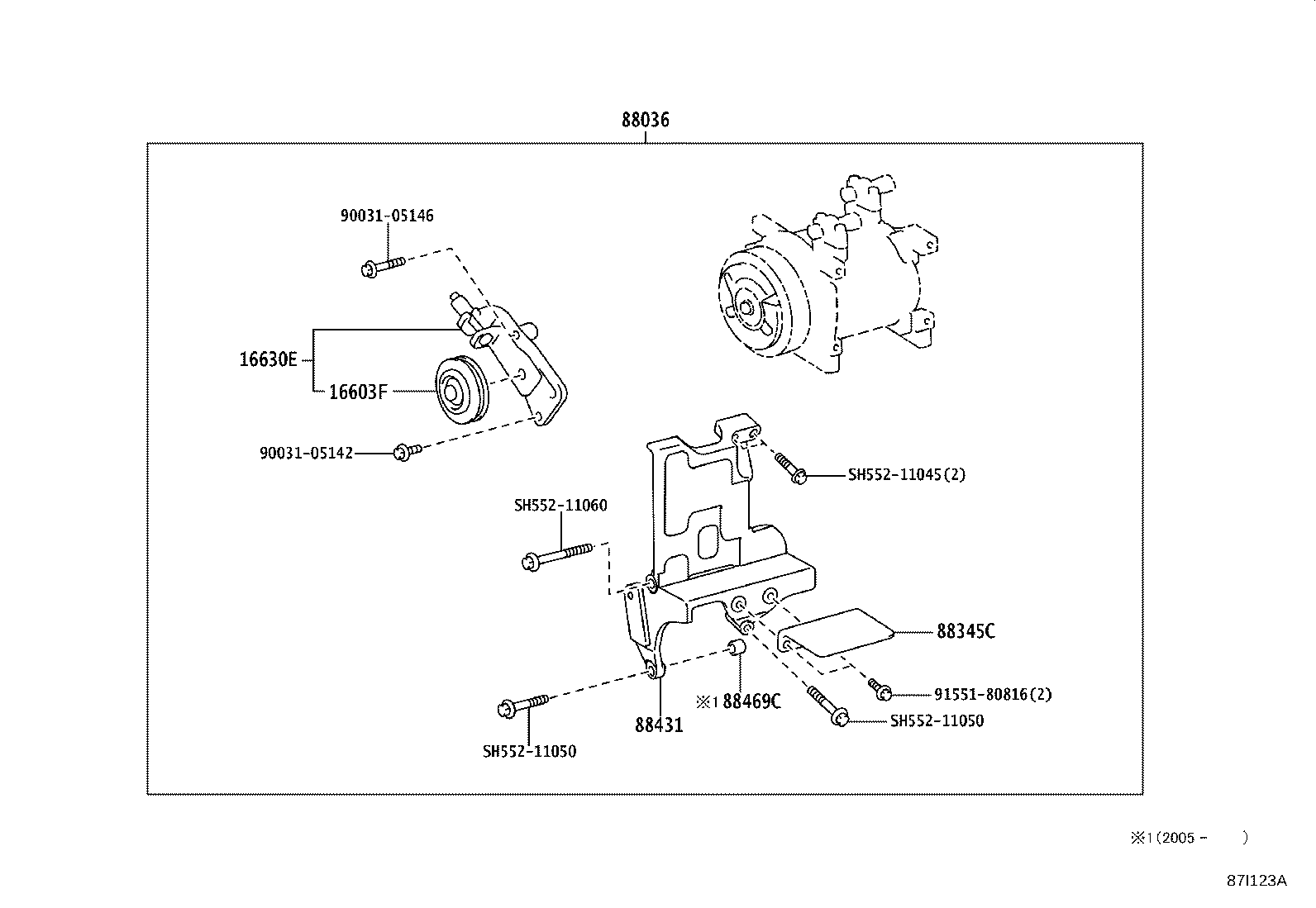

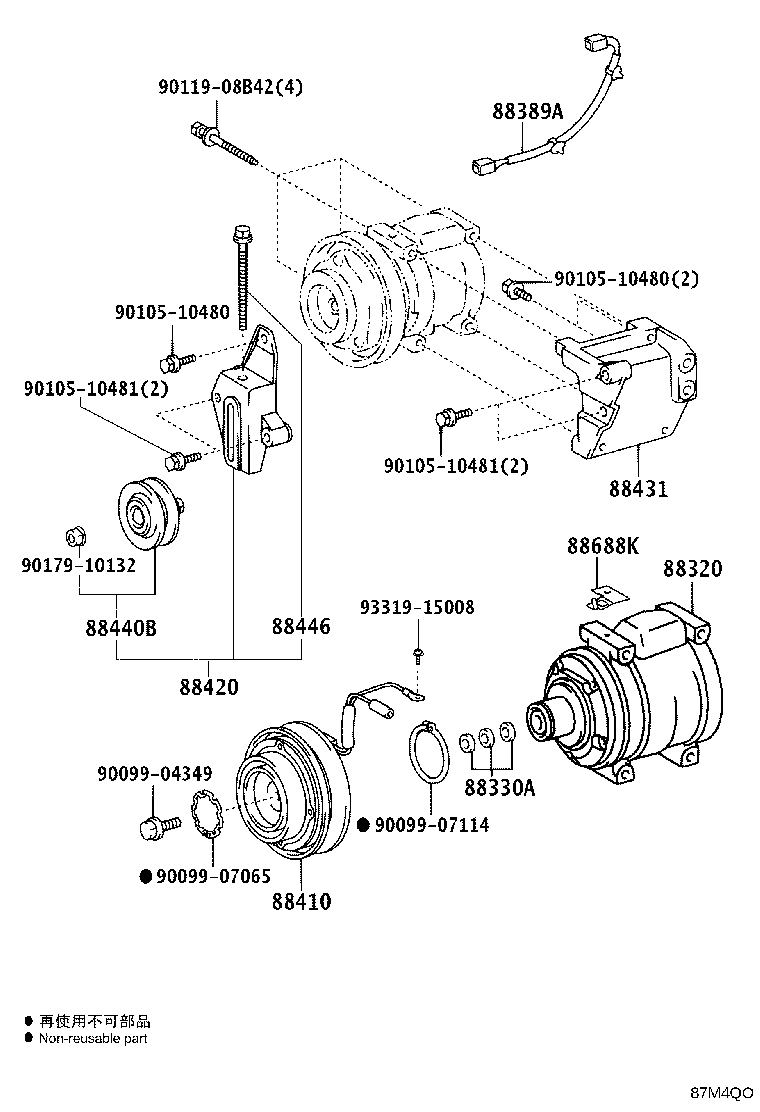

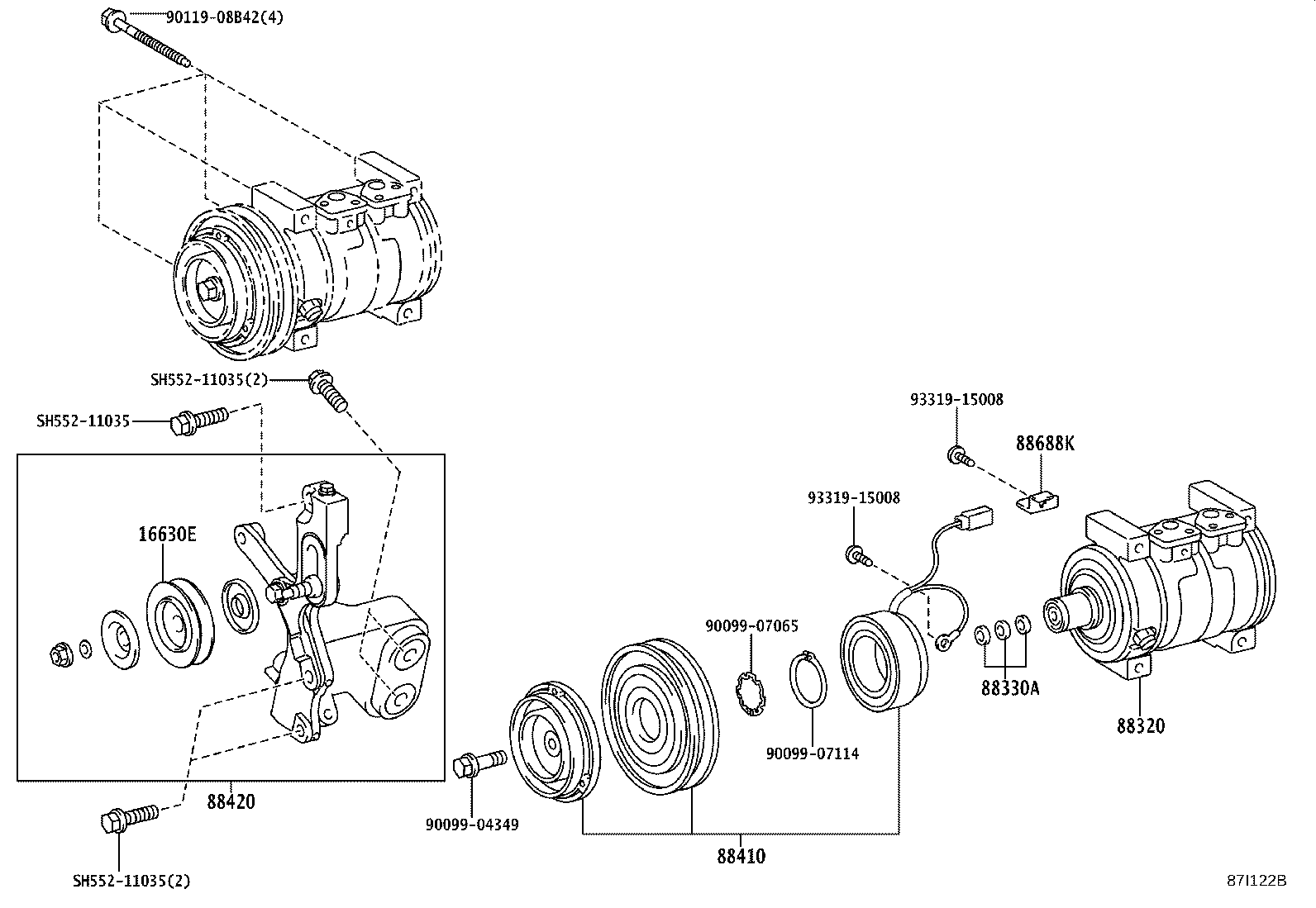

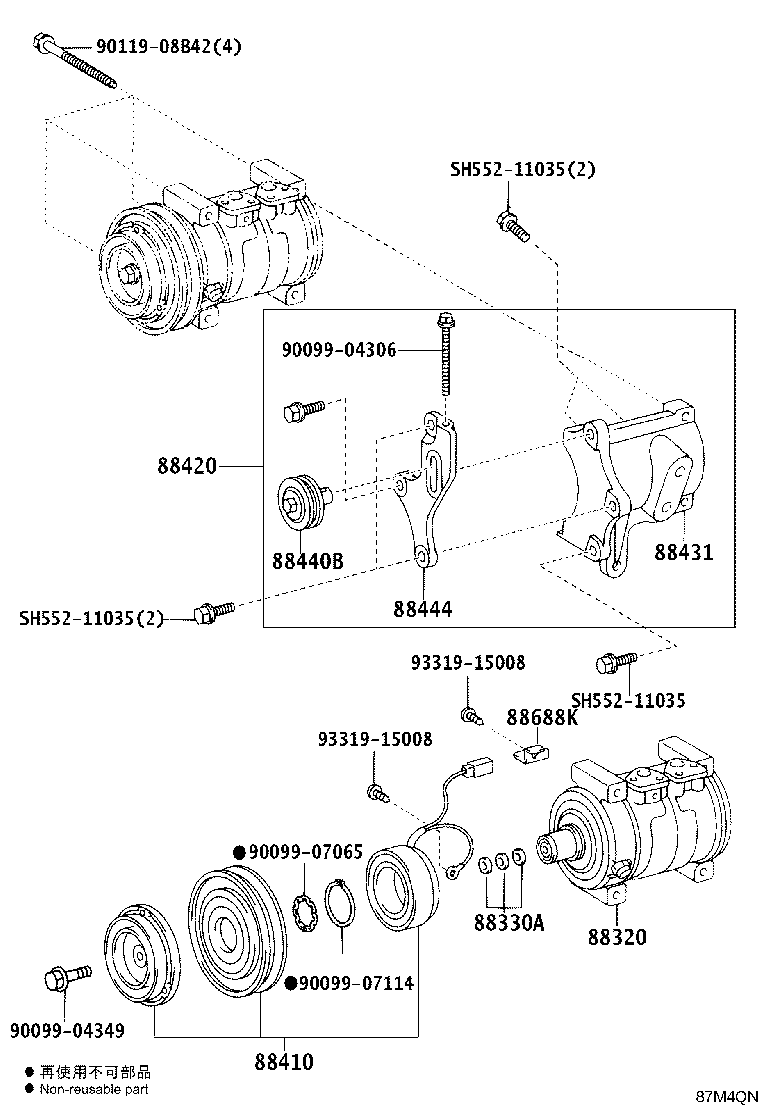

Figure 87M4QL 87M4QL 2011-07 → — Figure 87M4QN 87M4QN 2011-07 → — Figure 87M4QO 87M4QO 2011-07 → — Figure 87I122B 87I122B 2019-11 → — Figure 87C298A 87C298A 2012-07 → — Figure 87C164A 87C164A 2012-11 → — Figure 87I123A 87I123A 2019-11 → —

Part groups

PNCDescription
16603F Pulley Sub-assy, Idler
16630E Pulley Assy, Idler
88036 Compressor Mounting Set
88317 Spacer, Cooler Compressor
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88345B Bracket, Compressor Mounting, NO.1
88345C Bracket, Compressor Mounting, NO.2
88345D Bracket, Compressor Mounting, NO.3
88389A Wire, Compressor
88410 Clutch Assy, Magnet
88420 Pulley Assy, Idle, W/Bracket
88431 Bracket, Compressor Mounting, NO.1
88440B Pulley Assy, Idle
88444 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88469C Spacer
88688K Bracket, Cooler Compressor
