Toyota Land Cruiser
1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe
Discontinued model
Data version 1987-01

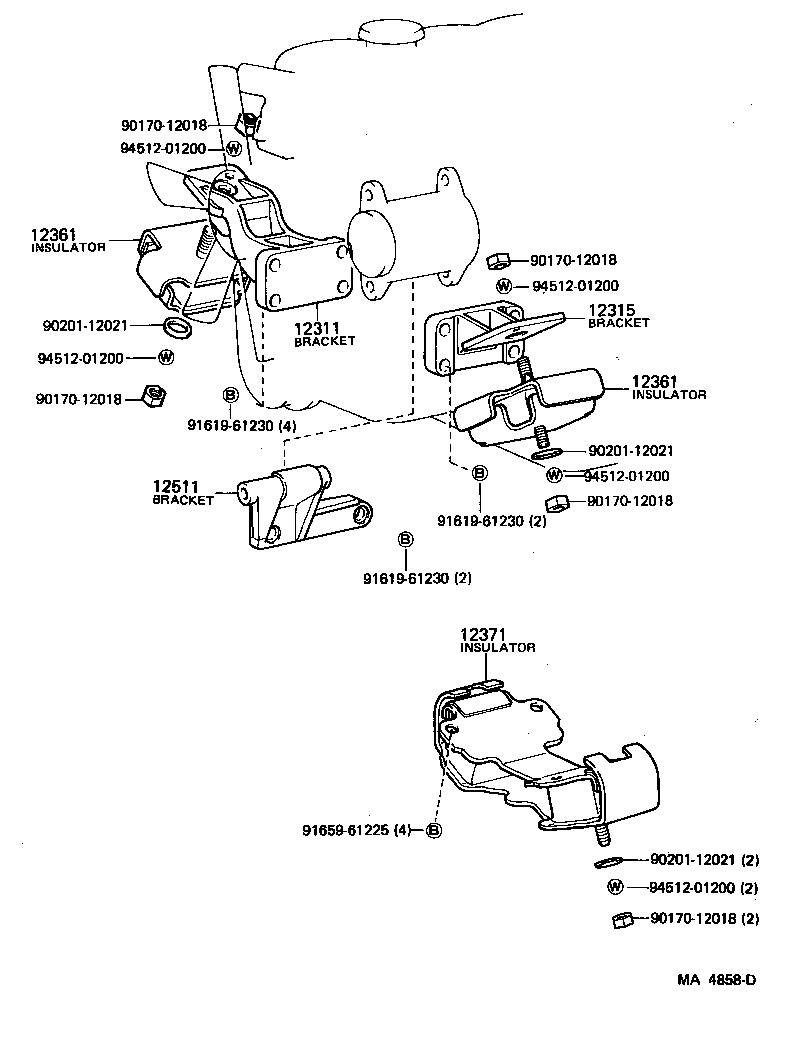

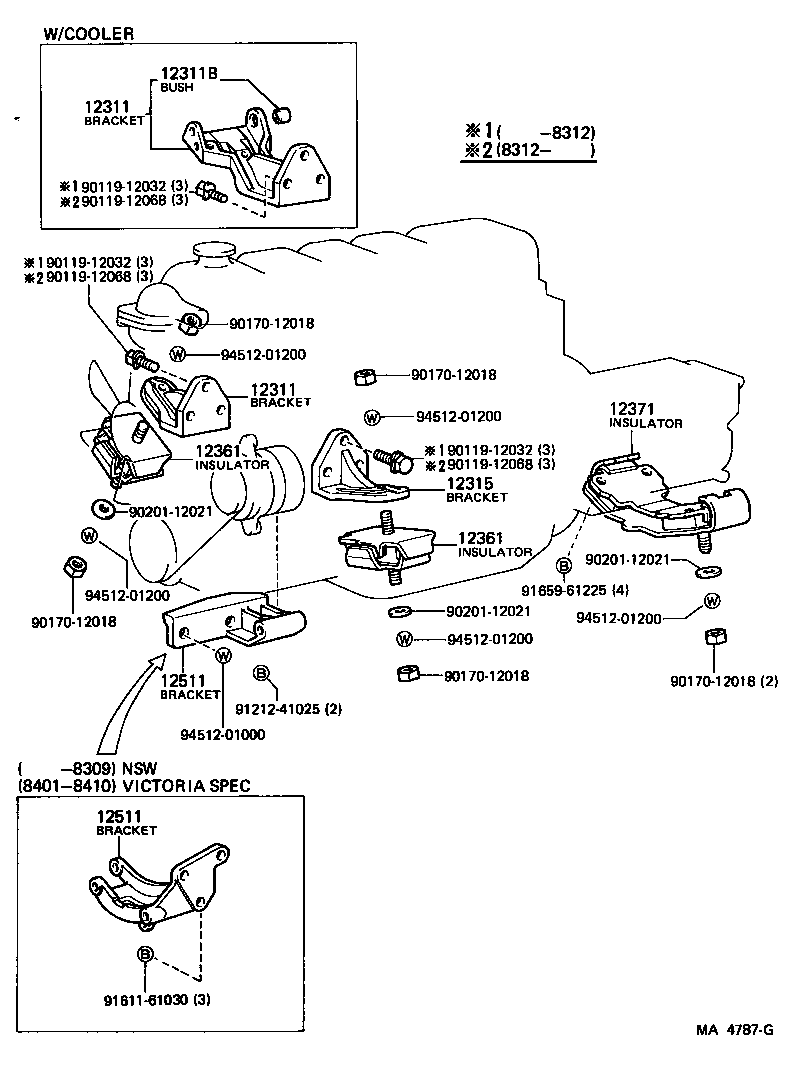

Mounting
6 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 12311 | Bracket, Engine Mounting, Front NO.1 RH |
| 12311B | Bush(FOR ENGINE MOUNTING BRACKET) |
| 12315 | Bracket, Engine Mounting, Front NO.1 LH |
| 12361 | Insulator, Engine Mounting, Front |
| 12371 | Insulator, Engine Mounting, Rear NO.1 |
| 12511 | Bracket, Alternator, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
