Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

11 part groups · 3 illustrations

Illustrations

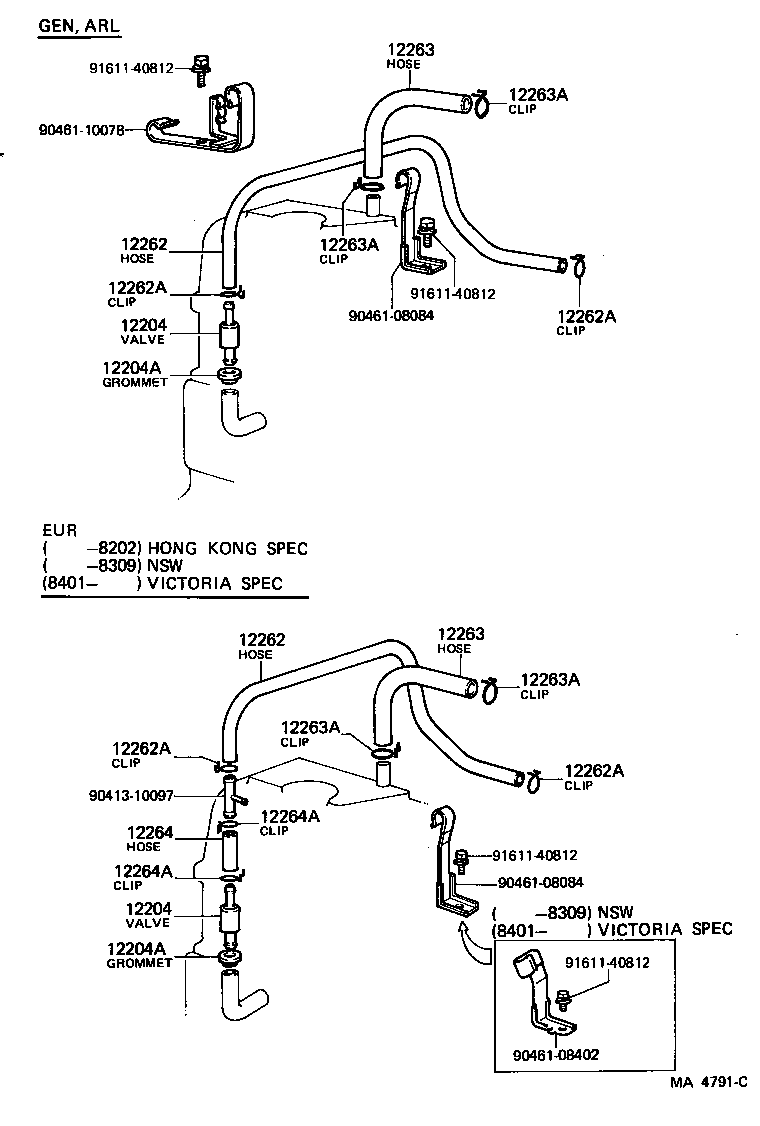

Figure MA4891C MA4891C 1980-08 → 1984-10 Figure MA4791C MA4791C 1980-08 → — Figure MA4859 MA4859 1980-08 → 1985-06

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12251 Clamp, Ventilation Tube
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12264 Hose, Ventilation, NO.4
12264A Clip(FOR VENTILATION HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
