Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

35 part groups · 3 illustrations

Illustrations

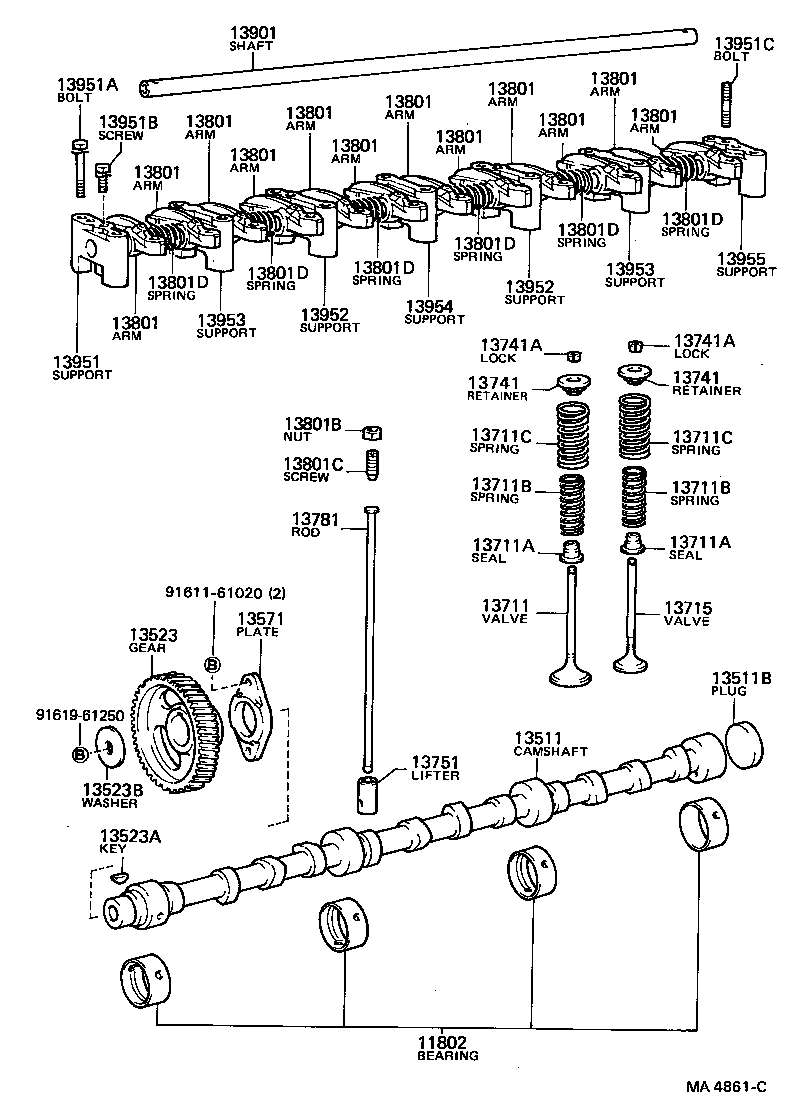

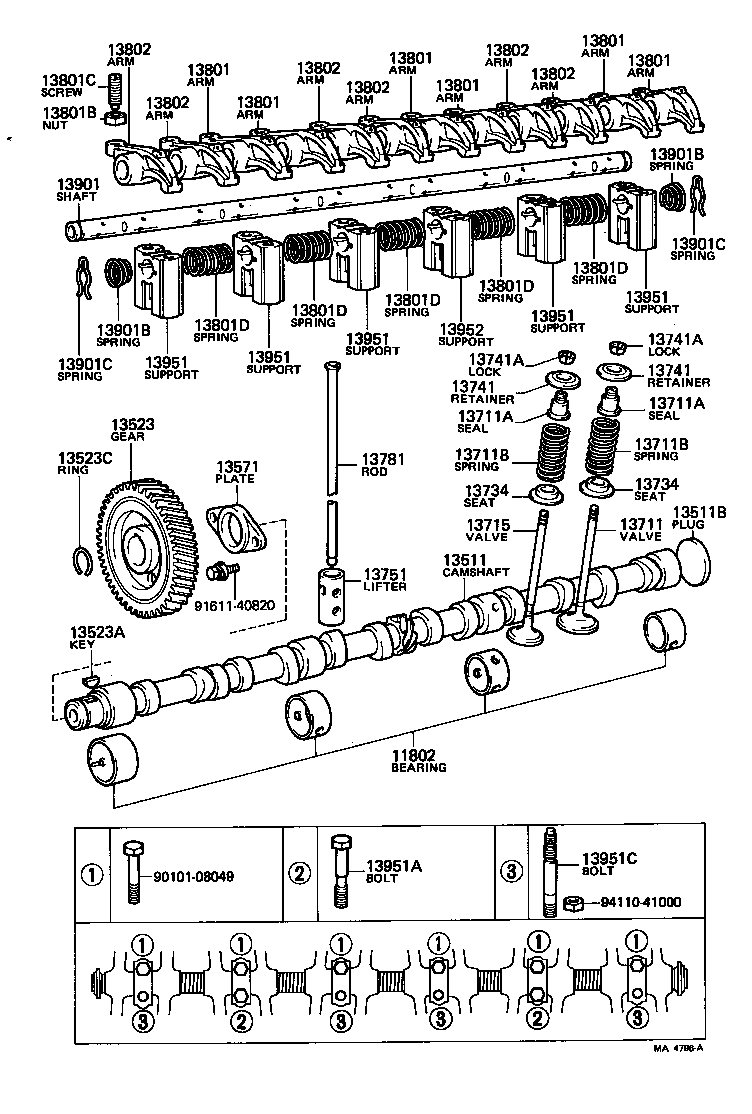

Figure MA4681E MA4681E 1980-08 → 1984-10 Figure MA4796A MA4796A 1980-08 → — Figure MA4861C MA4861C 1980-08 → 1985-06

Part groups

PNCDescription
11802 Bearing Set, Camshaft
13511 Camshaft
13511B Plug, Expansion(FOR CAMSHAFT)
13523 Gear OR Sprocket, Camshaft Timing
13523A Key, Woodruff(FOR TIMING GEAR)
13523B Washer, Plate(FOR TIMING GEAR)
13523C Ring, Snap Camshaft(FOR TIMING GEAR)
13571 Plate, Camshaft Thrust
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711C Spring, Compression(FOR OUTER)
13715 Valve, Exhaust
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13781 Rod, Valve Push
13801 Arm Sub-assy, Valve Rocker, NO.1
13801B Nut, Hexagon(FOR VALVE ADJUSTING)
13801C Screw, Valve Adjusting
13801D Spring, Compression(FOR ROCKER ARM)
13802 Arm Sub-assy, Valve Rocker, NO.2
13901 Shaft Sub-assy, Valve Rocker, NO.1
13901B Spring, Conical(FOR VALVE ROCKER SHAFT)
13901C Spring, Retainer(FOR VALVE ROCKER SHAFT)
13951 Support, Valve Rocker, NO.1
13951A Bolt(FOR ROCKER SUPPORT SET)
13951B Screw OR Bolt(FOR VALVE ROCKER SHAFT LOCK)
13951C Bolt, Stud(FOR ROCKER SUPPORT)
13951D Washer, Seal(FOR HEAD COVER SET)
13952 Support, Valve Rocker, NO.2
13953 Support, Valve Rocker, NO.3
13954 Support, Valve Rocker, NO.4
13955 Support, Valve Rocker, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
