Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

21 part groups · 7 illustrations

Illustrations

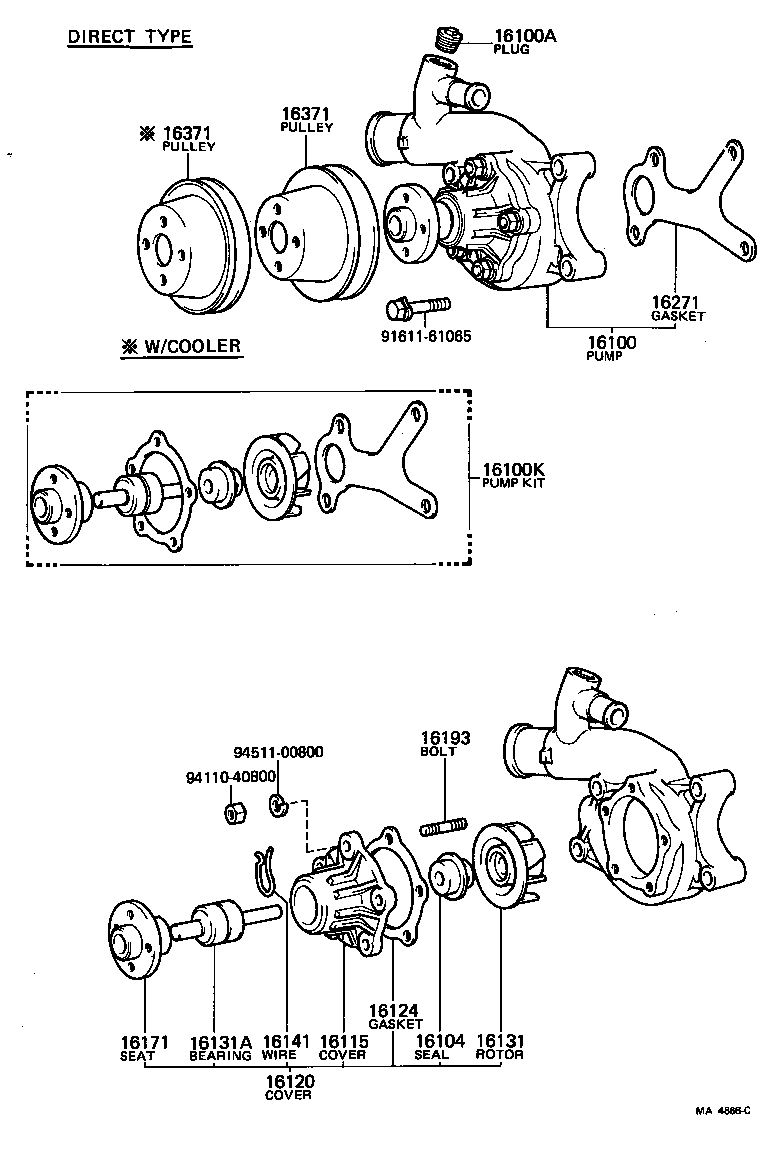

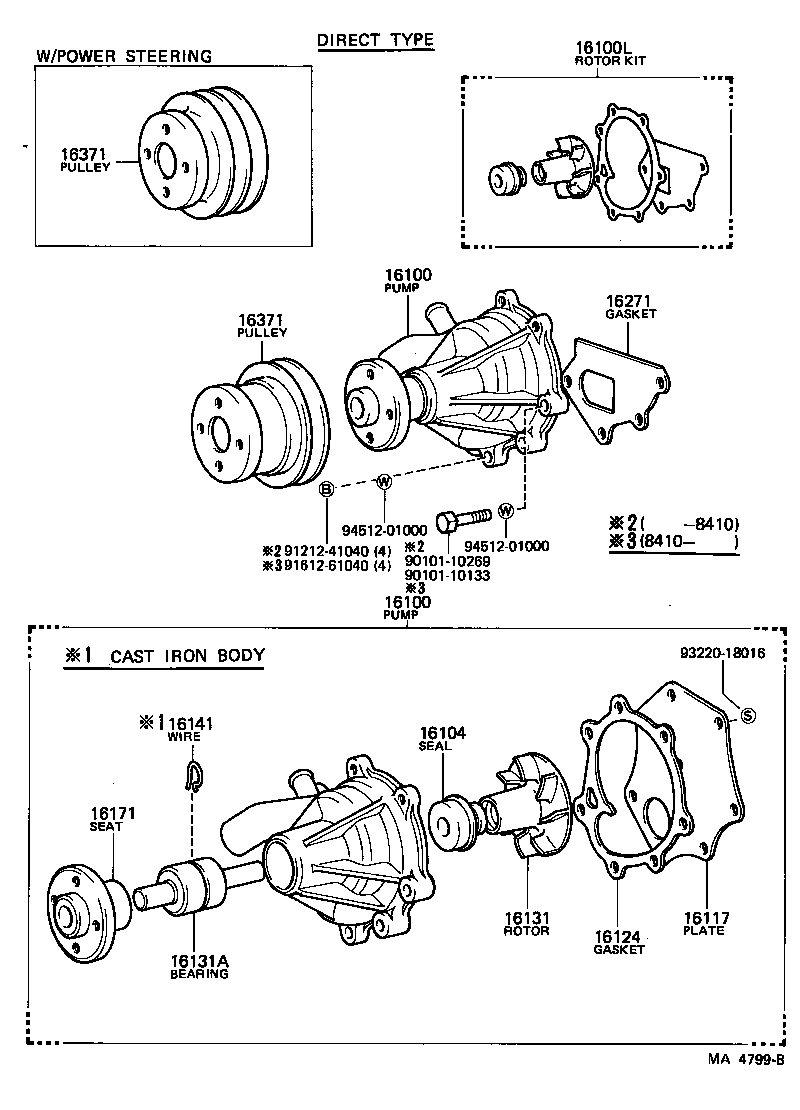

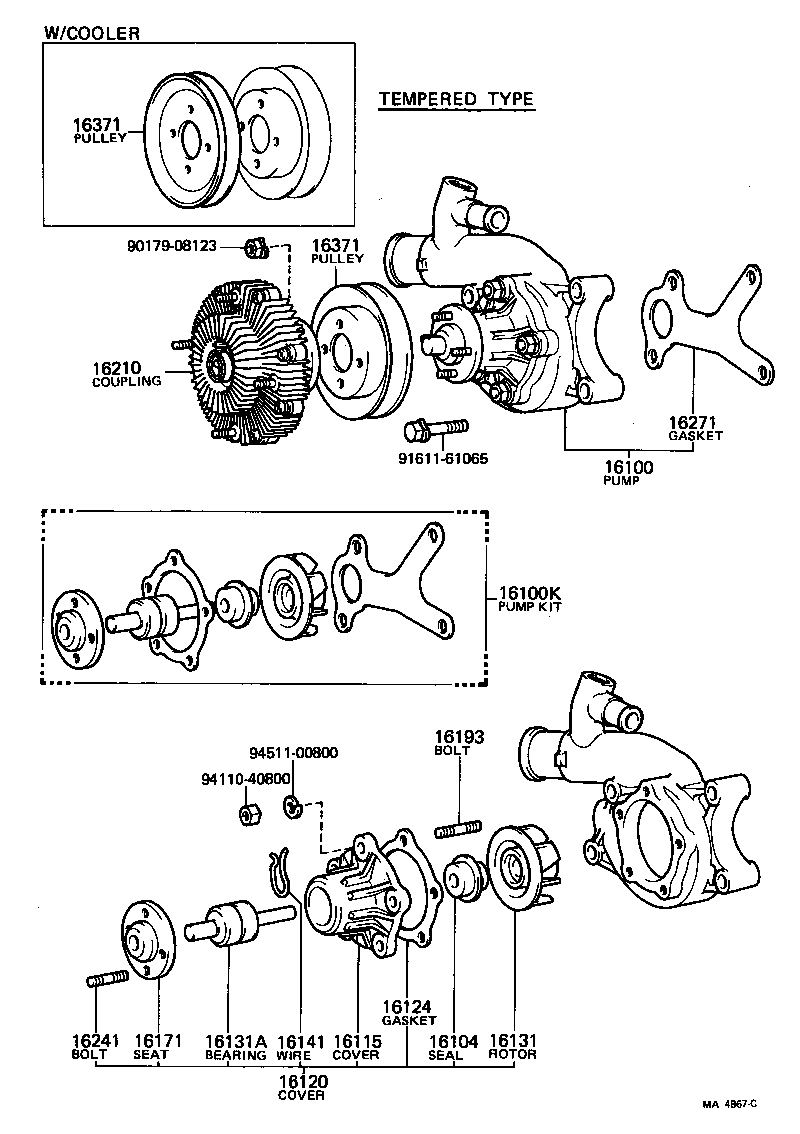

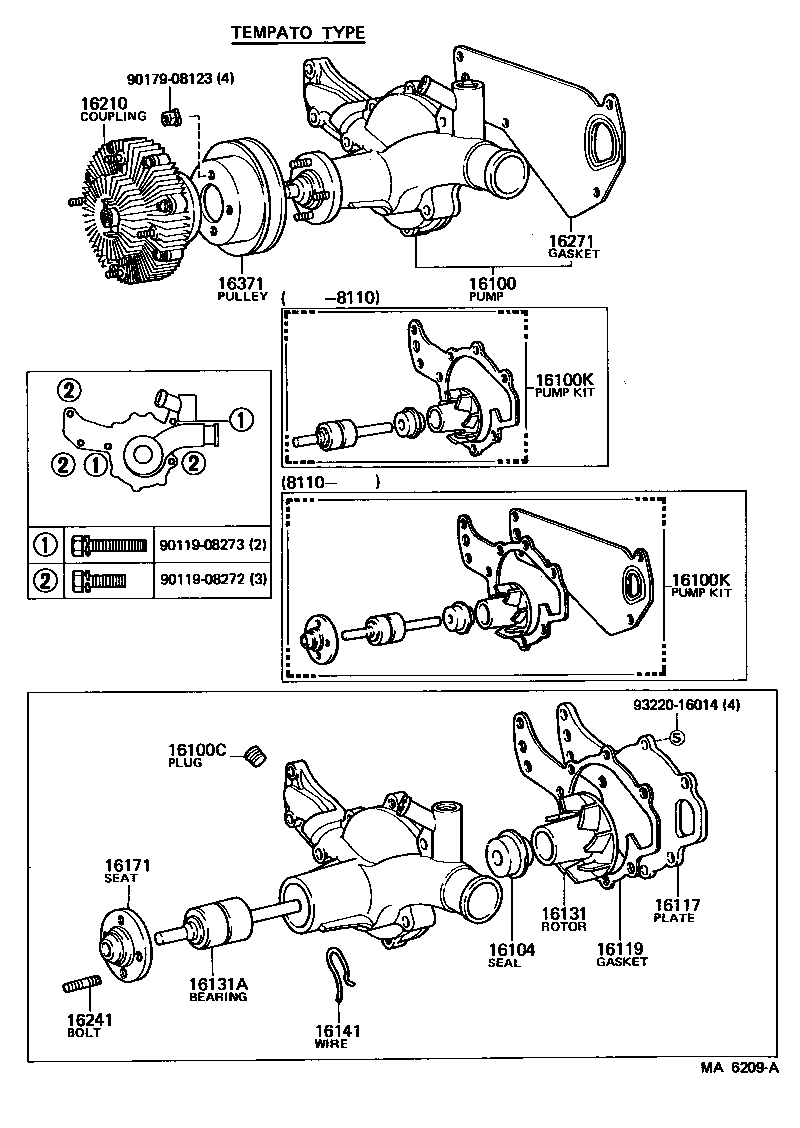

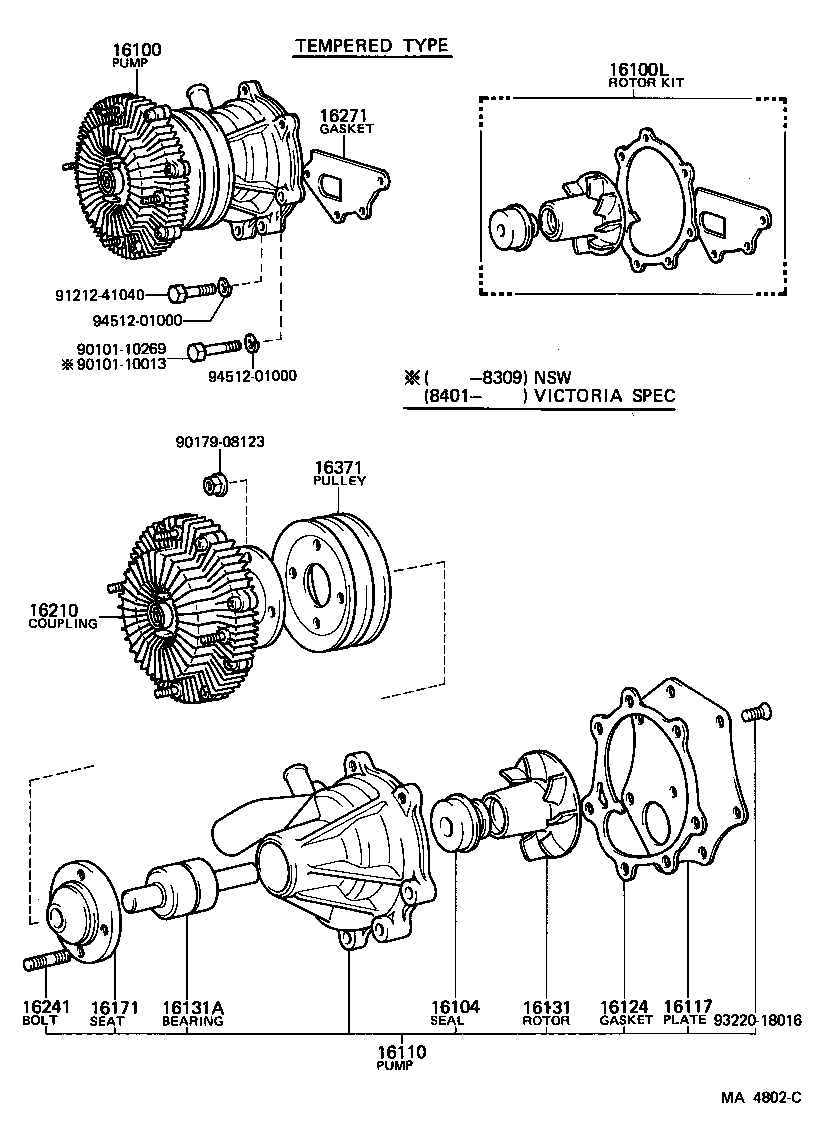

Figure MA6226 MA6226 1980-08 → 1984-10 Figure MA6209A MA6209A 1980-08 → 1984-10 Figure MA6209A MA6209A 1984-08 → 1984-10 Figure MA4799B MA4799B 1980-08 → — Figure MA4802C MA4802C 1980-08 → — Figure MA4866C MA4866C 1980-08 → 1985-06 Figure MA4867C MA4867C 1980-08 → 1984-10

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100A Plug, Water Pump
16100C Plug, W/Head Taper Screw
16100K Pump Kit, Water
16100L Rotor Kit, Water Pump
16104 Seal Set, Water Pump
16110 Pump Assy, Water, W/O Coupling
16115 Cover, Water Pump
16117 Plate, Water Pump
16119 Gasket, Water Pump Body
16120 Cover Assy, Water Pump
16124 Gasket, Water Pump Cover
16131 Rotor, Water Pump
16131A Bearing, Water Pump
16141 Wire, Water Pump Bearing Retaining
16171 Seat, Water Pump Pulley
16193 Bolt, Stud(FOR WATER PUMP COVER)
16210 Coupling Assy, Fluid
16241 Bolt, Stud(FOR WATER PUMP COUPLING)
16271 Gasket, Water Pump
16371 Pulley, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
