Toyota Land Cruiser
1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe
Discontinued model
Data version 1987-01

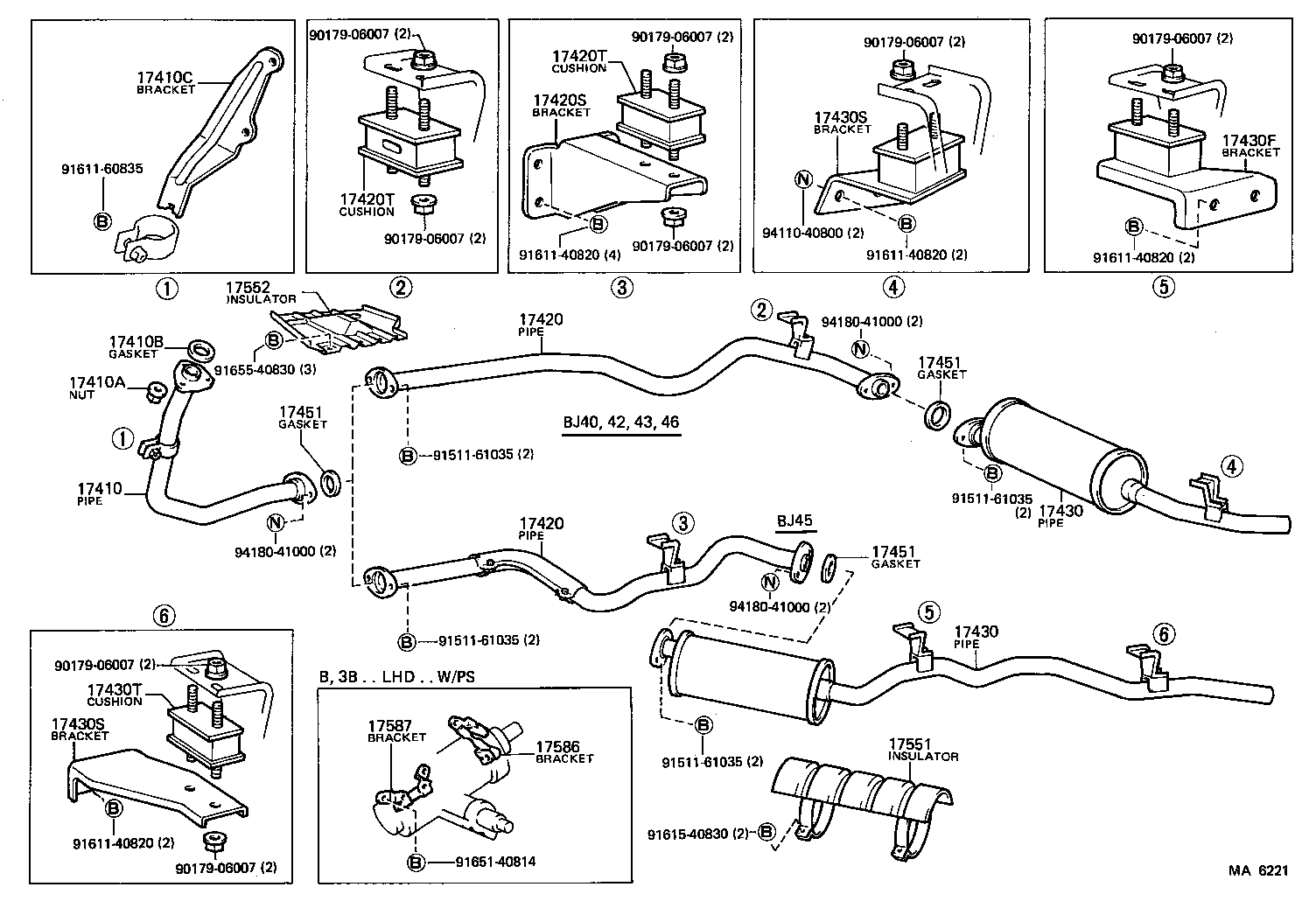

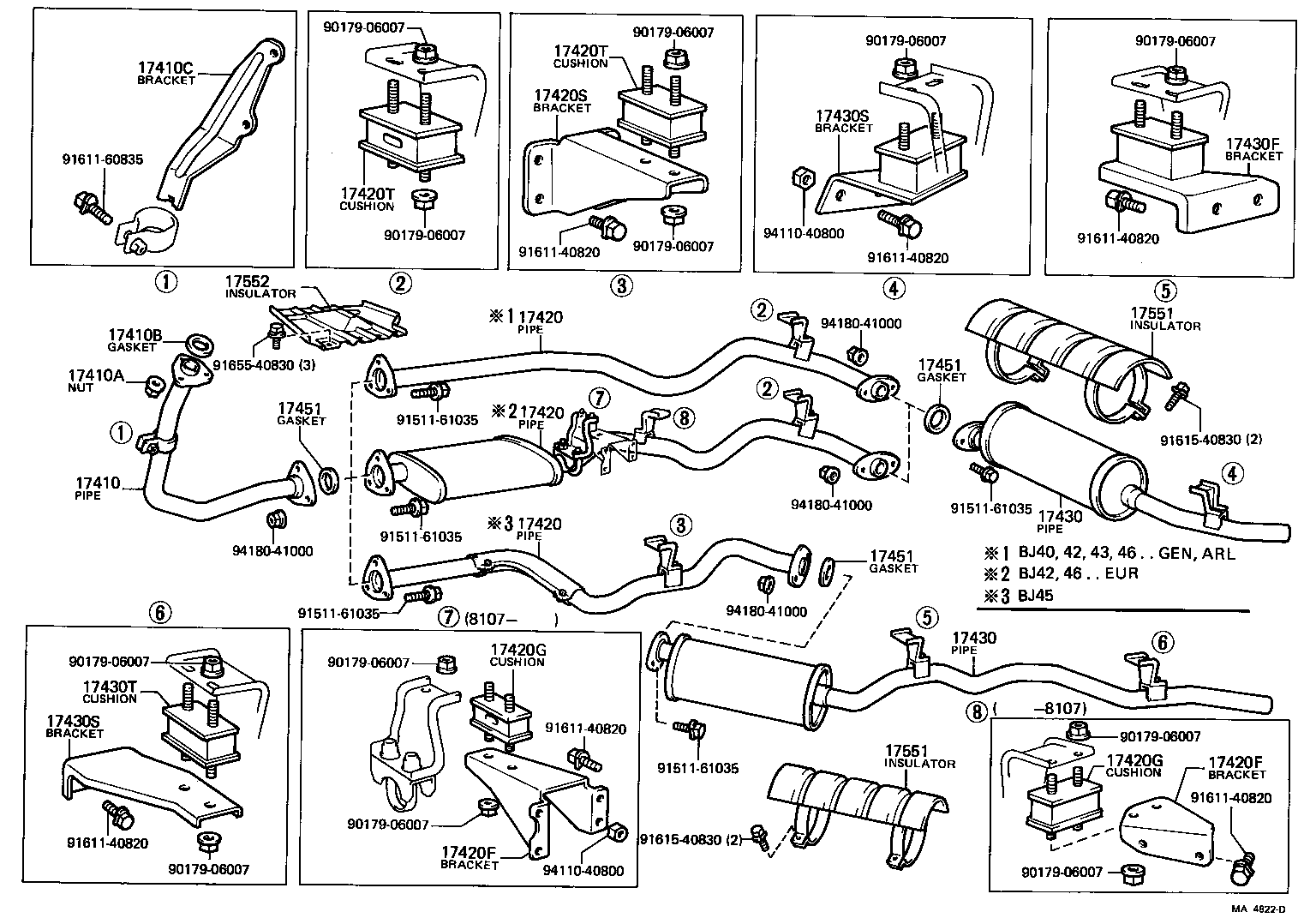

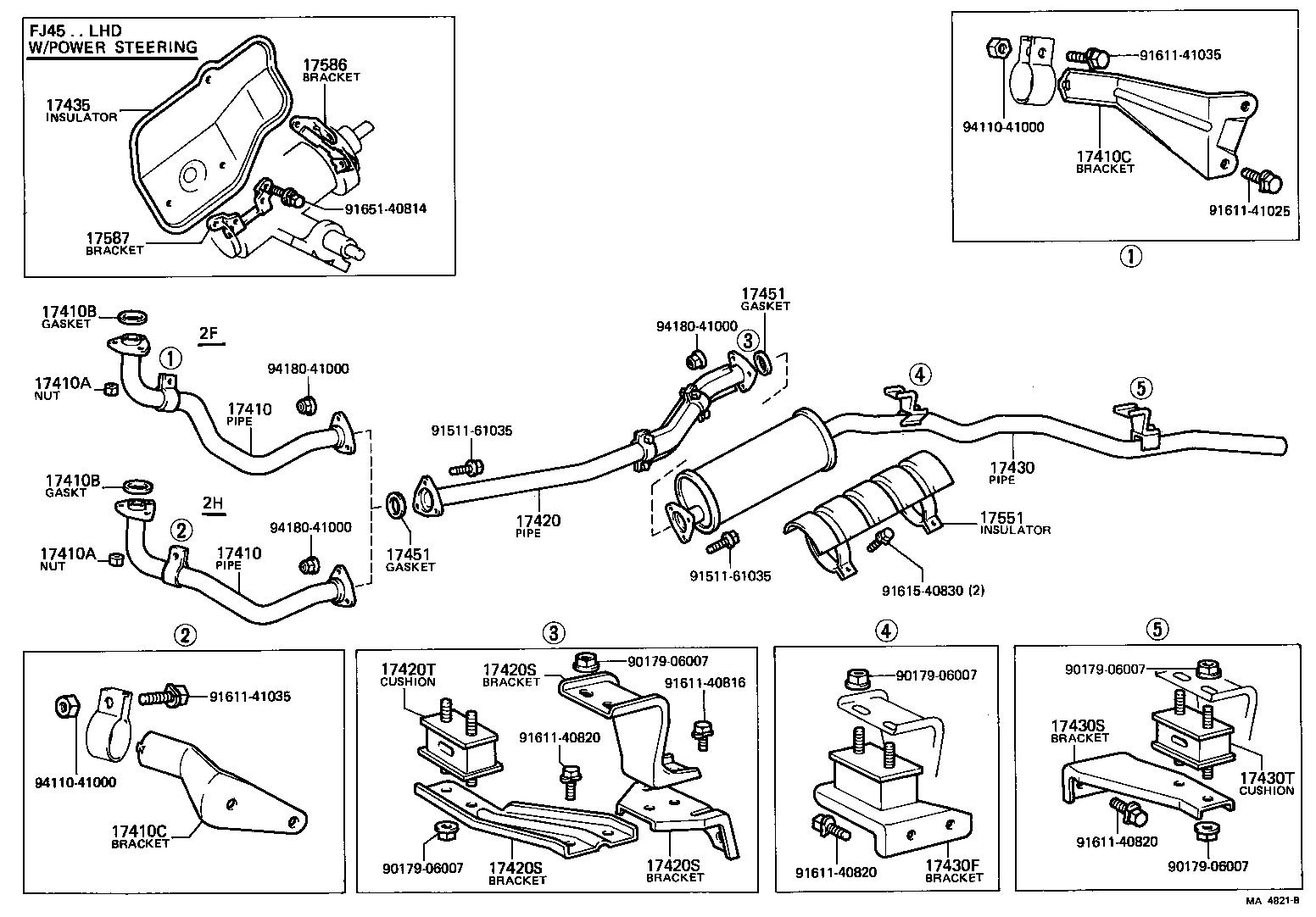

Exhaust Pipe
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17410C | Bracket, Exhaust Pipe Front (FOR FRONT) |
| 17410V | Bracket, Exhaust Pipe Front (FOR REAR) |
| 17410Y | Bolt OR Ring, Exhaust Pipe Front (FOR REAR) |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420A | Bracket, Exhaust Pipe Center, Front |
| 17420F | Bracket, Exhaust Pipe, Center |
| 17420G | Cushion, Exhaust Pipe Center, Center |
| 17420S | Bracket, Exhaust Pipe Center, Rear |
| 17420T | Cushion, Exhaust Pipe Center, Rear |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430F | Bracket, Exhaust Tailpipe(FOR CENTER) |
| 17430S | Bracket, Exhaust Tailpipe (FOR REAR) |
| 17430T | Cushion, Exhaust Tailpipe (FOR REAR) |
| 17435 | Insulator, Exhaust Pipe Heat |
| 17451 | Gasket, Exhaust Pipe |
| 17551 | Insulator, Exhaust Pipe Heat, NO.1 |
| 17552 | Insulator, Exhaust Pipe Heat, NO.2 |
| 17586 | Bracket, Heat Insulator, NO.1 |
| 17587 | Bracket, Heat Insulator, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
