Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

3 part groups · 3 illustrations

Illustrations

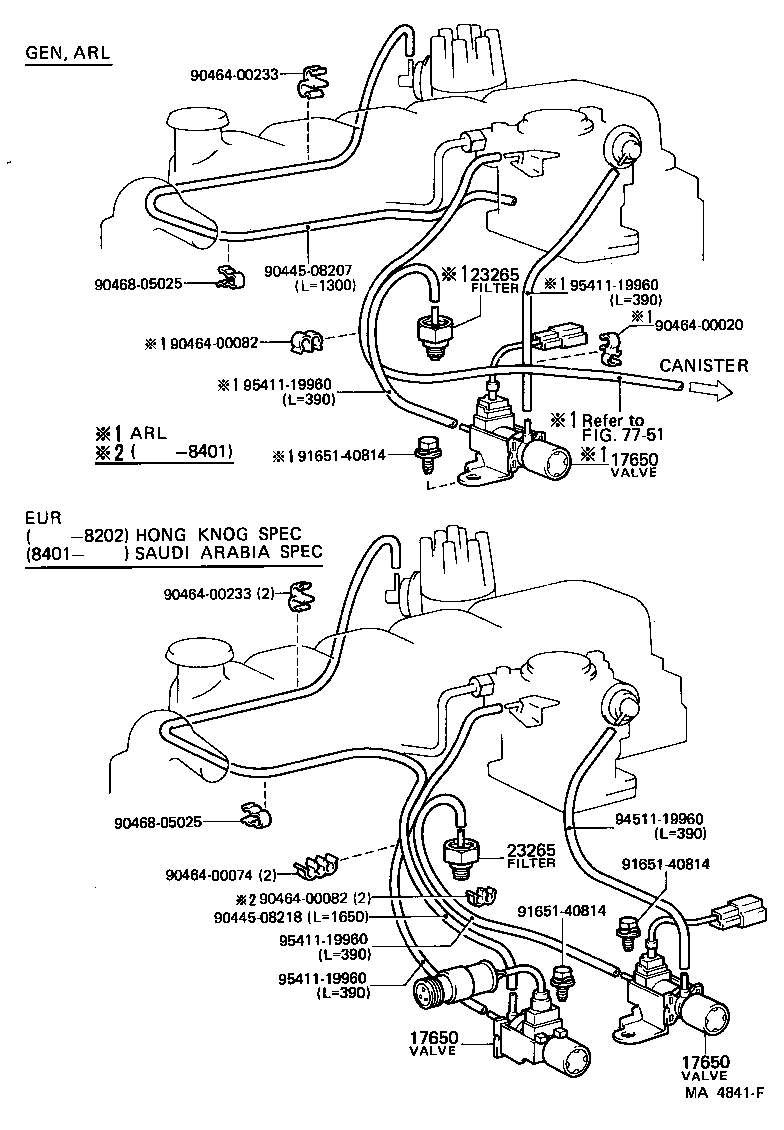

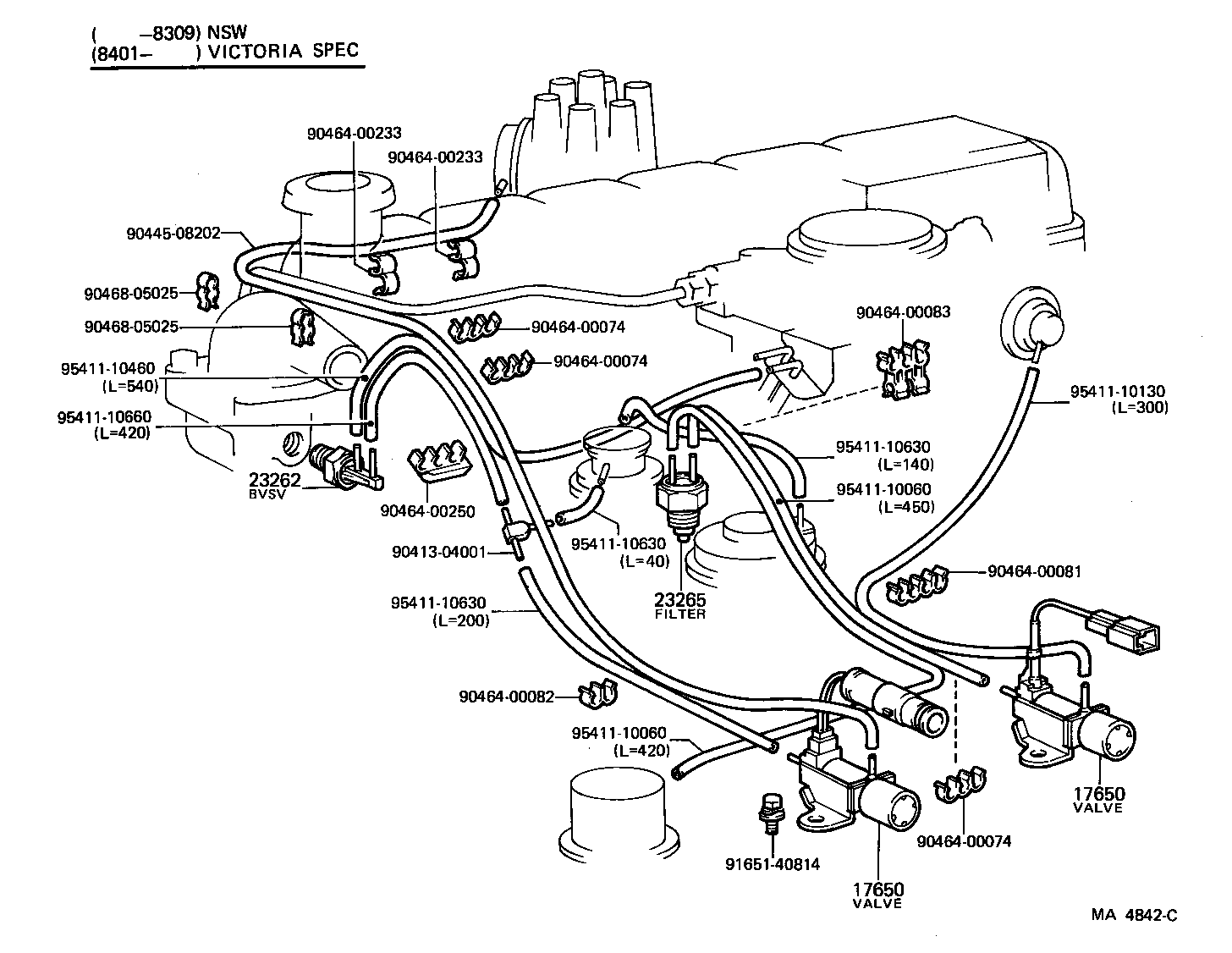

Figure MA9501 MA9501 1980-08 → — Figure MA4841F MA4841F 1980-08 → — Figure MA4842C MA4842C 1980-08 → 1985-10

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
