Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

18 part groups · 3 illustrations

Illustrations

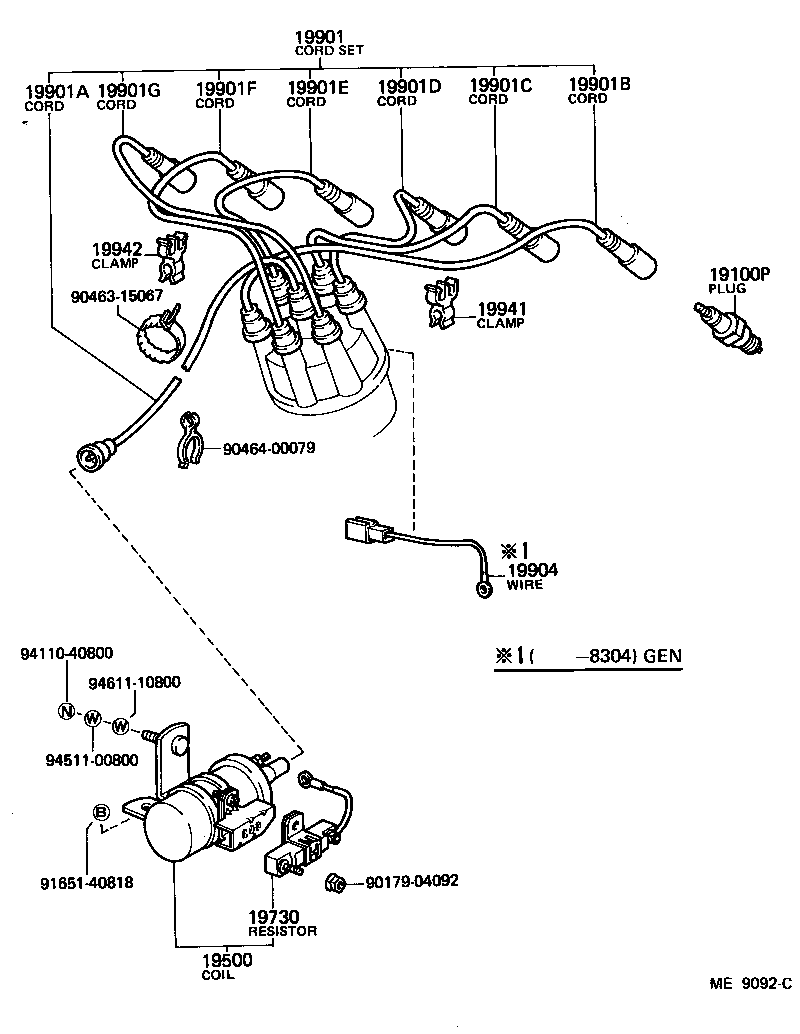

Figure ME9114 ME9114 1980-08 → 1984-10 Figure ME9092C ME9092C 1980-08 → — Figure MEF274A MEF274A 1980-08 → 1985-06

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19730 Resistor, Ignition Coil
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19901F Cord, Spark Plug Resistive, NO.5
19901G Cord, Spark Plug Resistive, NO.6
19904 Wire Sub-assy, Distributor Primary
19941 Clamp, Resistive Cord, NO.1
19942 Clamp, Resistive Cord, NO.2
22560 Magnet Assy, Over Injection
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
