Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

8 part groups · 4 illustrations

Illustrations

Figure ME9165A

ME9165A 1980-08 → 1982-10

Figure ME9035A

ME9035A 1980-08 → 1982-04

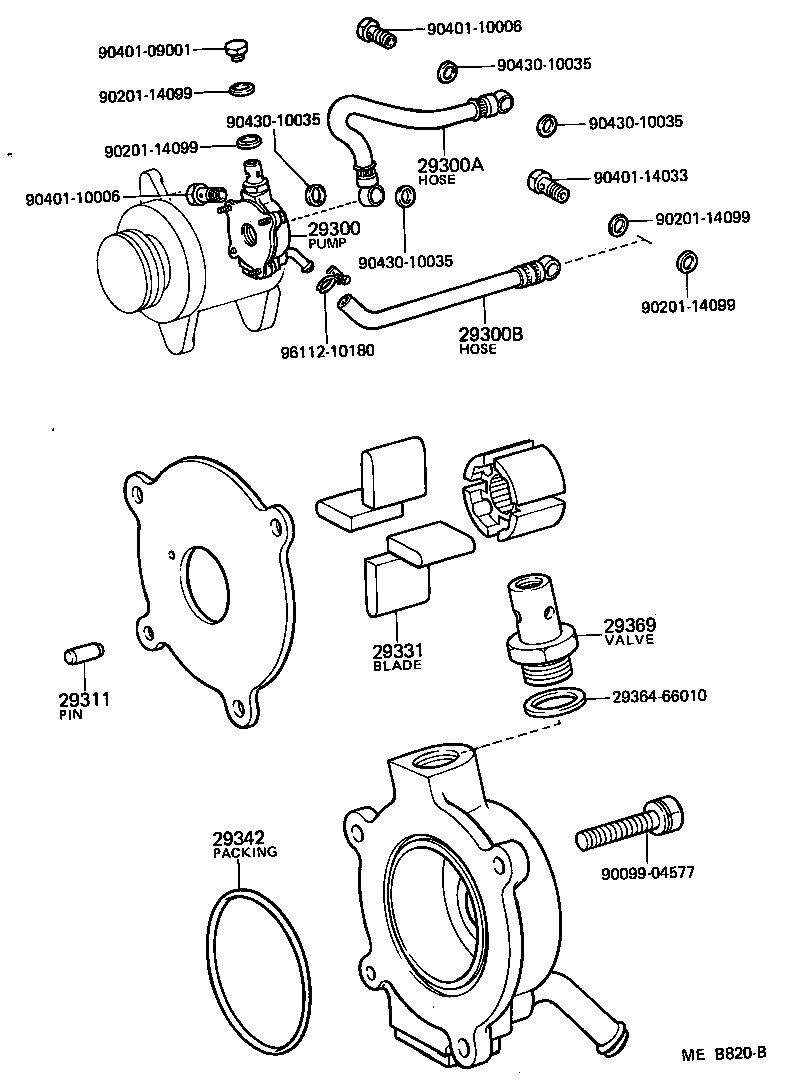

Figure MEB820B

MEB820B 1982-04 → —

Figure MEB820B

MEB820B 1982-10 → —

Part groups

PNC	Description
29300	Pump Assy, Vacuum
29300A	Hose, Vacuum Pump Oil Inlet
29300B	Hose, Vacuum Pump Oil Outlet
29311	Pin, Vacuum Pump Dowel, NO.1
29322A	Seal, Vacuum Pump Oil
29331	Blade, Vacuum Pump, A
29342	Packing, Vacuum Pump
29369	Valve Sub-assy, Check

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
