Toyota Land Cruiser
1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe
Discontinued model
Data version 1987-01

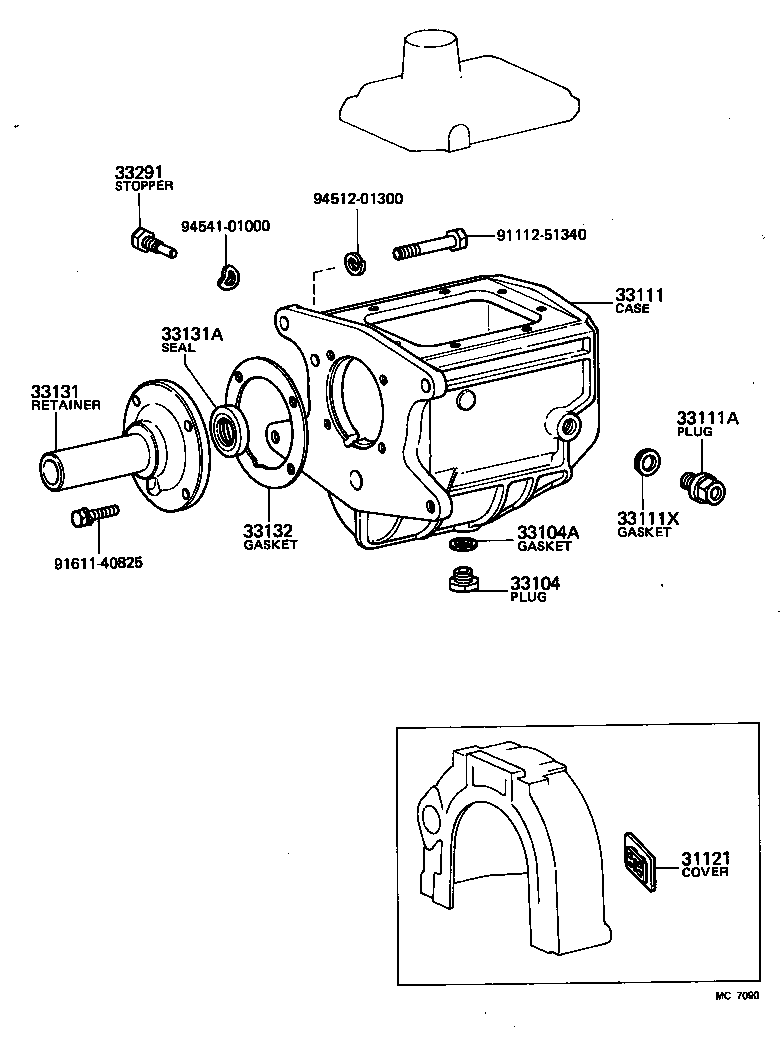

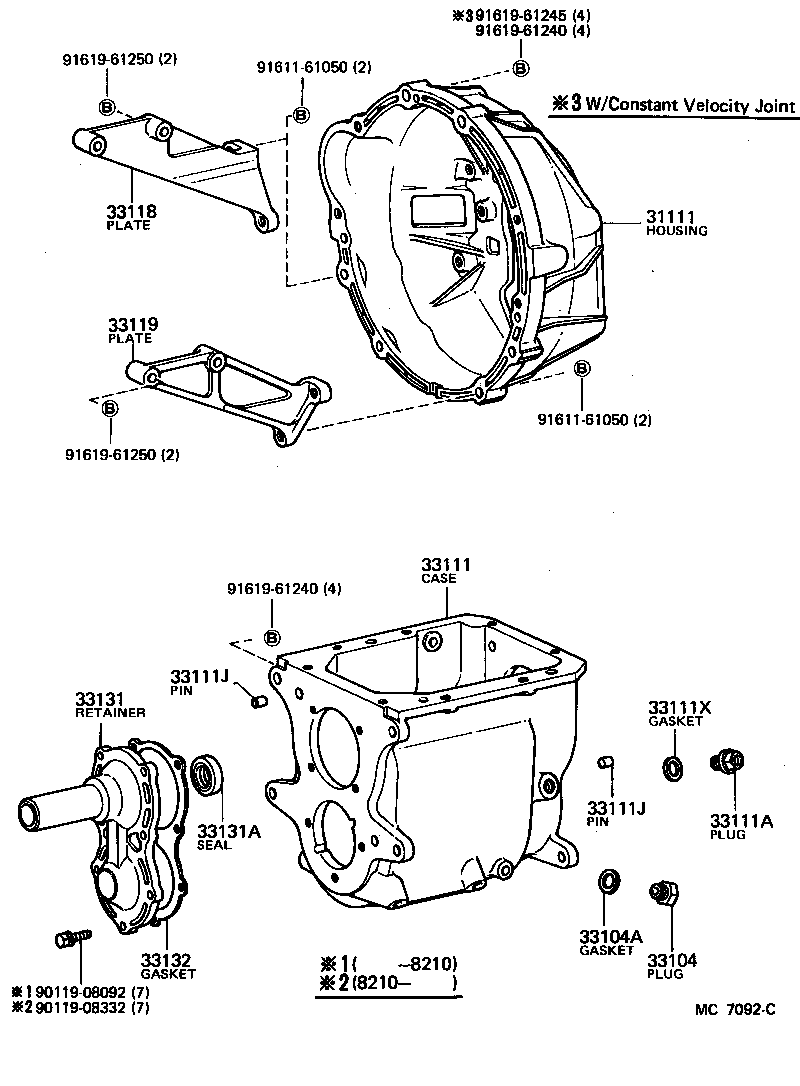

Clutch Housing & Transmission Case (MTM)
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 31111 | Housing, Clutch |
| 31121 | Cover, Clutch Housing, NO.1 |
| 33104 | Plug Sub-assy, Drain(MTM) |
| 33104A | Gasket, Drain Plug(MTM) |
| 33111 | Case, Manual Transmission |
| 33111A | Plug, Manual Transmission Case |
| 33111J | Pin, Straight(FOR MANUAL TRANSMISSION CASE) |
| 33111X | Gasket, Transmission Case Plug |
| 33112A | Adapter, Transfer |
| 33112B | Gasket, Transfer Adapter |
| 33112C | Pin, Straight(FOR TRANSFER ADAPTER) |
| 33112D | Seal, Oil(FOR TRANSFER ADAPTER) |
| 33118 | Plate, Stiffener, RH(MTM) |
| 33119 | Plate, Stiffener, LH(MTM) |
| 33131 | Retainer, Bearing, Front(MTM) |
| 33131A | Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER) |
| 33132 | Gasket, Front Bearing Retainer(MTM) |
| 33151 | Retainer, Output Shaft Rear Bearing(MTM) |
| 33291 | Stopper, Shift Fork |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
