Toyota Land Cruiser
1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe
Discontinued model
Data version 1987-01

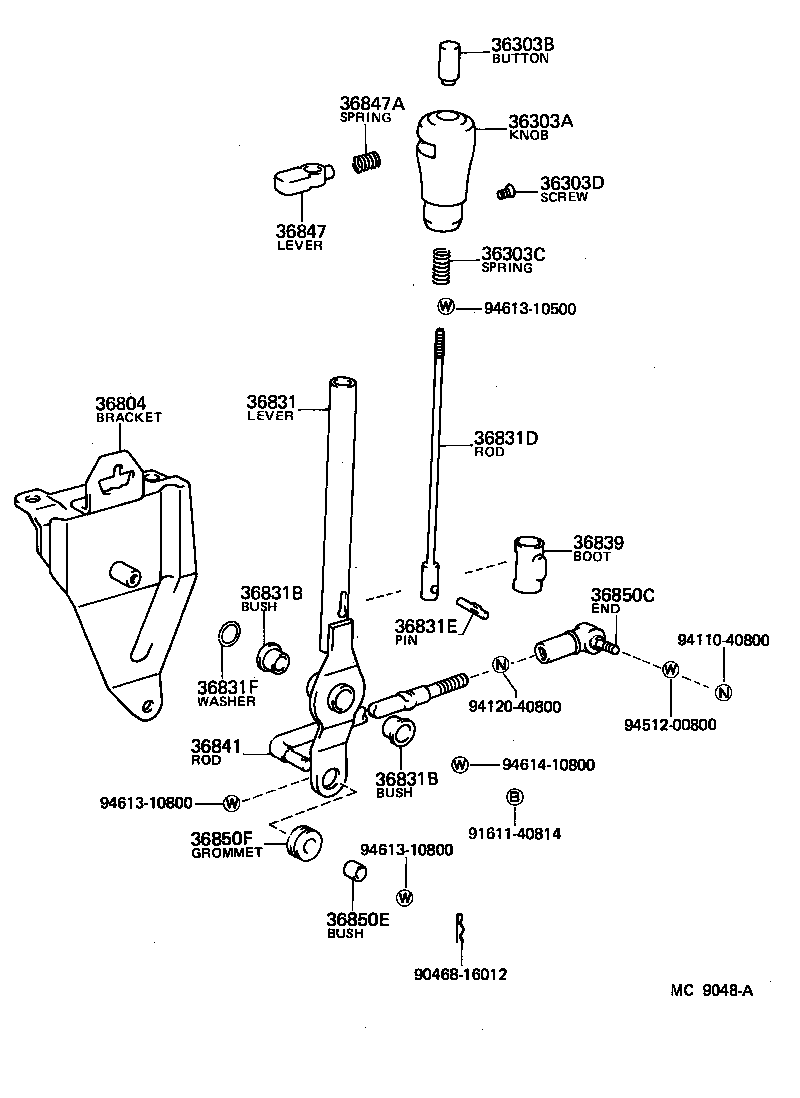

Power Take-off Lever & Link
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 36303A | Knob Sub-assy, Shift Lever (FOR POWER TAKE-OFF) |
| 36303B | Button, Shift Lever Knob (FOR POWER TAKE-OFF) |
| 36303C | Spring, Compression (FOR SHIFT LEVER KNOB BUTTON) |
| 36303D | Screw (FOR SHIFT LEVER KNOB SETTING) |
| 36804 | Bracket Sub-assy, Power Take-off Shift Lever |
| 36827 | Bracket, Power Take-off Cable |
| 36828 | Swivel, Power Take-off Cable |
| 36828A | Nut, Hexagon (FOR POWER TAKE-OFF CABLE) |
| 36828B | Washer, Toothed (FOR POWER TAKE-OFF CABLE) |
| 36831 | Lever, Power Take-off Shift |
| 36831A | Pin (FOR POWER TAKE-OFF SHIFT LEVER) |
| 36831B | Bush (FOR POWER TAKE-OFF SHIFT LEVER) |
| 36831D | Rod, Detent (FOR POWER TAKE-OFF) |
| 36831E | Pin, Grooved (FOR POWER TAKE-OFF DETENT ROD) |
| 36831F | Washer, Wave (FOR POWER TAKE-OFF SHIFT LEVER) |
| 36839 | Boot, Power Take-off Shift Lever |
| 36841 | Rod, Power Take-off Shift |
| 36847 | Lever, Power Take-off Lock |
| 36847A | Spring, Compression (FOR POWER TAKE-OFF LOCK LEVER) |
| 36850C | End Assy, Power Take-off Shift Rod |
| 36850E | Bush (FOR POWER TAKE-OFF SHIFT ROD) |
| 36850F | Grommet (FOR POWER TAKE-OFF SHIFT ROD) |
| 36870 | Cable Assy, Power Take-off |
| 36870A | Pin (FOR POWER TAKE-OFF CABLE) |
| 38207 | Bracket Sub-assy, Lever Shift Lock |
| 38903 | Knob Sub-assy, Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
