Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01

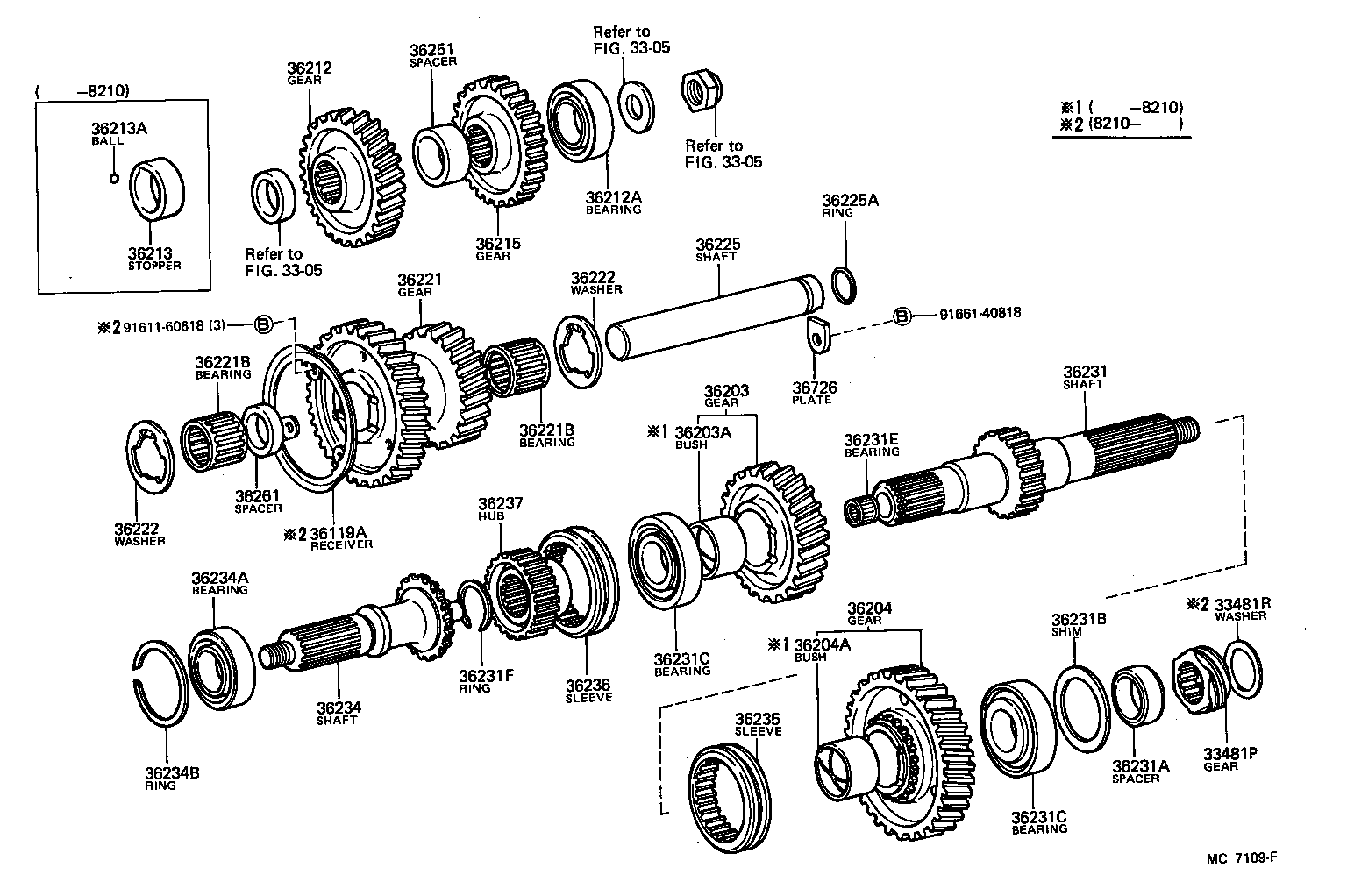

Transfer Gear

35 part groups · 2 illustrations

PNC	Description
33481P	Gear, Speedometer Drive (FOR TRANSFER)
33481R	Washer, Plate (FOR SPEEDOMETER DRIVE GEAR)
36111D	Bearing, Transfer Rear And Idler Shaft
36119A	Receiver, Transfer Oil (FOR TRANSFER IDLER GEAR)
36203	Gear Sub-assy, Transfer High Speed Output
36203A	Bush, Solid (FOR TRANSFER HIGH SPEED OUTPUT GEAR)
36204	Gear Sub-assy, Transfer Low Speed Output
36204A	Bush, Solid (FOR TRANSFER LOW SPEED OUTPUT GEAR)
36212	Gear, Transfer Input
36212A	Bearing, Radial Ball (FOR TRANSFER INPUT GEAR)
36213	Stopper, Transfer Input Gear
36213A	Ball (FOR TRANSFER INPUT GEAR STOPPER)
36215	Gear, Power Take-off Drive
36221	Gear, Transfer Idler
36221A	Spacer(FOR TRANSFER IDLER GEAR)
36221B	Bearing (FOR TRANSFER IDLER GEAR)
36222	Washer, Transfer Idler Gear Side Thrust
36225	Shaft, Transfer Idler Gear
36225A	Ring, O (FOR TRANSFER IDLER SHAFT)
36231	Shaft, Transfer Output, Rear
36231A	Spacer (FOR TRANSFER OUTPUT SHAFT)
36231B	Shim (FOR TRANSFER OUTPUT SHAFT)
36231C	Bearing, Taper Roller (FOR TRANSFER OUTPUT SHAFT)
36231D	Washer, Plate (FOR TRANSFER OUTPUT SHAFT)
36231E	Bearing, Needle Roller (FOR TRANSFER OUTPUT SHAFT FRONT)
36231F	Ring, Shaft Snap (FOR TRANSFER OUTPUT SHAFT)
36234	Shaft, Transfer Output, Front
36234A	Bearing (FOR TRANSFER OUTPUT FRONT SHAFT)
36234B	Ring, Snap (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
36235	Sleeve, Transfer High & Low Clutch
36236	Sleeve, Front Drive Clutch
36237	Hub, Transfer Clutch
36251	Spacer, Transfer Input Shaft
36261	Spacer, Transfer Idler Gear
36726	Plate, Lock (FOR TRANSFER GEAR)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
