Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

15 part groups · 4 illustrations

Illustrations

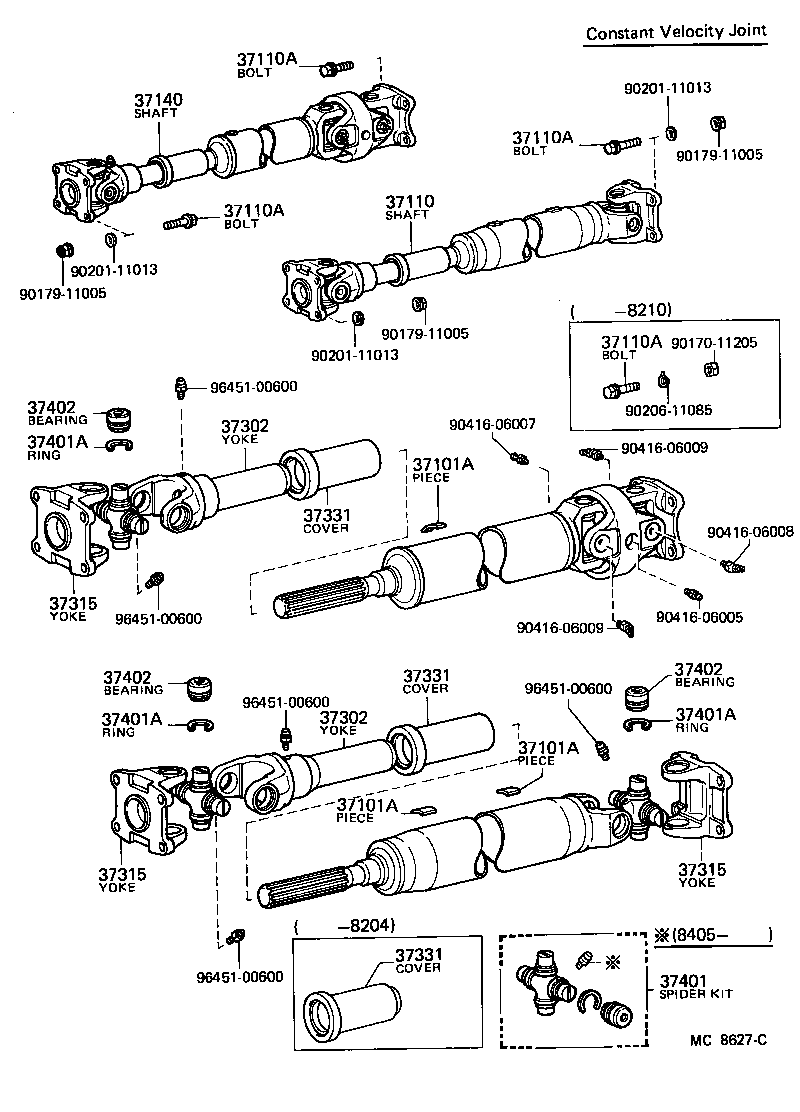

Figure MC7114C MC7114C 1980-08 → — Figure MC8627C MC8627C 1980-08 → 1985-06 Figure MC8627C MC8627C 1981-10 → 1982-03 Figure MC9050A MC9050A 1982-10 → 1985-06

Part groups

PNCDescription
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37140 Shaft Assy, Propeller, Front
37302 Yoke Sub-assy, Universal Joint Sleeve
37315 Yoke, Universal Joint Flange
37331 Cover, Sliding Shaft Dust
37401 Spider Kit, Universal Joint
37401A Ring, Hole Snap (FOR SPIDER BEARING)
37402 Bearing Sub-assy, Universal Joint Spider
37711 Bracket, Propeller Shaft Dust Cover, NO.1
37712 Cover, Propeller Shaft Dust, NO.1
37713 Cover, Propeller Shaft Dust, NO.2
37714 Stay, Propeller Shaft Dust Cover
37715 Bracket, Propeller Shaft Dust Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
