Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

80 part groups · 14 illustrations

Illustrations

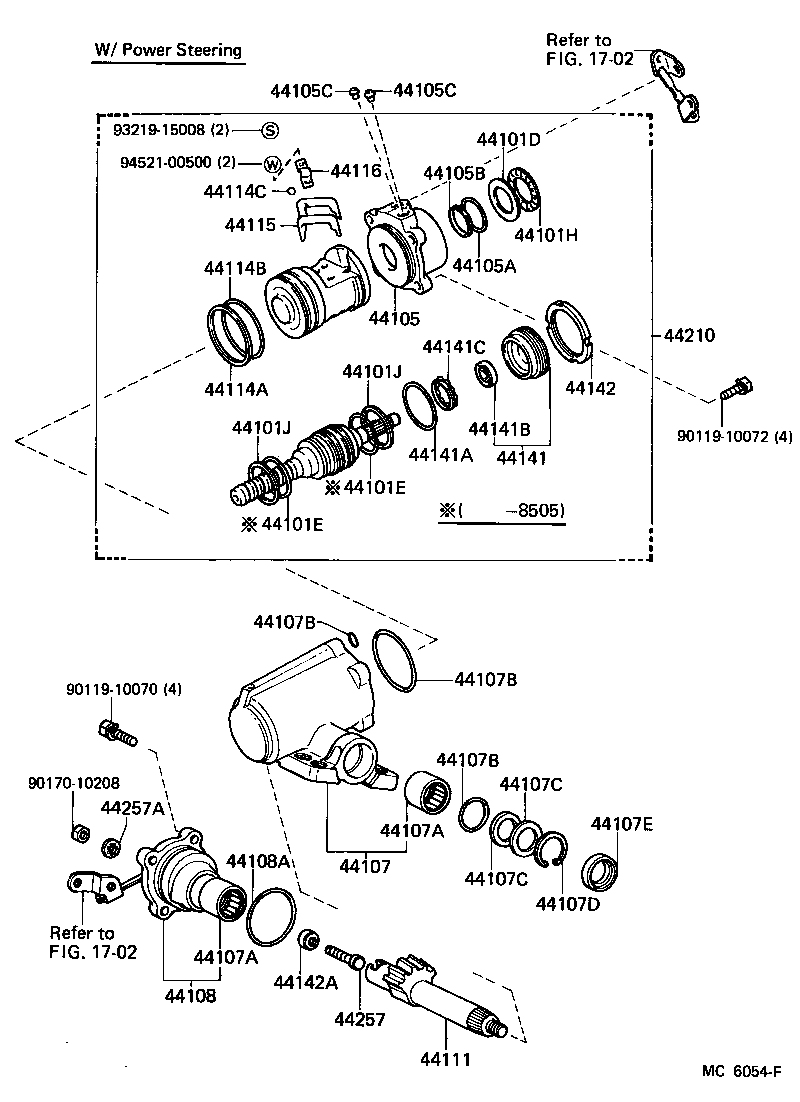

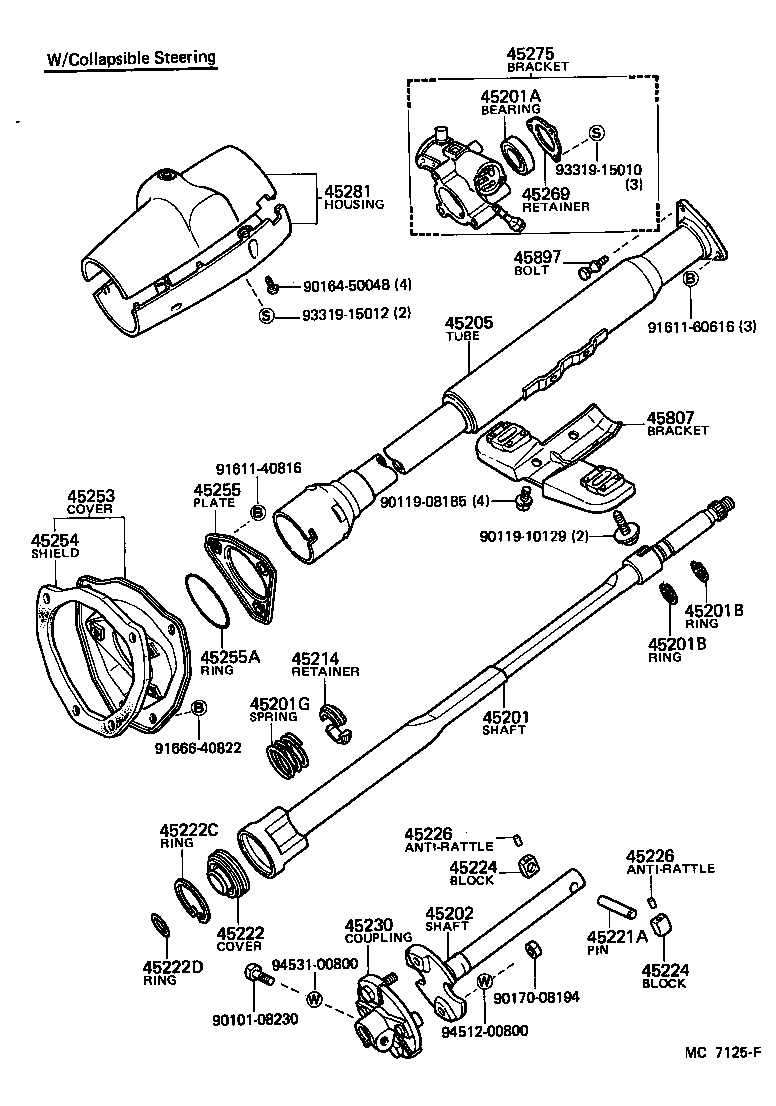

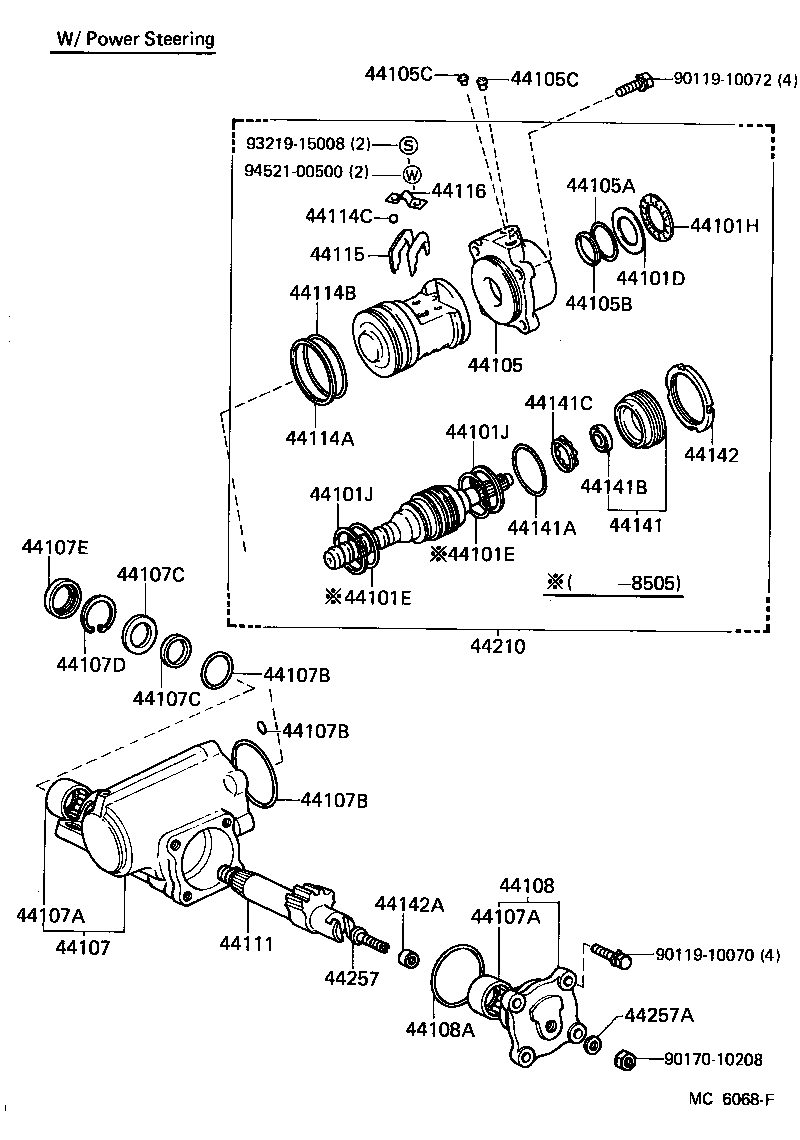

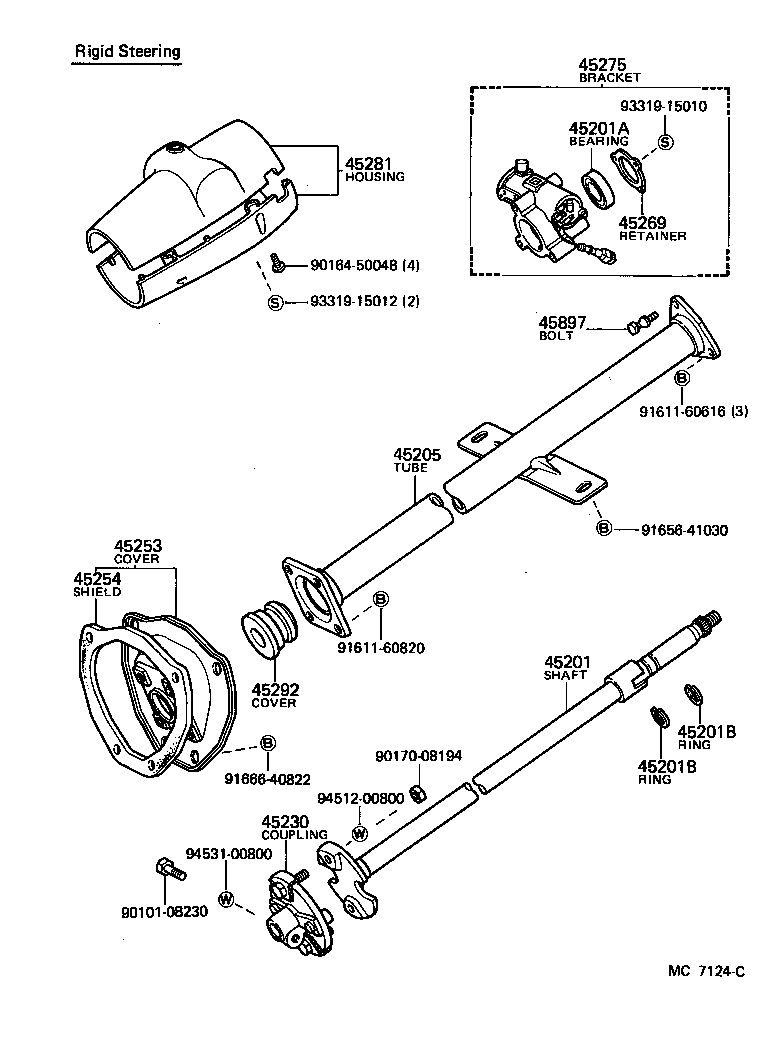

Figure MCC108 MCC108 1980-08 → 1985-06 Figure MC7124C MC7124C 1980-08 → — Figure MC7125F MC7125F 1980-08 → — Figure MC2883C MC2883C 1980-08 → — Figure MCA748A MCA748A 1980-08 → 1985-06 Figure MCA748A MCA748A 1981-10 → 1984-10 Figure MCA748A MCA748A 1982-10 → 1984-10 Figure MC6068F MC6068F 1980-08 → 1985-06 Figure MC6068F MC6068F 1981-10 → 1984-10 Figure MC6068F MC6068F 1982-10 → 1984-10 Figure MCA749A MCA749A 1980-08 → — Figure MCA749A MCA749A 1982-10 → 1984-10 Figure MC6054F MC6054F 1980-08 → — Figure MC6054F MC6054F 1982-10 → 1984-10

Part groups

PNCDescription
44101D Washer, Plate(FOR STEERING WORM)
44101E Ring, O(FOR STEERING WORM)
44101H Bearing, Thrust Needle Roller(FOR STEERING WORM)
44101J Ring(FOR STEERING WORM)
44101K Worm Kit, Power Steering
44105 Housing Sub-assy, Valve
44105A Ring, O(FOR VALVE HOUSING)
44105B Ring(FOR VALVE HOUSING)
44105C Seat, Union(FOR VALVE BODY HOUSING)
44107 Housing Sub-assy, Power Steering Gear
44107A Bearing, Needle Roller(FOR POWER STEERING GEAR HOUSING)
44107B Ring, O(FOR POWER STEERING GEAR HOUSING)
44107C Ring(FOR POWER STEERING GEAR HOUSING)
44107D Ring, Hole Snap(FOR POWER STEERING GEAR HOUSING)
44107E Seal, Oil(FOR POWER STEERING GEAR HOUSING)
44108 Cover Sub-assy, Side
44108A Ring, O(FOR SIDE COVER)
44110 Gear Assy, Power Steering
44110K Gasket Kit, Power Steering Gear
44111 Shaft, Cross
44111A Nut, Hexagon(FOR CROSS SHAFT TO PITMAN ARM SETTING)
44111K Gasket Kit, Power Steering Cross Shaft Overhaul
44114A Ring(FOR POWER PISTON NUT)
44114B Ring, O(FOR POWER PISTON NUT)
44114C Ball(FOR POWER PISTON NUT)
44115 Guide, Ball
44116 Clamp, Ball Guide
44141 Plug, Adjuster
44141A Ring, O(FOR ADJUSTER PLUG)
44141B Seal, Oil(FOR ADJUSTER PLUG)
44141C Bearing(FOR ADJUSTER PLUG)
44142 Nut, Lock
44142A Nut, Lock, NO.1
44210 Valve Assy, Power Steering Control
44257 Screw, Cross Shaft Adjusting
44257A Washer, Seal(FOR CROSS SHAFT ADJUSTING SCREW)
45201 Shaft Sub-assy, Steering Main
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201G Spring, Compression(FOR STEERING MAIN SHAFT)
45202 Shaft Sub-assy, Steering Intermediate
45205 Tube Sub-assy, Steering Column
45214 Retainer, Main Shaft Spring
45221A Pin(FOR STEERING INTERMEDIATE SHAFT)
45222 Cover, Steering Gear Dust
45222C Ring, Hole Snap(FOR DUST COVER)
45222D Ring, O(FOR DUST COVER)
45224 Block, Bearing(FOR STEERING FLEXIBLE COUPLING)
45226 Anti-rattle(FOR STEERING FLEXIBLE COUPLING)
45230 Coupling Assy, Flexible
45240 Worm Assy, Steering
45240A Bearing(FOR STEERING WORM)
45240B Seal, Oil(FOR STEERING WORM)
45253 Cover, Steering Column Hole
45254 Shield, Steering Column Hole
45255 Plate, Steering Column Hole Cover
45255A Grommet OR Ring, O(FOR STEERING COLUMN CLAMP)
45269 Retainer, Main Shaft Bearing
45272 Clamp, Steering Column, Lower
45275 Bracket, Steering Column, Upper
45281 Housing, Steering Column
45292 Seal, Main Shaft Lower Dust
45301 Housing Sub-assy, Steering Gear
45301A Bush OR Bearing, Sector Shaft, NO.1
45301B Seal, Oil(FOR SECTOR SHAFT)
45301H Bush OR Bearing, Sector Shaft, NO.2
45310 Housing Assy, Steering Gear
45312 Bracket, Steering Gear Housing
45321 Cover, Gear Housing End
45323 Shim, Gear Housing End Cover
45331 Cover, Sector Shaft End
45332 Gasket, Sector Shaft End Cover
45351 Shaft, Steering Sector
45351A Nut, Hexagon(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
45352 Washer, Sector Shaft Thrust
45357 Screw, Sector Shaft Adjusting
45372 Plug, Steering Gear Housing Oil
45807 Bracket Sub-assy, Steering Column Upper Support
45807D Shim, Steering Column Clamp
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
