Toyota Land Cruiser
1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe
Discontinued model
Data version 1987-01

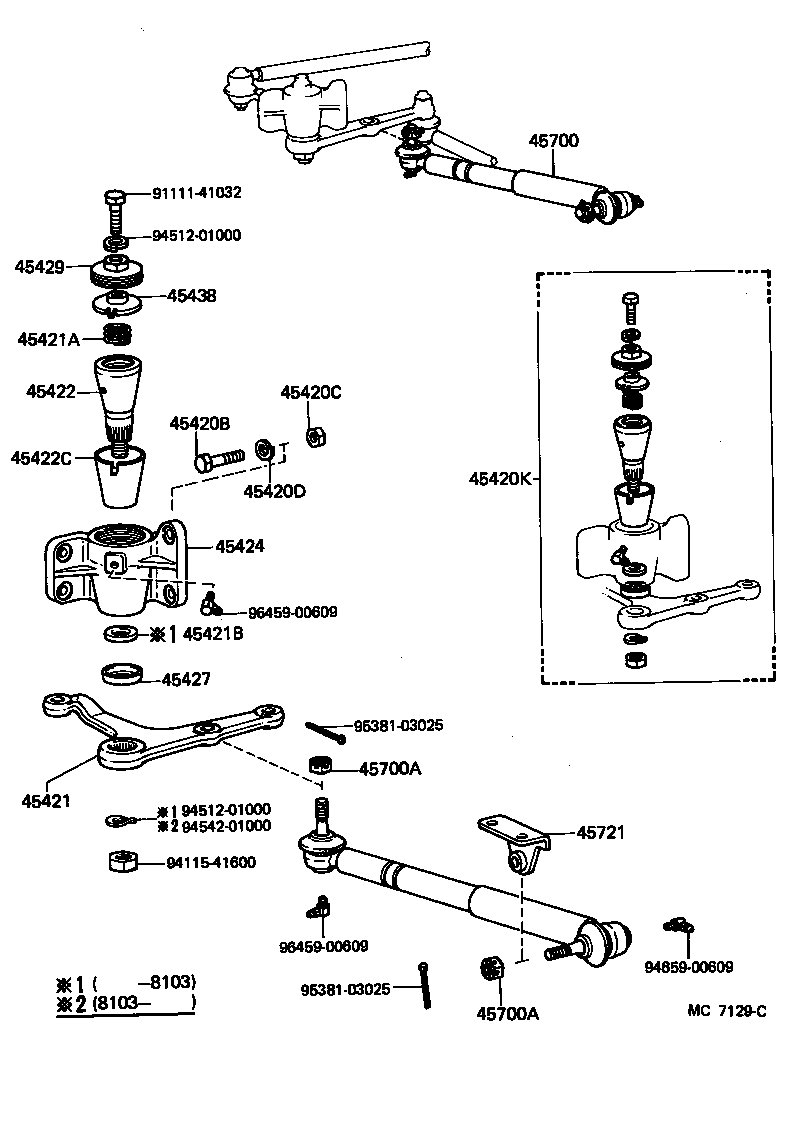

Front Steering Gear & Link
48 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45044 | End Sub-assy, Steering Relay Rod, RH |
| 45044A | Nut, Castle(FOR RELAY ROD) |
| 45044B | Ring, Set(FOR RELAY ROD) |
| 45044C | Seal, Dust(FOR RELAY ROD) |
| 45045 | End Sub-assy, Steering Relay Rod, LH |
| 45046 | End Sub-assy, Tie Rod, RH |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45046B | Ring, Set(FOR TIE ROD END DUST SEAL) |
| 45046C | Seal, Dust(FOR TIE ROD END) |
| 45047 | End Sub-assy, Tie Rod, LH |
| 45271 | Clamp, Steering Column, Upper |
| 45420B | Bolt(FOR STEERING CENTER ARM) |
| 45420C | Nut(FOR STEERING CENTER ARM) |
| 45420D | Washer, Spring(FOR STEERING CENTER ARM) |
| 45420K | Arm Kit, Steering Center |
| 45421 | Arm, Steering Center |
| 45421A | Spring, Compression(FOR STEERING CENTER ARM) |
| 45421B | Seal, Dust(FOR STEERING CENTER ARM) |
| 45422 | Shaft, Center Arm |
| 45422C | Bush(FOR CENTER ARM SHAFT) |
| 45424 | Bracket, Center Arm |
| 45427 | Seal, Center Arm Dust, Lower |
| 45429 | Nut, Center Arm Shaft |
| 45430 | End Assy, Steering Drag Link(FOR PITMAN ARM) |
| 45431 | End Sub-assy, Steering Drag(FOR CENTER ARM) |
| 45438 | Plate, Center Arm Nut Lock |
| 45440A | Clamp, Steering Drag |
| 45440B | Nut, Castle(FOR STEERING DRAG LINK) |
| 45440D | Ring, Set(FOR STEERING DRAG LINK) |
| 45441 | Link, Steering Drag |
| 45442 | End, Steering Drag Link |
| 45447 | Seal, Drag Link Dust |
| 45450 | Rod Assy, Steering Relay |
| 45450D | Clamp, Steering Relay Rod End |
| 45451 | Rod, Steering Relay |
| 45460A | Rod Assy, Tie |
| 45461 | Rod, Steering Tie |
| 45466 | Clamp, Tie Rod End |
| 45473 | Seat, Ball Stud |
| 45475 | Seat, Steering Link Joint Spring |
| 45475A | Spring, Compression(FOR STEERING LINK JOINT) |
| 45475B | Plug, Straight Screw(FOR STEERING LINK JOINT) |
| 45479 | Seal, Steering Link Joint Dust |
| 45611 | Arm, Steering Knuckle, RH |
| 45612 | Arm, Steering Knuckle, LH |
| 45700 | Damper Assy, Steering |
| 45700A | Nut(FOR STEERING DAMPER) |
| 45721 | Bracket, Steering Damper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
