Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

49 part groups · 15 illustrations

Illustrations

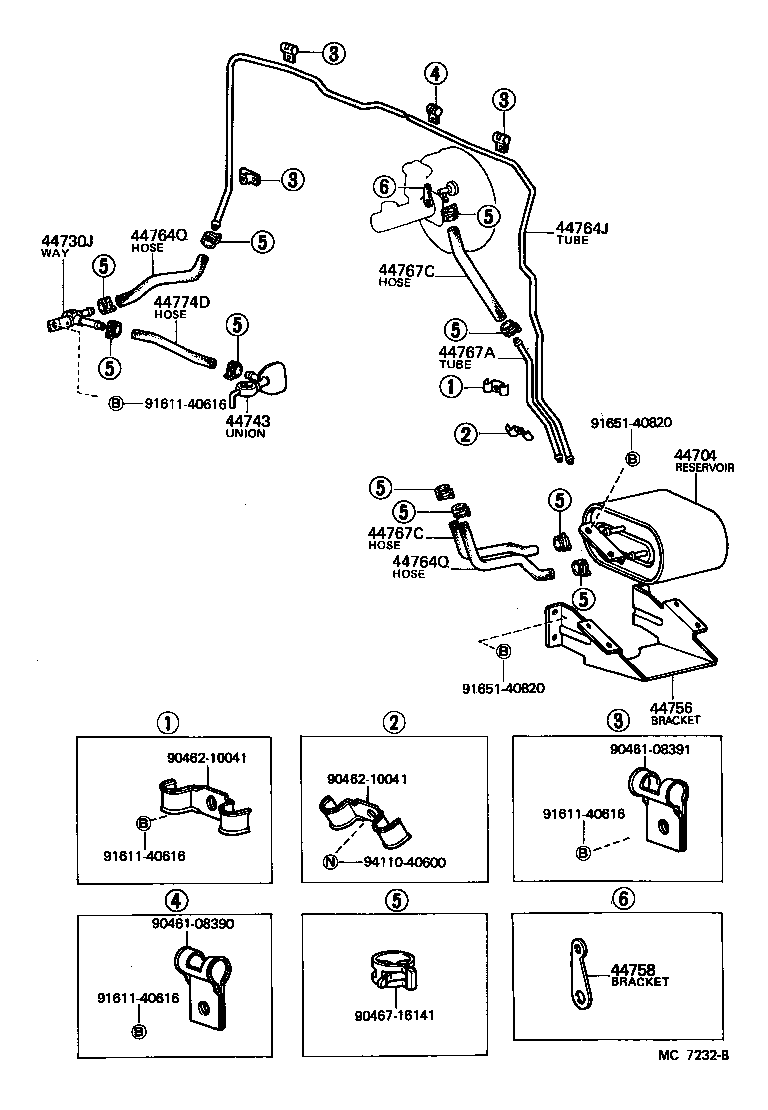

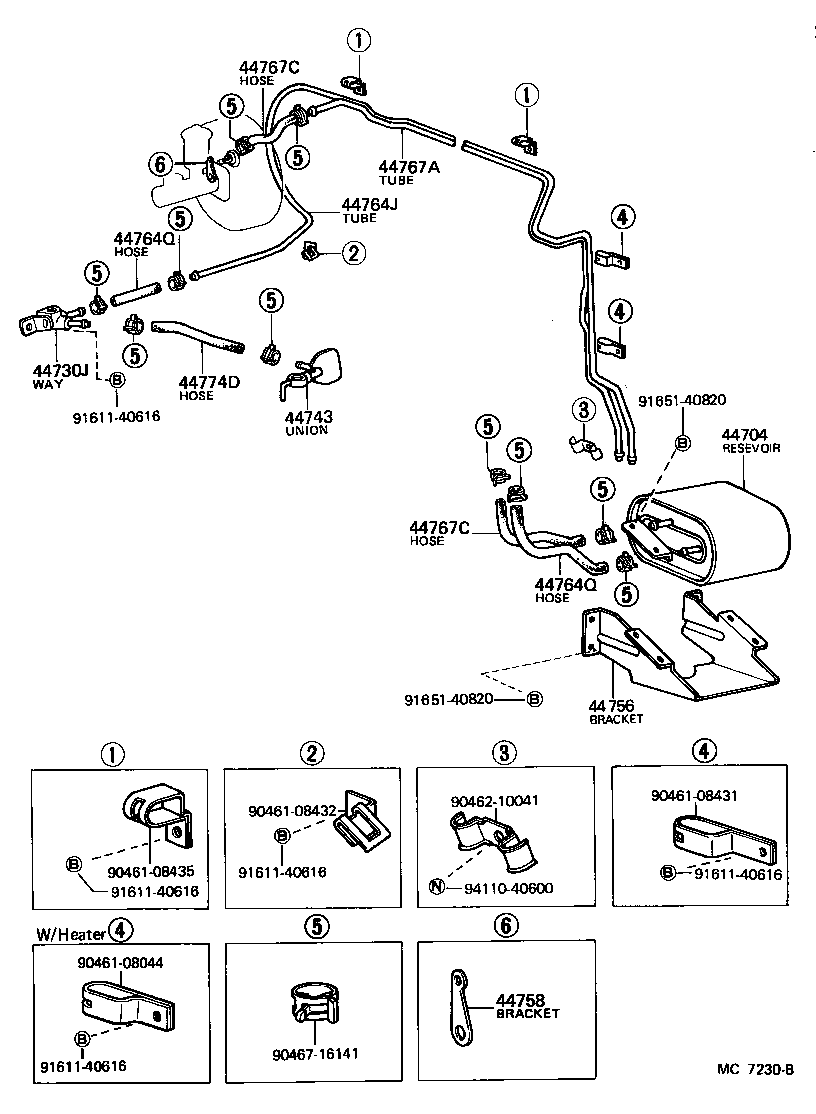

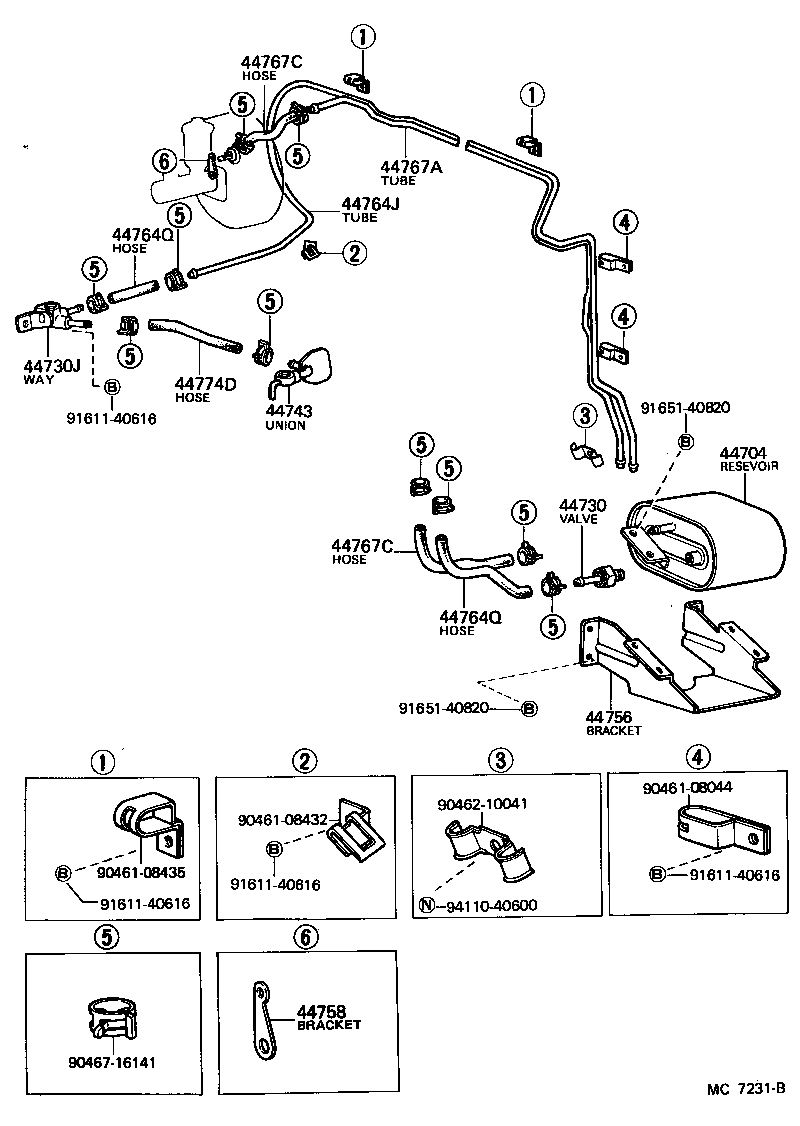

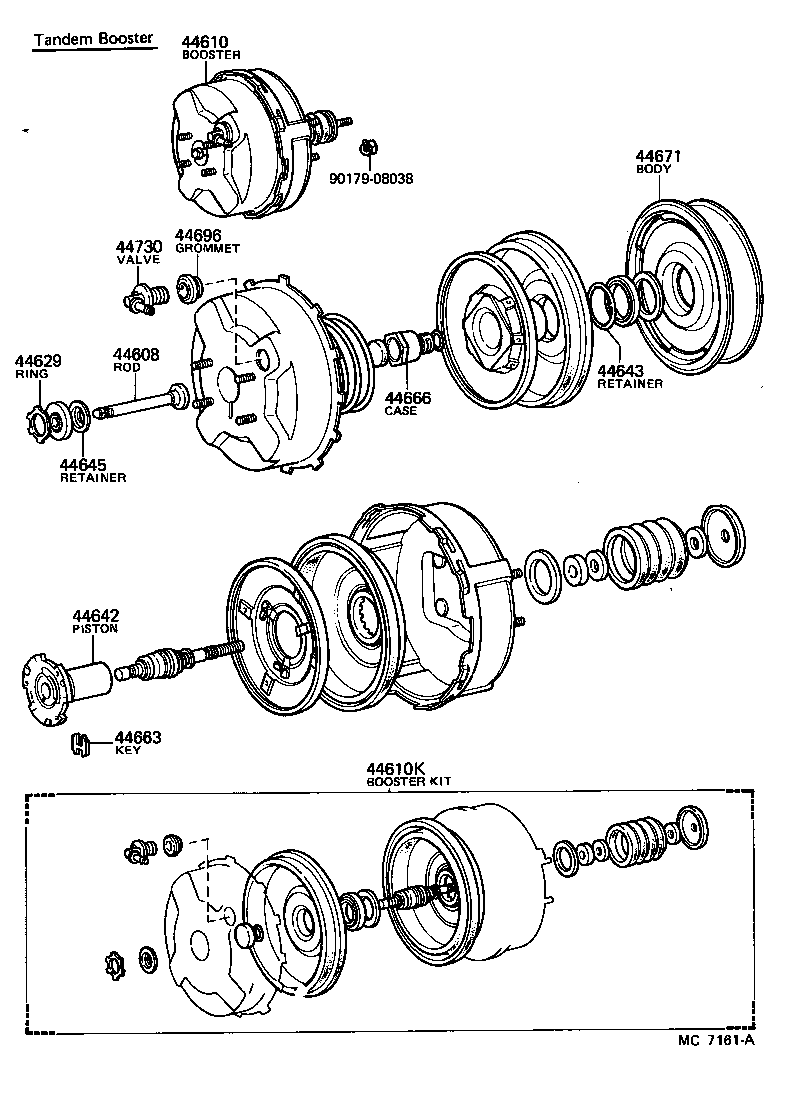

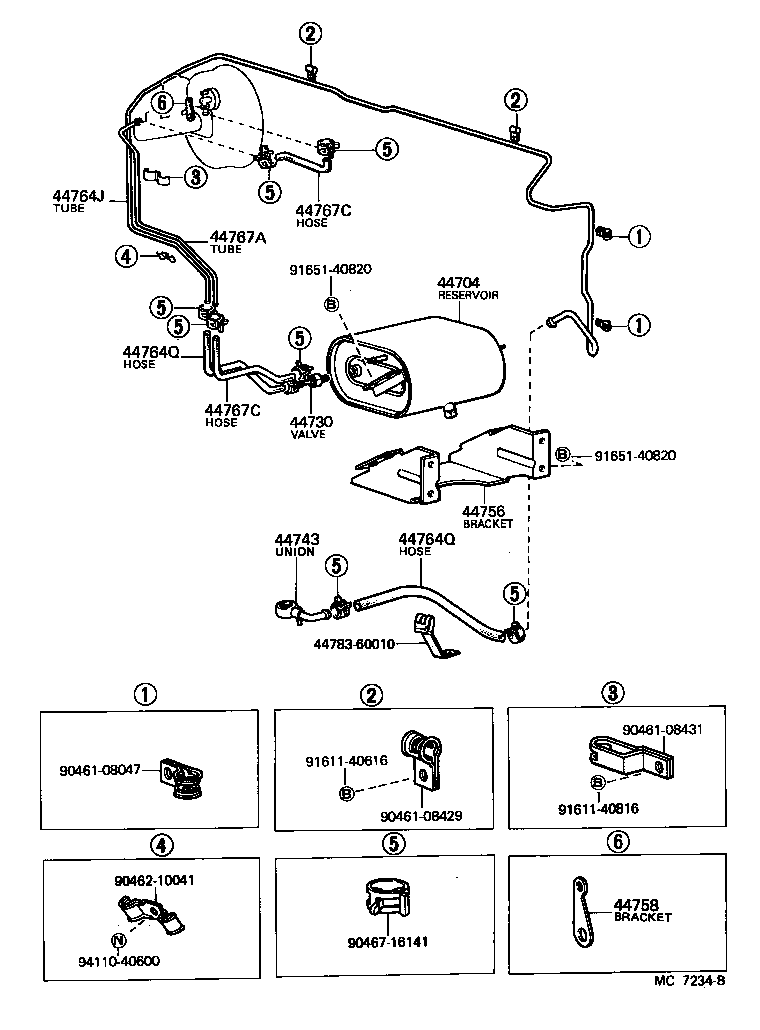

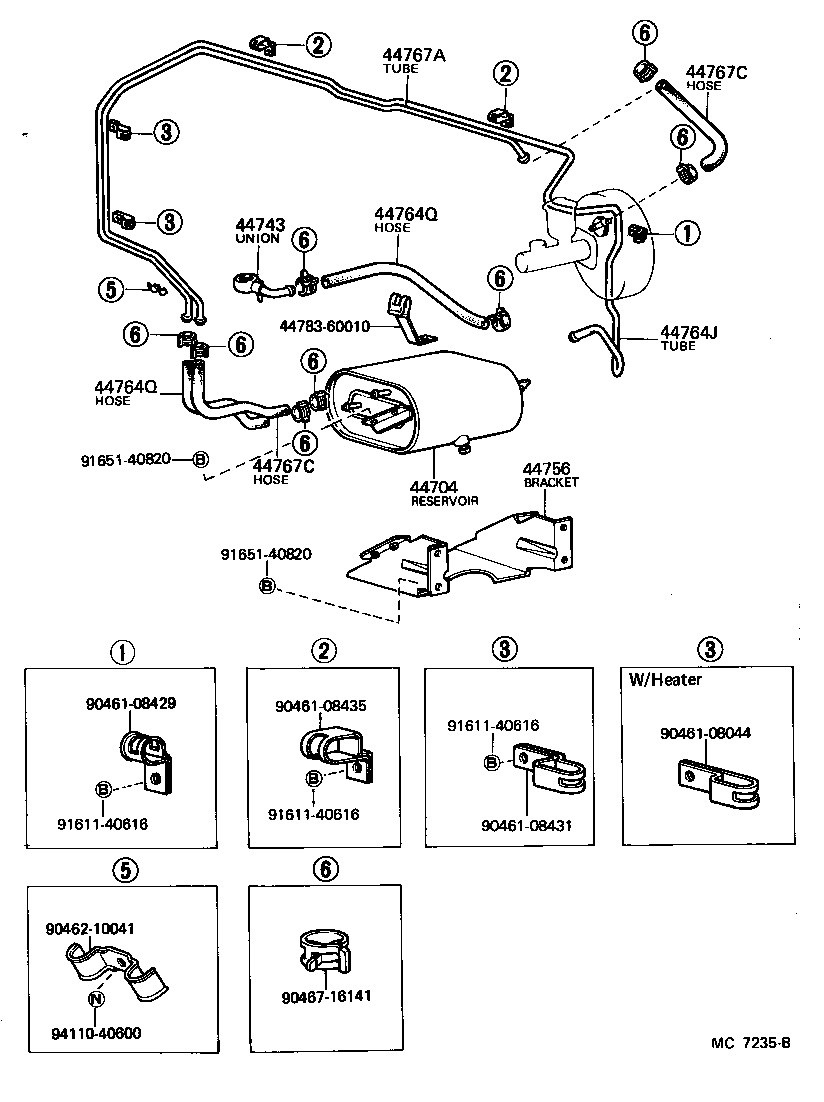

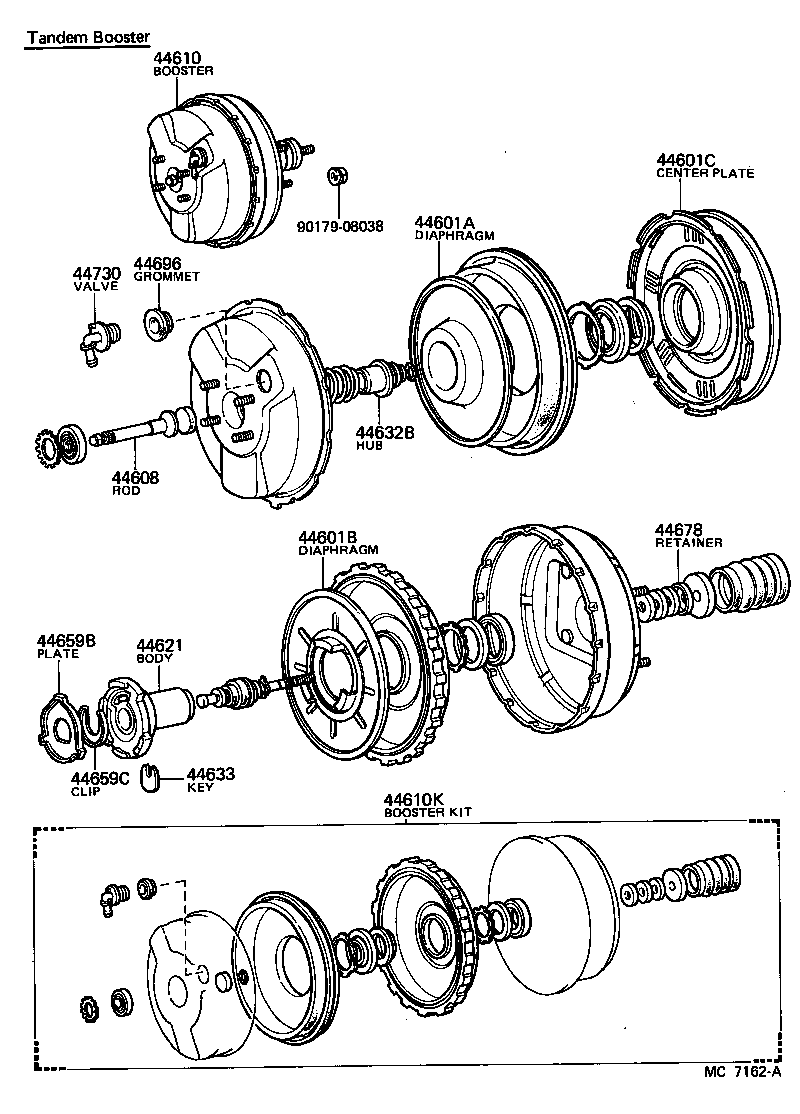

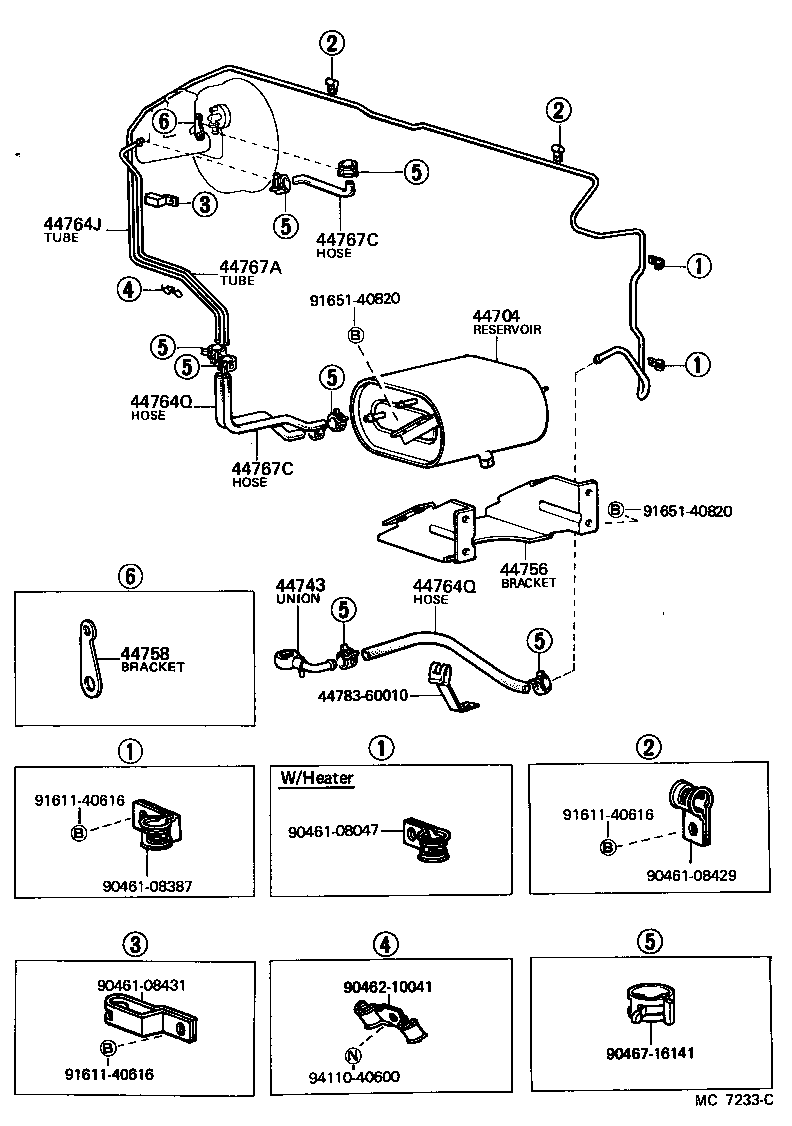

Figure MCC136 MCC136 1980-08 → 1982-10 Figure MCC136 MCC136 1982-10 → — Figure MC7162A MC7162A 1980-08 → 1982-10 Figure MC7162A MC7162A 1982-10 → 1984-10 Figure MC7162A MC7162A 1983-01 → 1985-06 Figure MC7161A MC7161A 1980-08 → 1982-10 Figure MC7161A MC7161A 1982-10 → — Figure MC7161A MC7161A 1983-01 → 1985-06 Figure MC7230B MC7230B 1980-08 → 1984-10 Figure MC7231B MC7231B 1980-08 → 1984-10 Figure MC7232B MC7232B 1980-08 → 1984-10 Figure MC7233C MC7233C 1980-08 → 1985-06 Figure MC7234B MC7234B 1980-08 → 1984-10 Figure MC7235B MC7235B 1980-08 → 1984-10 Figure MC7236F MC7236F 1980-08 → —

Part groups

PNCDescription
44601A Diaphragm Plate Sub-assy, Booster, Front
44601B Diaphragm Plate Sub-assy, Booster, Rear
44601C Center Plate Sub-assy, Booster
44608 Push Rod Sub-assy, Booster
44610 Booster Assy, Brake
44610K Booster Kit, Brake
44621 Body, Booster Valve
44626 Retainer, Booster Rod Cup
44629 Ring, Circular Internal
44632B Hub, Booster Reaction Disk
44633 Key, Booster Valve Plunger
44642 Piston, Brake Booster
44643 Retainer, Diaphragm
44645 Retainer, Booster Push Rod Seal
44647 Ring, Circular Internal(FOR BOOSTER BODY SEAL STOPPER)
44657A Ring, Snap(FOR BOOSTER AIR VALVE STOPPER)
44657B Washer, Plate(FOR BOOSTER AIR VALVE STOPPER)
44659B Plate, Booster Retainer
44659C Clip, Booster
44662 Retainer, Reaction, NO.1
44662B Lever, Reaction
44662C Plate, Reaction, NO.1
44663 Key, Valve Stopper
44666 Case, Reaction Disc
44669 Ring, Circular Internal(FOR AIR CLEANER ELEMENT STOPPER)
44671 Body Sub-assy, NO.3
44678 Retainer, Booster Air Cleaner
44683 Connector, Booster Body
44683A Lock, Connector
44696 Grommet, Check Valve
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730J Way(FOR BOOSTER VACUUM)
44743 Union(FOR VACUUM PUMP)
44756 Bracket, Vacuum Reservoir
44758 Bracket, Vacuum Check Valve
44764J Tube, Connector TO Vacuum Reservoir
44764Q Hose(FOR CONNECTOR TO VACUUM RESERVOIR TUBE)
44767A Tube, Vacuum Reservoir TO Brake Booster
44767C Hose(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44774D Hose, Union TO Way
44777 Connector, Vacuum Hose, NO.1
44778 Hose, Connector TO Check Valve
44778A Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
44779 Hose, Union TO Connector
44779A Clip(FOR UNION TO CONNECTOR HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
