Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

50 part groups · 7 illustrations

Illustrations

482835 1980-08 → —

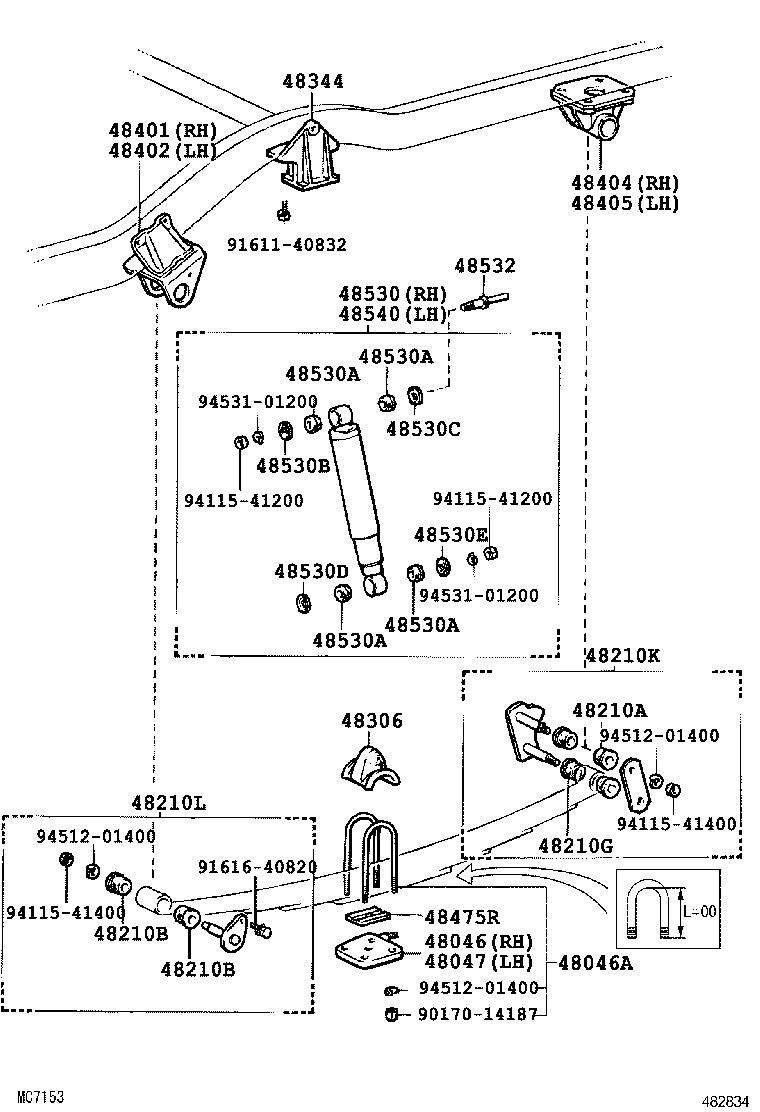

482834 1980-08 → —

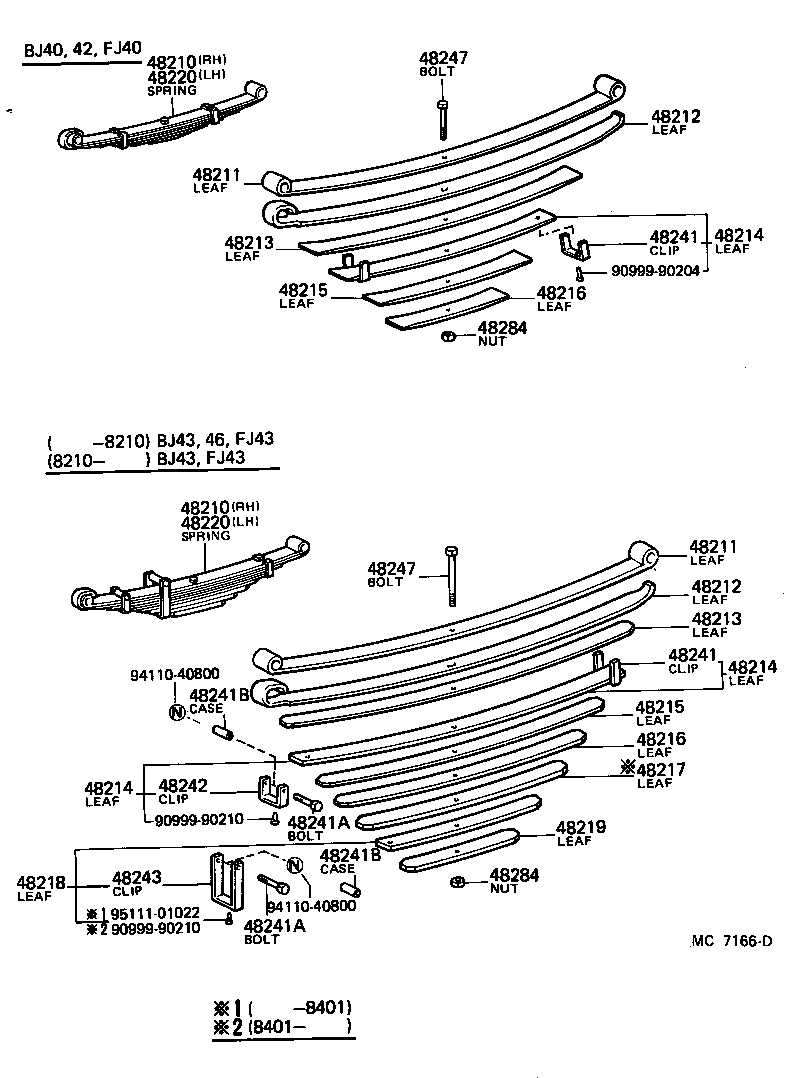

MC7166D 1980-08 → 1982-10

MC7166D 1982-10 → —

MC9054 1982-10 → 1984-10

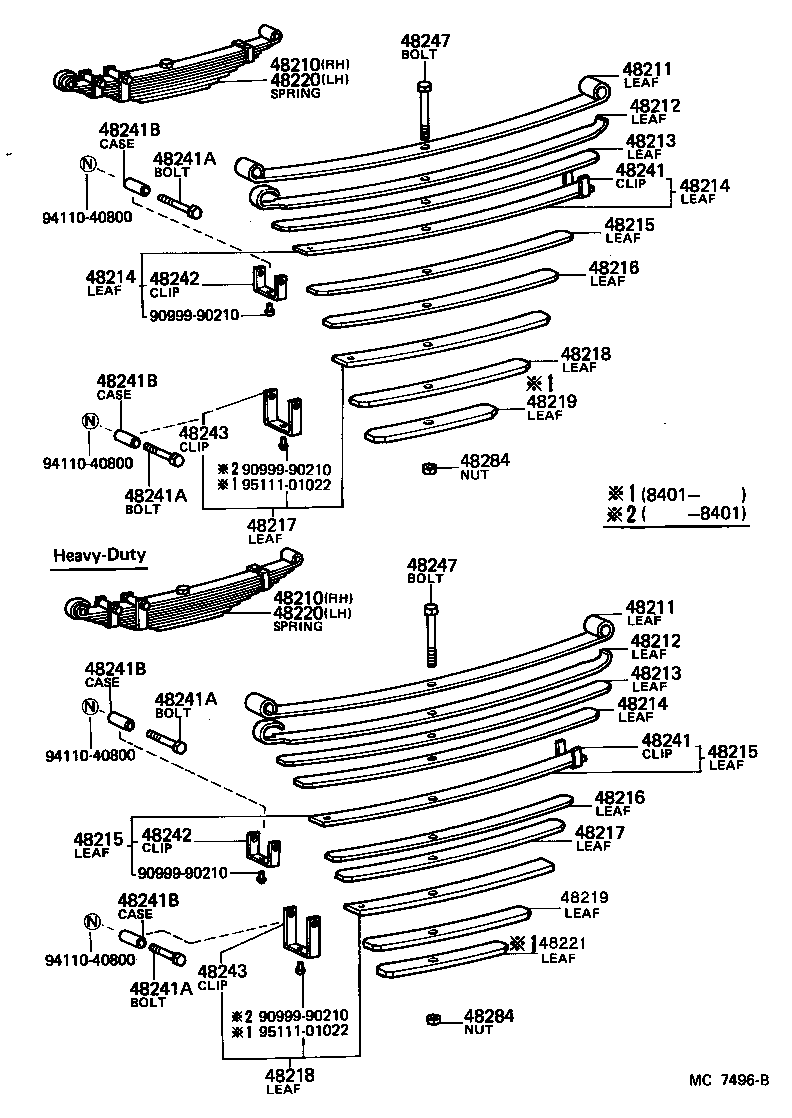

MC7496B 1980-08 → —

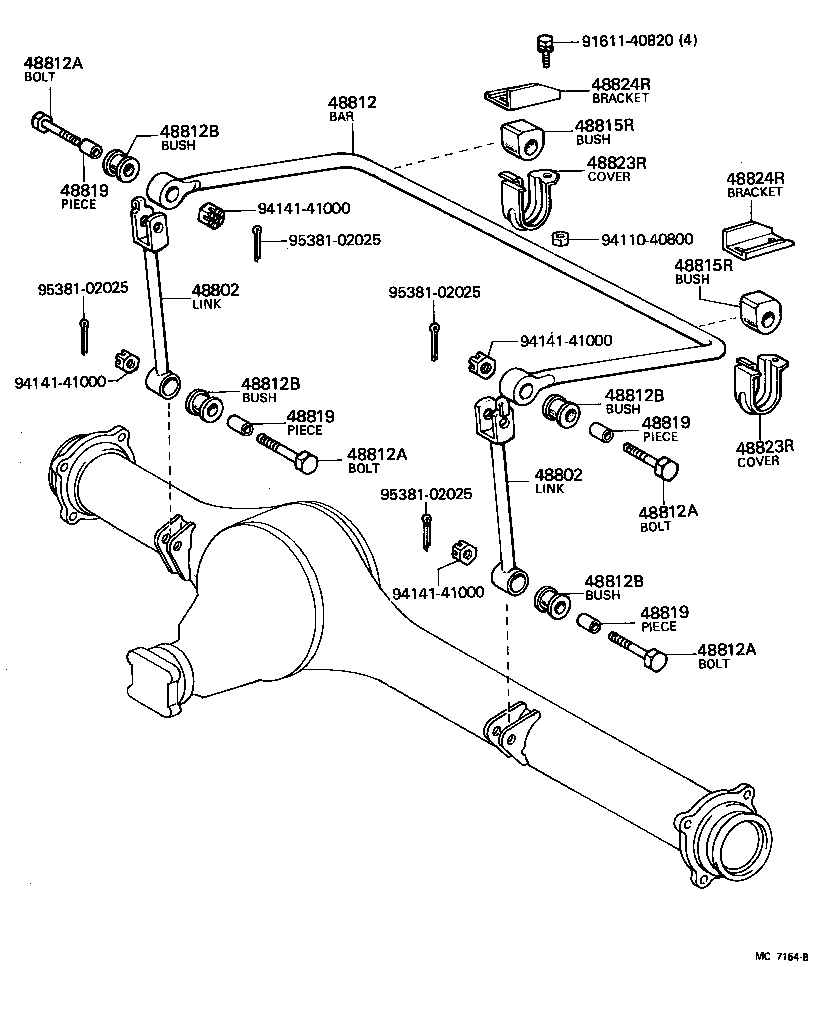

MC7154B 1980-08 → —

Part groups

PNC	Description
48046	Seat Sub-assy, Spring U Bolt, RH
48046A	Bolt, U(FOR REAR SPRING)
48047	Seat Sub-assy, Spring U Bolt, LH
48210	Spring Assy, Rear RH
48210A	Bush(FOR REAR SPRING SHACKLE UPPER)
48210B	Bush(FOR REAR SPRING PIN)
48210G	Bush(FOR REAR SPRING SHACKLE LOWER)
48210K	Shackle Kit, Rear Spring
48210L	Pin Kit, Rear Spring
48211	Leaf, Rear Spring, NO.1
48212	Leaf, Rear Spring, NO.2
48213	Leaf, Rear Spring, NO.3
48214	Leaf, Rear Spring, NO.4
48215	Leaf, Rear Spring, NO.5
48216	Leaf, Rear Spring, NO.6
48217	Leaf, Rear Spring, NO.7
48218	Leaf, Rear Spring, NO.8
48219	Leaf, Rear Spring, NO.9
48220	Spring Assy, Rear LH
48221	Leaf, Rear Spring, NO.10
48241	Clip, Rear Spring, NO.1
48241A	Bolt, Hexagon(FOR REAR SPRING CLIP)
48241B	Case(FOR REAR SPRING CLIP BOLT)
48242	Clip, Rear Spring, NO.2
48243	Clip, Rear Spring, NO.3
48247	Bolt, Rear Spring, Center
48284	Nut, Rear Spring Center Bolt
48306	Bumper Sub-assy, Rear Spring
48344	Stopper, Bumper, Rear
48401	Bracket Sub-assy, Rear Spring, Front RH
48402	Bracket Sub-assy, Rear Spring, Front LH
48404	Bracket Sub-assy, Rear Spring, Rear RH
48405	Bracket Sub-assy, Rear Spring, Rear LH
48475R	Plate, Distance(FOR REAR)
48530	Absorber Assy, Shock, Rear RH
48530A	Bush(FOR REAR SHOCK ABSORBER)
48530B	Washer, Rear Shock Absorber Cushion, NO.1
48530C	Washer, Rear Shock Absorber Cushion, NO.2
48530D	Washer, Rear Shock Absorber Cushion, NO.3
48530E	Washer, Rear Shock Absorber Cushion, NO.4
48532	Pin, Rear Shock Absorber Pivot
48540	Absorber Assy, Shock, Rear LH
48802	Link Sub-assy, Stabilizer
48812	Bar, Stabilizer, Rear
48812A	Bolt, Stabilizer Rear Bar
48812B	Bush, Stabilizer Rear Bar
48815R	Bush, Stabilizer(FOR REAR)
48819	Piece, Stabilizer Bush
48823R	Cover, Stabilizer Link(FOR REAR)
48824R	Bracket, Stabilizer(FOR REAR)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
