Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

11 part groups · 3 illustrations

Illustrations

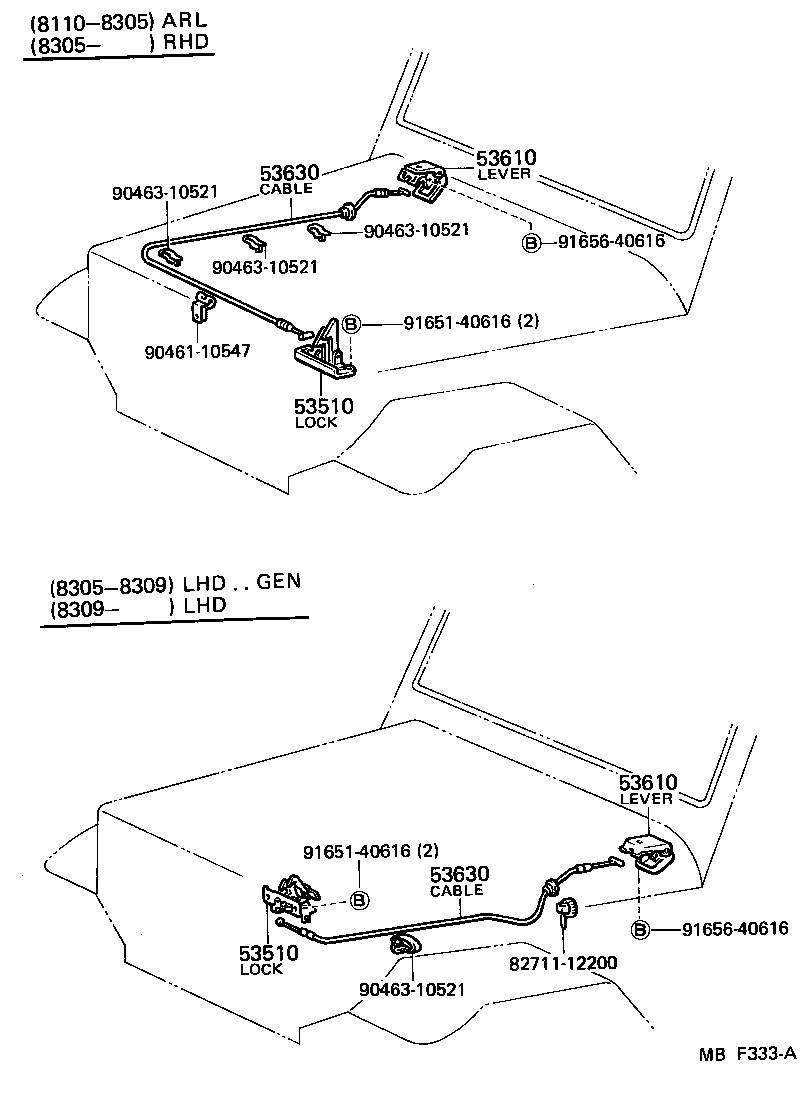

Figure MBD045A MBD045A 1980-08 → — Figure MBF333A MBF333A 1981-10 → 1983-05 Figure MBF333A MBF333A 1983-05 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53412 Cushion, Hood Hinge Sheet
53420 Hinge Assy, Hood, LH
53451 Rod, Hood Support
53451A Grommet(FOR HOOD SUPPORT ROD)
53451B Pin(FOR HOOD SUPPORT ROD)
53506 Catch Sub-assy, Hood
53510 Lock Assy, Hood
53550 Hook Assy, Hood Auxiliary Catch
53610 Lever Assy, Hood Lock Release
53630 Cable Assy, Hood Lock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
