Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Floor Panel & Front Floor Member

19 part groups · 3 illustrations

Illustrations

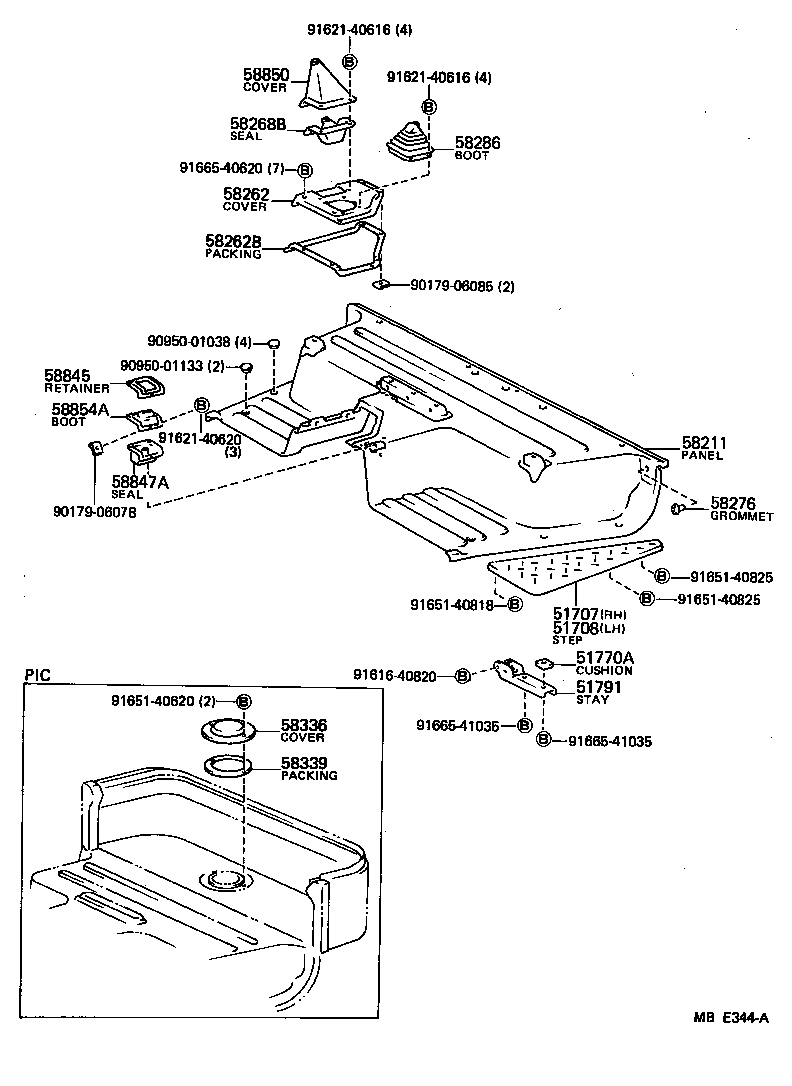

Figure MBB533B MBB533B 1980-08 → 1982-10 Figure MBB533B MBB533B 1982-10 → — Figure MBE344A MBE344A 1982-10 → —

Part groups

PNCDescription
51707 Step Sub-assy, RH
51708 Step Sub-assy, LH
51770A Cushion(FOR STEP)
51791 Stay, Step
58211 Panel, Front Floor
58262 Cover, Transmission
58262B Packing, Transmission Cover
58268B Seal, Transfer Lever Boot
58276 Grommet, Safety Band Anchorage Nut
58280 Dust Proof Assy, Transfer Control Lever
58283 Cover, Front Drive Dust
58286 Boot, Shift & Select Lever, NO.1
58287 Retainer, Shift Lever Boot
58336 Cover, Inspection Hole
58339 Packing, Inspection Hole
58845 Retainer, Winch Lever Boot
58847A Seal, Winch Lever
58850 Cover Assy, Transfer Lever Hole
58854A Boot, Winch Lever
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
