Toyota Land Cruiser
1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe
Discontinued model
Data version 1987-01
Side Window

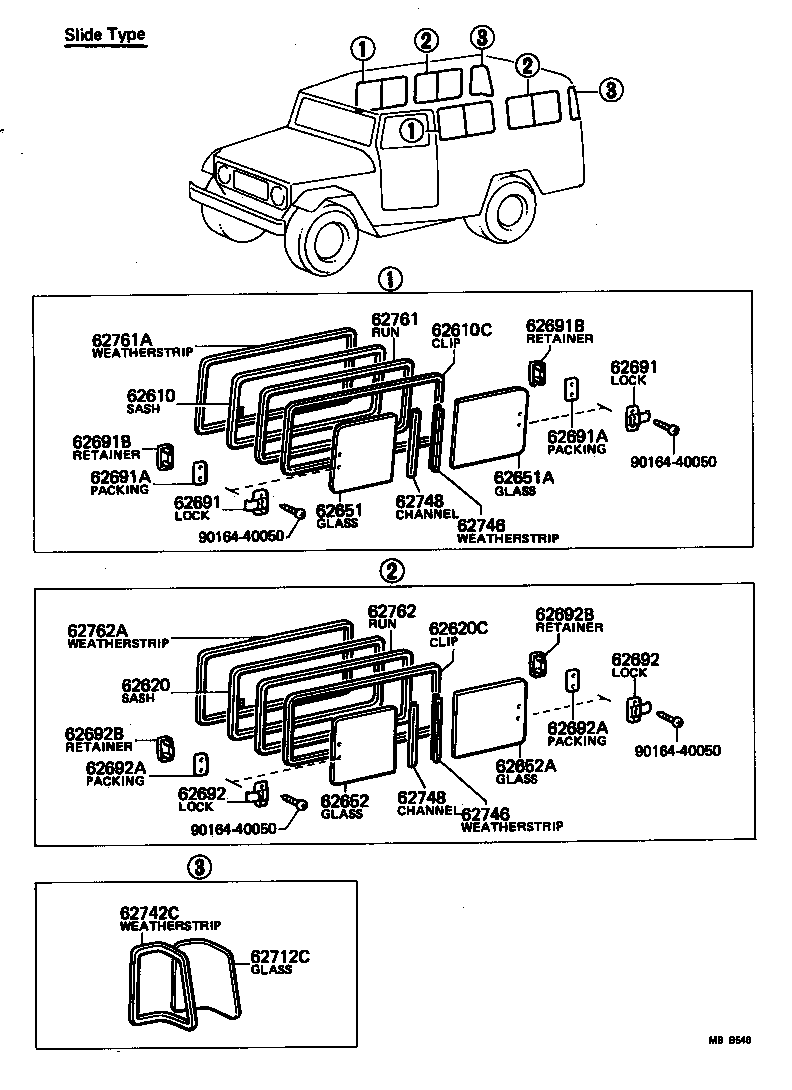

37 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62610 | Sash Assy, Side Window Outer, NO.1 (FOR SLIDE TYPE) |
| 62610C | Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE) |
| 62620 | Sash Assy, Side Window Outer, NO.2 (FOR SLIDE TYPE) |
| 62620C | Clip, Side Window Outer Sash, NO.2 (FOR SLIDE TYPE) |
| 62651 | Glass, Side Window, NO.1, Front (FOR SLIDE TYPE) |
| 62651A | Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE) |
| 62652 | Glass, Side Window, NO.2, Front (FOR SLIDE TYPE) |
| 62652A | Glass, Side Window, NO.2, Rear (FOR SLIDE TYPE) |
| 62691 | Lock, Side Window, NO.1 Glass (FOR SLIDE TYPE) |
| 62691A | Packing, Side Window Lock, NO.1 |
| 62691B | Retainer, Side Window Lock, NO.1 |
| 62692 | Lock, Side Window, NO.2 Glass (FOR SLIDE TYPE) |
| 62692A | Packing, Side Window Lock, NO.2 |
| 62692B | Retainer, Side Window Lock, NO.2 |
| 62711H | Glass, Side Window, NO.1(FOR HINGE TYPE) |
| 62712C | Glass, Side Window Corner |
| 62712H | Glass, Side Window, NO.2(FOR HINGE TYPE) |
| 62715 | Glass, Side Window, NO.1(FOR FIXED TYPE) |
| 62715A | Glass, Side Window, NO.2(FOR FIXED TYPE) |
| 62731 | Plate, Quarter OR Side Window Hinge |
| 62731A | Clip, Quarter Window Hinge Plate |
| 62733 | Retainer, Quarter OR Side Window Hinge |
| 62742C | Weatherstrip, Side Window Corner |
| 62746 | Weatherstrip, Side Window Glass Channel, NO.1 |
| 62748 | Channel, Side Window Glass |
| 62750 | Weatherstrip, Side Window, NO.1(FOR HINGE TYPE) |
| 62750A | Weatherstrip, Side Window, NO.2(FOR HINGE TYPE) |
| 62755 | Weatherstrip, Side Window, NO.1(FOR FIXED TYPE) |
| 62755A | Weatherstrip, Side Window, NO.2(FOR FIXED TYPE) |
| 62761 | Run, Side Window, NO.1(FOR SLIDE TYPE) |
| 62761A | Weatherstrip, Side Window, NO.1(FOR SLIDE TYPE) |
| 62762 | Run, Side Window, NO.2(FOR SLIDE TYPE) |
| 62762A | Weatherstrip, Side Window, NO.2(FOR SLIDE TYPE) |
| 62910 | Lock Assy, Quarter OR Side Window, RH |
| 62910A | Gasket(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE) |
| 62910C | Retainer, Side Window Lock |
| 62920 | Lock Assy, Quarter Window, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
