Toyota Land Cruiser
1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe
Discontinued model
Data version 1987-01

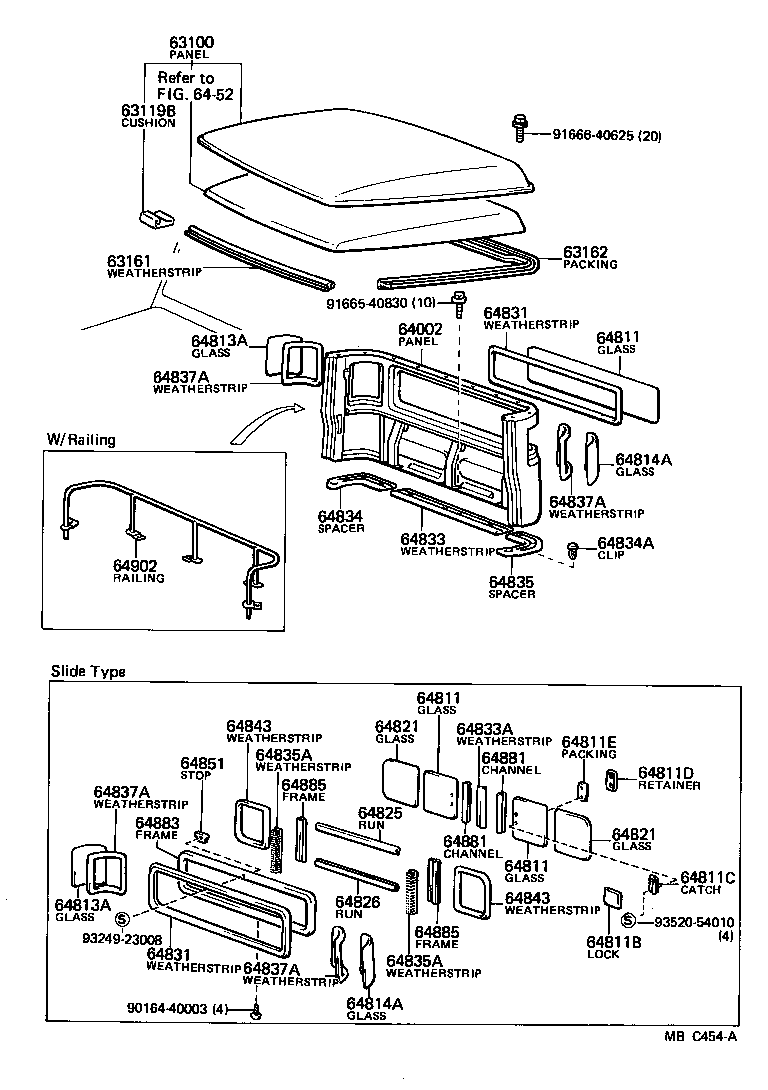

Roof Panel & Back Panel
37 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63100 | Panel Assy, Roof |
| 63105C | Moulding Sub-assy, Roof Drip |
| 63114 | Reinforcement, Roof Panel, Rear |
| 63118B | Cushion, Roof Drip Moulding, Rear |
| 63119B | Cushion, Roof Drip Moulding, Front |
| 63161 | Weatherstrip, Roof |
| 63162 | Packing, Roof Drip Moulding |
| 63163 | Spacer, Roof Drip Moulding Strength |
| 63163A | Clip, Spring(FOR ROOF DRIP MOULDING STRENGTH SPACER SET) |
| 63164 | Gusset, Roof Drip Moulding, RH |
| 63165 | Gusset, Roof Drip Moulding, LH |
| 64002 | Panel Sub-assy, Cab Rear, Upper |
| 64811 | Glass, Back Window |
| 64811B | Lock Assy, Back Window |
| 64811C | Catch, Back Window Lock |
| 64811D | Retainer, Back Window |
| 64811E | Packing, Back Window Lock |
| 64813A | Glass, Back Window Corner, RH |
| 64814A | Glass, Back Window Corner, LH |
| 64821 | Glass, Back Window Fix |
| 64825 | Run, Back Window Channel, Upper |
| 64826 | Run, Back Window Channel, Lower |
| 64831 | Weatherstrip, Back Window Glass |
| 64833 | Weatherstrip, Back Window Channel |
| 64833A | Weatherstrip, Back Window Center Channel |
| 64834 | Spacer, Cab Rear Panel, RH |
| 64834A | Clip(FOR CAB REAR PANEL SPACER) |
| 64835 | Spacer, Cab Rear Panel, LH |
| 64835A | Weatherstrip, Back Window Glass, Center |
| 64837A | Weatherstrip, Back Window Corner |
| 64843 | Weatherstrip, Back Window Channel |
| 64851 | Stop, Back Window Slide Glass |
| 64881 | Channel, Back Window Glass |
| 64883 | Frame, Back Window |
| 64885 | Frame, Back Window Vertical |
| 64902 | Railing Sub-assy, Cab, Rear |
| 74741 | Spring, Starting Handle Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
