Toyota Land Cruiser
1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe
Discontinued model
Data version 1987-01

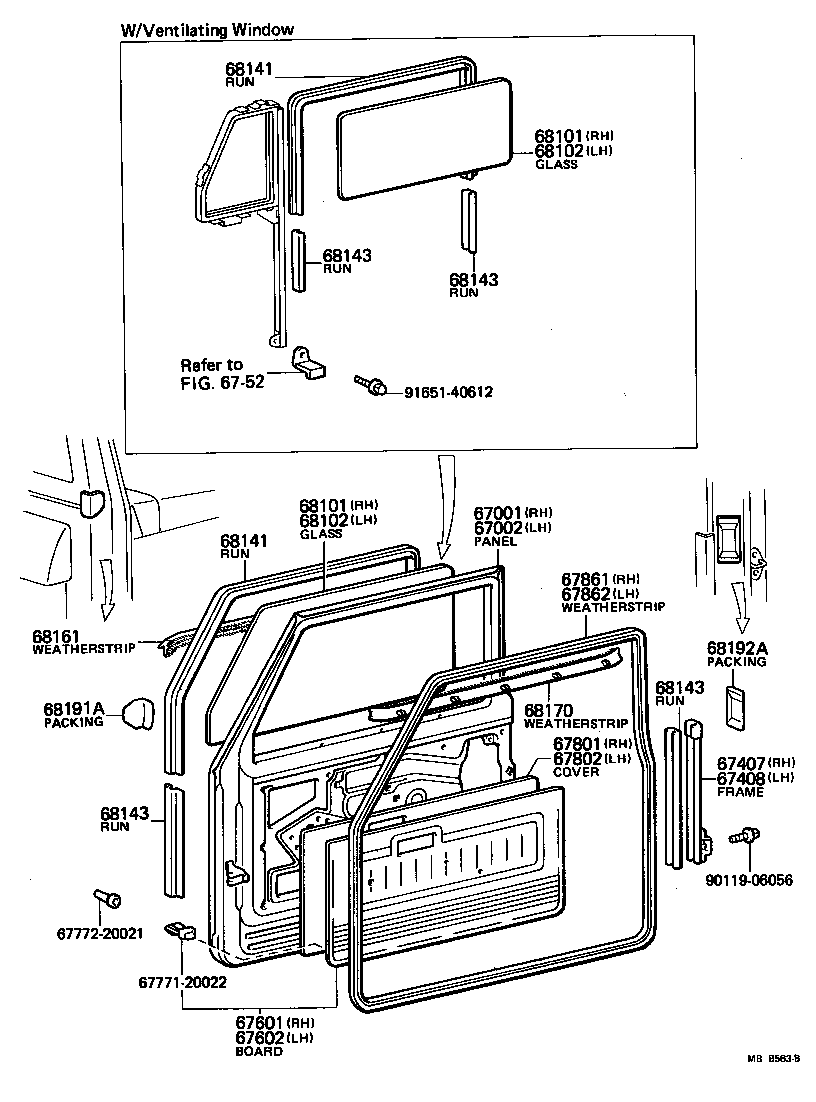

Front Door Panel & Glass
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67100 | Door Assy, Front RH |
| 67200 | Door Assy, Front, LH |
| 67213 | Plate, Front Door Canvas Set |
| 67407 | Frame Sub-assy, Front Door, Rear Lower RH |
| 67408 | Frame Sub-assy, Front Door, Rear Lower LH |
| 67491 | Channel, Canvas Door Weatherstrip Upper Hold |
| 67492 | Channel, Canvas Door Weatherstrip Front Hold, RH |
| 67493 | Channel, Canvas Door Weatherstrip Front Hold, LH |
| 67494 | Channel, Canvas Door Weatherstrip Rear Hold |
| 67496 | Channel, Canvas Door Weatherstrip Under Hold |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67801 | Cover Sub-assy, Front Door Hole, NO.1 RH |
| 67802 | Cover Sub-assy, Front Door Hole, NO.1 LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68111G | Glass, Door Window(FOR CANVAS DOOR) |
| 68141 | Run, Front Door Glass |
| 68143 | Run, Front Door Glass, Lower |
| 68161 | Weatherstrip, Front Door Glass, Outer |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68170C | Weatherstrip Assy, Canvas Door Glass, Inner |
| 68191A | Packing, Front Door Weatherstrip, Front |
| 68192A | Packing, Front Door Weatherstrip, Rear |
| 68212 | Plate, Canvas Door Window Holder |
| 69891A | Bumper, Canvas Door |
| 69921 | Pad, Canvas Door Retainer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
