Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Ventilator Window

22 part groups · 2 illustrations

Illustrations

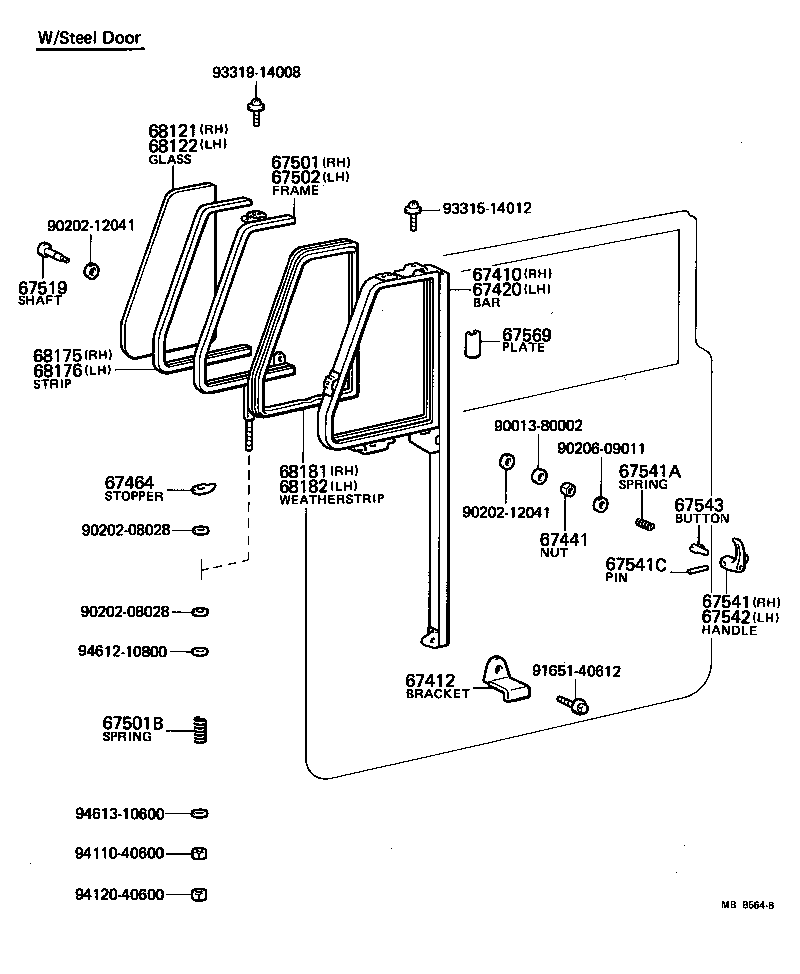

Figure MBB565A MBB565A 1980-08 → — Figure MBB564B MBB564B 1980-08 → —

Part groups

PNCDescription
67410 Bar Assy, Front Door Window Division, RH
67412 Bracket, Front Door Division Bar Set
67420 Bar Assy, Front Door Window Division, LH
67441 Nut, Lock Handle
67464 Stopper, Front Door Ventilating Window Opening
67501 Frame Sub-assy, Vent Window Glass, RH
67501B Spring, Compression(FOR VENT WINDOW GLASS FRAME)
67502 Frame Sub-assy, Vent Window Glass, LH
67519 Shaft, Ventilating Window Lock Handle
67541 Handle, Ventilating Window Lock, RH
67541A Spring, Compression(FOR VENTILATING WINDOW LOCK HANDLE)
67541C Pin, Ventilating Window Lock Handle
67542 Handle, Ventilating Window Lock, LH
67543 Button, Ventilating Window Lock Handle Push
67569 Plate,Front Door Ventilating Window Handle
68121 Glass, Vent Window, RH
68121G Glass, Vent Window(FOR CANVAS DOOR)
68122 Glass, Vent Window, LH
68175 Weatherstrip, Vent Window Frame, RH
68176 Weatherstrip, Vent Window Frame, LH
68181 Weatherstrip, Vent Window, NO.1 RH
68182 Weatherstrip, Vent Window, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
