Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

12 part groups · 2 illustrations

Illustrations

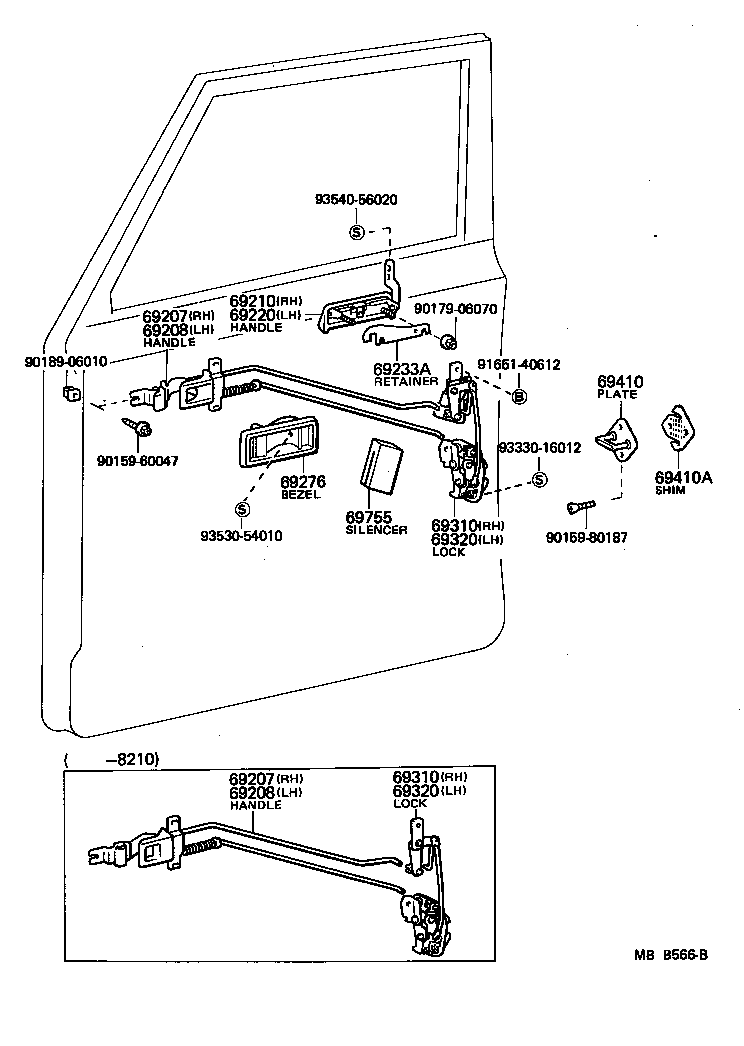

Figure MBB567A MBB567A 1980-08 → — Figure MBB566B MBB566B 1980-08 → —

Part groups

PNCDescription
69207 Handle Sub-assy, Front Door Inside, RH
69207Q Spring, Tension(FOR CANVAS DOOR INSIDE HANDLE)
69208 Handle Sub-assy, Front Door Inside, LH
69210 Handle Assy, Front Door, Outside RH
69220 Handle Assy, Front Door Outside, LH
69233A Retainer, Door Outside Handle
69276 Bezel, Front Door Inside Handle
69310 Lock Assy, Front Door, RH
69320 Lock Assy, Front Door, LH
69410 Plate Assy, Front Door Lock Striker
69410A Shim, Front Door Lock Striker Plate
69755 Silencer, Front Door Lock Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
