Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Window Regulator & Hinge

21 part groups · 2 illustrations

Illustrations

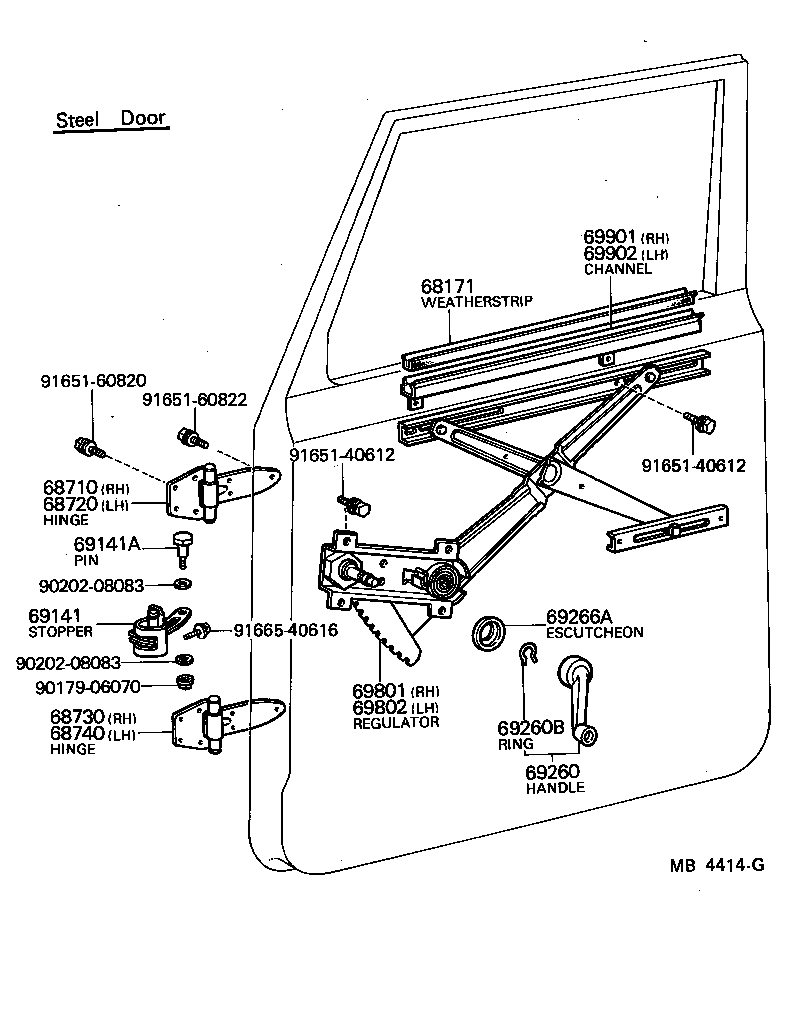

Figure MBB630A MBB630A 1980-08 → — Figure MB4414G MB4414G 1980-08 → —

Part groups

PNCDescription
68171 Weatherstrip, Front Door Glass Channel
68211 Channel, Door Window Set(FOR CANVAS DOOR)
68701 Hinge Sub-assy, Canvas Door Male
68703 Hinge Sub-assy, Canvas Door Female, Upper RH
68704 Hinge Sub-assy, Canvas Door Female, Upper LH
68707 Hinge Sub-assy, Canvas Door Female, Lower RH
68708 Hinge Sub-assy, Canvas Door Female, Lower LH
68710 Hinge Assy, Front Door, Upper RH
68720 Hinge Assy, Front Door, Upper LH
68730 Hinge Assy, Front Door, Lower RH
68740 Hinge Assy, Front Door, Lower LH
69141 Stopper, Front Door Open
69141A Pin, Front Door Open Stopper
69142 Cushion, Door Open Stopper
69260 Handle Assy, Front Door Window Regulator
69260B Ring, Shaft Snap(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69266A Escutcheon, Door Regulator Handle(FOR FRONT DOOR)
69801 Regulator Sub-assy, Front Door Window, RH
69802 Regulator Sub-assy, Front Door Window, LH
69901 Channel Sub-assy, Front Door Glass, RH
69902 Channel Sub-assy, Front Door Glass, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
