Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

13 part groups · 3 illustrations

Illustrations

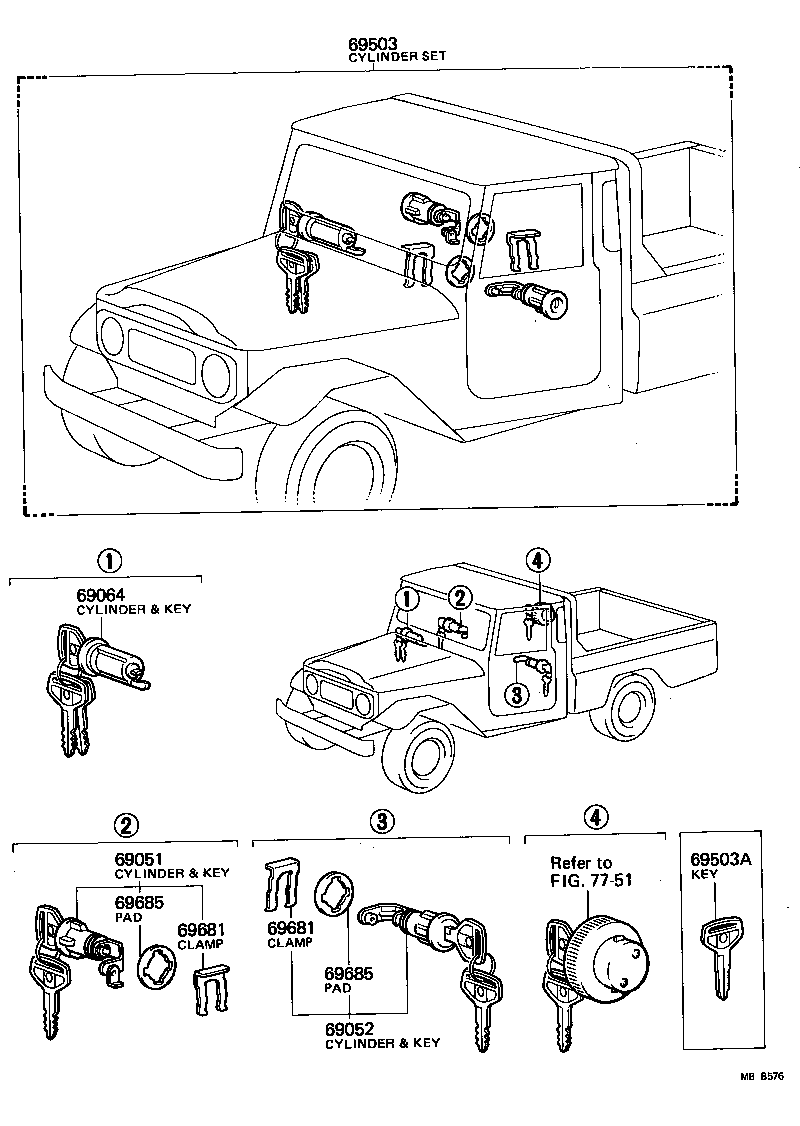

Figure MBB575A MBB575A 1980-08 → — Figure MBB576 MBB576 1980-08 → — Figure MBC230 MBC230 1980-08 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69053 Cylinder & Key Set, Fuel Inlet Lock
69054 Cylinder & Key Set, Back Door Lock
69064 Cylinder & Key Set, Ignition Switch Lock
69384 Plate, Back Door Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69513 Pad, Fuel Filler Lid Lock Cylinder
69563 Pad, Back Door Lock Cylinder
69681 Clamp, Door Lock Cylinder & Sleeve
69683 Clamp, Fuel Lock Cylinder
69685 Pad, Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
