Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

63 part groups · 9 illustrations

Illustrations

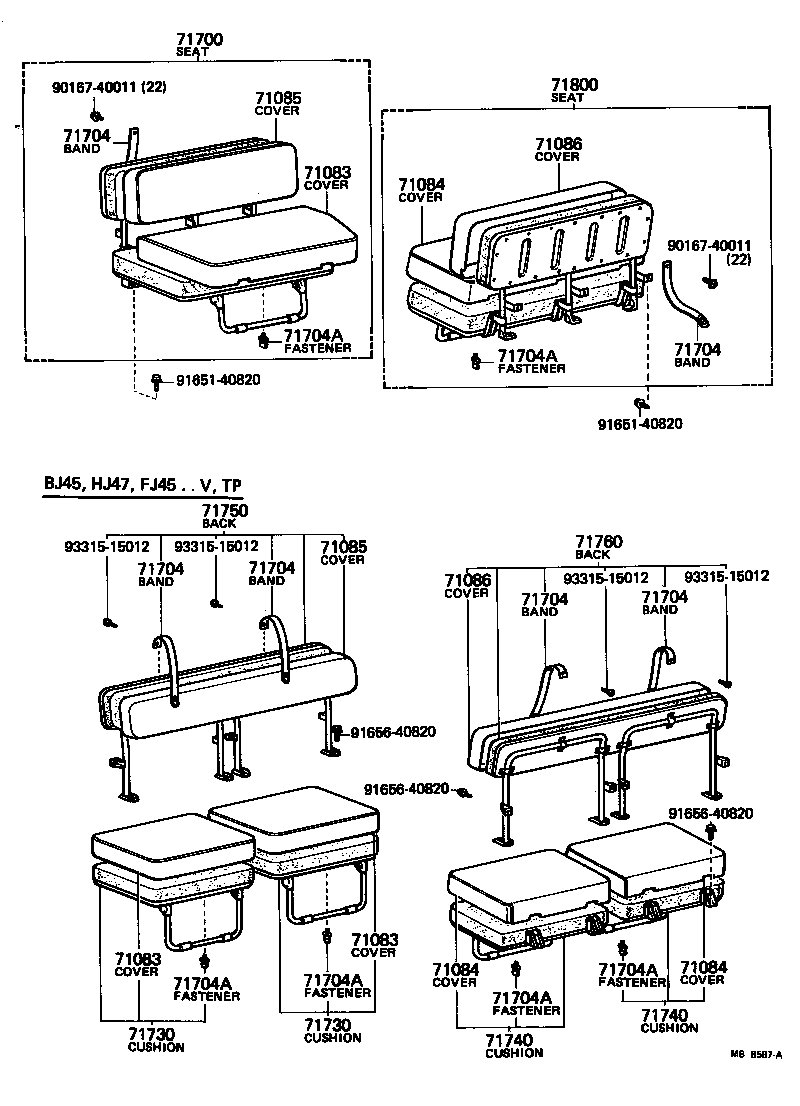

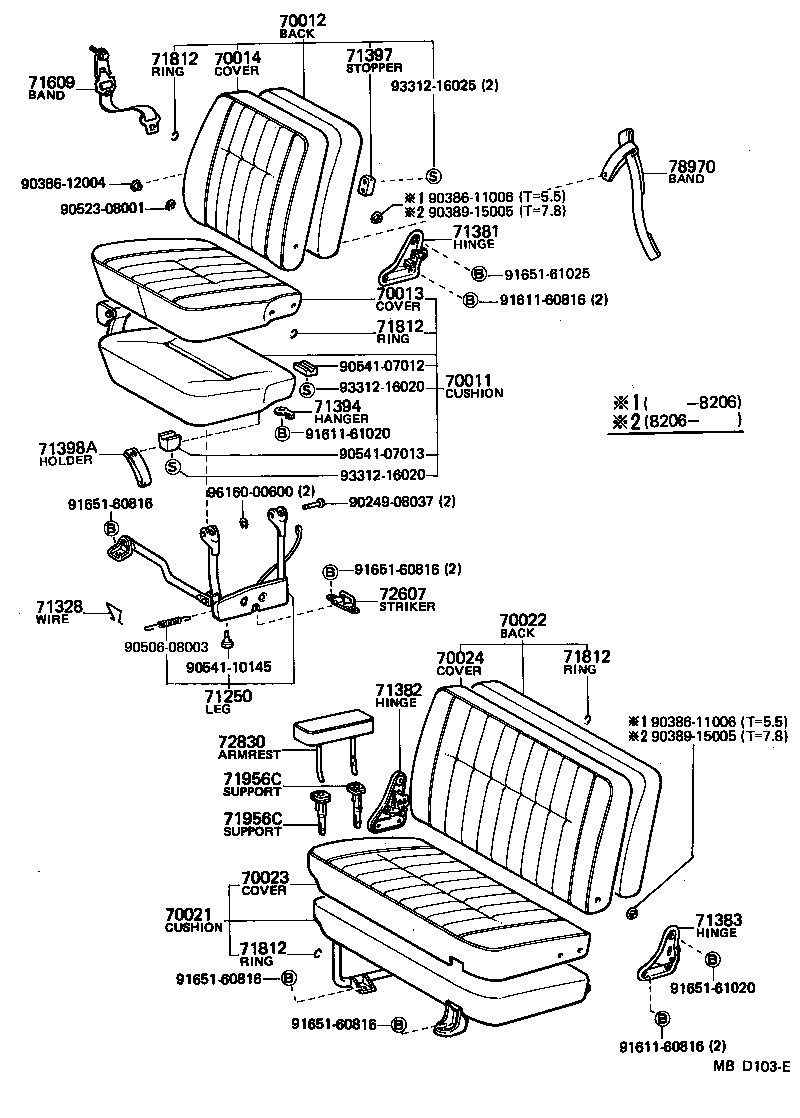

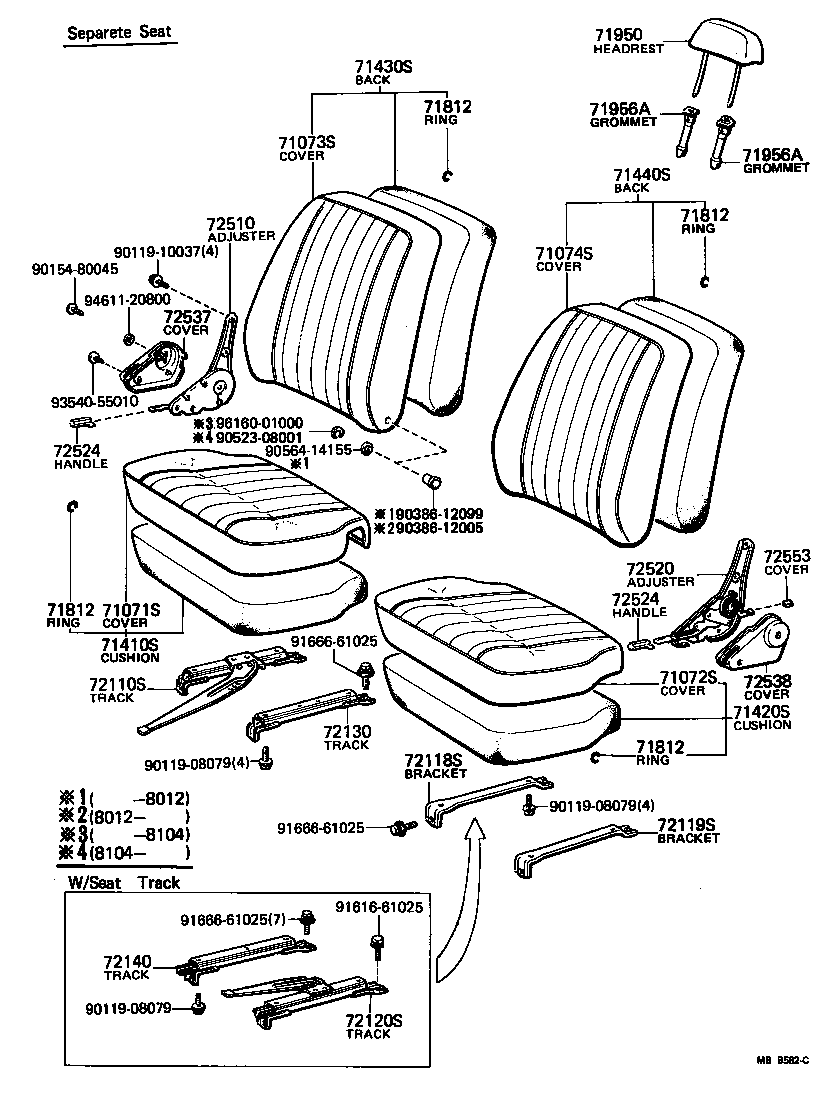

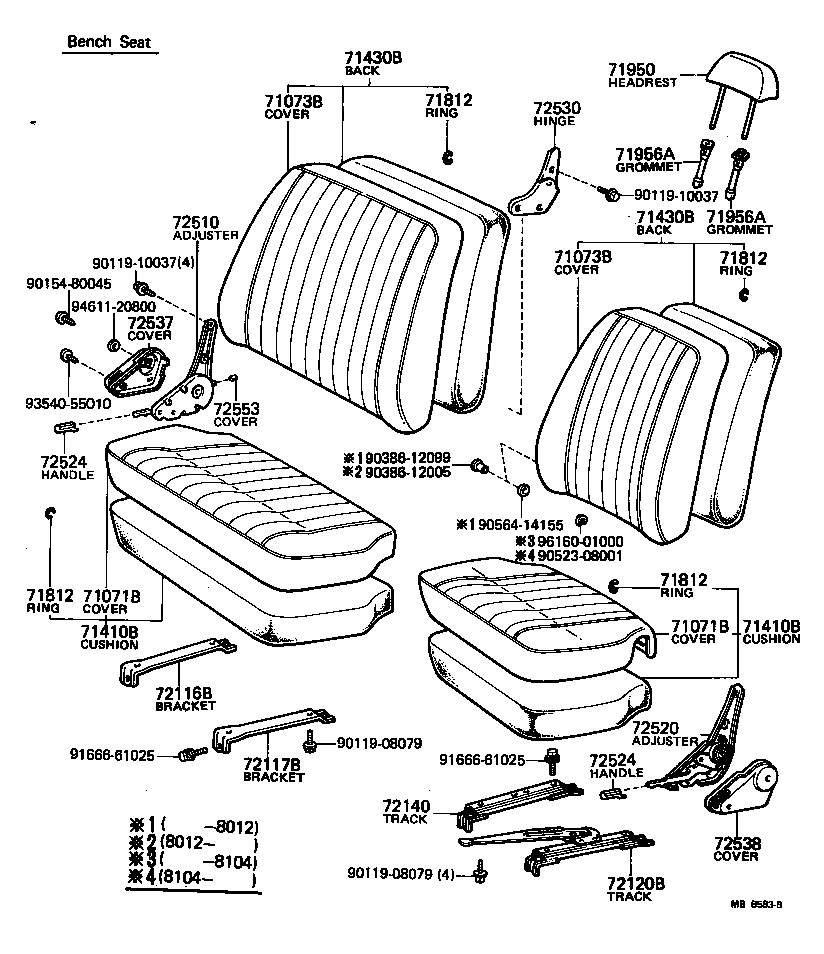

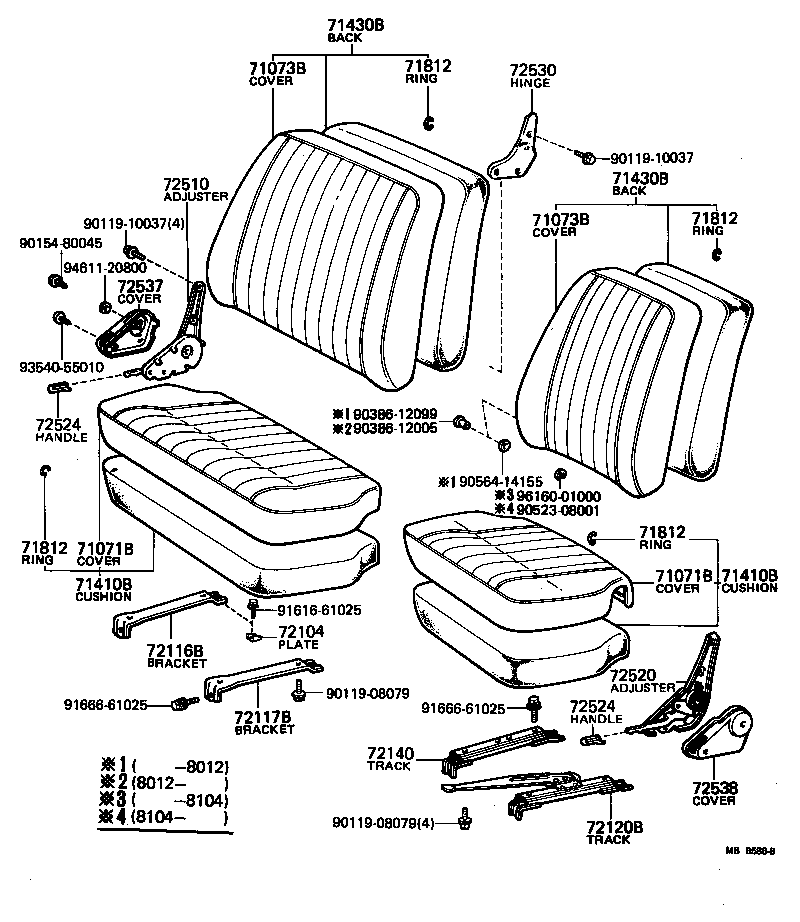

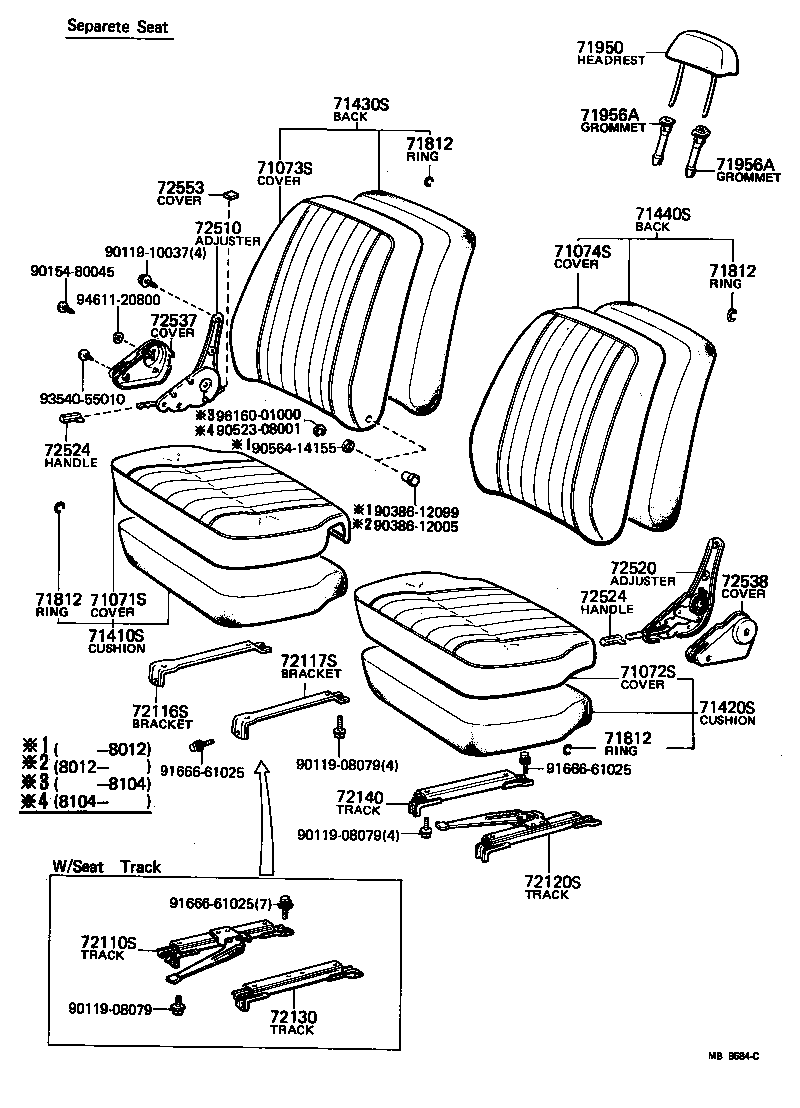

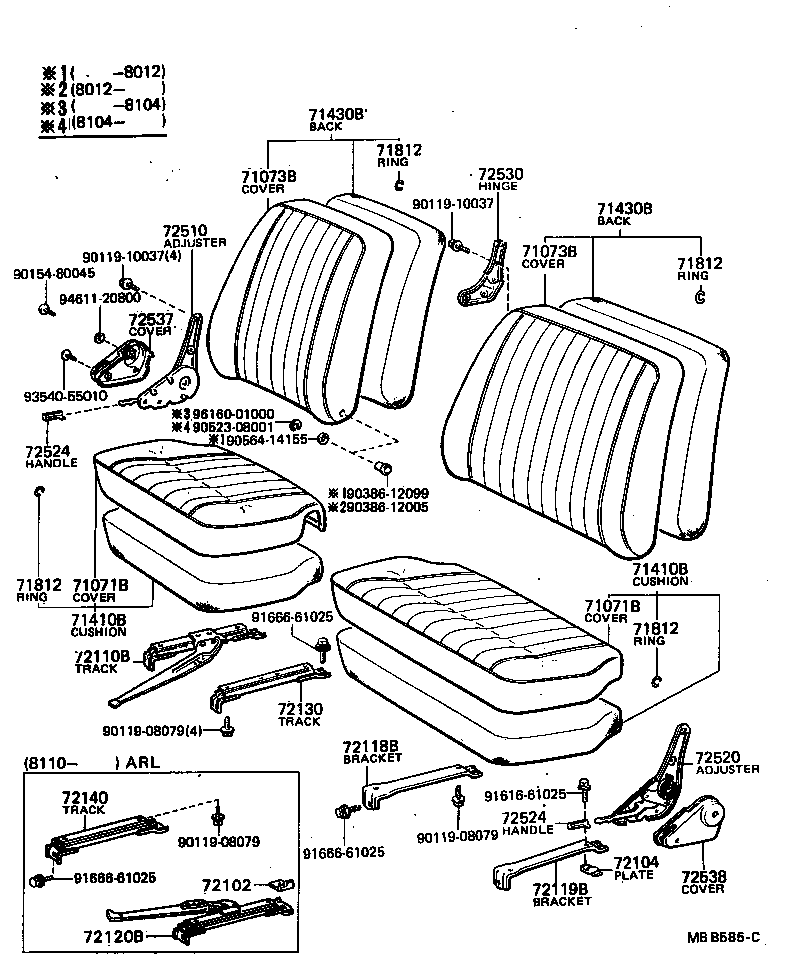

Figure MBB581B MBB581B 1980-08 → — Figure MBB582C MBB582C 1980-08 → — Figure MBB583B MBB583B 1980-08 → — Figure MBB584C MBB584C 1980-08 → — Figure MBB585C MBB585C 1980-08 → — Figure MBB586B MBB586B 1980-08 → — Figure MBB587A MBB587A 1980-08 → — Figure MBD103E MBD103E 1981-10 → 1982-01 Figure MBD103E MBD103E 1982-01 → —

Part groups

PNCDescription
70011 Cushion Assy, NO.1 Seat
70012 Back Assy, NO.1 Seat
70013 Cover Assy, NO.1 Seat Cushion
70014 Cover Assy, NO.1 Seatback
70021 Cushion Assy, NO.2 Seat
70022 Back Assy, NO.2 Seat
70023 Cover Assy, NO.2 Seat Cushion
70024 Cover Assy, NO.2 Seatback
71071B Cover, Front Seat Cushion(FOR BENCH TYPE)
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073B Cover, Front Seatback(FOR BENCH TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71083 Cover Sub-assy, Rear Side Seat Cushion, RH
71084 Cover Sub-assy, Rear Side Seat Cushion, LH
71085 Cover Sub-assy, Rear Side Seatback, RH
71086 Cover Sub-assy, Rear Side Seatback, LH
71250 Leg Assy, Rear NO.1 Seat
71328 Wire, Rear Seat Cushion Support
71381 Hinge, Rear Seatback Stop, NO.1
71382 Hinge, Rear Seatback Stop, NO.2
71383 Hinge, Rear Seatback Stop, NO.3
71394 Hanger, Rear Seat Band
71397 Stopper, Rear Seat
71398A Holder, Rear Seatback
71410B Cushion Assy, Front Seat(FOR BENCH TYPE)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430B Back Assy, Front Seat(FOR BENCH TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71609 Band Sub-assy, Rear Side Seat
71700 Seat Assy, Rear Side, RH
71704 Band Sub-assy, Rear Side Seat
71704A Fastener, Seat (FOR SIDE SEAT)
71730 Cushion Assy, Rear Side Seat, RH
71740 Cushion Assy, Rear Side Seat, LH
71800 Seat Assy, Rear Side, LH
71812 Clip (FOR FRONT SEAT CUSHION COVER)
71950 Headrest Assy, Front Seat
71956A Support, Front Seat Headrest
71956C Support, Rear Seat Armrest
72102 Bracket Sub-assy, Seat Track, Lower Rear
72104 Plate Sub-assy, Seat Track Stopper
72110B Track Assy, Seat, Outer RH (FOR BENCH SEAT)
72110S Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72118S Bracket, LH Seat Set Inside (FOR SEPARATE SEAT)
72119S Bracket, LH Seat Set Outside (FOR SEPARATE SEAT)
72120B Track Assy, Seat, Outer LH (FOR BENCH SEAT)
72120S Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72130 Track Assy, RH Seat, Inner
72140 Track Assy, LH Seat, Inner
72510 Adjuster Assy, Reclining Seatback, RH
72520 Adjuster Assy, Reclining Seatback, LH
72524 Handle, Reclining Adjuster Release
72530 Hinge Assy, Passenger Seat
72537 Cover, Reclining Hinge Outer, RH
72538 Cover, Reclining Hinge Outer, LH
72553 Cover, Reclining Pedal
72607 Striker Sub-assy, Rear Seat Cushion Lock
72830 Armrest Assy, Rear Seat, Center
78970 Band Assy, Seat Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
