Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

14 part groups · 7 illustrations

Illustrations

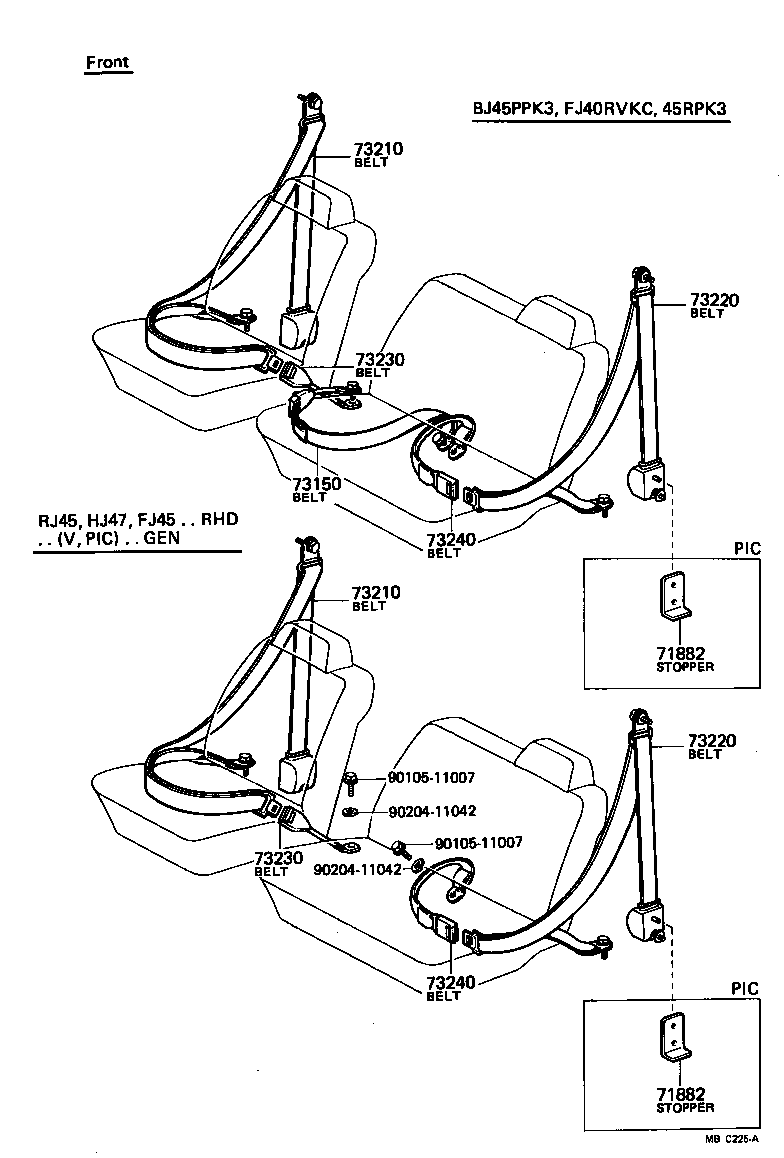

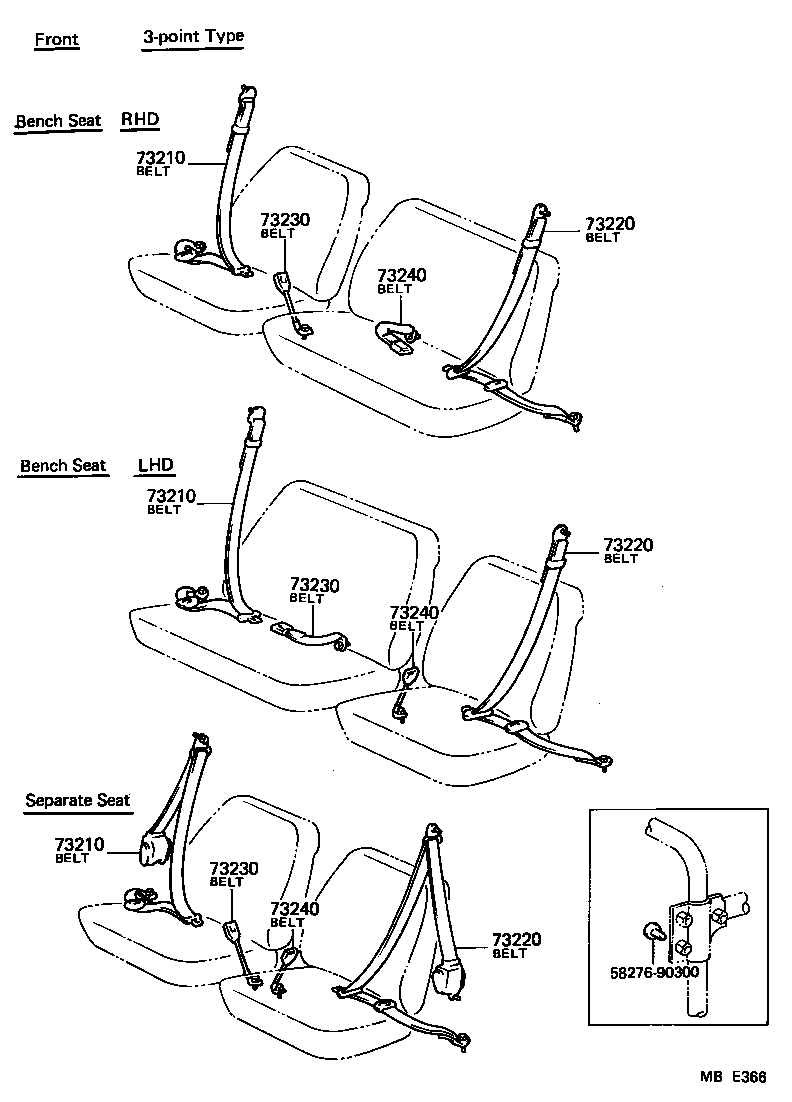

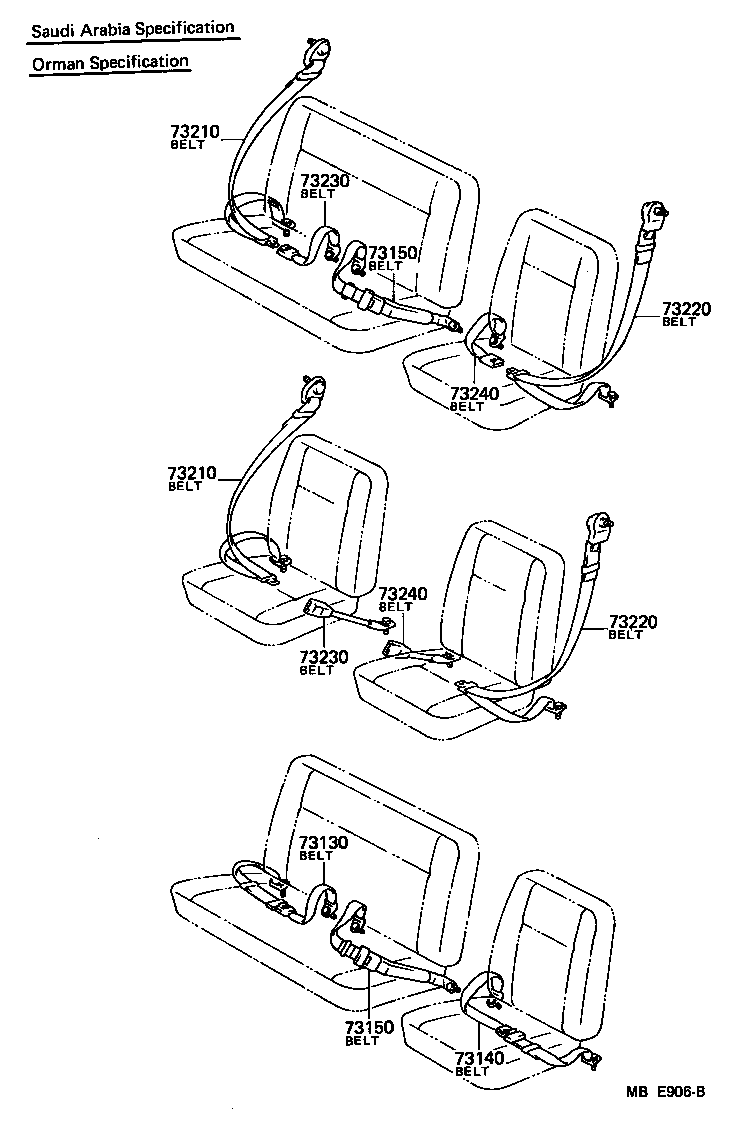

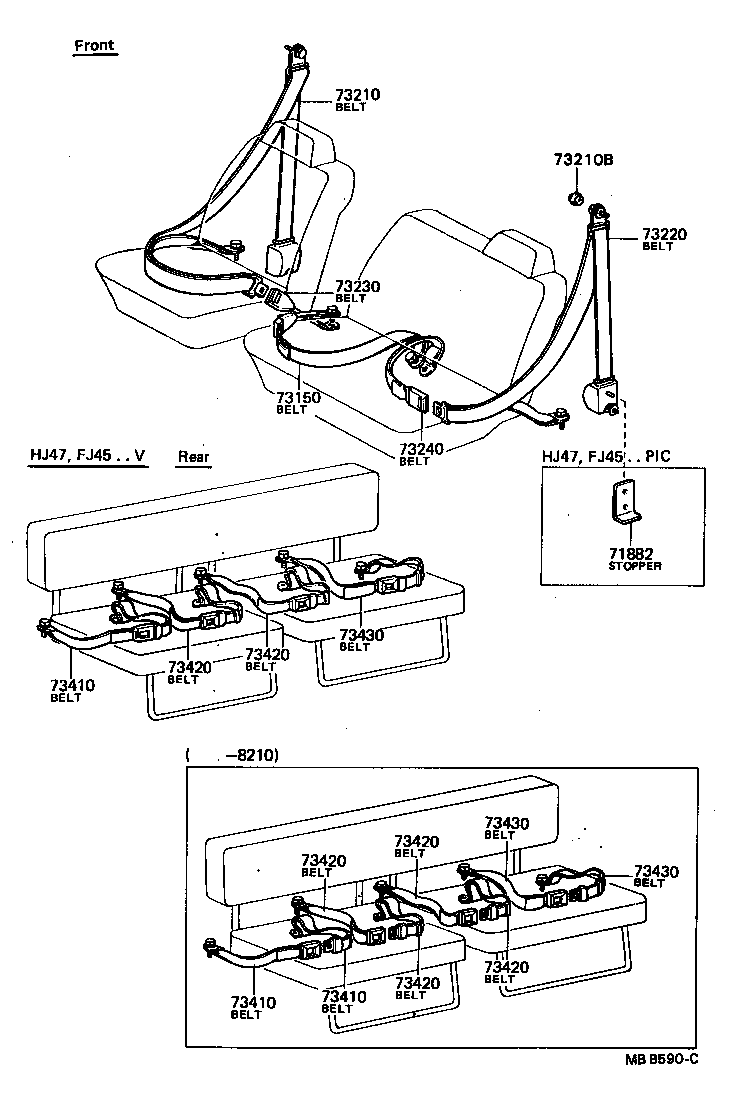

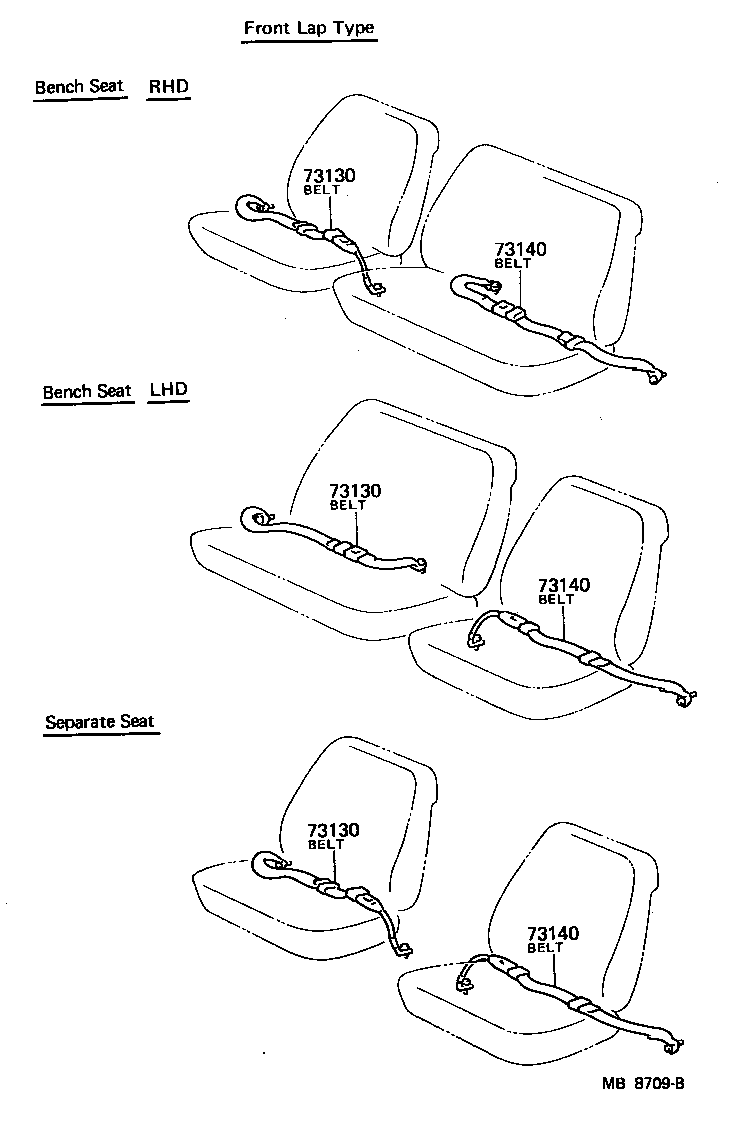

Figure MB8708B MB8708B 1980-08 → 1982-10 Figure MB8709B MB8709B 1982-10 → — Figure MBE366 MBE366 1980-08 → — Figure MBC225A MBC225A 1980-08 → — Figure MBB590C MBB590C 1980-08 → — Figure MBD523A MBD523A 1981-10 → — Figure MBE906B MBE906B 1982-10 → —

Part groups

PNCDescription
71882 Stopper, Seat Belt Retractor
73130 Belt Assy, Front Seat Lap Type, RH
73140 Belt Assy, Front Seat Lap Type, LH
73150 Belt Assy, Front Seat Lap Type, Center
73210 Belt Assy, Front Seat Outer, RH
73210B Cap (FOR FRONT SEAT OUTER BELT)
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
