Toyota Land Cruiser
1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe
Discontinued model
Data version 1987-01
Heating & Air Conditioning - Heater Unit & Blower
18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87104 | Motor Sub-assy, Heater Blower |
| 87104R | Motor Sub-assy, Rear Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87105R | Fan Sub-assy, Rear Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87107R | Unit Sub-assy, Rear Heater |

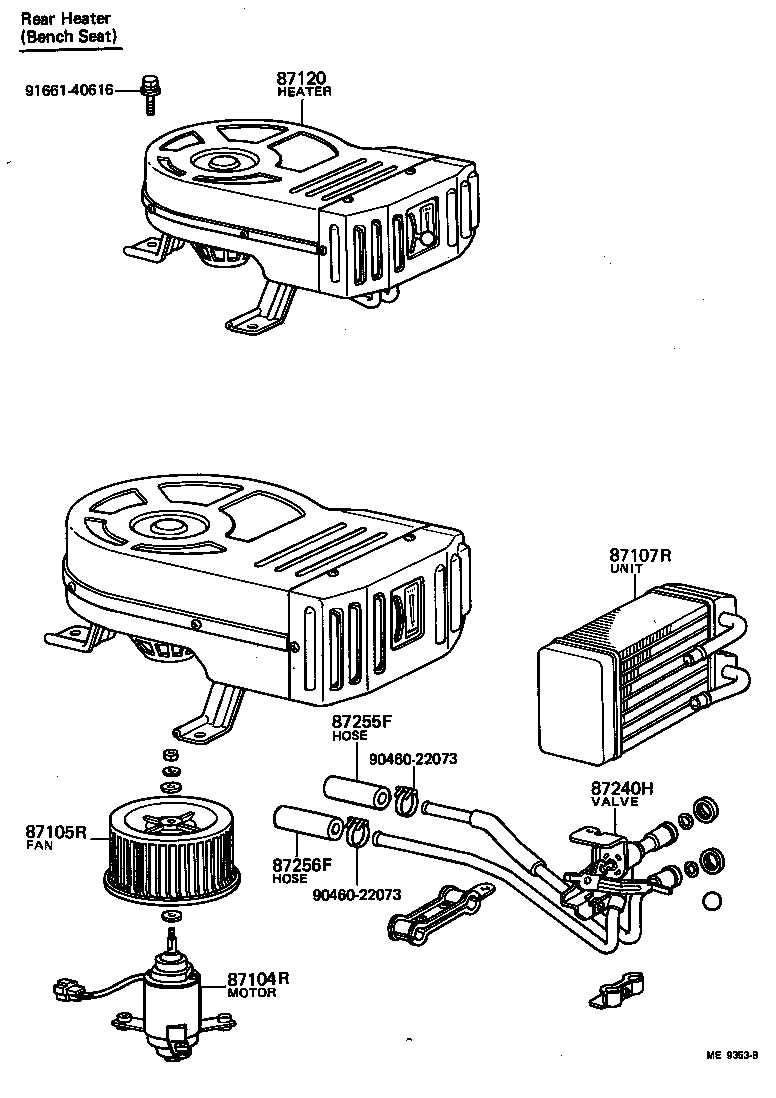

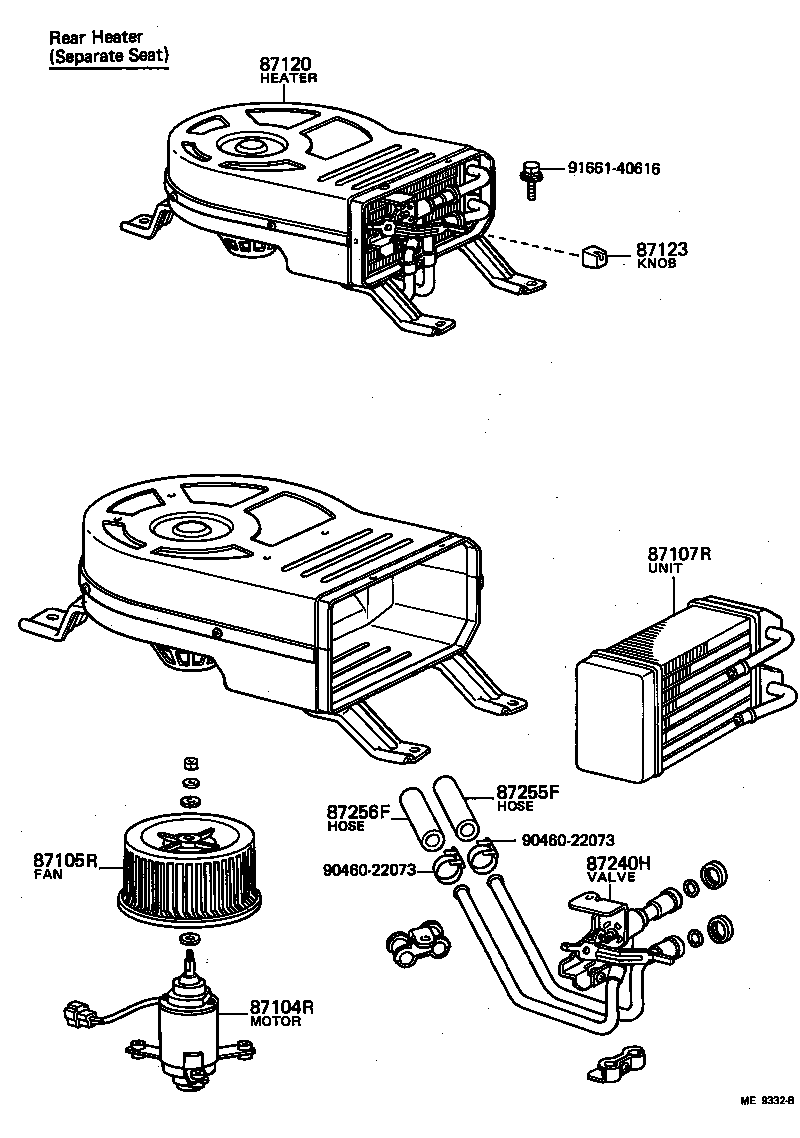

| 87120 | Heater Assy, Rear |
| 87123 | Knob, Heater |
| 87130 | Blower Assy, Heater, Front |
| 87130B | Hose, Heater Blower Drain |
| 87138 | Resistor, Heater Blower |
| 87150 | Radiator Assy, Heater |
| 87188 | Packing, Heater Blower Motor |
| 87240H | Valve Assy, Water Unit |
| 87245F | Hose, Heater Water, Inlet F |
| 87246F | Hose, Heater Water, Outlet F |
| 87255F | Hose, Rear Heater Water Inlet, F(FOR HEATER UNIT) |
| 87256F | Hose, Rear Heater Water Outlet, F (FOR HEATER UNIT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
