Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

9 part groups · 2 illustrations

Illustrations

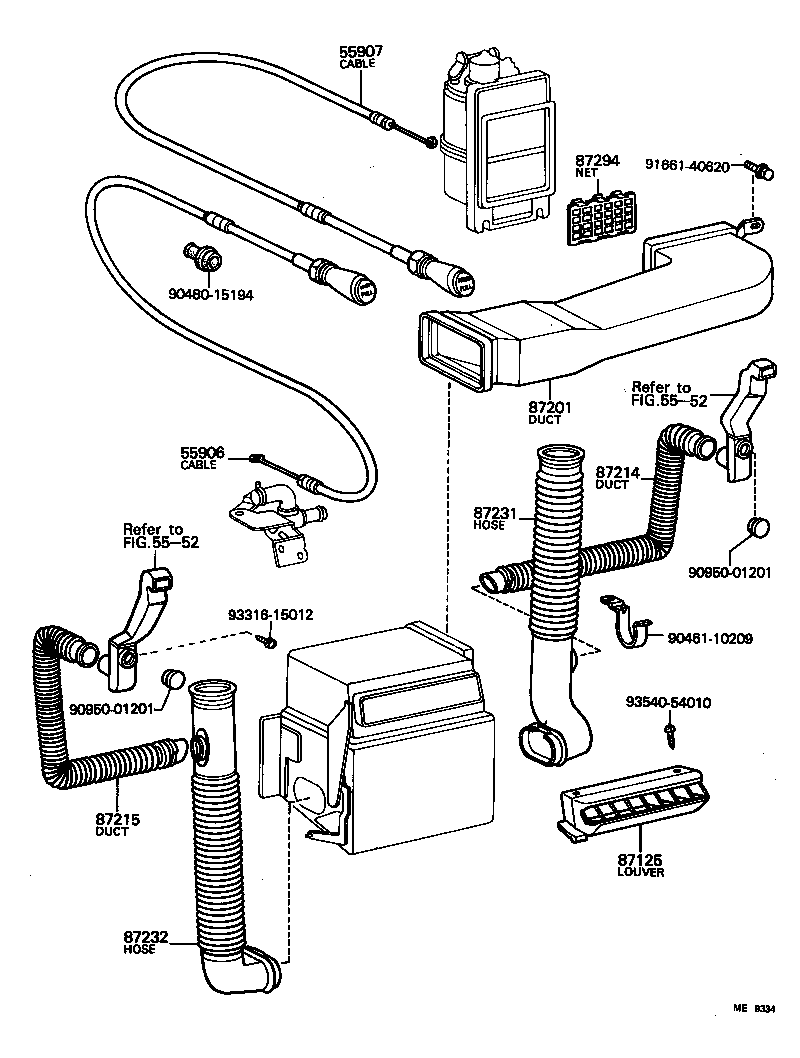

Figure ME9327 ME9327 1980-08 → — Figure ME9334 ME9334 1980-08 → —

Part groups

PNCDescription
55906 Cable Sub-assy, Heater Control
55907 Cable Sub-assy, Heater Air Inlet Butterfly
87125 Louver, Ventilation
87201 Duct Sub-assy, Air, NO.1
87214 Duct, Air, Side NO.1 RH
87215 Duct, Air, Side NO.1 LH
87231 Hose, Heater Defroster, RH
87232 Hose, Heater Defroster, LH
87294 Net, Air Duct
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
