Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

15 part groups · 3 illustrations

Illustrations

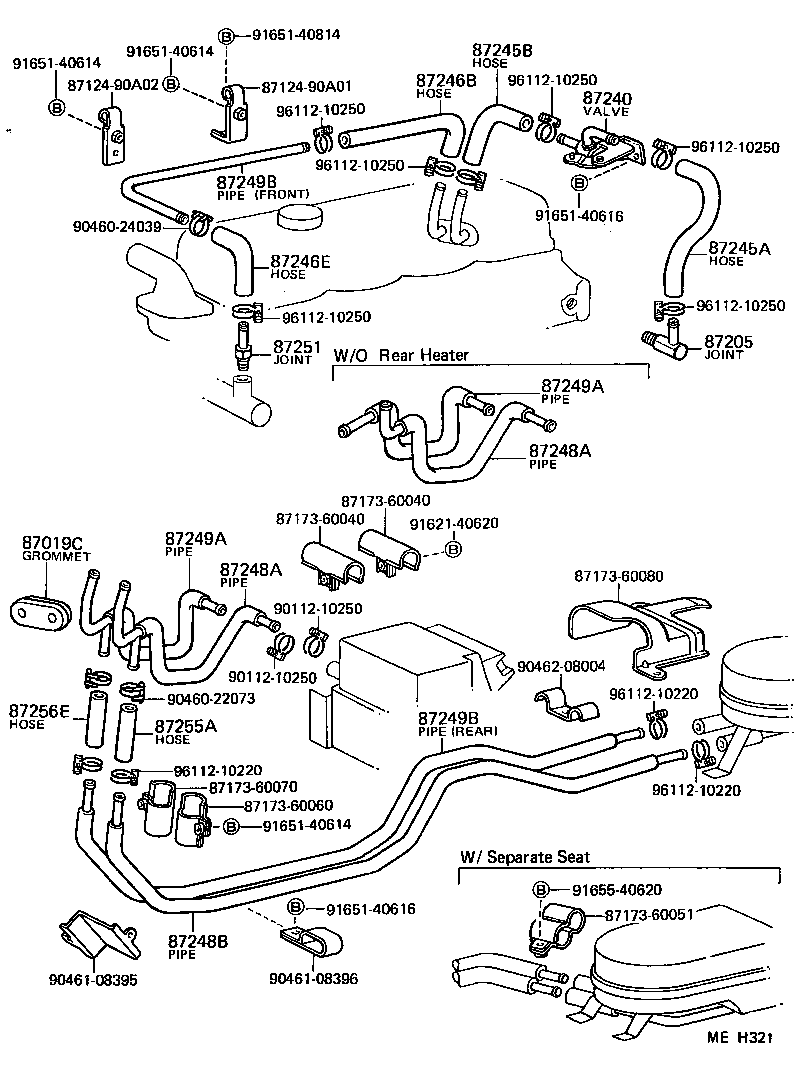

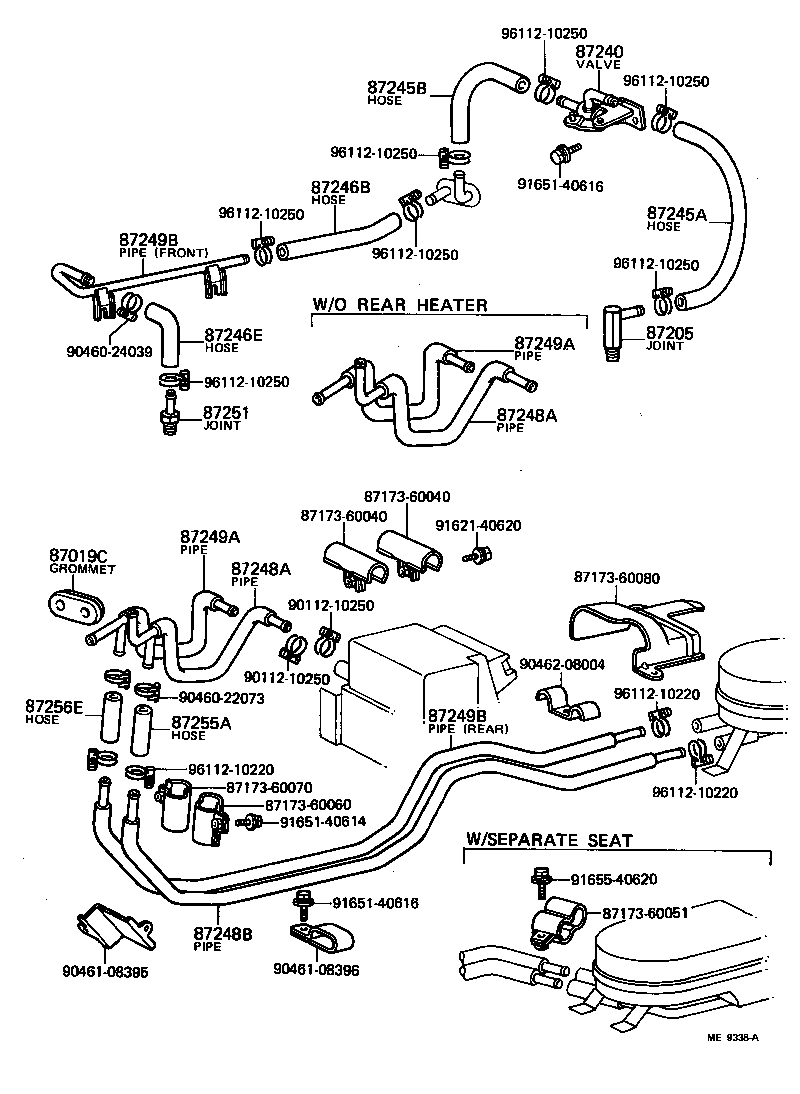

Figure ME9337B ME9337B 1980-08 → — Figure ME9338A ME9338A 1980-08 → — Figure MEH321 MEH321 1980-08 → —

Part groups

PNCDescription
87019C Grommet, Heater Hose
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246B Hose, Heater Water, Outlet B
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87251 Joint OR Union, Water Hose Through
87255 Adapter, Water Hose Joint
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
