Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

17 part groups · 5 illustrations

Illustrations

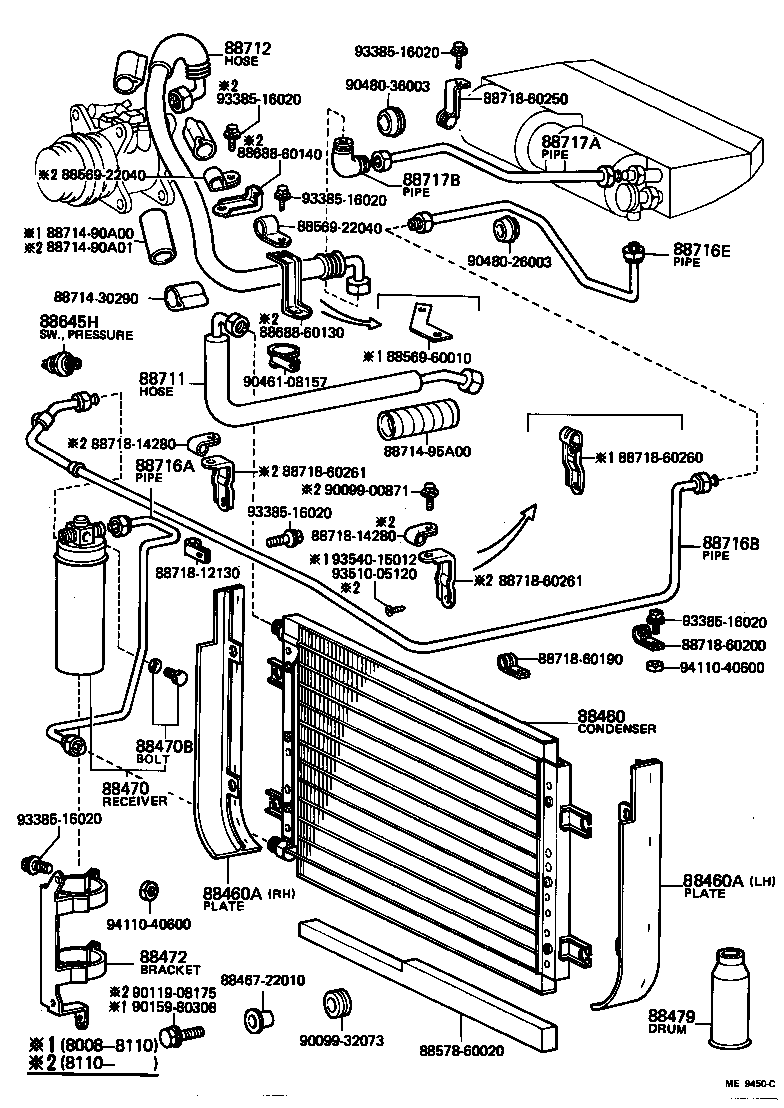

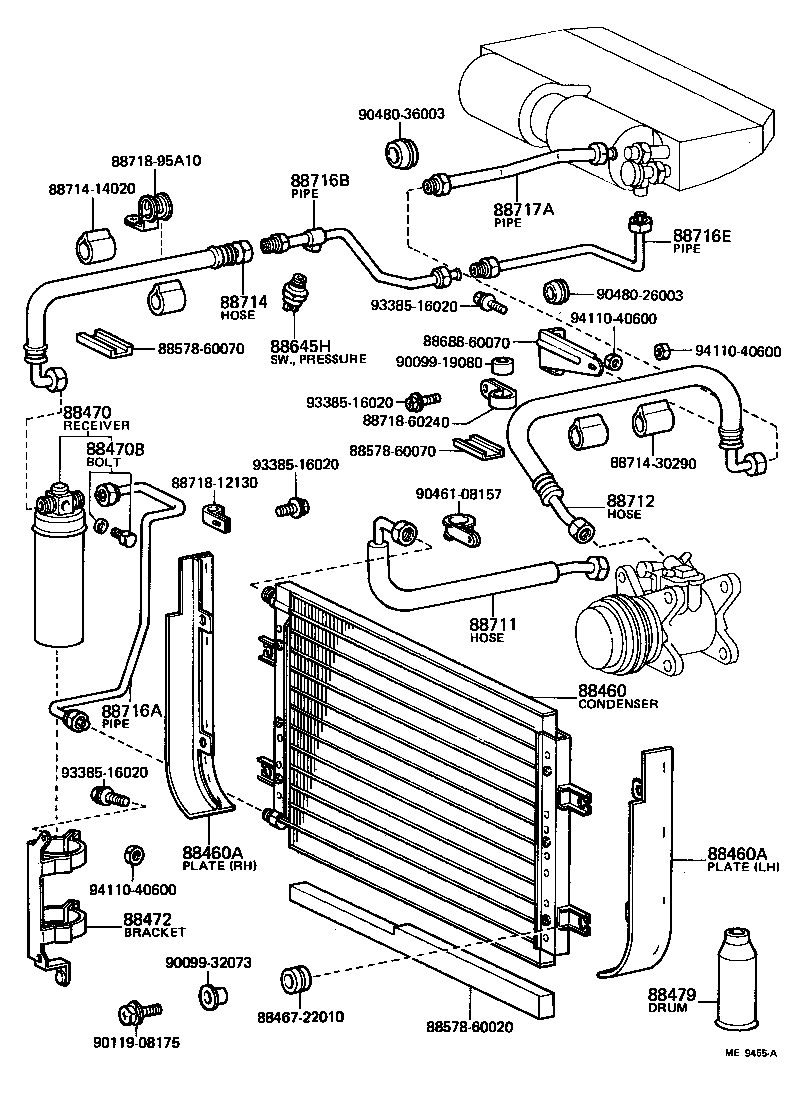

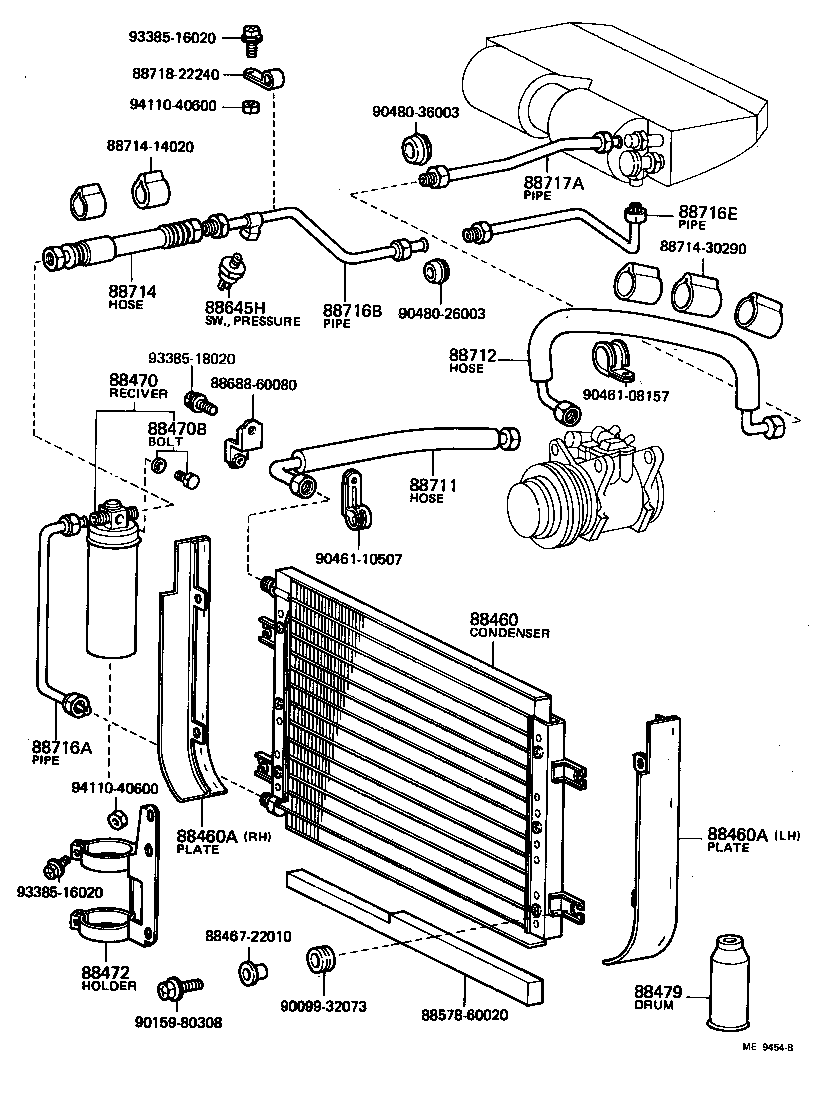

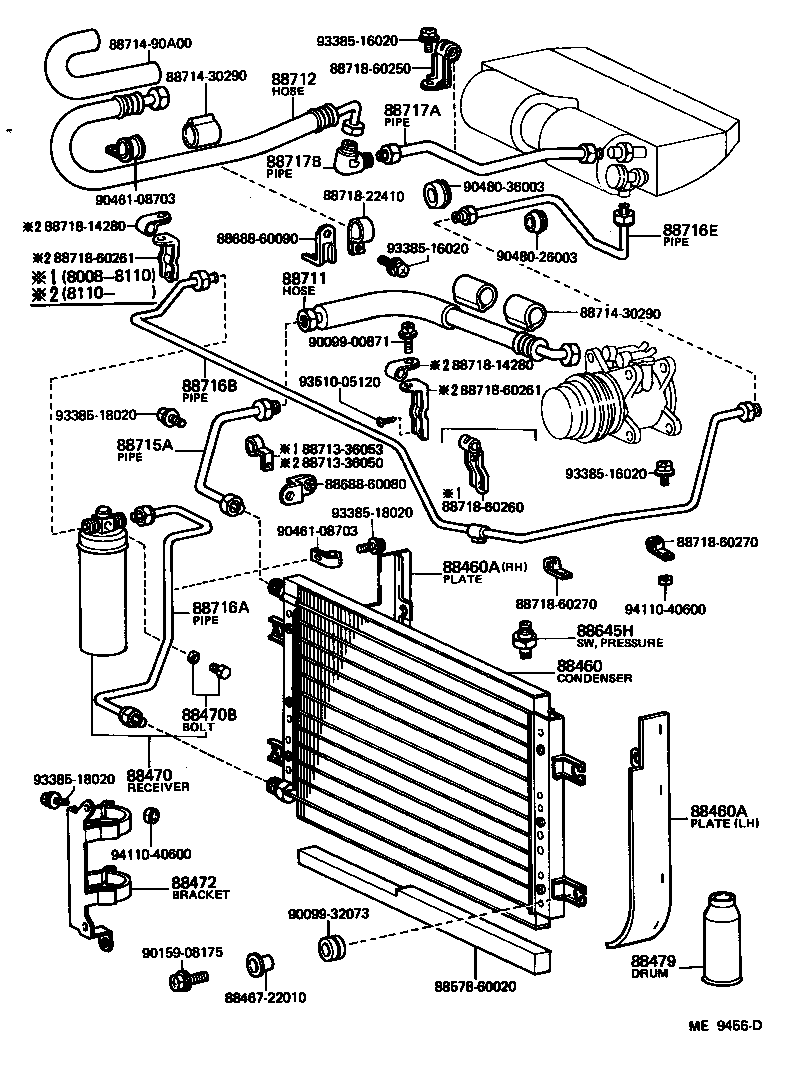

Figure ME9453E ME9453E 1980-08 → — Figure ME9454B ME9454B 1980-08 → — Figure ME9450C ME9450C 1980-08 → — Figure ME9455A ME9455A 1980-08 → — Figure ME9456D ME9456D 1980-08 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88460A Cover, Cooler Condenser
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88645H Switch, Pressure NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88714 Hose, Cooler Refrigerant Liquid, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
