Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

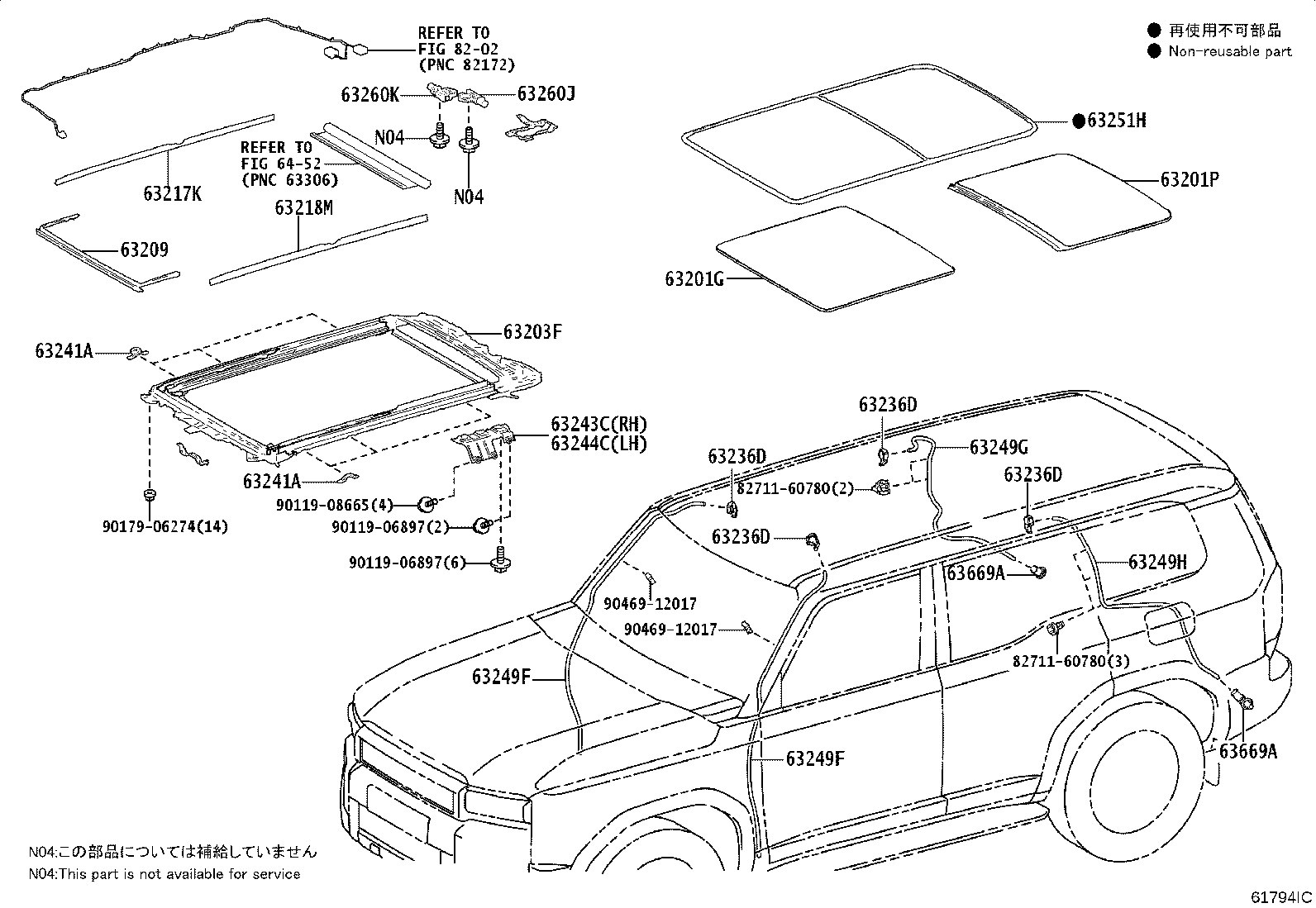

Exploded illustration 61794IC 63249G — HOSE, SLIDING ROOF DRAIN (6 parts) 63236D — CLAMP, SLIDING ROOF DRAIN HOSE (4 parts) 63249F — HOSE, SLIDING ROOF DRAIN (4 parts) 63249F — HOSE, SLIDING ROOF DRAIN (4 parts) 9011908665 — not listed in this catalogue 9011906897 — not listed in this catalogue 9011906897 — not listed in this catalogue 63249H — HOSE, SLIDING ROOF DRAIN (6 parts) 63669A — GROMMET, SLIDING ROOF DRAIN (4 parts) 63669A — GROMMET, SLIDING ROOF DRAIN (4 parts) 63236D — CLAMP, SLIDING ROOF DRAIN HOSE (4 parts) 63236D — CLAMP, SLIDING ROOF DRAIN HOSE (4 parts) 63236D — CLAMP, SLIDING ROOF DRAIN HOSE (4 parts) 63201G — GLASS SUB-ASSY, SLIDING ROOF (2 parts) 63201P — GLASS SUB-ASSY, SLIDING ROOF (4 parts) 63251H — WEATHERSTRIP, SLIDING ROOF (2 parts) 63203F — HOUSING SUB-ASSY, SLIDING ROOF (4 parts) 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (2 parts) 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (2 parts) 63209 — PANEL SUB-ASSY, ROOF WIND DEFLECTOR (2 parts) 63217K — GARNISH, SLIDING ROOF SIDE, RH (4 parts) 63218M — GARNISH, SLIDING ROOF SIDE, LH (2 parts) 63260J — GEAR ASSY, SLIDING ROOF DRIVE (2 parts) 63260K — GEAR ASSY, SLIDING ROOF DRIVE (2 parts) 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (2 parts) 63244C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH (2 parts) 6452 — not listed in this catalogue 9017906274 — not listed in this catalogue 8202 — not listed in this catalogue 8271160780 — not listed in this catalogue 9046912017 — not listed in this catalogue 9046912017 — not listed in this catalogue 8271160780 — not listed in this catalogue
61794IC · 23 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
54 parts on this figure
Part number Description Fitment Price
63201G — Glass Sub-assy, Sliding Roof
63201-60180 note Glass Sub-assy, Sliding Roof
2024-01 → —
GDJ250 RUS) LHD (A,L) +5 —
63201-60180 note Glass Sub-assy, Sliding Roof
2024-01 → 2025-09 ended
GDJ250 RHD (A,L) EUR —
63201P — Glass Sub-assy, Sliding Roof
63201-60170 note Glass Sub-assy, Sliding Roof
2024-01 → —
GDJ250 LHD (A,L,R) EUR;GDJ25#,TJA250,TRJ250 +2 —
63201-60170 note Glass Sub-assy, Sliding Roof
2024-01 → 2025-09 ended
GDJ250 RHD (A,L,R) EUR —
63201-60190 note Glass Sub-assy, Sliding Roof
2024-01 → 2025-09 ended
GDJ250 RHD (A,L) EUR —
63201-60190 note Glass Sub-assy, Sliding Roof
2024-01 → —
GDJ250 RUS) LHD (A,L) +5 —
63203F — Housing Sub-assy, Sliding Roof
63203-60140 note Housing Sub-assy, Sliding Roof
2024-01 → 2025-09 ended
GDJ250 RHD (A,L,R) EUR —
63203-60140 note Housing Sub-assy, Sliding Roof
2024-01 → —
GDJ250 LHD (A,L,R) EUR;GDJ25#,TJA250,TRJ250 +2 —
63203-60160 note Housing Sub-assy, Sliding Roof
2024-01 → 2025-09 ended
GDJ250 RHD (A,L) EUR —
63203-60160 note Housing Sub-assy, Sliding Roof
2024-01 → —
GDJ250 RUS) LHD (A,L) +5 —
63209 — Panel Sub-assy, Roof Wind Deflector
63209-60090 note Panel Sub-assy, Roof Wind Deflector
2024-01 → 2025-09 ended
GDJ250 RHD (A,L) EUR —
63209-60090 note Panel Sub-assy, Roof Wind Deflector
2024-01 → —
GDJ250 RUS) LHD (A,L) +5 —
63217K — Garnish, Sliding Roof Side, RH
63217-60060 note Garnish, Sliding Roof Side, RH
2024-01 → —
GDJ250 LHD (A,L,R) EUR;GDJ25#,TJA250,TRJ250 +2 —
63217-60060 note Garnish, Sliding Roof Side, RH
2024-01 → 2025-09 ended
GDJ250 RHD (A,L,R) EUR —
63217-60070 note Garnish, Sliding Roof Side, RH
2024-01 → 2025-09 ended
GDJ250 RHD (A,L) EUR —
63217-60070 note Garnish, Sliding Roof Side, RH
2024-01 → —
GDJ250 RUS) LHD (A,L) +5 —
63218M — Garnish, Sliding Roof Side, LH
63218-60060 note Garnish, Sliding Roof Side, LH
2024-01 → 2025-09 ended
GDJ250 RHD (A,L) EUR —
63218-60060 note Garnish, Sliding Roof Side, LH
2024-01 → —
GDJ250 RUS) LHD (A,L) +5 —
63236D — Clamp, Sliding Roof Drain Hose
63236-33030 note Clamp, Sliding Roof Drain Hose
2024-01 → 2025-09 ended
GDJ250 RHD (A,L,R) EUR —
63236-33030 note Clamp, Sliding Roof Drain Hose
2024-01 → 2025-09 ended
GDJ250 RHD (A,L) EUR —
63236-33030 note Clamp, Sliding Roof Drain Hose
2024-01 → —
GDJ250 LHD (A,L,R) EUR;GDJ25#,TJA250,TRJ250 +2 —
63236-33030 note Clamp, Sliding Roof Drain Hose
2024-01 → —
GDJ250 RUS) LHD (A,L) +5 —
63241A — Bracket, Sliding Roof Housing Front Mounting, RH
63241-60070 note Bracket, Sliding Roof Housing Front Mounting, RH
2024-01 → 2025-09 ended
GDJ250 RHD (A,L) EUR —
63241-60070 note Bracket, Sliding Roof Housing Front Mounting, RH
2024-01 → —
GDJ250 RUS) LHD (A,L) +5 —
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-60050 note Bracket, Sliding Roof Housing Center Mounting, RH
2024-01 → 2025-09 ended
GDJ250 RHD (A,L) EUR —
63243-60050 note Bracket, Sliding Roof Housing Center Mounting, RH
2024-01 → —
GDJ250 RUS) LHD (A,L) +5 —
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63244-60030 note Bracket, Sliding Roof Housing Center Mounting, LH
2024-01 → —
GDJ250 RUS) LHD (A,L) +5 —
63244-60030 note Bracket, Sliding Roof Housing Center Mounting, LH
2024-01 → 2025-09 ended
GDJ250 RHD (A,L) EUR —
63249F — Hose, Sliding Roof Drain
63249-60300 note Hose, Sliding Roof Drain
2024-01 → 2025-09 ended
GDJ250 RHD (A,L,R) EUR —
63249-60300 note Hose, Sliding Roof Drain
2024-01 → —
GDJ250 LHD (A,L,R) EUR;GDJ25#,TJA250,TRJ250 +2 —
63249-60310 note Hose, Sliding Roof Drain
2024-01 → 2025-09 ended
GDJ250 RHD (A,L) EUR —
63249-60310 note Hose, Sliding Roof Drain
2024-01 → —
GDJ250 RUS) LHD (A,L) +5 —
63249G — Hose, Sliding Roof Drain
63249-60320 note Hose, Sliding Roof Drain
2024-01 → 2024-08 ended
GDJ250,TJA250,TRJ250 A,L,R —
63249-60320 note Hose, Sliding Roof Drain
2024-01 → 2024-09 ended
GDJ251 A,L,R —
63249-60321 note Hose, Sliding Roof Drain
2024-09 → 2025-09 ended
GDJ250 RHD (A,L,R) EUR —
63249-60321 note Hose, Sliding Roof Drain
2024-09 → —
GDJ250 LHD (A,L,R) EUR;GDJ25#,TJA250,TRJ250 +2 —
63249-60340 note Hose, Sliding Roof Drain
2024-01 → 2025-09 ended
GDJ250 RHD (A,L) EUR —
63249-60340 note Hose, Sliding Roof Drain
2024-01 → —
GDJ250 RUS) LHD (A,L) +5 —
63249H — Hose, Sliding Roof Drain
63249-60330 note Hose, Sliding Roof Drain
2024-01 → 2024-08 ended
GDJ250,TJA250,TRJ250 A,L,R —
63249-60330 note Hose, Sliding Roof Drain
2024-01 → 2024-09 ended
GDJ251 A,L,R —
63249-60331 note Hose, Sliding Roof Drain
2024-09 → 2025-09 ended
GDJ250 RHD (A,L,R) EUR —
63249-60331 note Hose, Sliding Roof Drain
2024-09 → —
GDJ250 LHD (A,L,R) EUR;GDJ25#,TJA250,TRJ250 +2 —
63249-60350 note Hose, Sliding Roof Drain
2024-01 → 2025-09 ended
GDJ250 RHD (A,L) EUR —
63249-60350 note Hose, Sliding Roof Drain
2024-01 → —
GDJ250 RUS) LHD (A,L) +5 —
63251H — Weatherstrip, Sliding Roof
63251-60100 note Weatherstrip, Sliding Roof
2024-01 → 2025-09 ended
GDJ250 RHD (A,L) EUR —
63251-60100 note Weatherstrip, Sliding Roof
2024-01 → —
GDJ250 RUS) LHD (A,L) +5 —
63260J — Gear Assy, Sliding Roof Drive
63260-60200 note Gear Assy, Sliding Roof Drive
2024-01 → 2025-09 ended
GDJ250 RHD (A,L) EUR —
63260-60200 note Gear Assy, Sliding Roof Drive
2024-01 → —
GDJ250 RUS) LHD (A,L) +5 —
63260K — Gear Assy, Sliding Roof Drive
63260-60210 note Gear Assy, Sliding Roof Drive
2024-01 → 2025-09 ended
GDJ250 RHD (A,L) EUR —
63260-60210 note Gear Assy, Sliding Roof Drive
2024-01 → —
GDJ250 RUS) LHD (A,L) +5 —
63669A — Grommet, Sliding Roof Drain
63669-30040 note Grommet, Sliding Roof Drain
2024-01 → 2025-09 ended
GDJ250 RHD (A,L,R) EUR —
63669-30040 note Grommet, Sliding Roof Drain
2024-01 → 2025-09 ended
GDJ250 RHD (A,L) EUR —
63669-30040 note Grommet, Sliding Roof Drain
2024-01 → —
GDJ250 LHD (A,L,R) EUR;GDJ25#,TJA250,TRJ250 +2 —
63669-30040 note Grommet, Sliding Roof Drain
2024-01 → —
GDJ250 RUS) LHD (A,L) +5 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
