Toyota Land Cruiser Prado
2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe
Supported model
Data version 2024-07

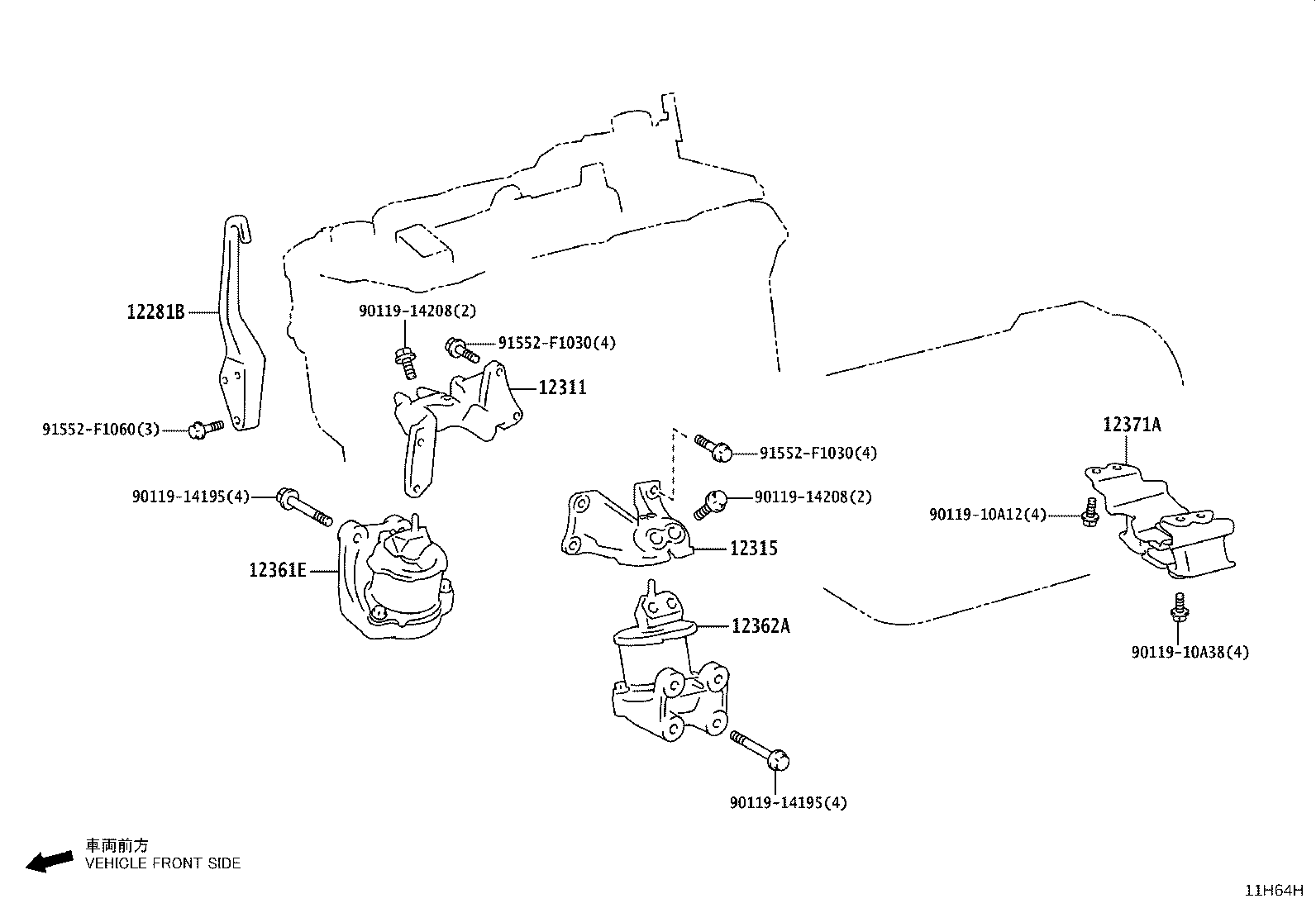

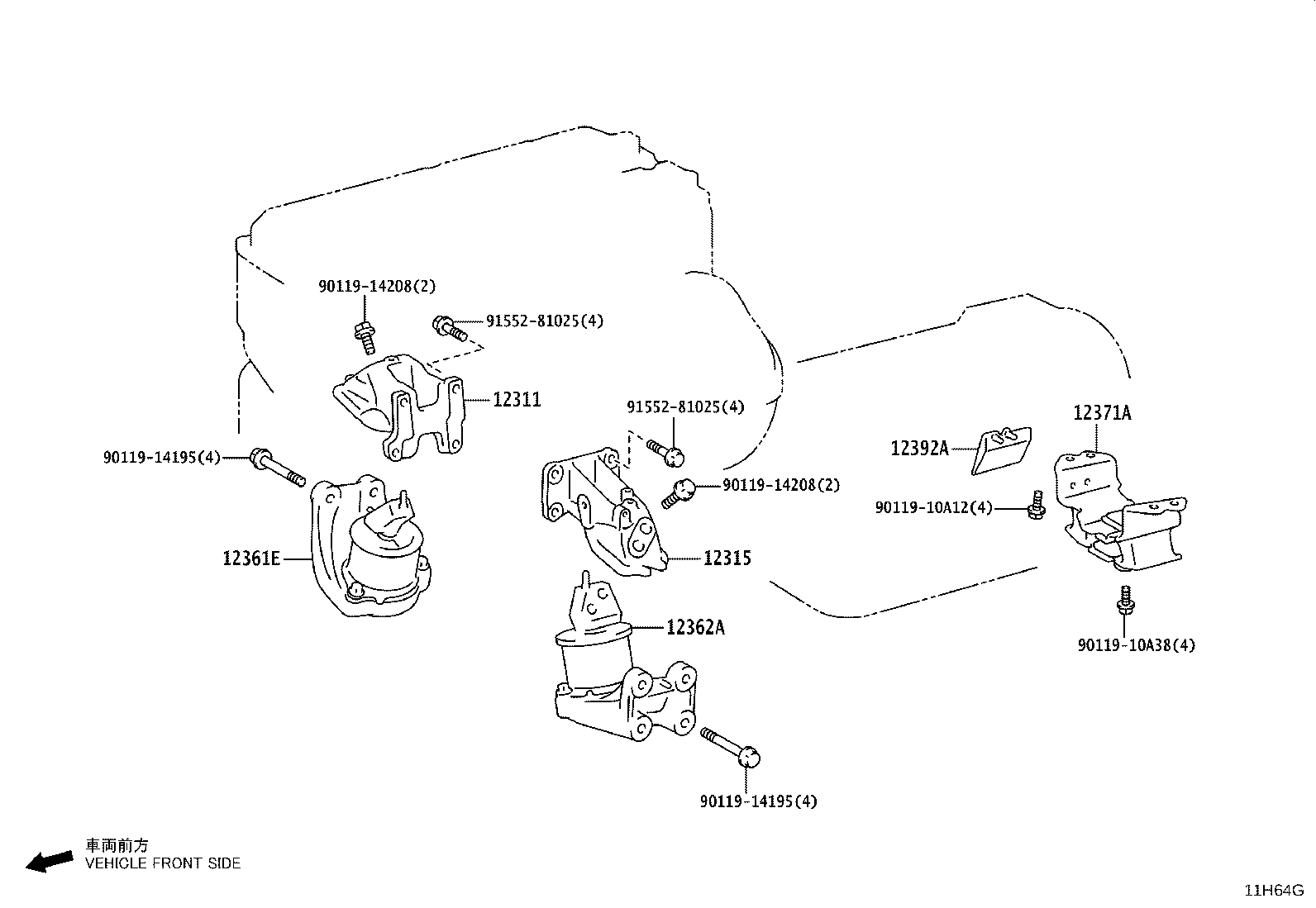

Mounting
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 12281B | Hanger, Engine, NO.1 |
| 12311 | Bracket, Engine Mounting, Front NO.1 RH |
| 12315 | Bracket, Engine Mounting, Front NO.1 LH |
| 12361E | Insulator, Engine Mounting, Front RH |
| 12362A | Insulator, Engine Mounting, Front LH |
| 12371A | Insulator, Engine Mounting, Rear |
| 12392A | Insulator, Engine Mounting Heat, Rear |
| 12511 | Bracket, Alternator, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
