Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

16 part groups · 5 illustrations

Illustrations

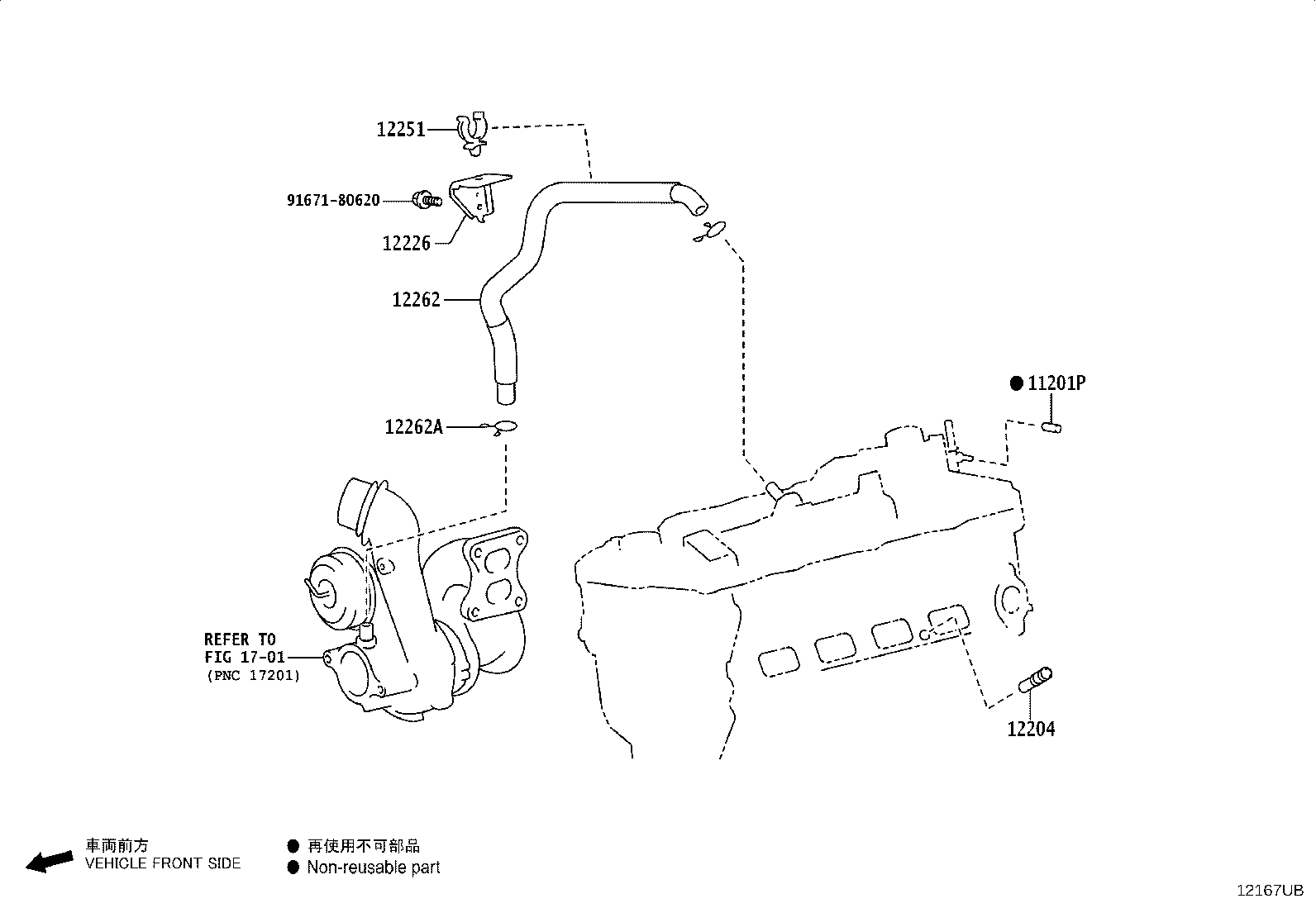

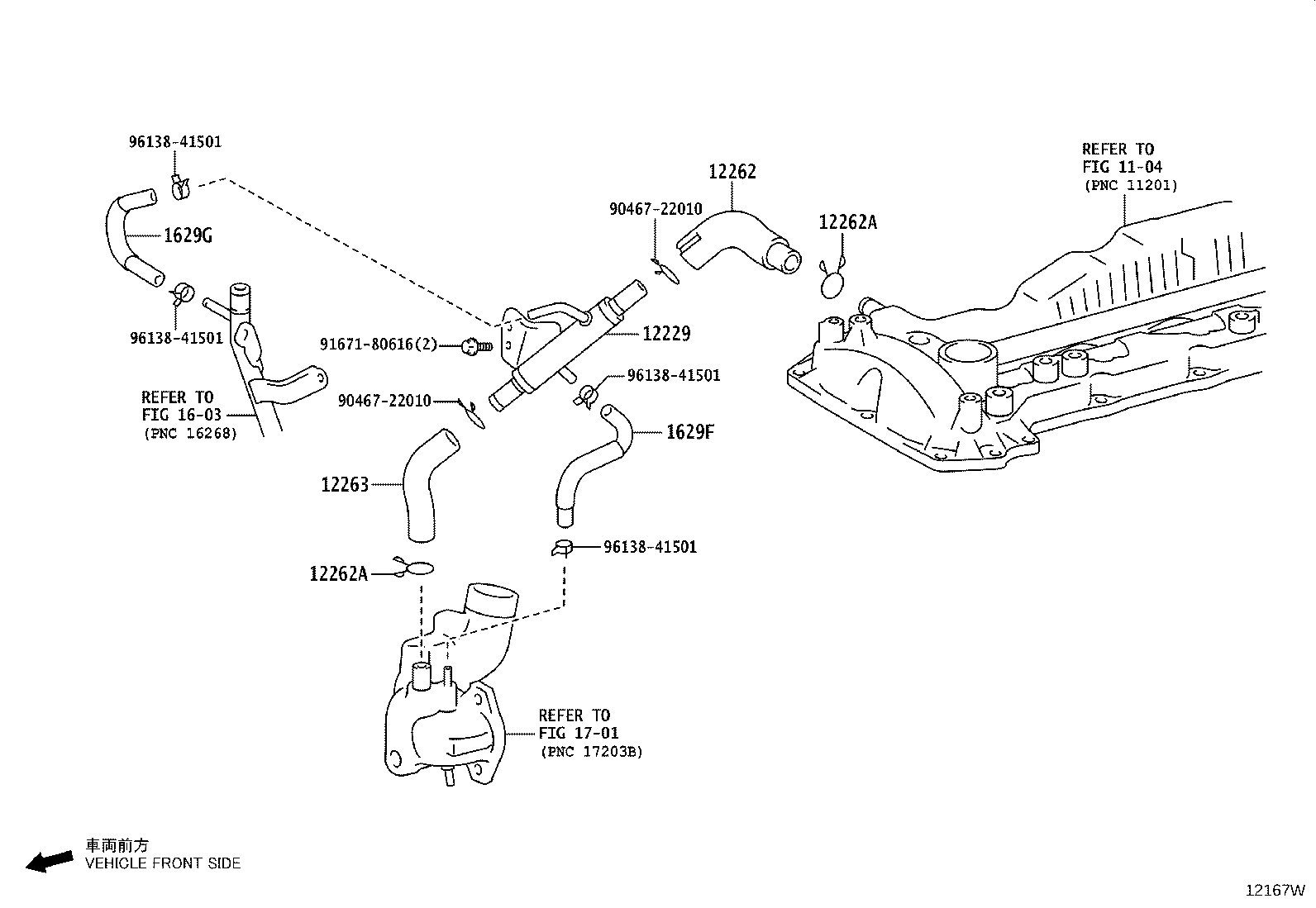

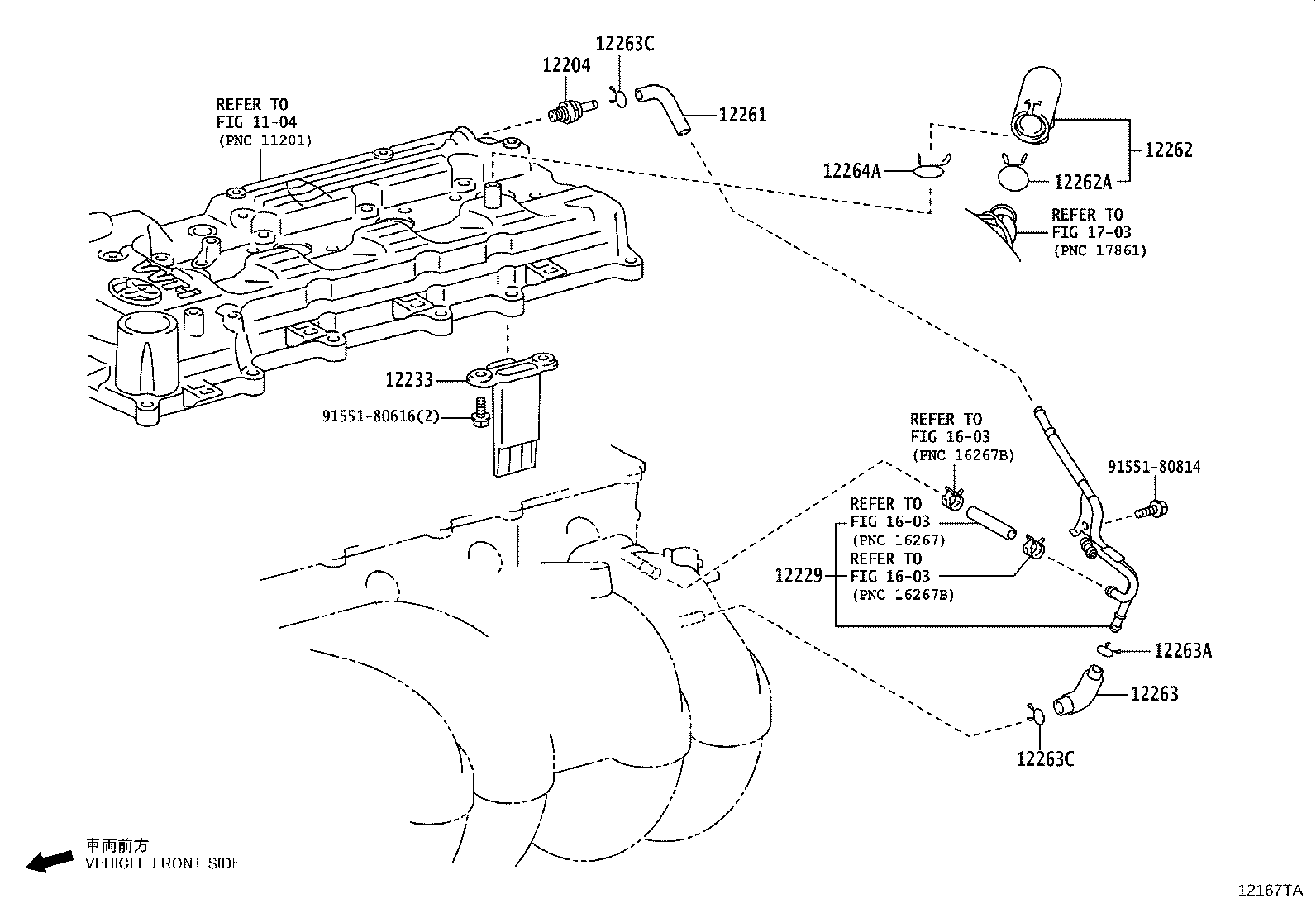

Figure 12167X 12167X 2024-01 → — Figure 12167X 12167X 2024-01 → — Figure 12167W 12167W 2024-01 → — Figure 12167UB 12167UB 2024-01 → — Figure 12167TA 12167TA 2024-01 → —

Part groups

PNCDescription
11201P Plug(FOR CYLINDER HEAD COVER)
12204 Valve Sub-assy, Ventilation
12226 Bracket, Ventilation Hose
12229 Pipe, Ventilation
12233 Connector, Ventilation NO.1
12251 Clamp, Ventilation Tube
12261 Hose, Ventilation
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262B Clamp(FOR VENTILATION HOSE)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12263C Clip(FOR VENTILATION HOSE)
12264A Clip(FOR VENTILATION HOSE)
1629F Hose, Water By-pass, NO.19
1629G Hose, Water By-pass, NO.20
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
