Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Crankshaft & Piston

33 part groups · 3 illustrations

Illustrations

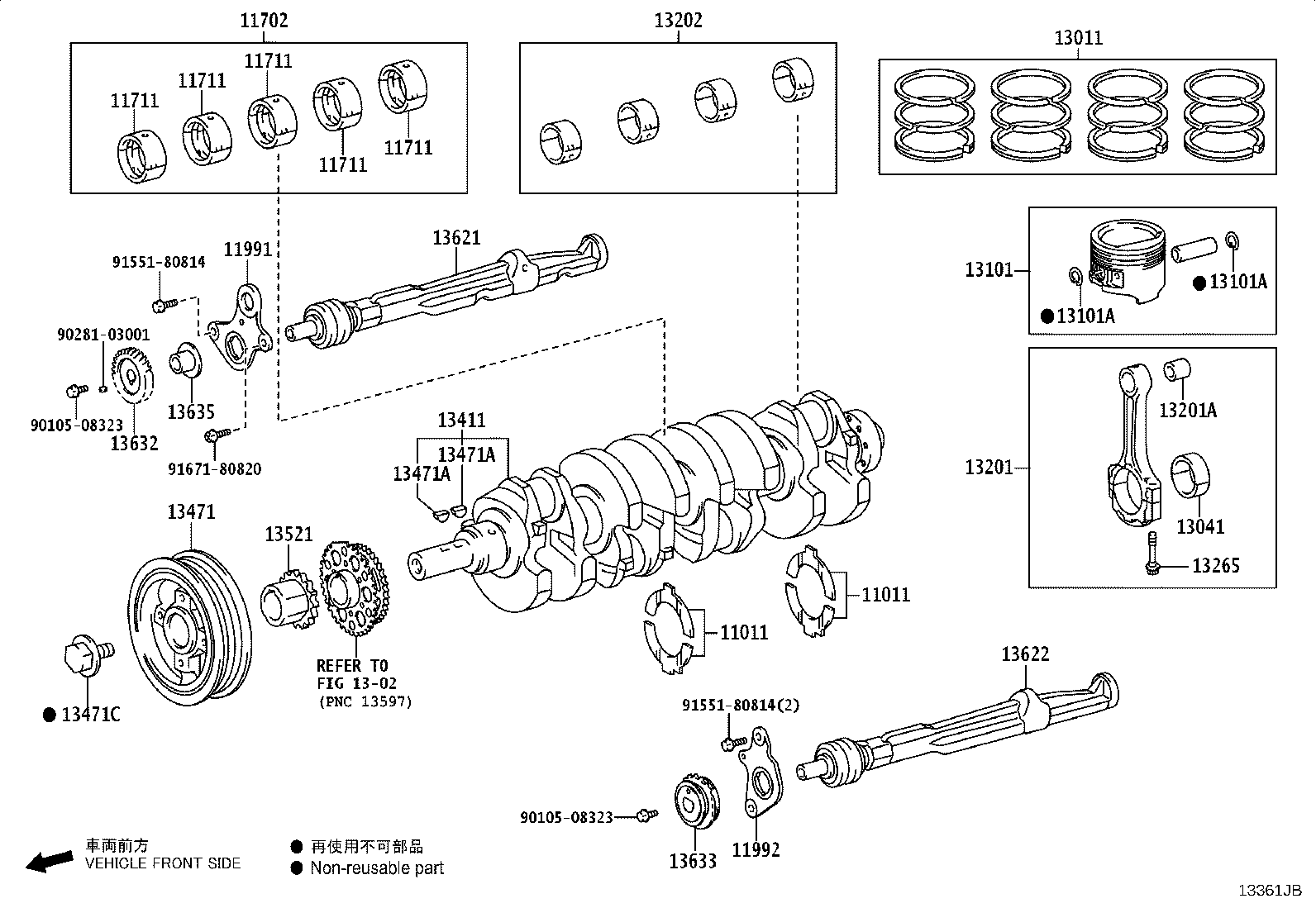

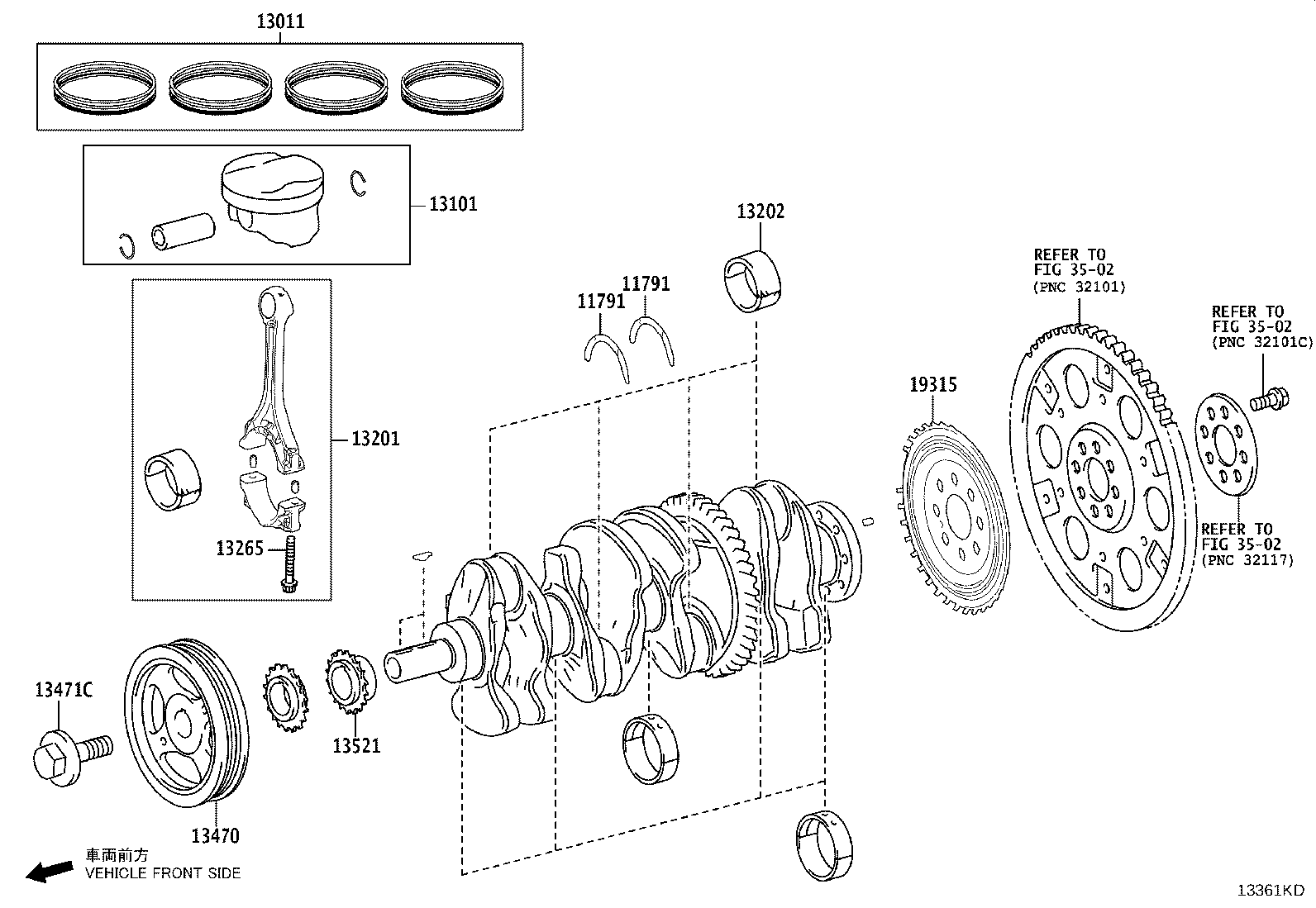

Figure 13361RA 13361RA 2024-01 → — Figure 13361KD 13361KD 2024-01 → — Figure 13361JB 13361JB 2024-01 → —

Part groups

PNCDescription
11011 Washer Set, Crankshaft Thrust
11702 Bearing Set, Crankshaft
11711 Bearing, Crankshaft
11791 Washer, Crankshaft Thrust, Upper
11991 Washer, Balanceshaft Thrust
11992 Washer, Balanceshaft Thrust, NO.2
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13101 Piston Sub-assy, W/Pin
13101A Ring, Hole Snap(FOR PISTON PIN)
13201 Rod Sub-assy, Connecting
13201A Bush(FOR CONNECTING ROD SMALL END)
13202 Bearing Set, Connecting Rod
13265 Bolt, Connecting Rod
13405 Flywheel Sub-assy
13405A Pin, Straight(FOR FLYWHEEL)
13411 Crankshaft
13470 Pulley Assy, Crankshaft
13471 Pulley, Crankshaft
13471A Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
13471C Bolt(FOR CRANKSHAFT PULLEY SET)
13496 Cover, Crankshaft Pully
13519 Gear, Oil Pump Drive
13521 Gear OR Sprocket, Crankshaft Timing
13521A Key(FOR CRANKSHAFT TIMING GEAR)
13621 Balanceshaft, NO.1
13622 Balanceshaft, NO.2
13632 Gear, Balanceshaft Driven, NO.1
13633 Gear, Balanceshaft Driven, NO.2
13635 Spacer, Balanceshaft Thrust
13639 Sprocket, Balanceshaft Timing
19315 Plate, Crank Angle Sensor, NO.1
88451B Pulley, Crankshaft(FOR VISCOUS HEATER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
