Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

8 part groups · 3 illustrations

Illustrations

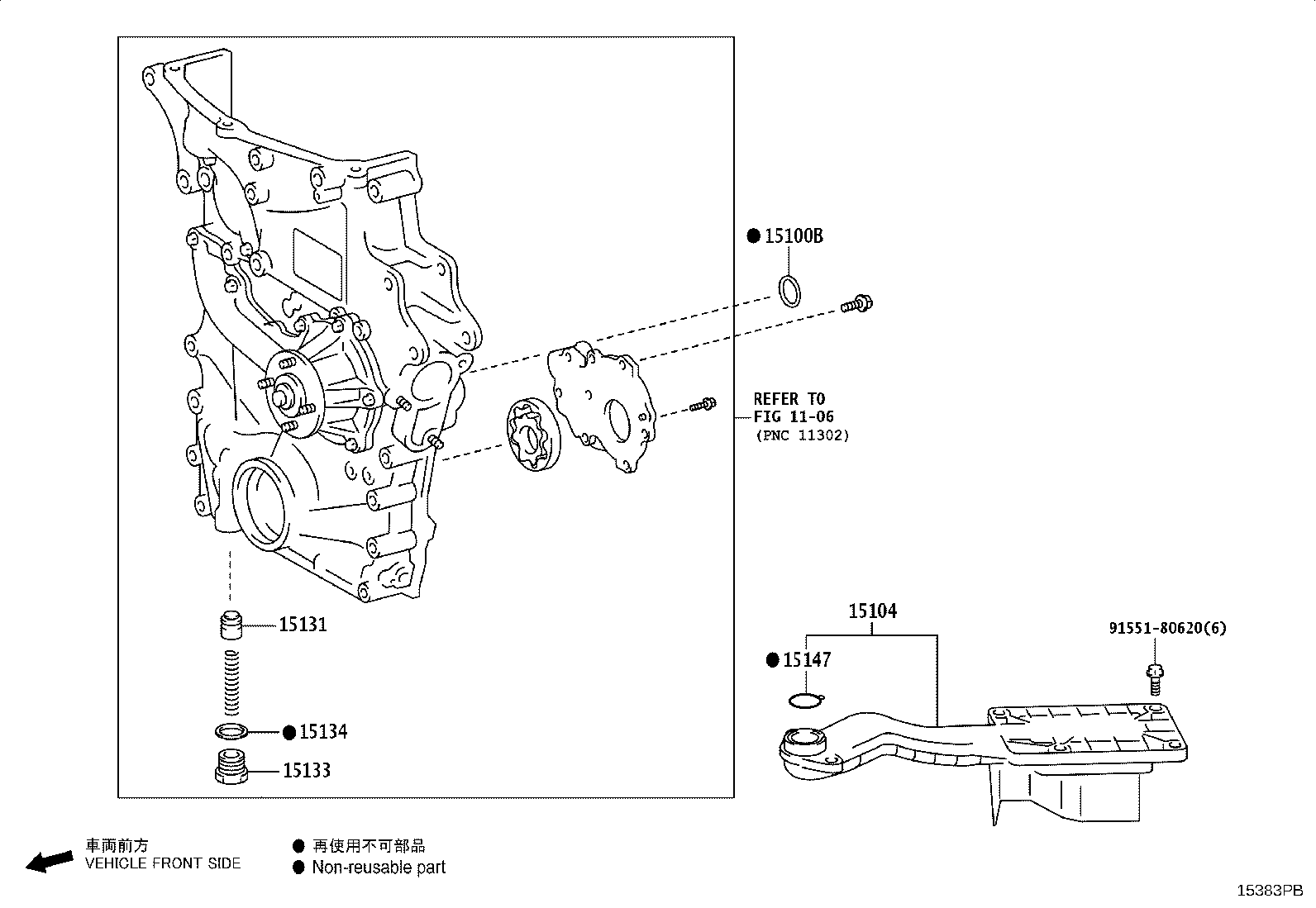

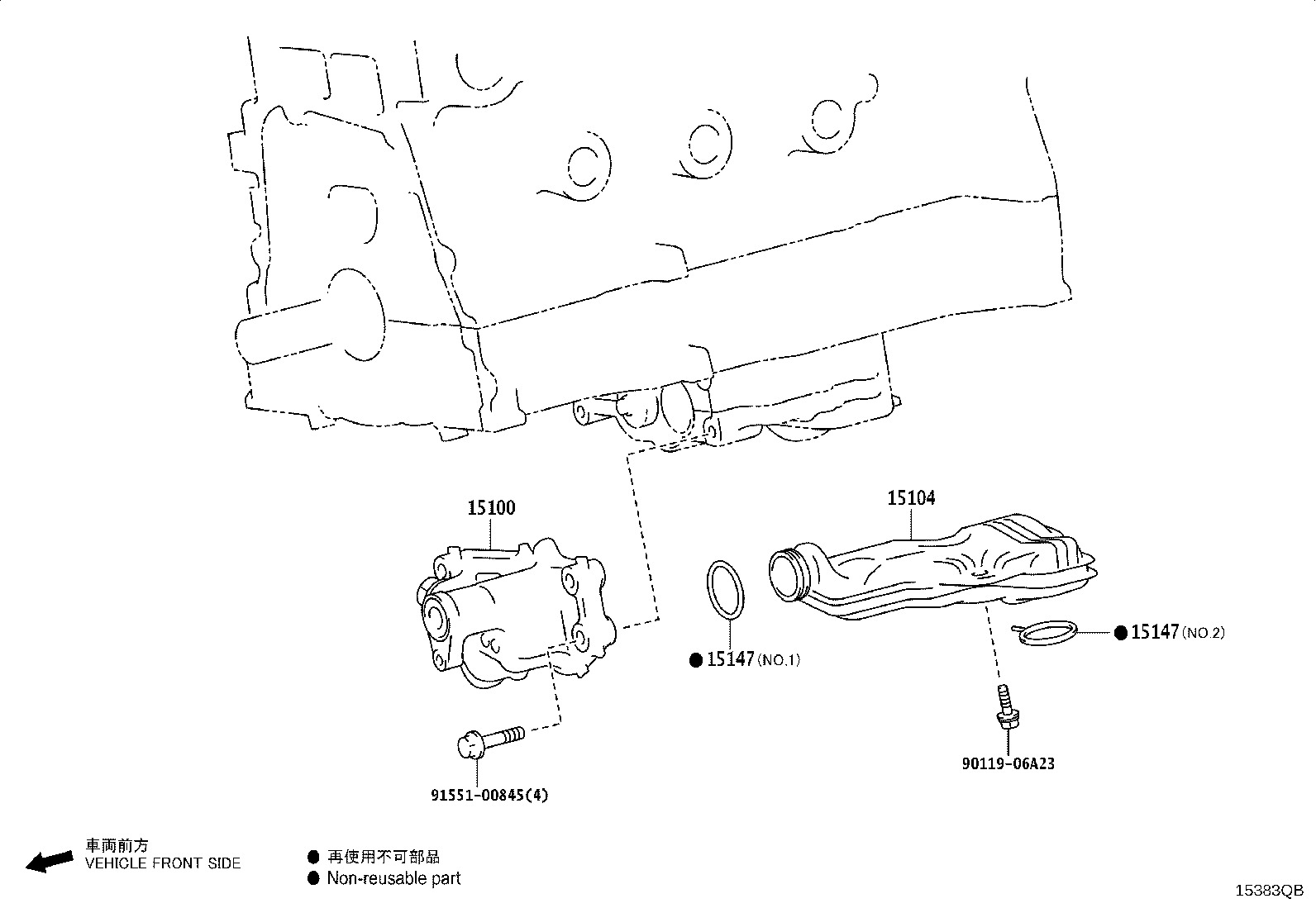

Figure 15383OA 15383OA 2024-01 → — Figure 15383QB 15383QB 2024-01 → — Figure 15383PB 15383PB 2024-01 → —

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15100B Ring, O(FOR OIL PUMP)
15104 Strainer Sub-assy, Oil
15131 Valve, Oil Pump Relief
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
