Engine Oil Cooler

8 part groups · 3 illustrations

Illustrations

Figure 15383KB

15383KB 2024-01 → —

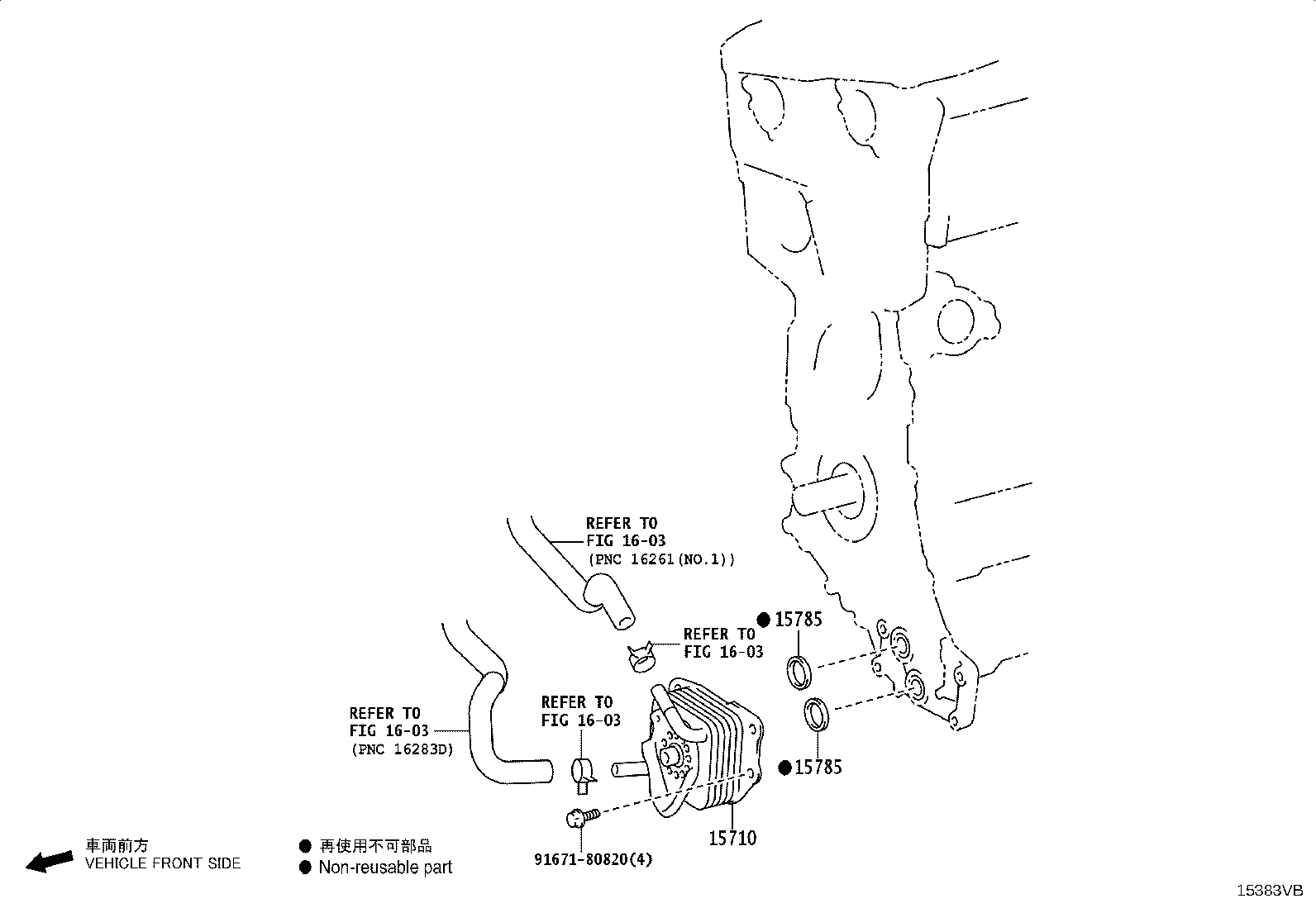

Figure 15383VB

15383VB 2024-01 → —

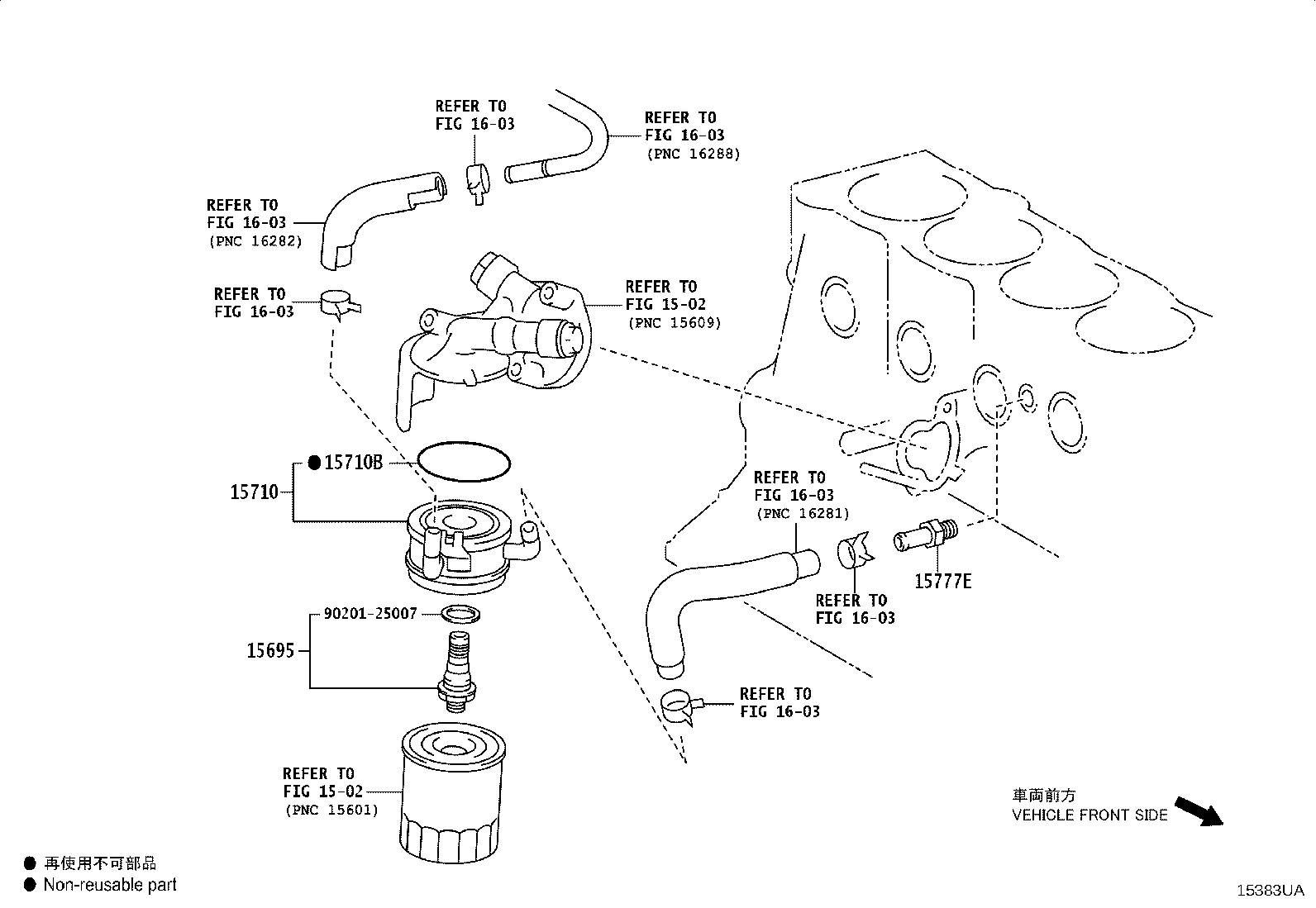

Figure 15383UA

15383UA 2024-01 → —

Part groups

PNC	Description
15071	Cooler Set, Engine Oil
15695	Bolt, Oil Cooler Union
15710	Cooler Assy, Oil
15710B	Ring, O(FOR OIL COOLER)
15723	Ring, O
15777E	Union
15785	Gasket, Oil Cooler
16345A	Gasket, Water Outlet Pipe

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
