Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

136 part groups · 9 illustrations

Illustrations

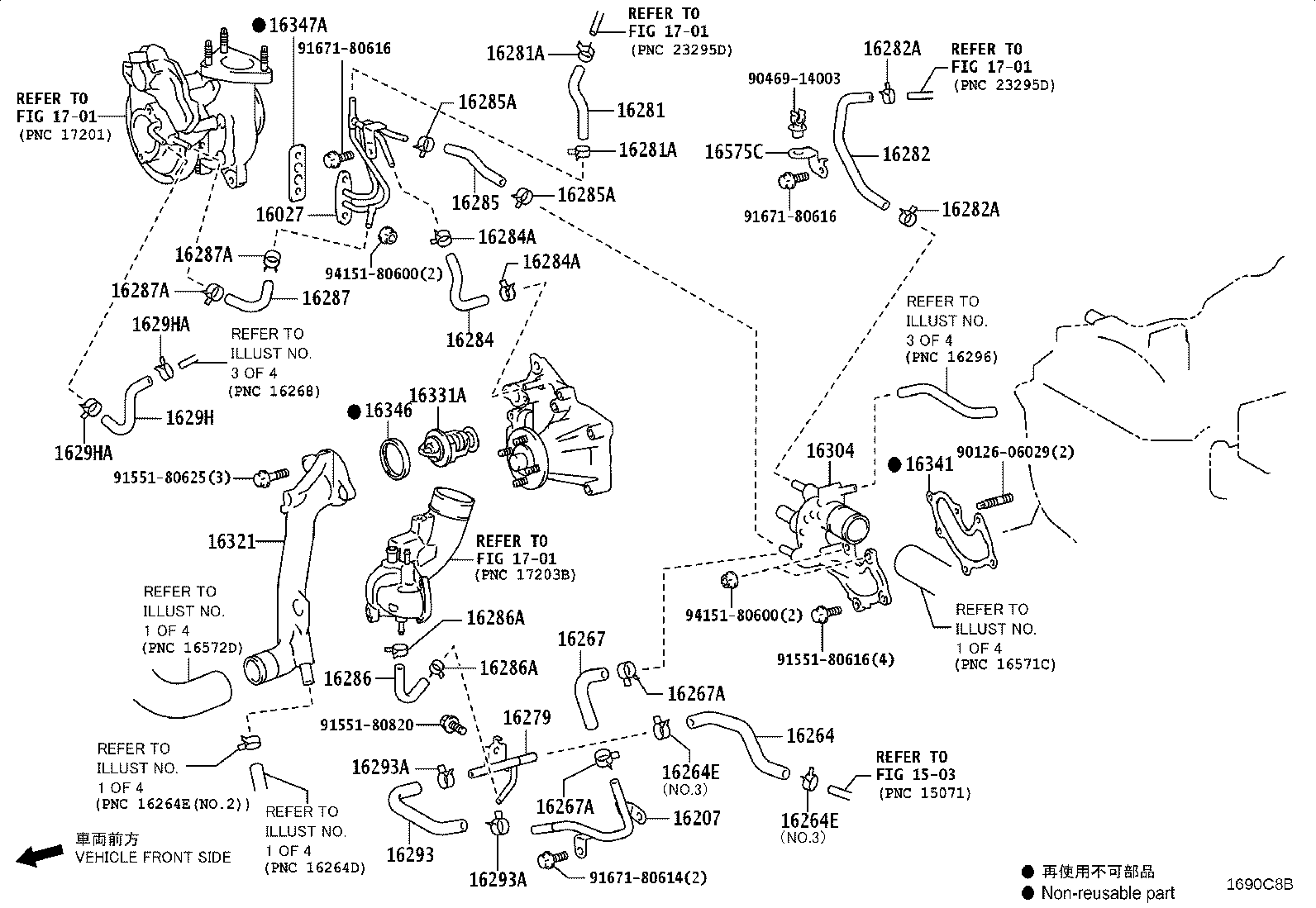

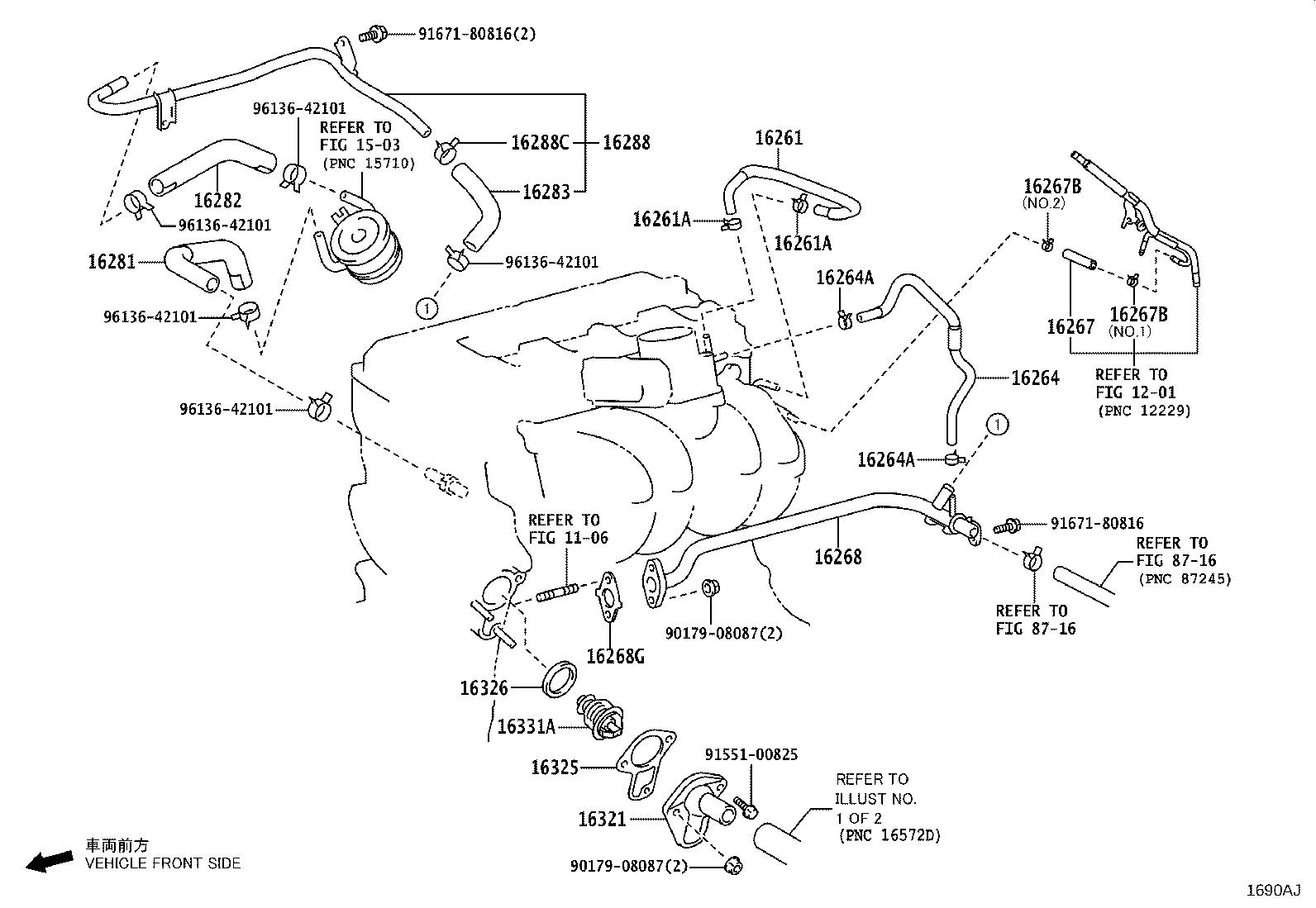

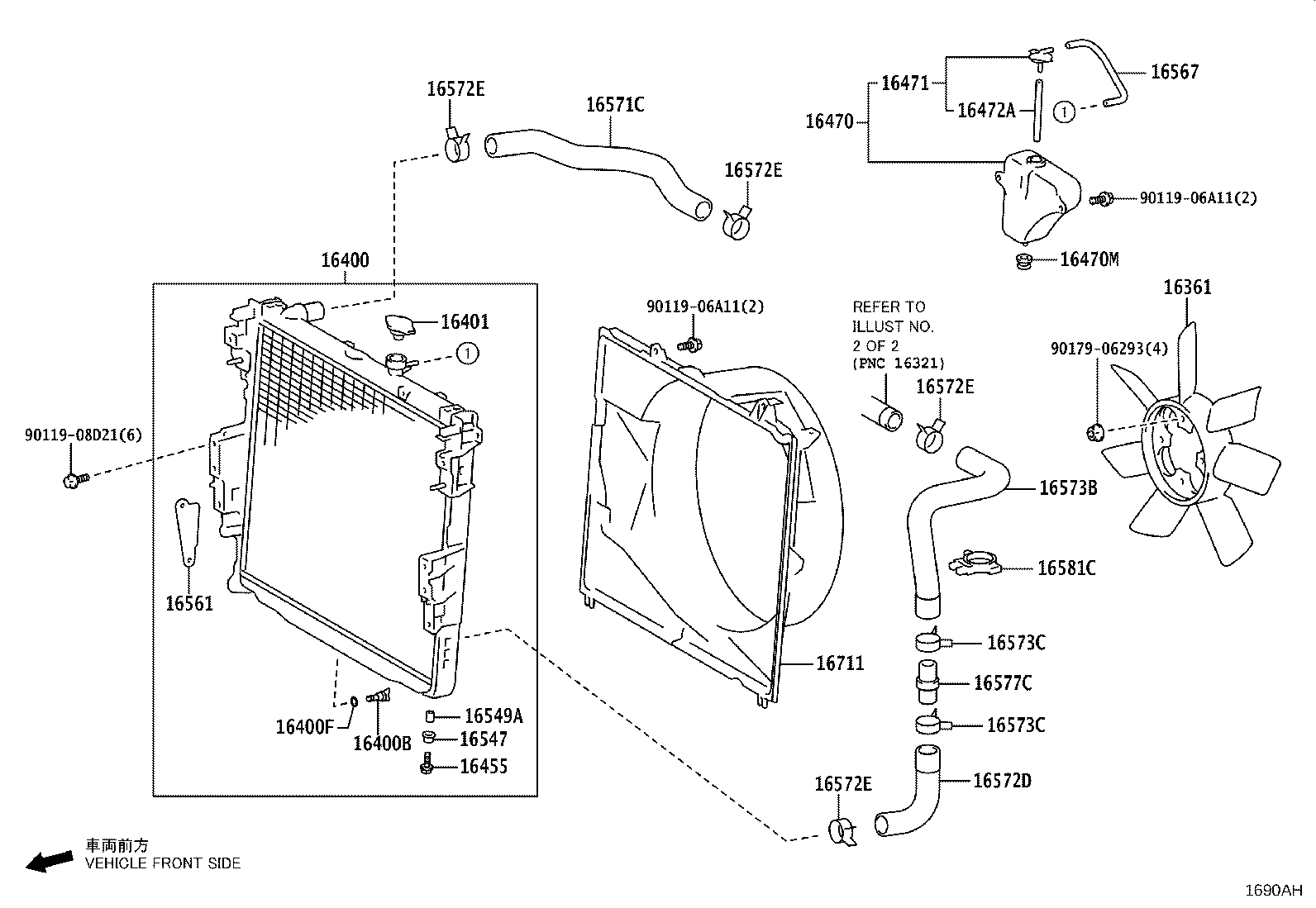

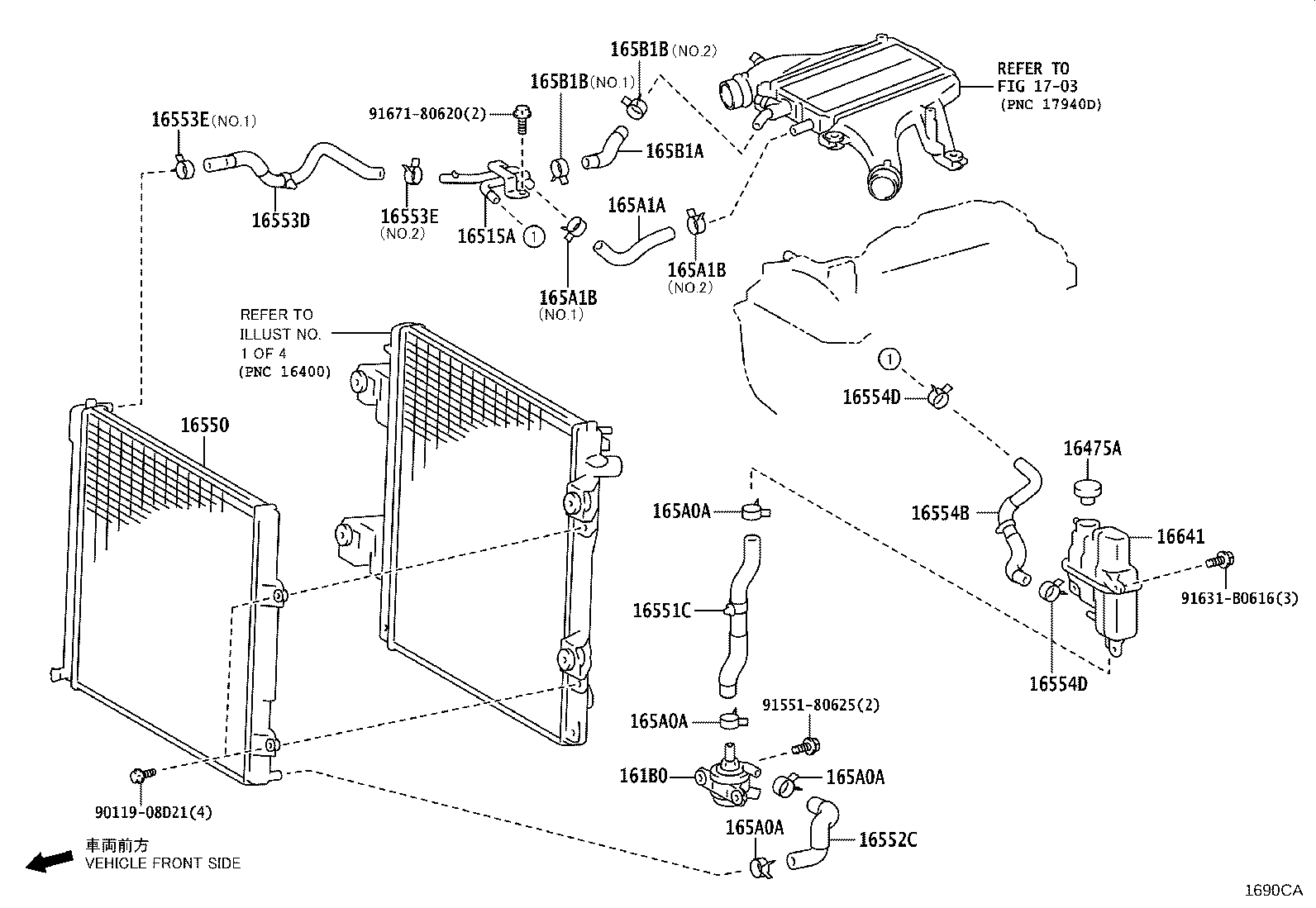

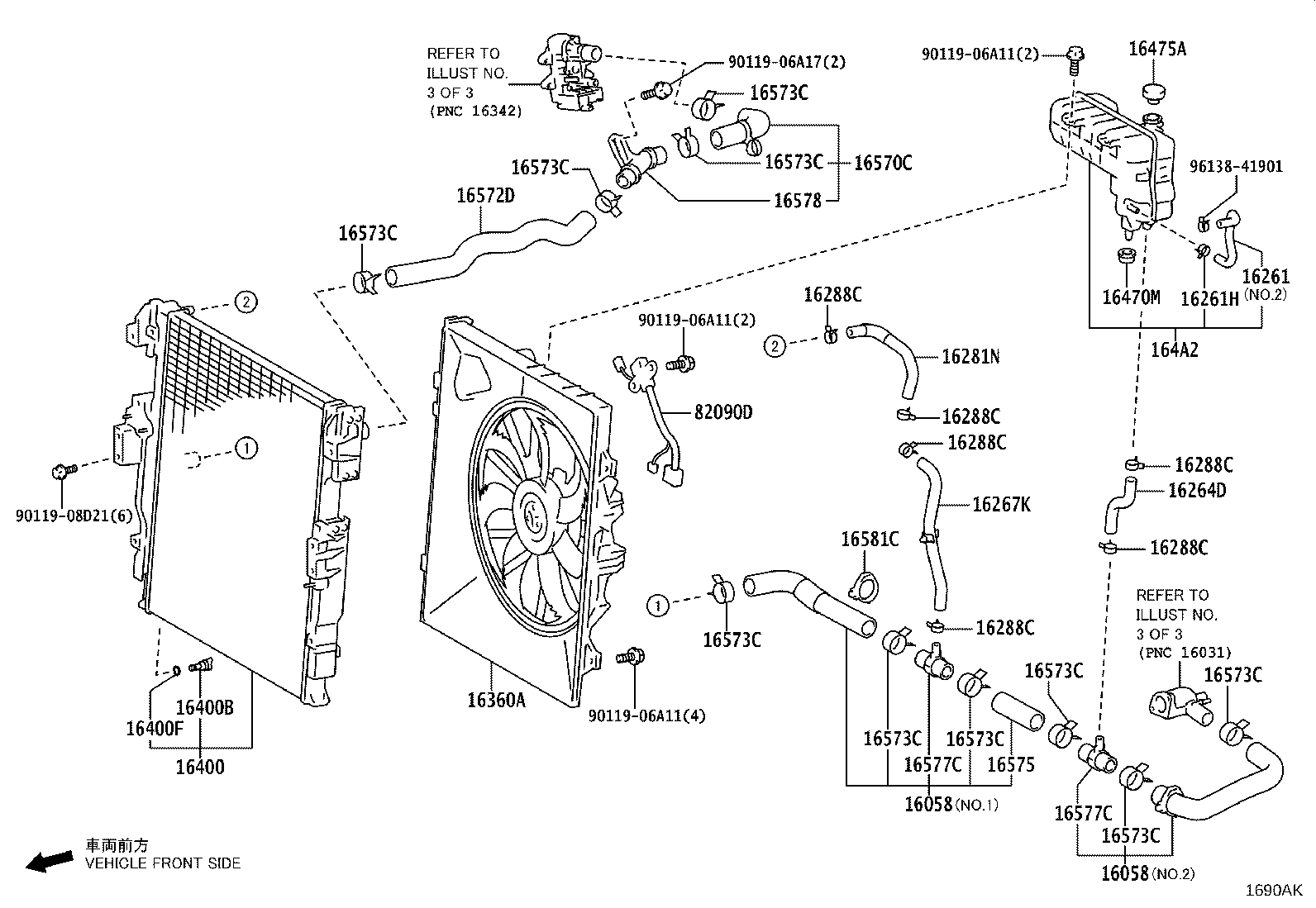

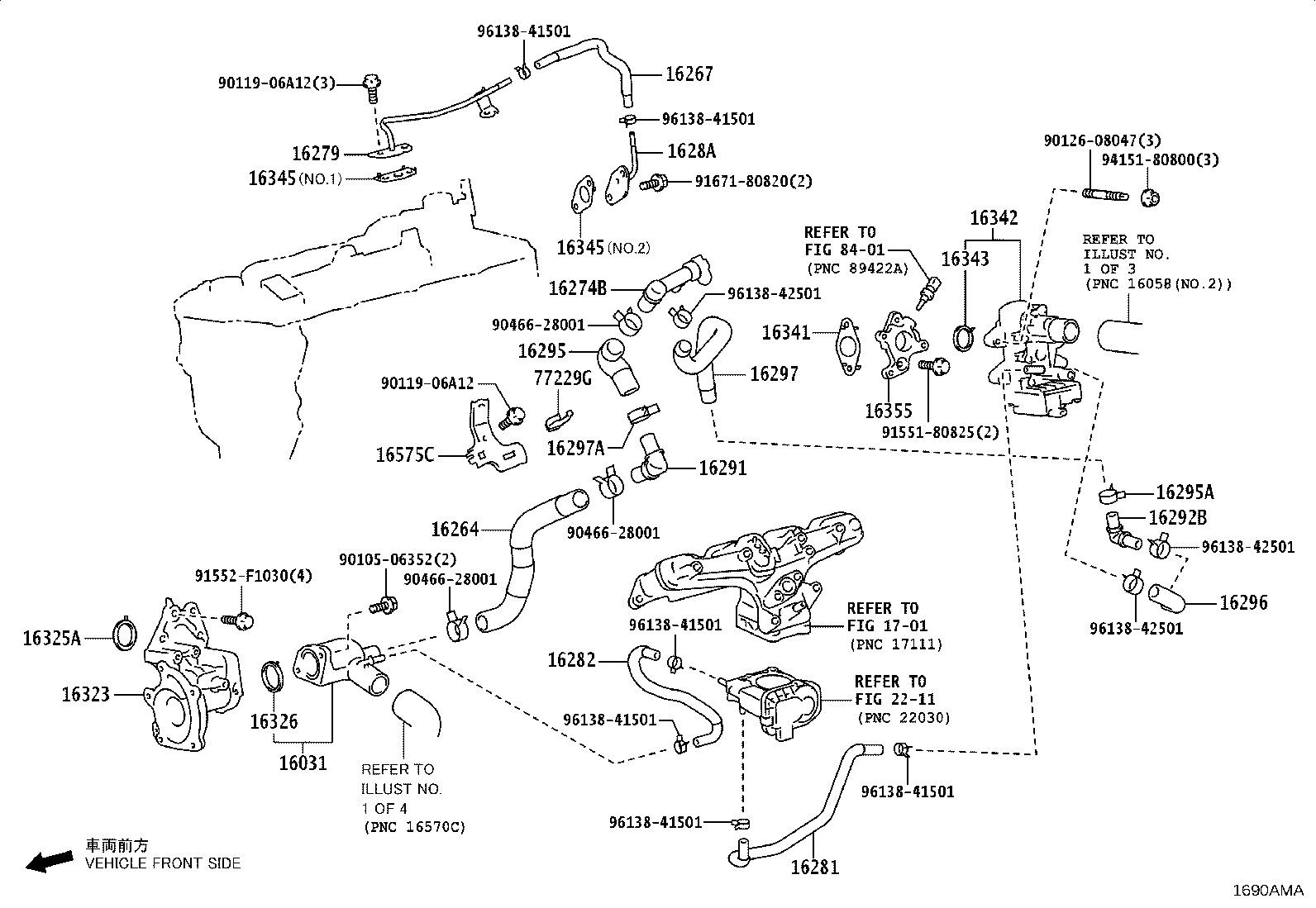

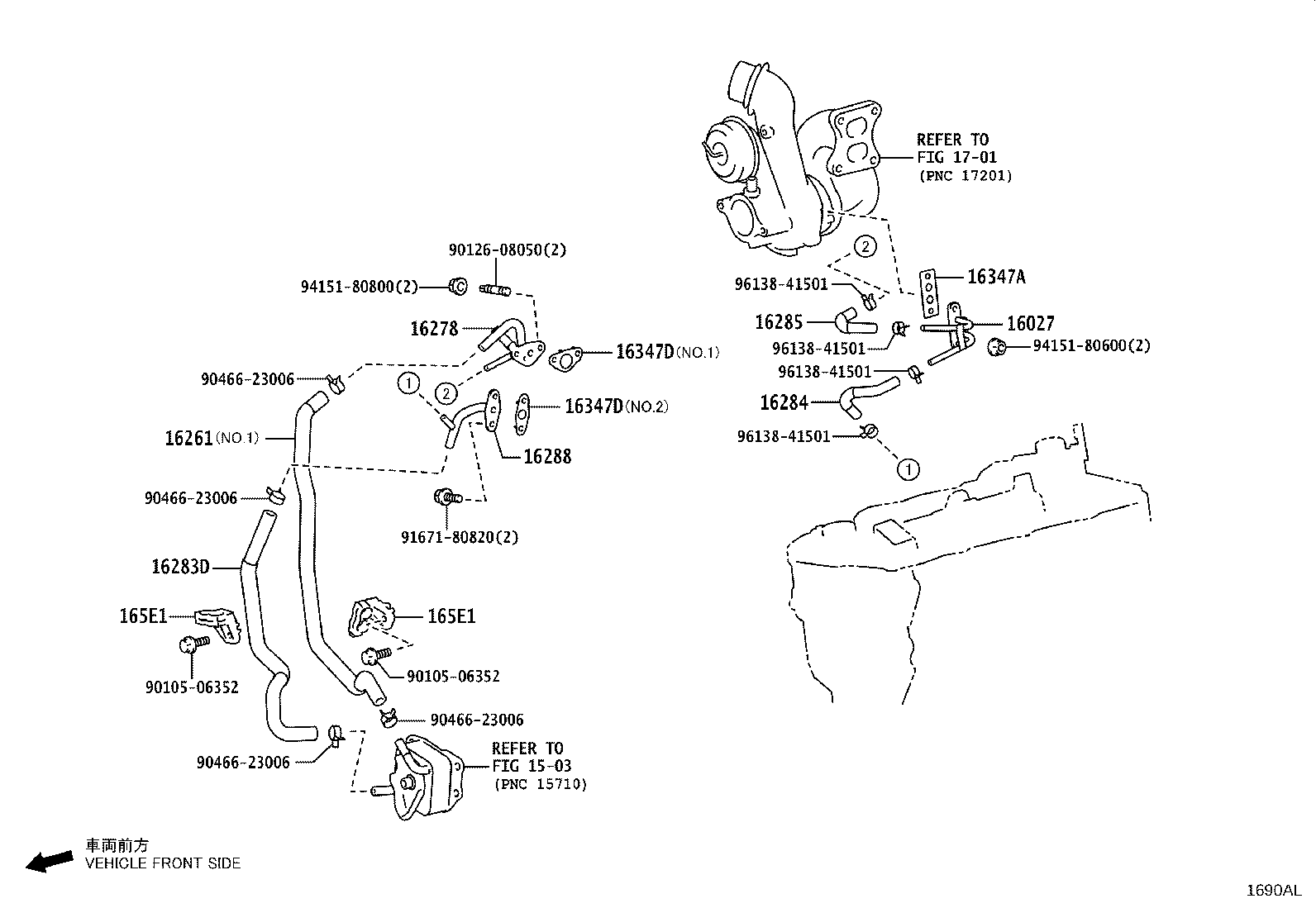

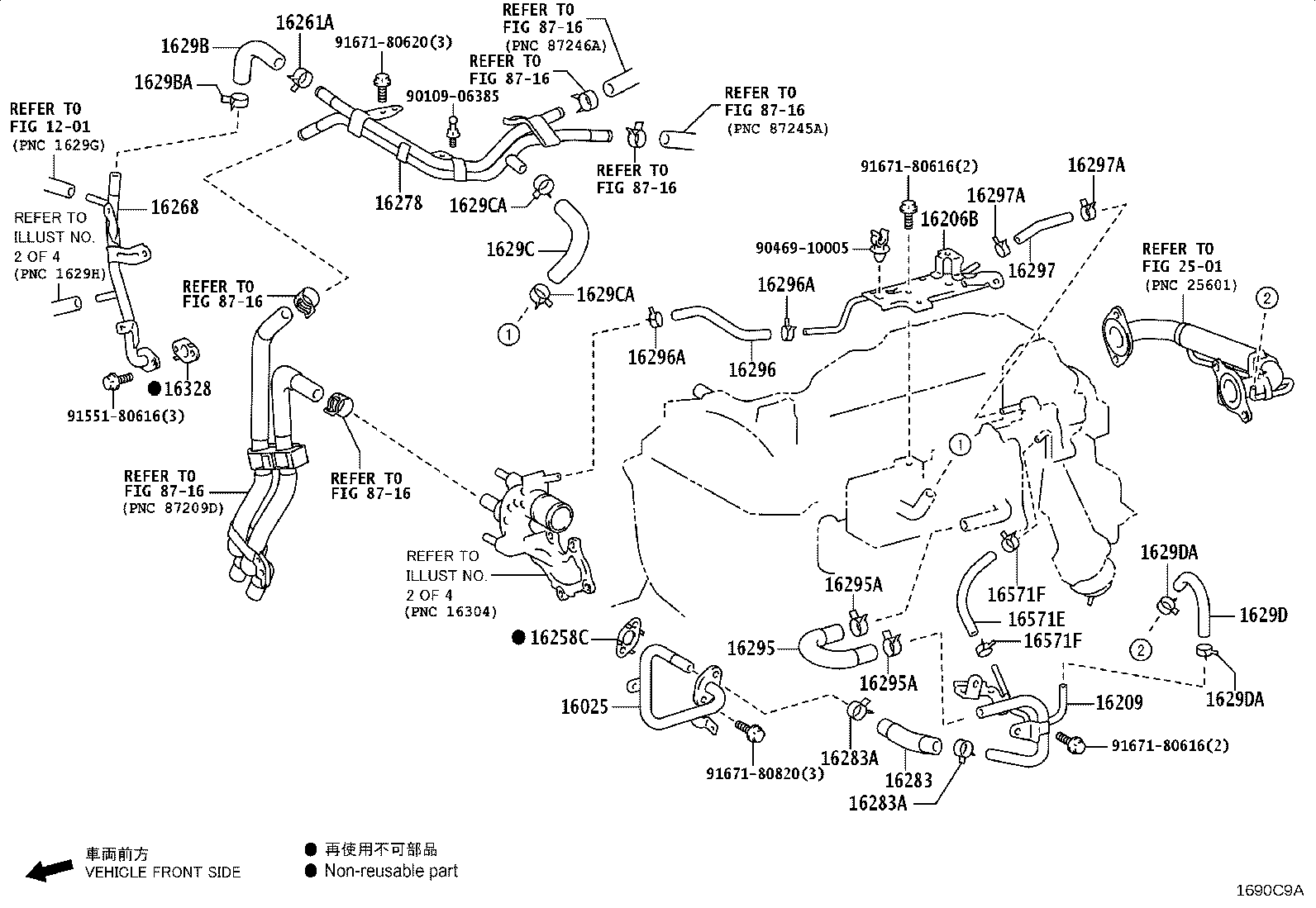

Figure 1690C7A 1690C7A 2024-01 → — Figure 1690C8B 1690C8B 2024-01 → — Figure 1690C9A 1690C9A 2024-01 → — Figure 1690CA 1690CA 2024-01 → — Figure 1690AH 1690AH 2024-01 → — Figure 1690AJ 1690AJ 2024-01 → — Figure 1690AK 1690AK 2024-01 → — Figure 1690AL 1690AL 2024-01 → — Figure 1690AMA 1690AMA 2024-01 → —

Part groups

PNCDescription
16025 Pipe Sub-assy, Water By-pass, NO.5
16027 Pipe Sub-assy, Turbo Water, NO.1
16031 Water Inlet Sub-assy, W/Thermostat
16058 Hose Sub-assy, Radiator, NO.2
161B0 Pump Assy, Electric Water
16206B Pipe Sub-assy, Water By-pass, NO.3
16207 Pipe Sub-assy, Water By-pass, NO.2
16209 Pipe Sub-assy, Water By-pass, NO.4
16258C Gasket(FOR WATER BY-PASS PIPE)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261Z Hose, Water By-pass, NO.1
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267B Clip(FOR WATER BY-PASS HOSE)
16267K Hose, Water By-pass, NO.3
16268 Pipe, Water By-pass, NO.1
16268G Gasket(FOR WATER BY-PASS PIPE)
16274B Connector, Heater Return Hose
16278 Pipe, Water By-pass, NO.2
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16281N Hose, Water By-pass, NO.4
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16283D Hose, Water By-pass, NO.6
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16287 Hose, Turbo Water, NO.4
16287A Clip(FOR TURBO WATER HOSE NO.4)
16288 Pipe, Water By-pass, NO.4
16288C Clip(FOR WATER BY-PASS PIPE NO.4)
16289 Pipe, Water By-pass, NO.5
1628A Pipe, Water By-pass, NO.6
16291 Joint, Water Hose
16292B Connector, Water By-pass Hose
16293 Hose, Water By-pass, NO.10
16293A Clip(FOR WATER BY-PASS HOSE NO.10)
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16298 Hose, Water By-pass, NO.12
1629B Hose, Water By-pass, NO.15
1629BA Clip(FOR WATER BY-PASS HOSE NO.15)
1629C Hose, Water By-pass, NO.16
1629CA Clip(FOR WATER BY-PASS HOSE NO.16)
1629D Hose, Water By-pass, NO.17
1629DA Clip(FOR WATER BY-PASS HOSE NO.17)
1629H Hose, Water By-pass, NO.21
1629HA Clip(FOR WATER BY-PASS HOSE NO.21)
162A0 Hose Assy, Water By-pass, NO.4
16304 Outlet Sub-assy, Water
16321 Inlet, Water
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16325A Gasket, Water Inlet Housing
16326 Gasket, Water Inlet Housing, NO.2
16328 Gasket, Water Inlet Pipe
16331A Thermostat
16341 Gasket, Water Outlet
16342 Valve, Water Control
16343 Gasket, Water Outlet Housing
16345 Gasket, Water Outlet Pipe
16346 Gasket, Thermostat
16347A Gasket(FOR TURBO WATER PIPE)
16347D Gasket, Water By-pass
16355 Joint, Water By-pass, Front
16360A Fan Assy, W/Motor
16361 Fan
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16400S Collar(FOR RADIATOR)
16401 Cap Sub-assy, Radiator
16417 Cock
16418 Packing
16455 Bolt, Radiator Side Support Plate
16470 Tank Assy, Radiator Reserve
16470M Grommet
16471 Cap Sub-assy, Reserve Tank
16472A Protector, Hose
16475A Cap, Reserve Tank
16482 Tank Sub-assy, Radiator Reserve
164A2 Tank, Reserve Sealed W/O Cap
16515A Pipe, Intercooler Cooling Water, NO.1
16547 Bush, Radiator Support, NO.1
16548 Bush, Radiator Support, NO.2
16549A Collar, Radiator Support, NO.1
16550 Radiator Assy, Intercooler Cooling
16551C Hose, Intercooler Cooling Water, NO.1
16552C Hose, Intercooler Cooling Water, NO.2
16553D Hose, Intercooler Cooling Water, NO.3
16553E Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
16554B Hose, Sub Radiator, NO.4
16554D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
16561 Seal, Radiator TO Support, NO.1
16567 Hose(FOR RADIATOR RESERVE TANK)
16570C Pipe Assy, Radiator, NO.1
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16571E Hose, Water
16571F Clamp OR Clip(FOR WATER HOSE)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16575 Hose, Radiator, NO.5
16575C Bracket, Water Hose Clamp, NO.1
16577C Pipe, Radiator
16578 Pipe, Radiator, NO.2
16581C Clamp, Hose(FOR RADIATOR HOSE NO.2)
165A0A Clip, Hose
165A1A Hose, Intercooler Cooling Water Inlet
165A1B Clip(FOR INTERCOOLER COOLING WATER INLET HOSE)
165B1A Hose, Intercooler Cooling Water Outlet
165B1B Clip(FOR INTERCOOLER COOLING WATER OUTLET HOSE)
165E1 Clamp, Water By-pass Pipe, NO.1
16641 Tank, Intercooler Reserve
16711 Shroud, Fan
77229G Clamp, Breather Tube
82090D Wire Assy, Extension
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
