Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

33 part groups · 5 illustrations

Illustrations

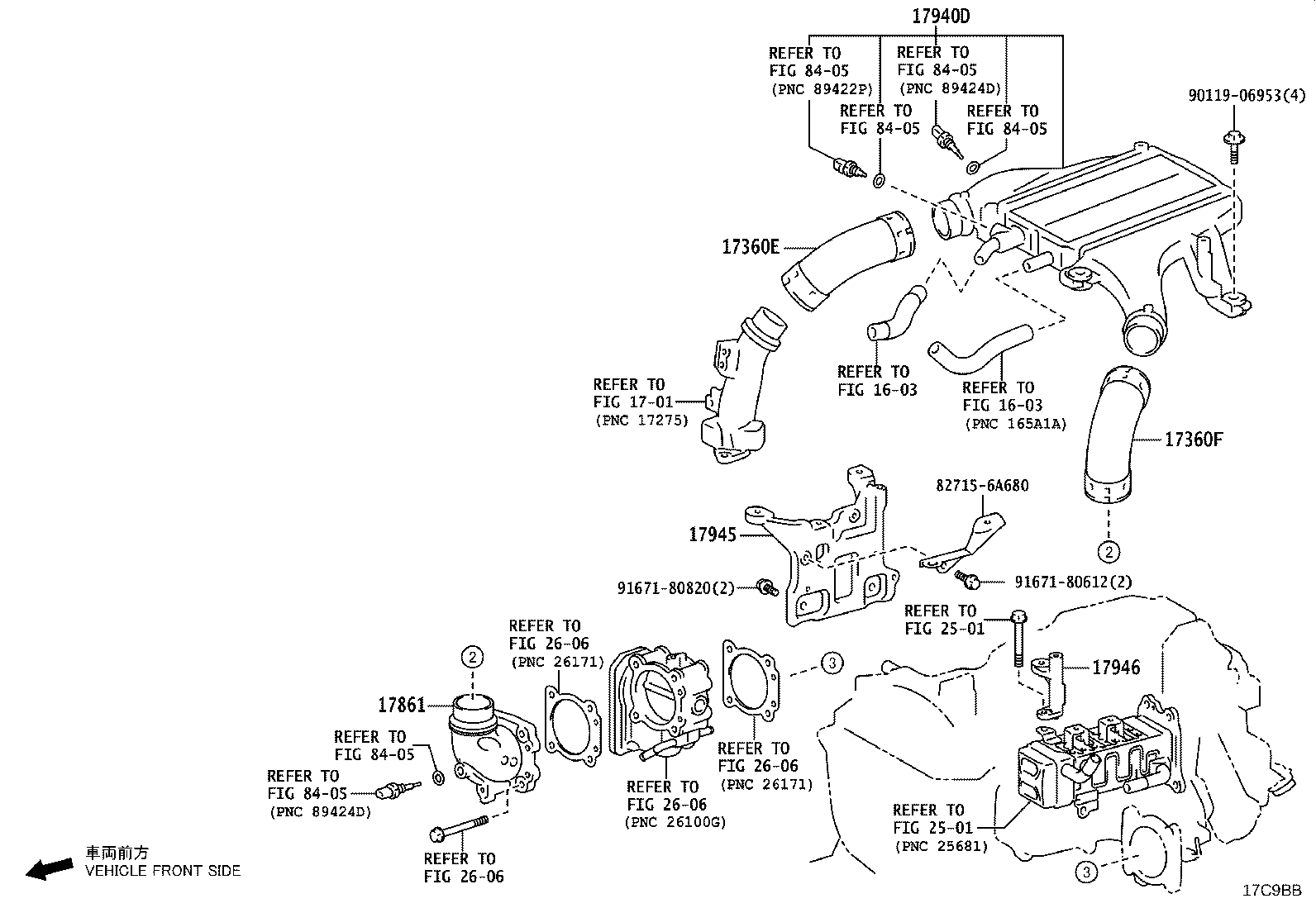

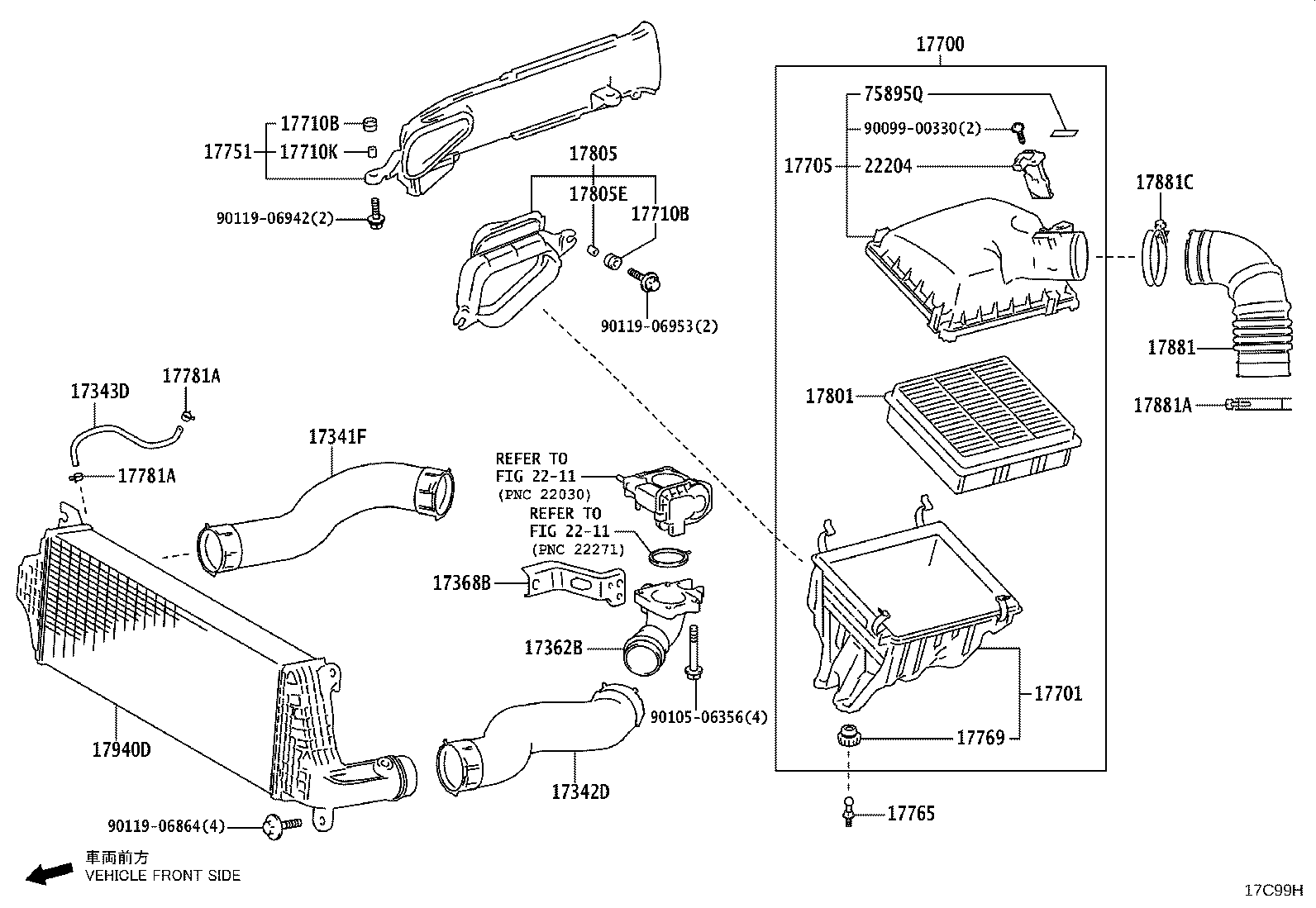

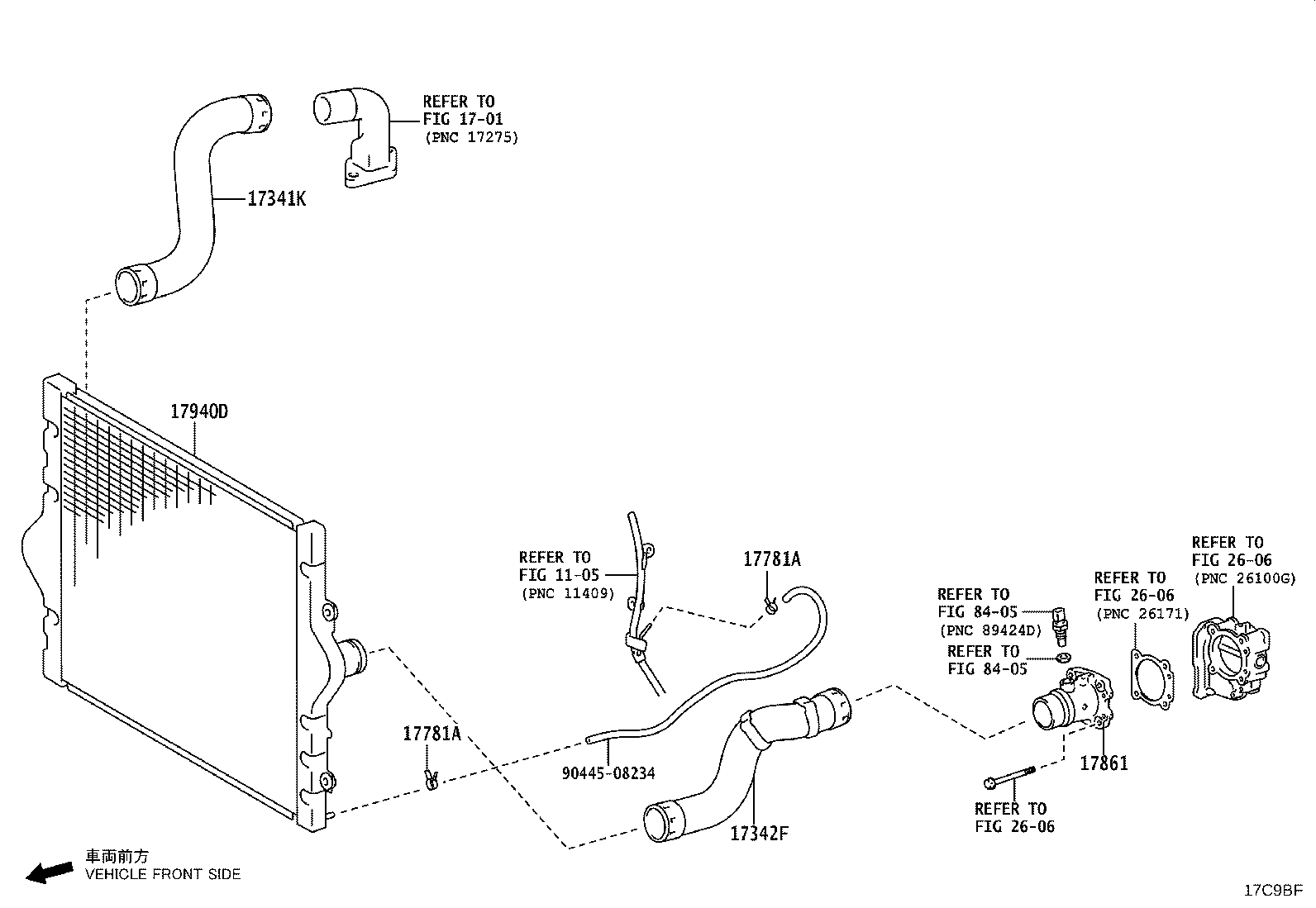

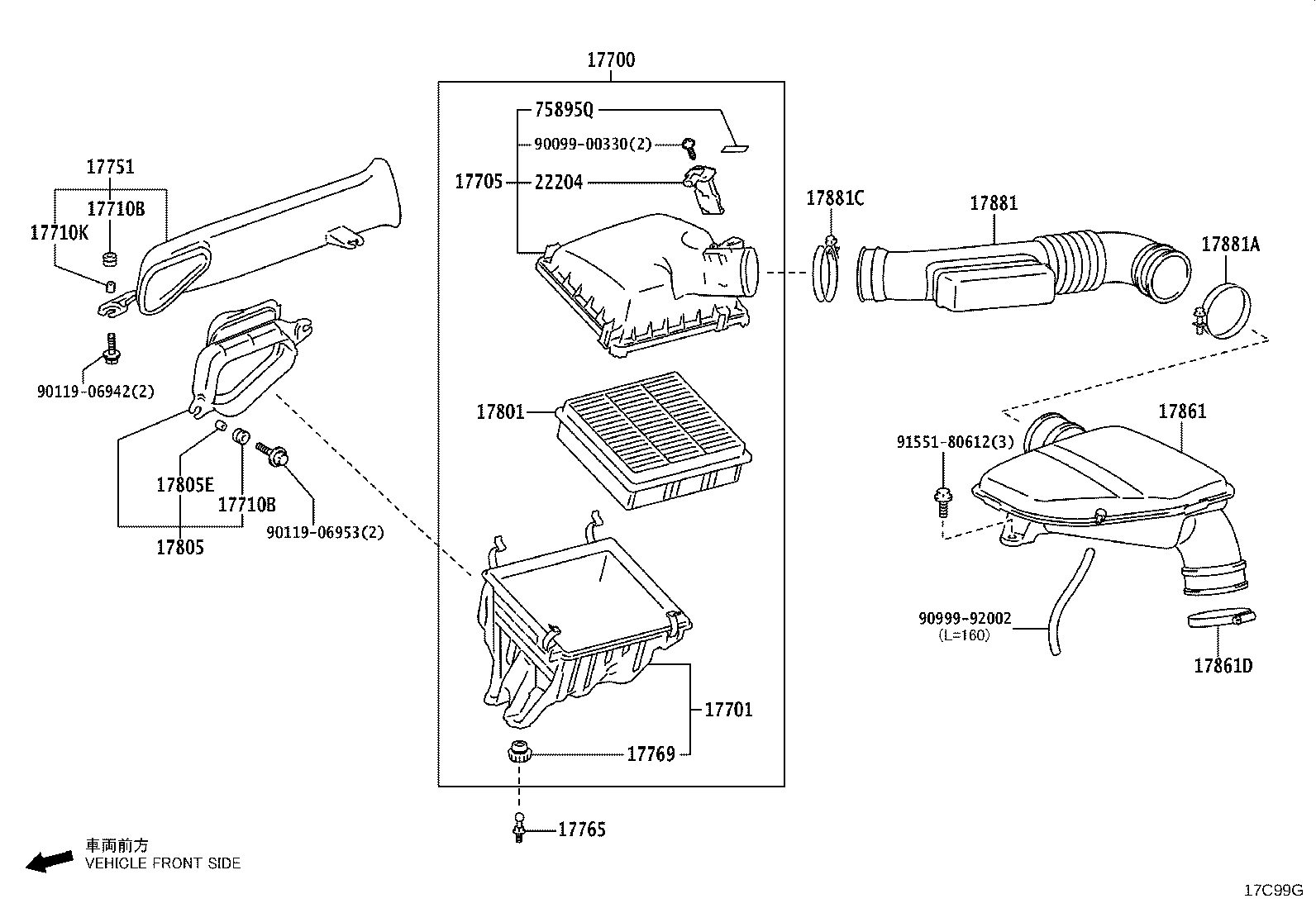

Figure 17C9BD 17C9BD 2024-01 → — Figure 17C9BF 17C9BF 2024-01 → — Figure 17C9BB 17C9BB 2024-01 → — Figure 17C99G 17C99G 2024-01 → — Figure 17C99H 17C99H 2024-01 → —

Part groups

PNCDescription
17341F Hose, Air, NO.1
17341K Hose, Air, NO.1(FOR INTERCOOLER)
17342D Hose, Air, NO.2
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17360E Tube Assy, Air, NO.1
17360F Tube Assy, Air, NO.2
17362B Tube, Air, NO.2
17368B Support, Air Tube
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17710K Collar(FOR AIR CLEANER)
17751 Inlet, Air Cleaner, NO.1
17765 Stay, Air Cleaner, NO.1
17769 Support, Air Cleaner
17769C Support, Air Cleaner, NO.1
17781A Clamp, Hose
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805E Collar(FOR INTAKE AIR CONNECTOR)
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
17897 Clamp, Hose(FOR AIR CLEANER)
17940D Intercooler Assy
17945 Bracket, Intercooler Support
17946 Bracket, Intercooler Support, NO.2
22204 Meter Sub-assy, Intake Air Flow
75895Q Tape, Moulding, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
