Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Support & Planetary Sun Gear (ATM)

19 part groups · 2 illustrations

Illustrations

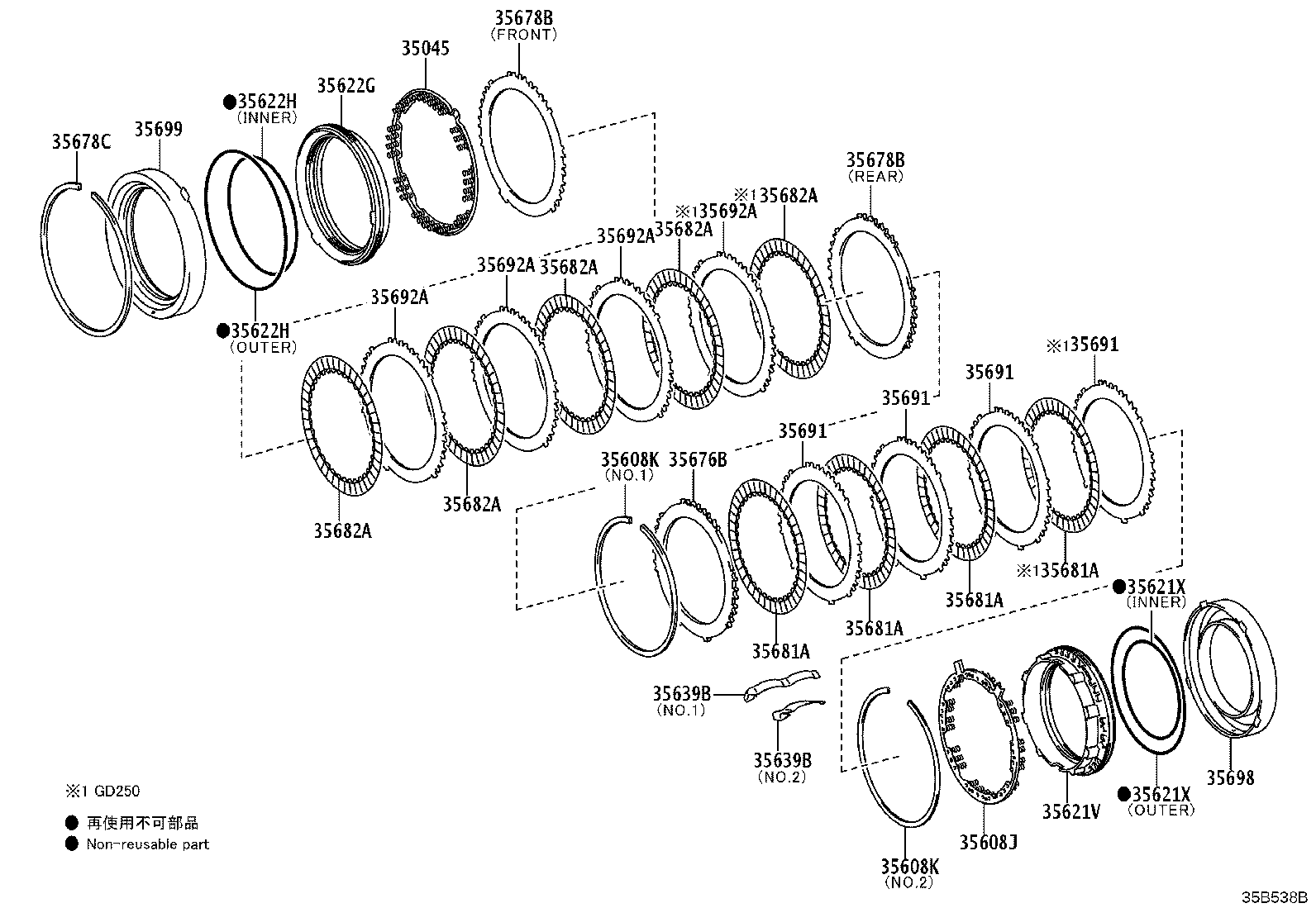

Figure 35B537 35B537 2024-01 → — Figure 35B538B 35B538B 2024-01 → —

Part groups

PNCDescription
35045 Spring Sub-assy, Brake Piston Return,NO.2
35608J Spring Sub-assy, Brake Piston Return
35608K Ring, Snap (FOR BRAKE PISTON RETURN SPRING)
35620 Support Assy, Center
35621V Piston, Brake, NO.1
35621X Ring, O (FOR BRAKE PISTON NO.1)
35622G Piston, Brake, NO.2
35622H Ring, O (FOR BRAKE PISTON NO.2)
35639B Spring, Brake Plate Stopper
35676B Flange, Brake, NO.1
35678B Flange, Brake, NO.2
35678C Ring, Snap (FOR BRAKE NO.2)
35678D Flange, Brake, NO.2
35681A Disc, Brake, NO.1
35682A Disc, Brake, NO.2
35691 Plate, Brake, NO.1
35692A Plate, Brake, NO.2
35698 Cylinder, Brake, NO.1
35699 Cylinder, Brake, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
