Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

20 part groups · 5 illustrations

Illustrations

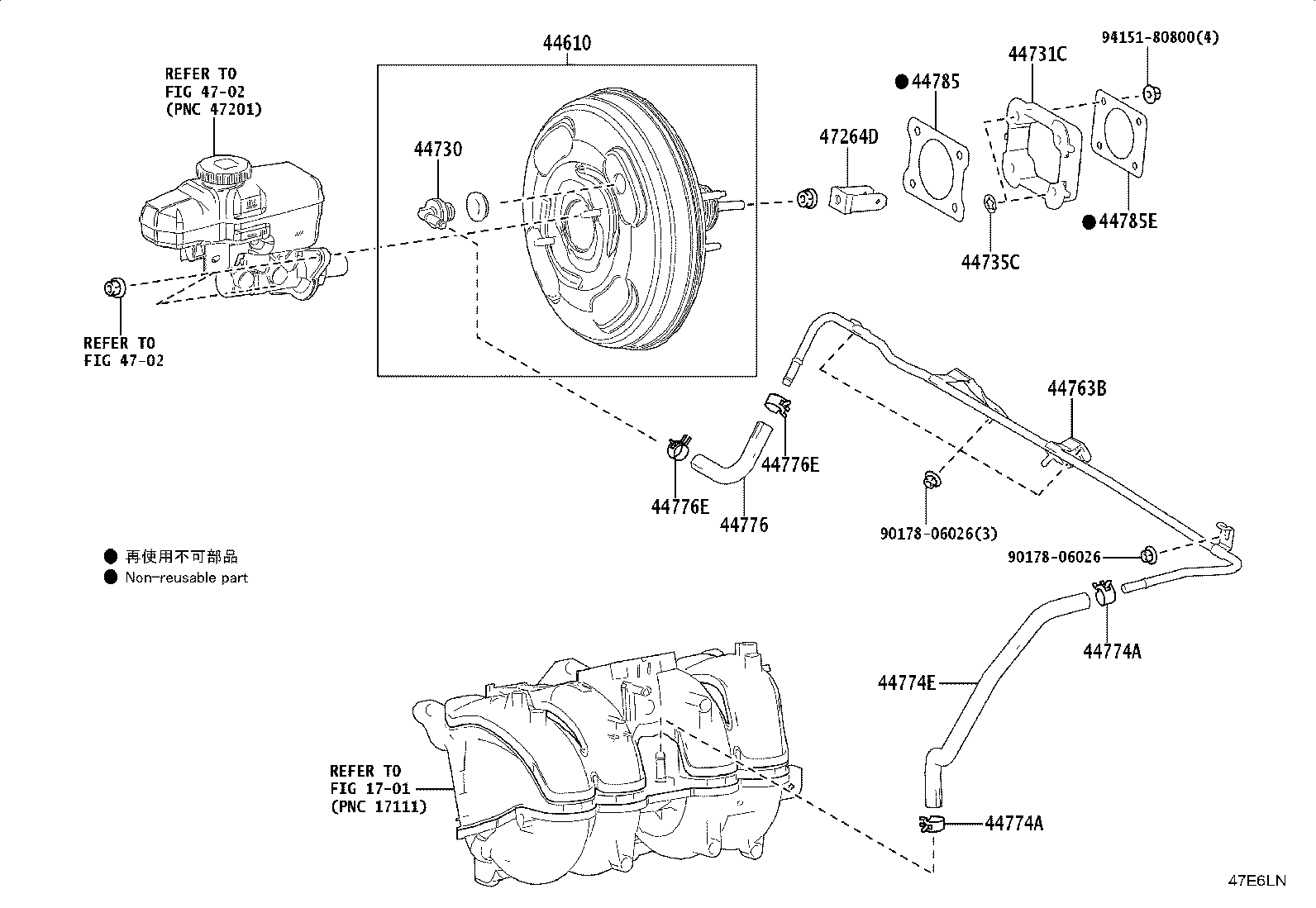

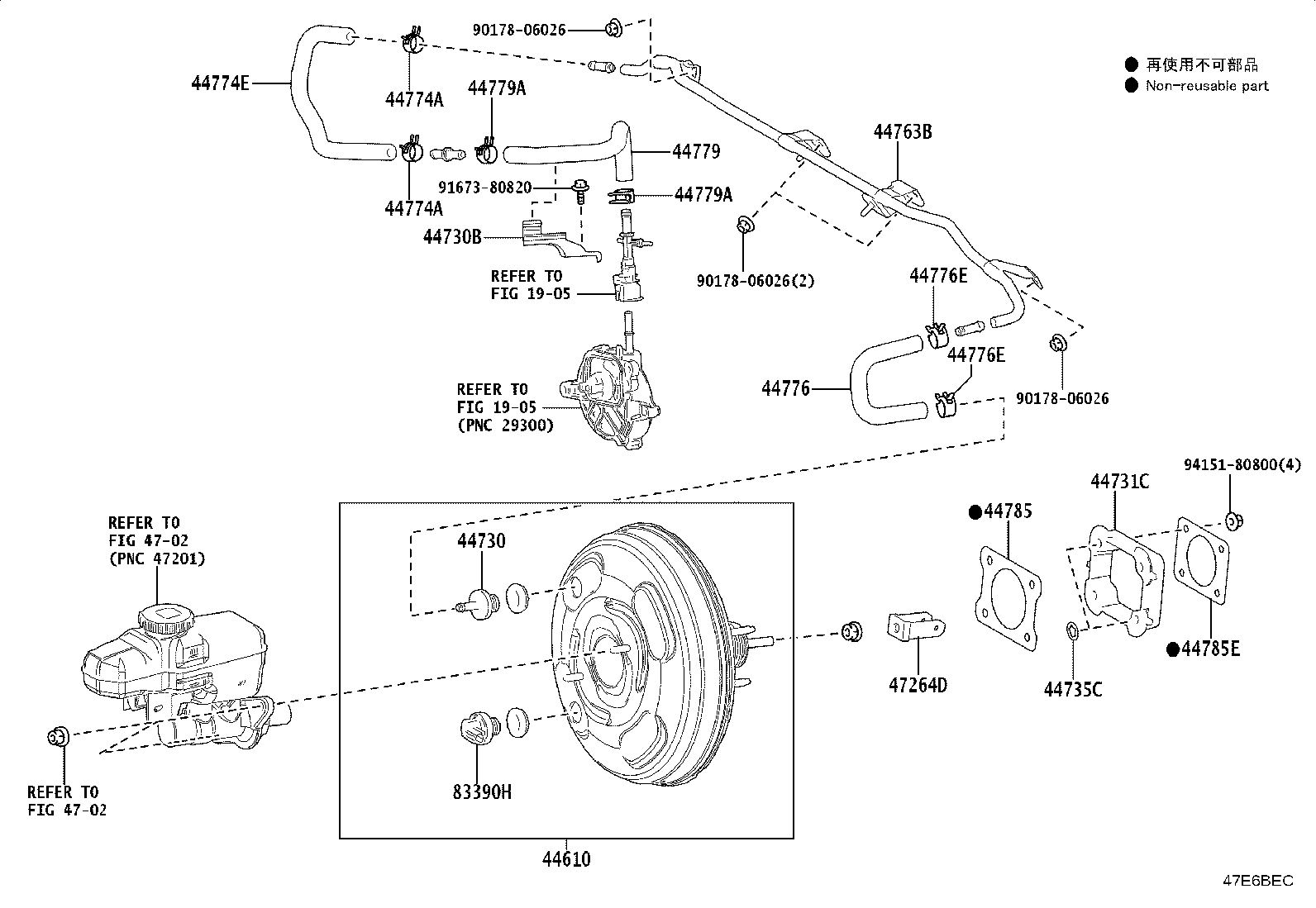

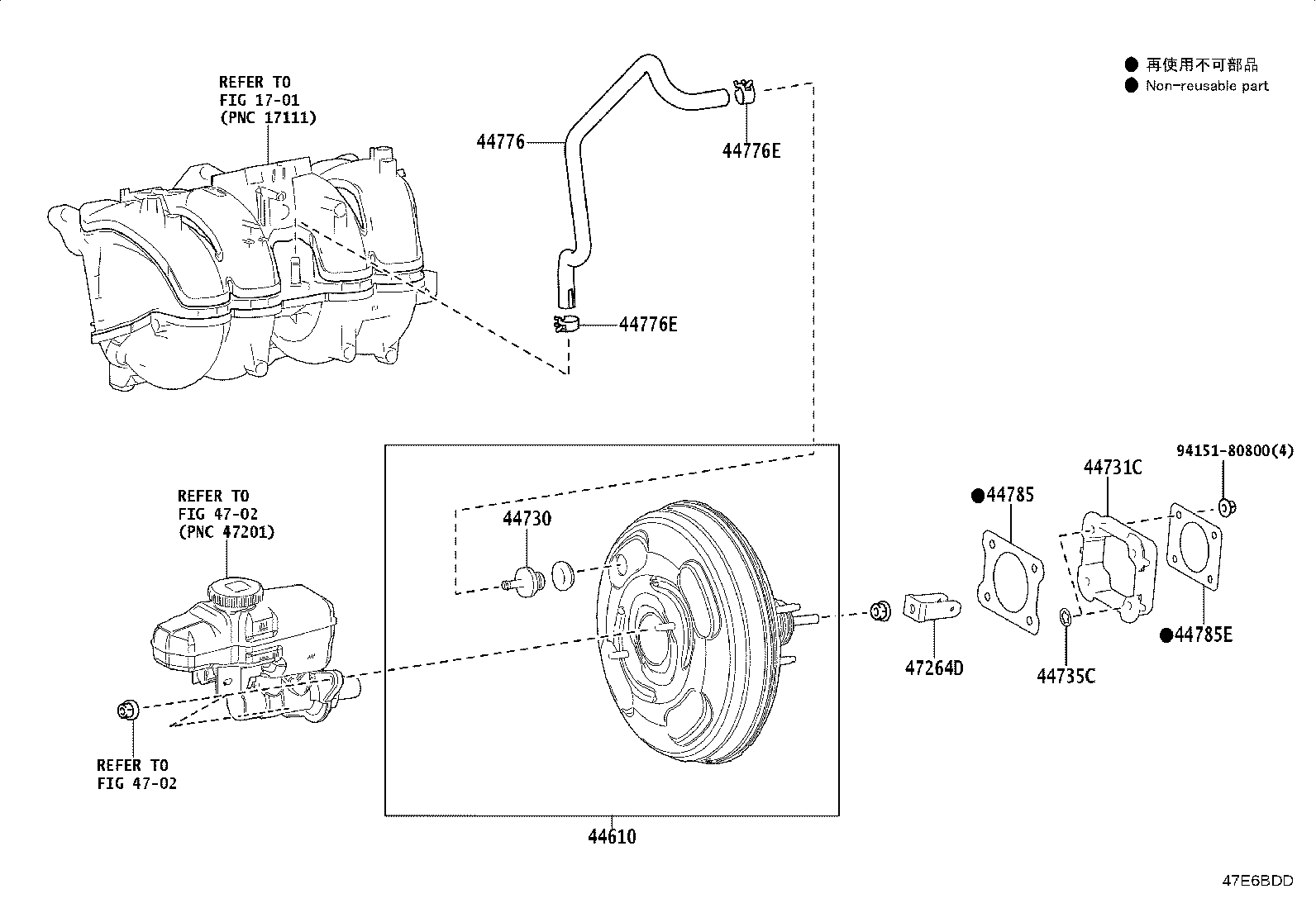

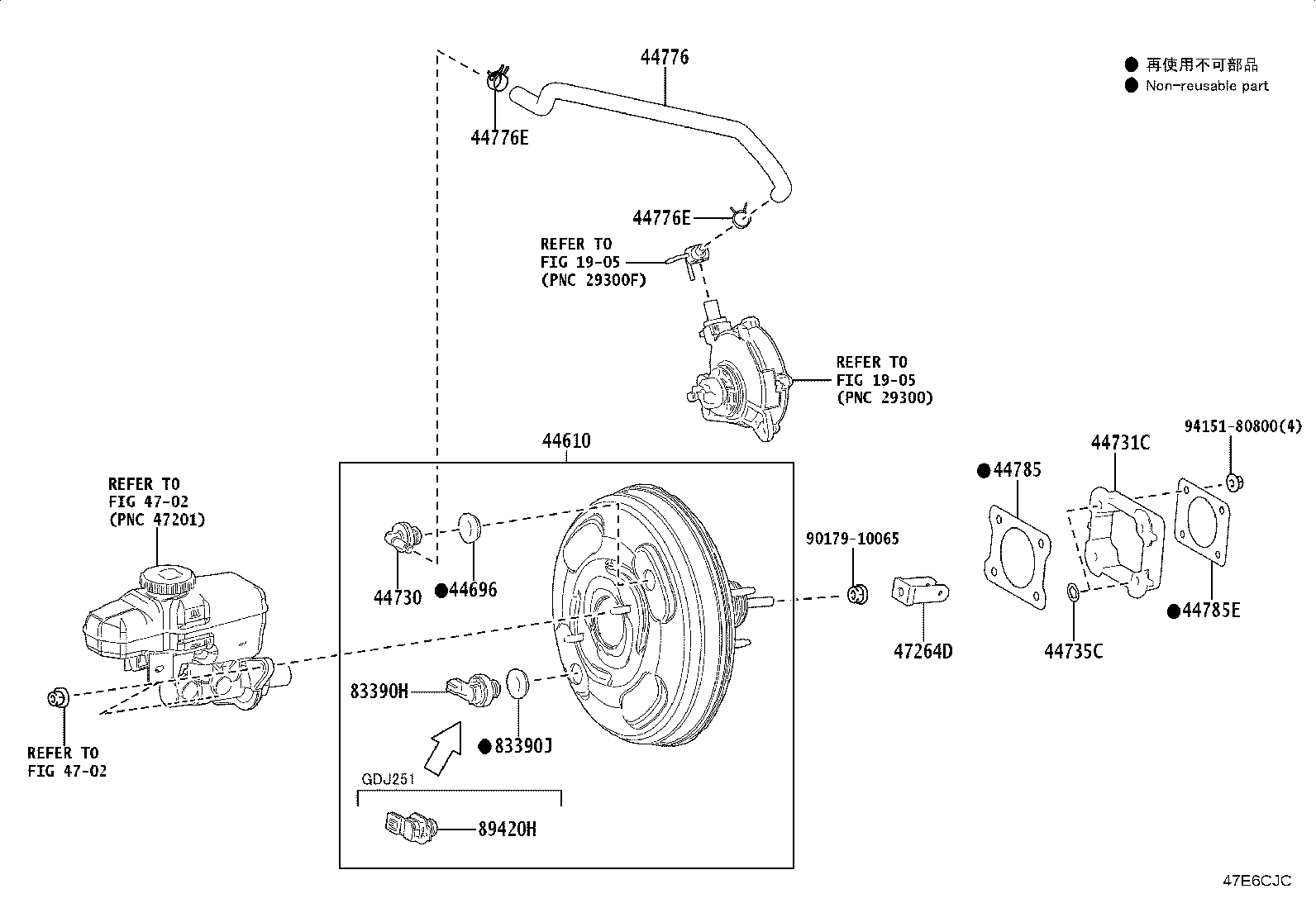

Figure 47E6BCD 47E6BCD 2024-01 → — Figure 47E6CJC 47E6CJC 2024-01 → — Figure 47E6BEC 47E6BEC 2024-01 → — Figure 47E6BDD 47E6BDD 2024-01 → — Figure 47E6LN 47E6LN 2024-01 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730B Clamp, Vacuum Hose
44731C Bracket, Brake Booster
44735C Ring, Booster Bracket Stopper
44763B Tube, Tube Connector TO Tube Connector
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774E Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44776E Clip(FOR BRAKE BOOSTER HOSE)
44779 Hose, Union TO Connector
44779A Clip(FOR UNION TO CONNECTOR HOSE)
44781 Bracket, Hose
44785 Gasket, Brake Booster
44785E Gasket, Brake Booster, NO.2
47264D Clevis, Brake Master Cylinder Push Rod
83390H Switch Assy, Vacuum Warning
83390J Grommet, Vacuum Warning Switch
89420H Sensor Assy, Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
