Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

29 part groups · 5 illustrations

Illustrations

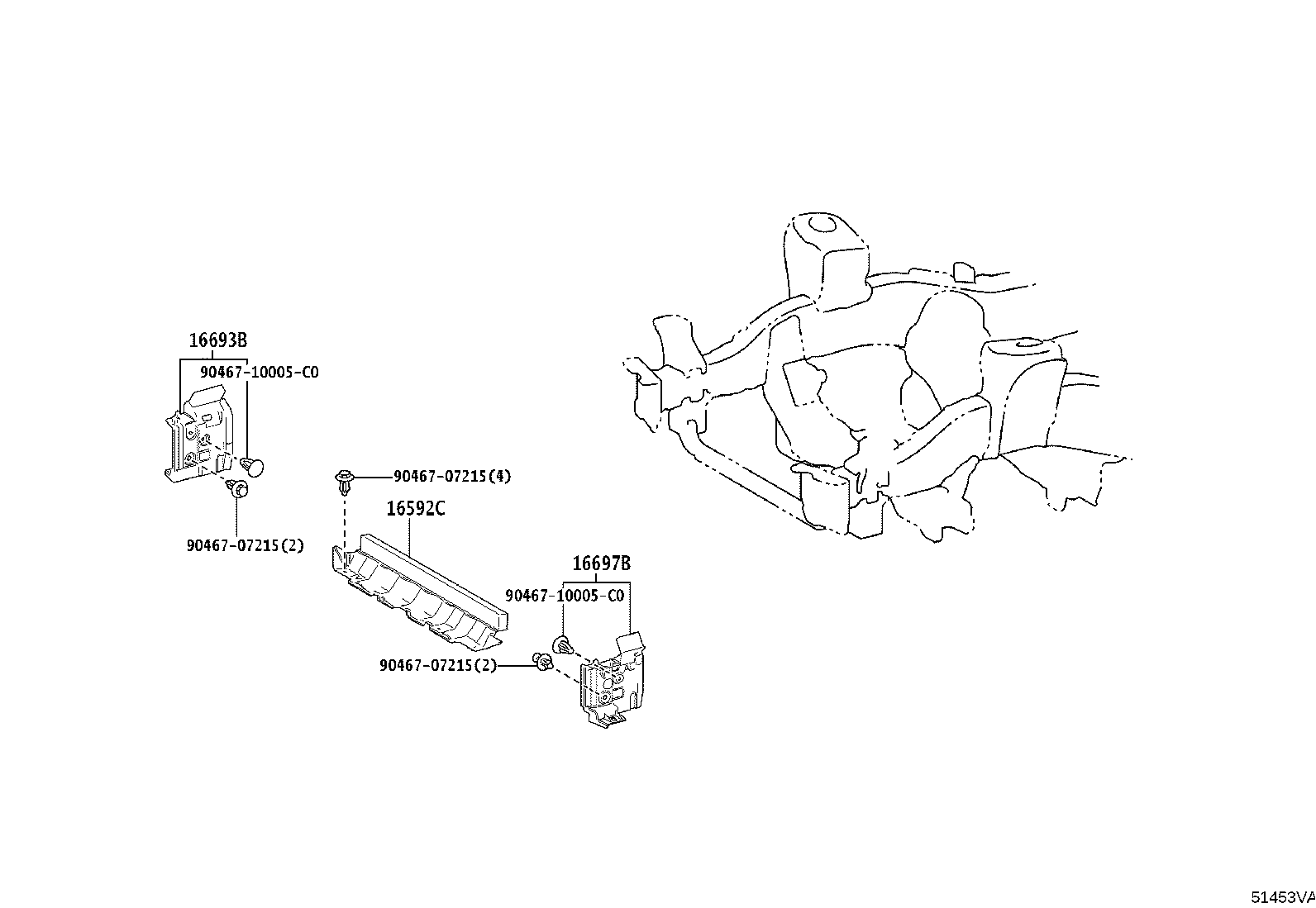

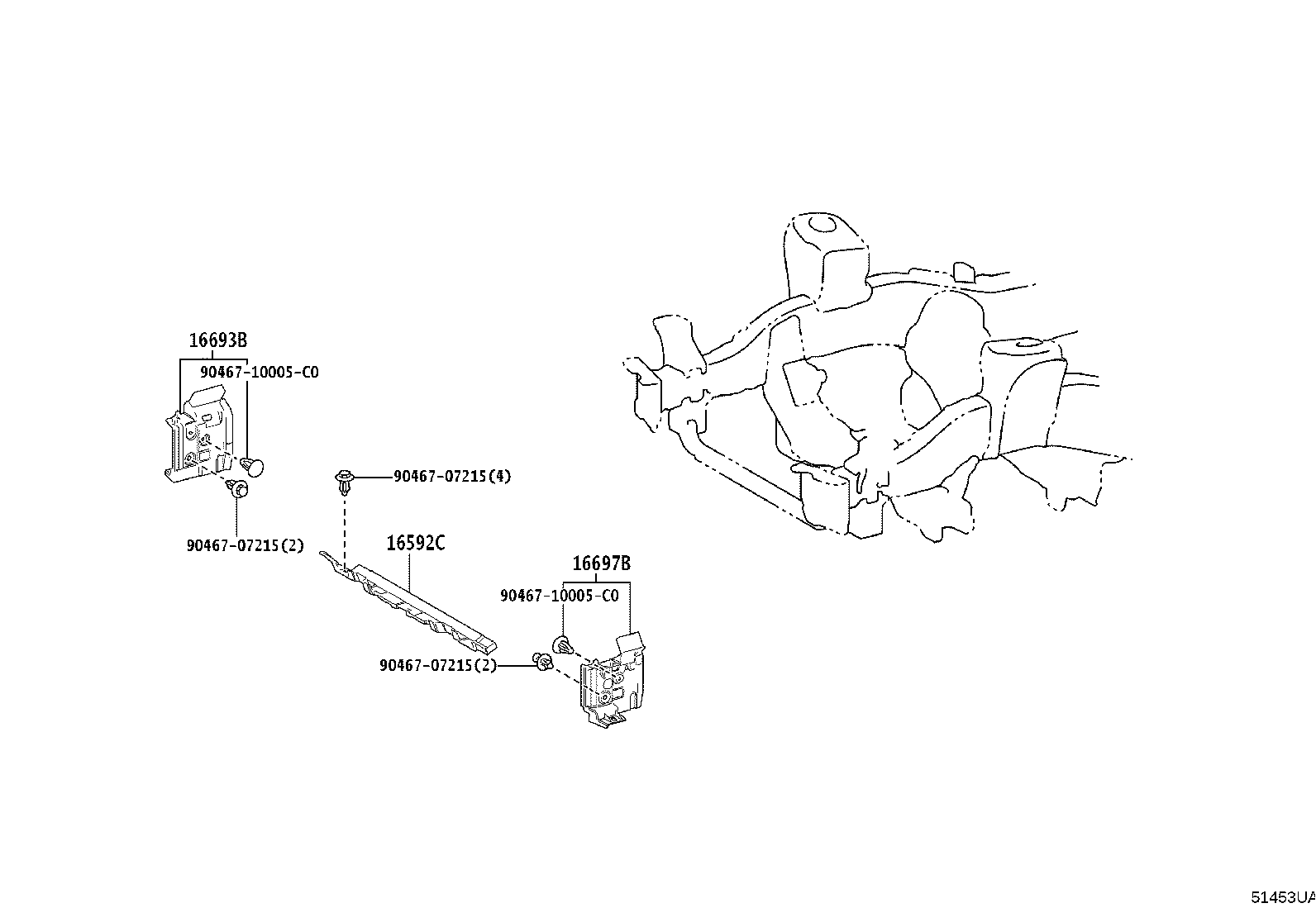

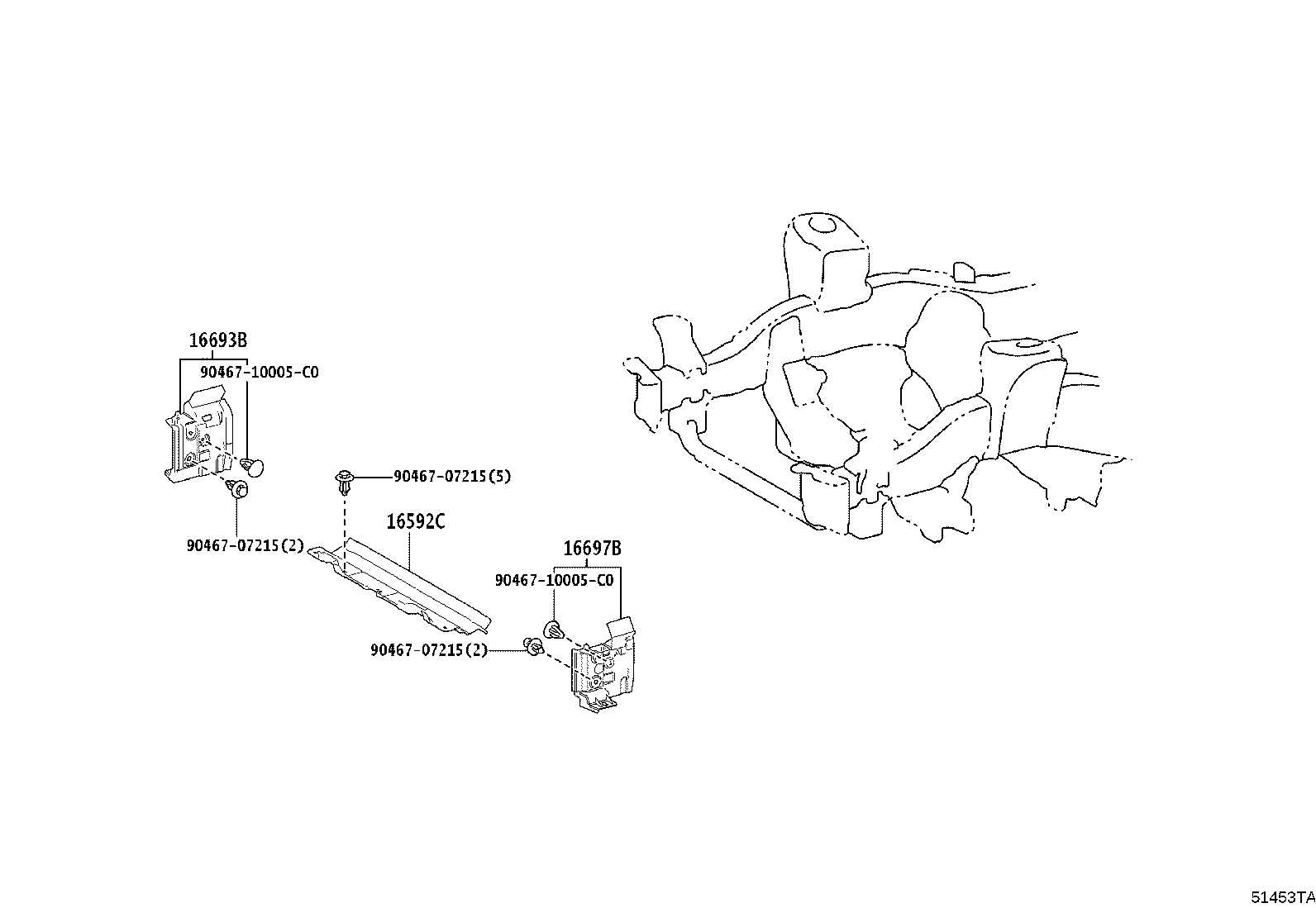

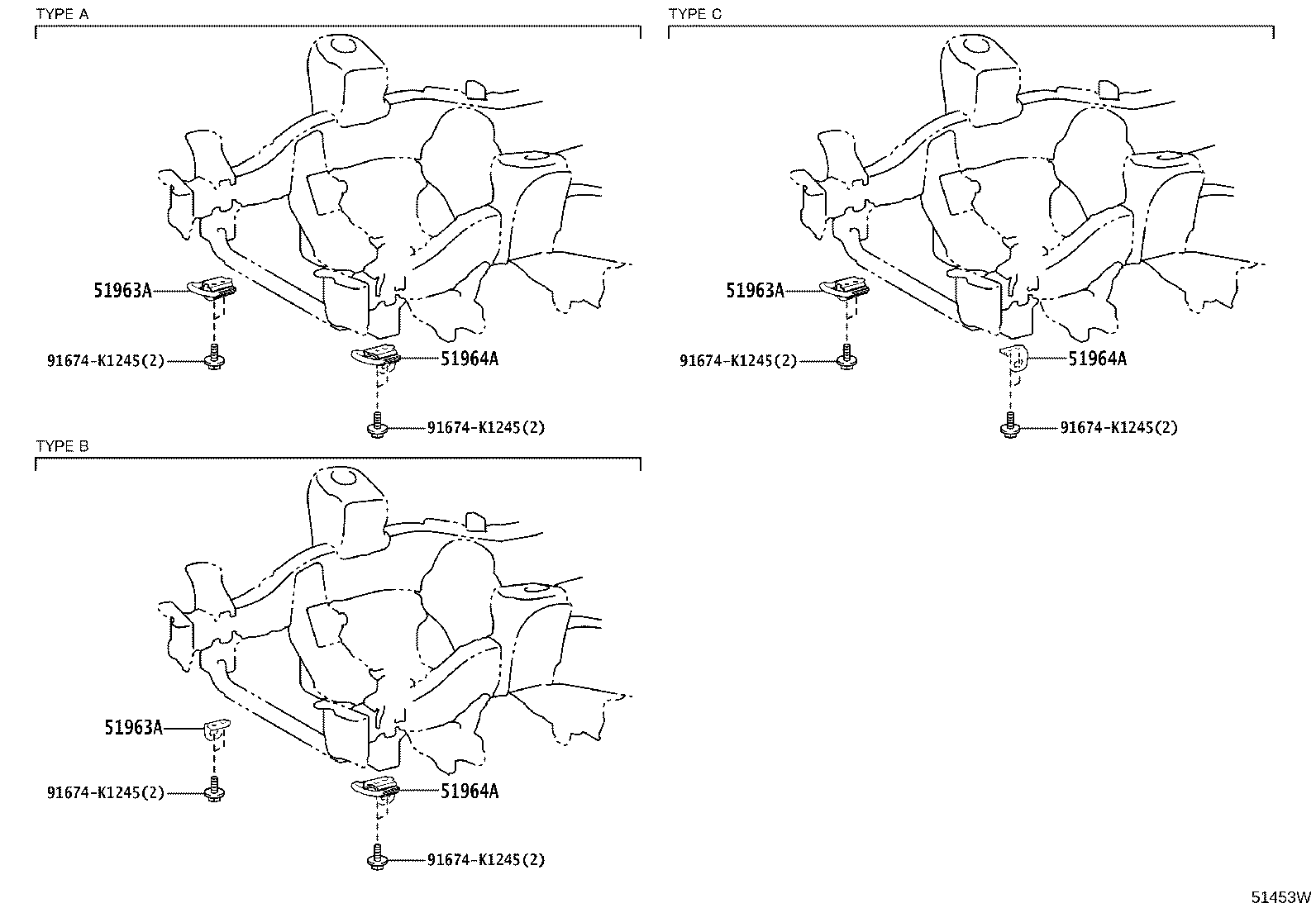

Figure 51453RF 51453RF 2024-01 → — Figure 51453TA 51453TA 2024-01 → — Figure 51453UA 51453UA 2024-01 → — Figure 51453VA 51453VA 2024-01 → — Figure 51453W 51453W 2024-01 → —

Part groups

PNCDescription
16592C Guide, Radiator Air, NO.3
16693B Plate, Radiator Side Air Guide, Rear RH
16697B Plate, Radiator Side Air Guide, Rear LH
48806C Brace Sub-assy, Front Stabilizar, Center
51021B Crossmember Sub-assy, Frame Auxiliary
5103C Plate Sub-assy, Side Rail Extension, RH
5103D Plate Sub-assy, Side Rail Extension, LH
51100F Frame Sub-assy
51110 Extension Assy, Side Rail, RH
51120 Extension Assy, Side Rail, LH
51195 Patch, Rear Frame Rail, RH
51196 Patch, Rear Frame Rail, LH
51209C Crossmember Sub-assy, Frame, Rear
51391 Gusset, Frame Rear Crossmember, RH
51392 Gusset, Frame Rear Crossmember, LH
5159C Insulator, Frame Crossmember Heat
51603A Bracket Sub-assy, Front Bound Stopper, RH
51604 Bracket Sub-assy, Front Bound Stopper, LH
51701 Bracket Sub-assy, Cab Mounting, NO.1 RH
51702 Bracket Sub-assy, Cab Mounting, NO.1 LH
51704A Bracket Sub-assy, Cab Rear Mounting, LH
51705D Bracket Sub-assy, Cab Rear Mounting, RH
51729A Cover, NO.2 Cab Mounting, RH
5172A Cover, NO.2 Cab Mounting, LH
51963A Hook, Transport, Front RH
51964A Hook, Transport, Front LH
51980A Hook Assy, Pintle
51985A Hook, Eyelet Pintle
51987A Bracket, Pintle Hook
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
