Toyota Land Cruiser Prado
2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe
Supported model
Data version 2024-07

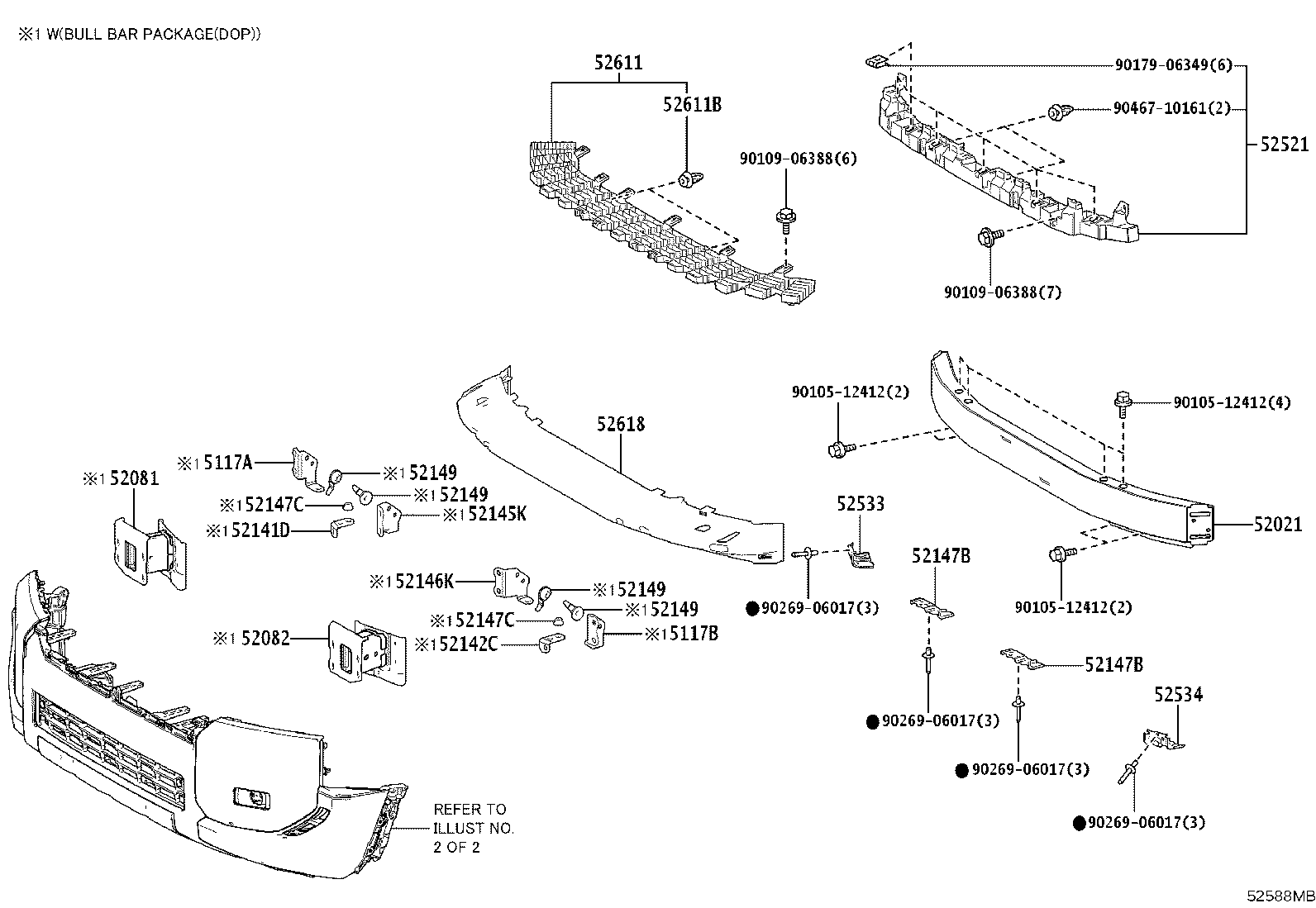

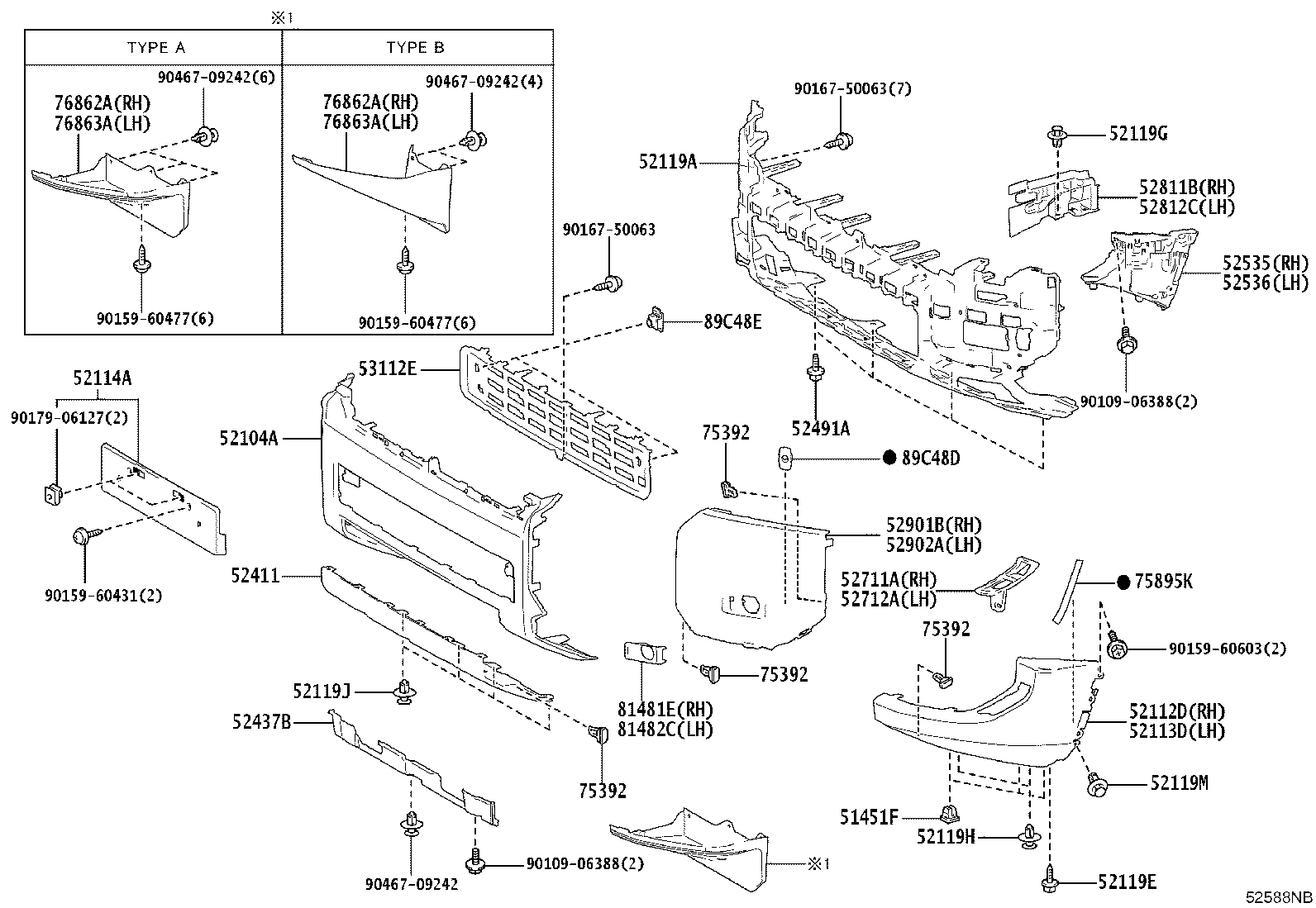

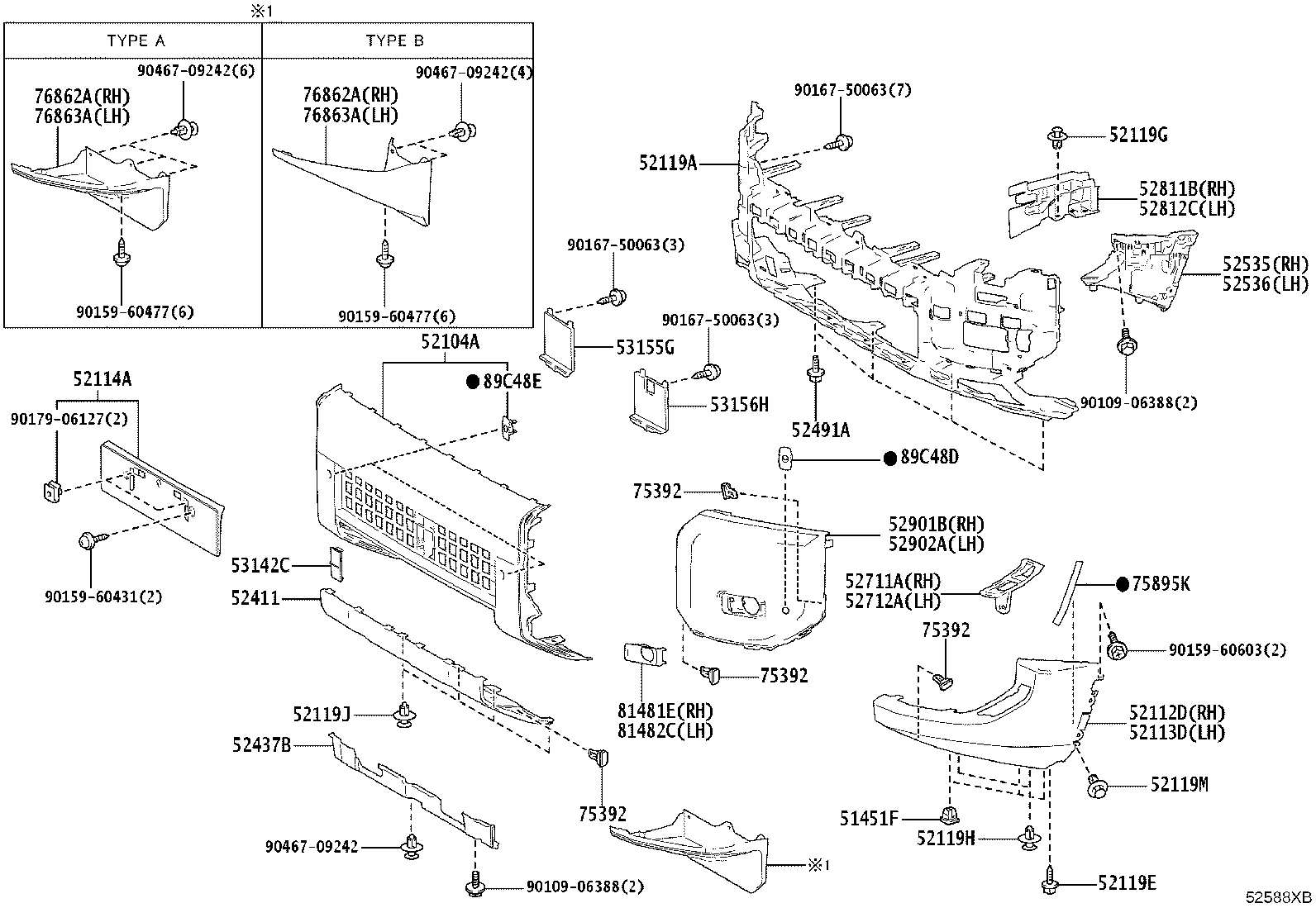

Front Bumper & Bumper Stay
52 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 5117A | Reinforcement, Extension Winch Support, RH |
| 5117B | Reinforcement, Extension Winch Support, LH |
| 51451F | Grommet, NO.1 |
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52081 | Stay Sub-assy, Front Bumper |
| 52082 | Stay Sub-assy, Front Bumper, LH |
| 52104A | Bumper Sub-assy, Front Center |
| 52112D | Extension, Front Bumper, RH |
| 52113D | Extension, Front Bumper, LH |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52119A | Cover, Front Bumper |
| 52119E | Screw, NO.2 |
| 52119G | Clip, NO.1 |
| 52119H | Clip, NO.2 |
| 52119J | Clip, NO.3 |
| 52119M | Clip, NO.4 |
| 52141D | Stay, Front Bumper, RH |
| 52142C | Stay, Front Bumper, LH |
| 52145K | Gusset, Winch Support, RH |
| 52146K | Gusset, Winch Support, LH |
| 52147B | Bracket, Front Bumper Mounting |
| 52147C | Bracket, Bumper Guard Bar, RH |
| 52149 | Bracket, Front Bumper, Inner |
| 52411 | Guard, Front Bumper |
| 52437B | Cover, Front Bumper Guard Base |
| 52491A | Bolt, Bumper Pad |
| 52521 | Retainer, Front Bumper, Upper Center |
| 52533 | Bracket, Front Bumper Retainer, NO.1 |
| 52534 | Bracket, Front Bumper Retainer, NO.2 |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52611 | Absorber, Front Bumper Energy |
| 52611B | Clip, Front Bumper Energy Absorber |
| 52618 | Absorber, Front Bumper, Lower |
| 52711A | Garnish, Front Bumper |
| 52712A | Garnish, Front Bumper, LH |
| 52811B | Duct, Cool Air Intake, NO.1 |
| 52812C | Duct, Cool Air Intake, NO.2 |
| 52901B | Bumper Sub-assy, Side, RH |
| 52902A | Bumper Sub-assy, Side, LH |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53142C | Garnish, Radiator Grille, NO.2 |
| 53155G | Seal, Radiator Grille |
| 53156H | Seal, Radiator Grille, NO.2 |
| 75392 | Retainer, Outside Moulding |
| 75895K | Tape, Moulding, NO.1 |
| 76862A | Bracket, Front Spoiler, RH NO.1 |
| 76863A | Bracket, Front Spoiler, LH NO.1 |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
| 89C48D | Retainer, Ultrasonic Sensor, Front Corner |
| 89C48E | Retainer, Ultrasonic Sensor, Front Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
