Toyota Land Cruiser Prado
2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe
Supported model
Data version 2024-07

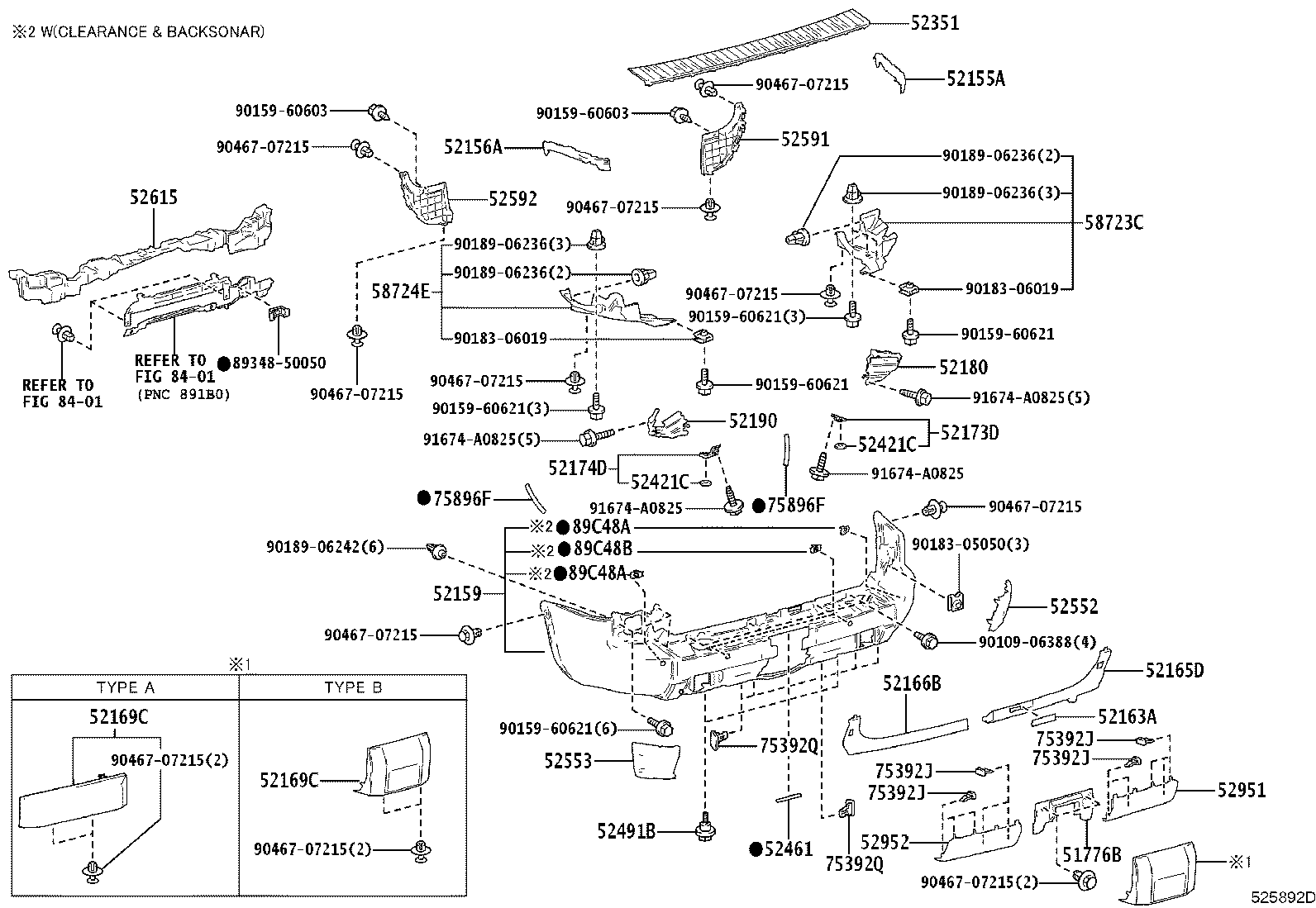

Rear Bumper & Bumper Stay
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51776B | Cover, Rear Step, NO.2 |
| 52155A | Support, Rear Bumper Side, RH |
| 52156A | Support, Rear Bumper Side, LH |
| 52159 | Cover, Rear Bumper |
| 52163A | Plate, Rear Bumper, RH |
| 52165D | Extension, Rear Bumper Corner, RH |
| 52166B | Extension, Rear Bumper Corner, LH |
| 52169C | Cover, Rear Bumper, Lower |
| 52173D | Reinforcement, Rear Bumper Bar, RH |
| 52174D | Reinforcement, Rear Bumper Bar, LH |
| 52180 | Bracket Assy, Rear Bumper Side Mounting, RH |
| 52190 | Bracket Assy, Rear Bumper Side Mounting, LH |
| 52351 | Step, Rear Bumper |
| 52421C | Pad, Rear Bumper |
| 52451 | Guard, Rear Bumper |
| 52461 | Pad, Rear Bumper, Center |
| 52491B | Bolt, Bumper Pad |
| 52552 | Filler, Rear Bumper, RH |
| 52553 | Filler, Rear Bumper, LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 52615 | Absorber, Rear Bumper Energy |
| 52951 | Guard, Side Bumper, RH |
| 52952 | Guard, Side Bumper, LH |
| 58723C | Protector, Luggage Compartment Side Cover, NO.1 |
| 58724E | Protector, Luggage Compartment Side Cover, NO.2 |
| 75392J | Retainer, Outside Moulding |
| 75392Q | Retainer, Outside Moulding, NO.2 |
| 75896F | Tape, Moulding |
| 89C48A | Retainer, Ultrasonic Sensor, Rear Corner |
| 89C48B | Retainer, Ultrasonic Sensor, Rear Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
